Flat Undertray And Wheelhouses

Ferrari 599 GTB Fiorano

Find Your Part

Ferrari 599 GTB Fiorano - FLAT UNDERTRAY AND WHEELHOUSES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
68563900 FRONT SECTION OF FLAT UNDERFLOOR $2,144.50 IN STOCK
82867100 FRONT SECTION OF FLAT UNDERFLOOR $2,357.17 To Order
69864900 FRONT SECTION OF FLAT UNDERFLOOR $2,052.19 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
14507987 PLUG $1.72 IN STOCK
64783600 CAP $5.40 To Order
Photo Part No Description Price (each) Stock
168133 Screw M5 x 20 $0.87 IN STOCK
Photo Part No Description Price (each) Stock
12647724 WASHER $0.14 IN STOCK
Photo Part No Description Price (each) Stock
66252300 Clip for Screw $1.84 IN STOCK
62766300 SCRE CLIP M6 $0.72 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
12641378 WASHER $0.58 IN STOCK
Photo Part No Description Price (each) Stock
68575600 RH FRONT WHEELHOUSE $430.21 To Order
68575700 LH FRONT WHEELHOUSE $297.01 IN STOCK
Photo Part No Description Price (each) Stock
68576200 RH WHEELHOUSE COVER PLATE $202.20 To Order
68576300 LH WHEELHOUSE COVER PLATE $227.49 To Order
Photo Part No Description Price (each) Stock
68575800 Front Gravel Guard RH $372.46 IN STOCK
80200900 FRONT GRAVEL GUARD FOR RH FRONT WHEELHOUSE $453.47 To Order
82367800 FRONT GRAVEL GUARD FOR RH FRONT WHEELHOUSE $360.45 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
68576000 REAR GRAVEL GUARD FOR RH FRONT WHEELHOUSE $279.05 To Order
68576100 REAR GRAVEL GUARD FOR LH FRONT WHEELHOUSE $279.05 To Order
Photo Part No Description Price (each) Stock
68119800 PLATE FOR SCREW $1.27 To Order
Photo Part No Description Price (each) Stock
13274214 SCREW $0.35 To Order
Photo Part No Description Price (each) Stock
12638124 WASHER $0.05 IN STOCK
Photo Part No Description Price (each) Stock
14778914 Screw $0.29 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
62766300 SCRE CLIP M6 $0.72 IN STOCK
Photo Part No Description Price (each) Stock
68564000 REAR SECTION OF FLAT UNDERFLOOR $1,508.96 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
88831000 GRUB SCREW M5 X 40 $0.49 IN STOCK
Photo Part No Description Price (each) Stock
12641378 WASHER $0.58 IN STOCK
1264660112647624 WASHER Enquire To Order
12642078 WASHER $0.84 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
62766300 SCRE CLIP M6 $0.72 IN STOCK
Photo Part No Description Price (each) Stock
67134400 RH WHEEL BAY SHIELD $395.34 To Order
67134500 LH WHEEL BAY SHIELD $395.34 To Order
Photo Part No Description Price (each) Stock
68575400 REAR GRAVEL GUARD FOR RH REAR WHEELHOUSE $302.31 To Order
68575500 REAR GRAVEL GUARD FOR LH REAR WHEELHOUSE $258.25 To Order
Photo Part No Description Price (each) Stock
67134200 RH DOOR $271.60 To Order
Photo Part No Description Price (each) Stock
10977887 SCREW M5 X 16 $0.78 IN STOCK
Photo Part No Description Price (each) Stock
12643778 BLACK WASHER D.6.45-18X1.5 $0.24 IN STOCK
Photo Part No Description Price (each) Stock
13274214 SCREW $0.35 To Order
Photo Part No Description Price (each) Stock
12638124 WASHER $0.05 IN STOCK
Photo Part No Description Price (each) Stock
67106200 RH CAP $95.05 To Order
Photo Part No Description Price (each) Stock
11566224 SCREW $0.34 IN STOCK
Photo Part No Description Price (each) Stock
62769800 WASHER D.5-14 X 2.5 $0.21 IN STOCK
Photo Part No Description Price (each) Stock
62764200 CLIP $0.38 IN STOCK
Photo Part No Description Price (each) Stock
68771400 LH CAP $39.16 To Order
Photo Part No Description Price (each) Stock
169813 SCREW M5 X 12 $0.96 IN STOCK
Photo Part No Description Price (each) Stock
62764200 CLIP $0.38 IN STOCK
Photo Part No Description Price (each) Stock
68781100 RH SILL PLATE $109.94 To Order
Photo Part No Description Price (each) Stock
68781200 LH SILL PLATE $109.94 To Order
Photo Part No Description Price (each) Stock
88831000 GRUB SCREW M5 X 40 $0.49 IN STOCK
Photo Part No Description Price (each) Stock
12601174 WASHER $0.06 To Order
View All

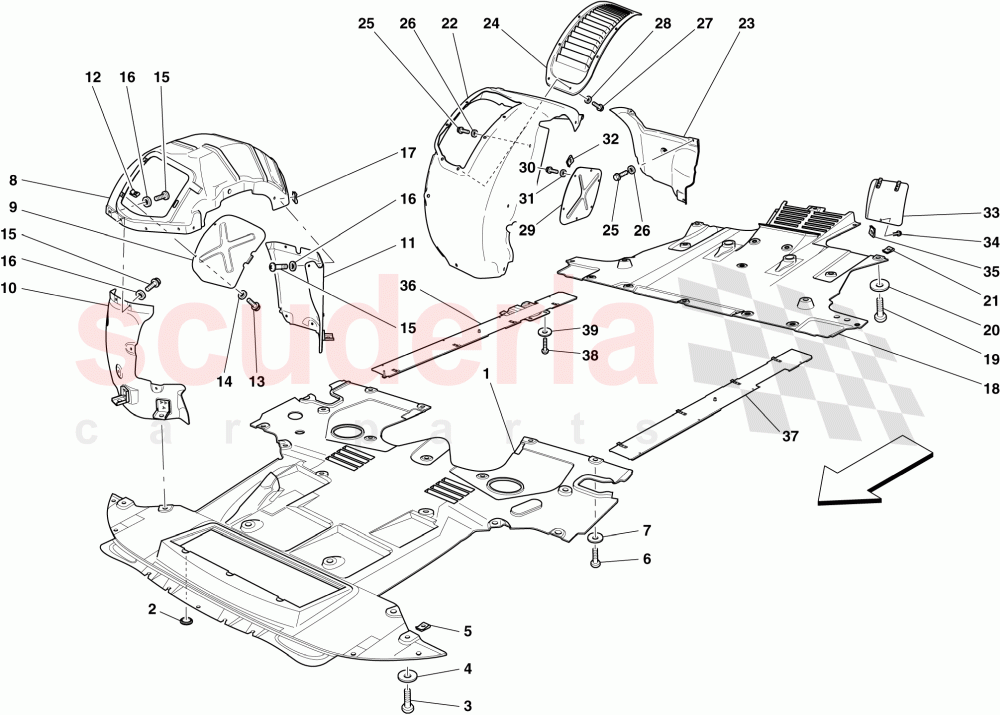

FLAT UNDERTRAY AND WHEELHOUSES of Ferrari Ferrari 599 GTB Fiorano Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 68563900
FRONT SECTION OF FLAT UNDERFLOOR
Not for GD; Applicable up to Ass. No. 87312
IN STOCK 		$2,144.50 (32.5% off) 1
1 82867100
FRONT SECTION OF FLAT UNDERFLOOR
Not for GD; Applicable from Ass. No. 87313 		$2,357.17 1
1 69864900
FRONT SECTION OF FLAT UNDERFLOOR
Applicable for GD; Applicable up to Ass. No. 87312 		$2,052.19 1
1 82867300
FRONT SECTION OF FLAT UNDERFLOOR
Applicable for GD; Applicable from Ass. No. 87313 		$2,357.17 1
2 14507987
PLUG
IN STOCK 		$1.72 (29.8% off) 3
2 64783600
CAP 		$5.40 (16.9% off) 1
3 168133
Screw M5 x 20
IN STOCK 		$0.87 (30.4% off) 8
4 12647724
WASHER
IN STOCK 		$0.14 8
5 66252300
Clip for Screw
No longer supplied; Replaced by 14189071
IN STOCK 		$1.84 (24.9% off) 4
5 62766300
SCRE CLIP M6
IN STOCK 		$0.72 (4% off) 4
6 11197774
WASHER
IN STOCK 		$0.06 (80% off) 21
7 12641378
WASHER
IN STOCK 		$0.58 (3.3% off) 21
8 68575600
RH FRONT WHEELHOUSE 		$430.21 1
8 68575700
LH FRONT WHEELHOUSE
IN STOCK 		$297.01 1
9 68576200
RH WHEELHOUSE COVER PLATE 		$202.20 1
9 68576300
LH WHEELHOUSE COVER PLATE 		$227.49 1
10 68575800
Front Gravel Guard RH
Not for AUS
IN STOCK 		$372.46 (22.4% off) 1
10 80200900
FRONT GRAVEL GUARD FOR RH FRONT WHEELHOUSE
Applicable for AUS 		$453.47 1
10 82367800
FRONT GRAVEL GUARD FOR RH FRONT WHEELHOUSE
Applicable for HGTE version; Not for AUS 		$360.45 1
10 80200900
FRONT GRAVEL GUARD FOR RH FRONT WHEELHOUSE
Applicable for HGTE version; Applicable for AUS 		$453.47 1
10 68575900
Front Gravel Guard LH
Not for AUS
IN STOCK 		$372.46 (22.4% off) 1
10 80201000
FRONT GRAVEL GUARD FOR LH FRONT WHEELHOUSE
Applicable for AUS 		$453.47 1
10 82368000
FRONT GRAVEL GUARD FOR LH FRONT WHEELHOUSE
Applicable for HGTE version; Not for AUS 		$360.45 1
10 80201000
FRONT GRAVEL GUARD FOR LH FRONT WHEELHOUSE
Applicable for HGTE version; Applicable for AUS 		$453.47 1
11 68576000
REAR GRAVEL GUARD FOR RH FRONT WHEELHOUSE 		$279.05 1
11 68576100
REAR GRAVEL GUARD FOR LH FRONT WHEELHOUSE 		$279.05 1
12 68119800
PLATE FOR SCREW 		$1.27 4
13 13274214
SCREW 		$0.35 4
14 12638124
WASHER
IN STOCK 		$0.05 (92.9% off) 4
15 14778914
Screw
IN STOCK 		$0.29 (71% off) 32
16 12643724
WASHER
IN STOCK 		$0.06 (88% off) 32
17 62766300
SCRE CLIP M6
IN STOCK 		$0.72 (4% off) 6
18 68564000
REAR SECTION OF FLAT UNDERFLOOR 		$1,508.96 1
19 11197774
WASHER
IN STOCK 		$0.06 (80% off) 19
19 88831000
GRUB SCREW M5 X 40
IN STOCK 		$0.49 2
20 12641378
WASHER
IN STOCK 		$0.58 (3.3% off) 16
20 1264660112647624
WASHER
D. 6.45-16 X 2 		- 2 Enquire
20 12642078
WASHER
D. 8.45-25 X 1.5 		$0.84 2
20 10523107
WASHER 		$2.53 1
21 62766300
SCRE CLIP M6
IN STOCK 		$0.72 (4% off) 2
22 67134400
RH WHEEL BAY SHIELD 		$395.34 1
22 67134500
LH WHEEL BAY SHIELD 		$395.34 1
23 68575400
REAR GRAVEL GUARD FOR RH REAR WHEELHOUSE 		$302.31 1
23 68575500
REAR GRAVEL GUARD FOR LH REAR WHEELHOUSE 		$258.25 1
24 67134200
RH DOOR 		$271.60 1
25 10977887
SCREW M5 X 16
Version in leather
IN STOCK 		$0.78 (54.1% off) 22
26 12643778
BLACK WASHER D.6.45-18X1.5
IN STOCK 		$0.24 (52% off) 22
27 13274214
SCREW 		$0.35 2
28 12638124
WASHER
IN STOCK 		$0.05 (92.9% off) 2
29 67106200
RH CAP 		$95.05 1
30 11566224
SCREW
IN STOCK 		$0.34 5
31 62769800
WASHER D.5-14 X 2.5
IN STOCK 		$0.21 (30% off) 5
32 62764200
CLIP
IN STOCK 		$0.38 (49.3% off) 5
33 68771400
LH CAP 		$39.16 1
34 169813
SCREW M5 X 12
IN STOCK 		$0.96 1
35 62764200
CLIP
IN STOCK 		$0.38 (49.3% off) 1
36 68781100
RH SILL PLATE 		$109.94 1
37 68781200
LH SILL PLATE 		$109.94 1
38 88831000
GRUB SCREW M5 X 40
IN STOCK 		$0.49 6
39 12601174
WASHER 		$0.06 (82.9% off) 6
