Lay Shaft Gears

Ferrari 575M Maranello

Find Your Part

Ferrari 575M Maranello - LAY SHAFT GEARS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
144498 SECONDARY SHAFT BEARING, DIFFERENTIAL SIDE $264.15 To Order
144498 SECONDARY SHAFT BEARING, DIFFERENTIAL SIDE $264.15 To Order
Photo Part No Description Price (each) Stock
228054 ROLLER BEARING $182.87 IN STOCK
Photo Part No Description Price (each) Stock
144511 STOP RING $0.67 To Order
Photo Part No Description Price (each) Stock
163684 RING NUT $17.78 To Order
Photo Part No Description Price (each) Stock
228055 ROLLER BEARING $152.37 To Order
Photo Part No Description Price (each) Stock
143924 RING $61.60 To Order
Photo Part No Description Price (each) Stock
189460 BUSHING $190.19 To Order
Photo Part No Description Price (each) Stock
189462 ROLLER BEARING $182.87 To Order
Photo Part No Description Price (each) Stock
189459 SHIM $48.90 To Order
Photo Part No Description Price (each) Stock
207262 COMPLETE BEVEL GEAR PAIR R.11/43 $1,912.00 To Order
207262 COMPLETE BEVEL GEAR PAIR R.11/43 $1,912.00 To Order
Photo Part No Description Price (each) Stock
189522 REVERSE SPEED SYNCHRONISER $489.10 To Order
Photo Part No Description Price (each) Stock
189525 BUSHING $111.39 To Order
Photo Part No Description Price (each) Stock
155722 SHIM $22.24 To Order
Photo Part No Description Price (each) Stock
16321430 SCREW $0.90 To Order
Photo Part No Description Price (each) Stock
240521 COMPLETE 1st AND 2nd SPEED SYNCHRONISER $1,411.62 To Order
Photo Part No Description Price (each) Stock
184991 PAD FOR SYNCHRONIZER Enquire To Order
Photo Part No Description Price (each) Stock
184997 BALL Enquire To Order
Photo Part No Description Price (each) Stock
195991 PAD FOR SYNCHRONIZER/BALL/ Enquire To Order
Photo Part No Description Price (each) Stock
150004 ROLLER BEARING CAGE $19.28 To Order
Photo Part No Description Price (each) Stock
189524 REVERSE GEAR $2,324.63 To Order
210497 REVERSE GEAR $842.34 To Order
Photo Part No Description Price (each) Stock
189747 RING NUT $93.13 To Order
Photo Part No Description Price (each) Stock
207261 3rd SPEED GEAR $638.55 To Order
Photo Part No Description Price (each) Stock
189590 BUSHING $212.26 To Order
Photo Part No Description Price (each) Stock
189580 ROLLER BEARING CAGE $26.40 To Order
Photo Part No Description Price (each) Stock
189589 2nd SPEED GEAR $2,089.37 To Order
Photo Part No Description Price (each) Stock
189579 BUSHING $351.43 To Order
Photo Part No Description Price (each) Stock
189588 COMPLETE 1st SPEED GEAR $2,106.05 To Order
Photo Part No Description Price (each) Stock
189580 ROLLER BEARING CAGE $26.40 To Order
Photo Part No Description Price (each) Stock
189703 6th SPEED GEAR $407.58 To Order
Photo Part No Description Price (each) Stock
189702 SHIM $44.49 To Order
Photo Part No Description Price (each) Stock
189670 5th SPEED GEAR $421.16 To Order
Photo Part No Description Price (each) Stock
189668 4th SPEED GEAR $434.75 To Order
Photo Part No Description Price (each) Stock
163684 RING NUT $17.78 To Order
Photo Part No Description Price (each) Stock
189701 SHIM $44.49 To Order
Photo Part No Description Price (each) Stock
195991 PAD FOR SYNCHRONIZER/BALL/ Enquire To Order
View All

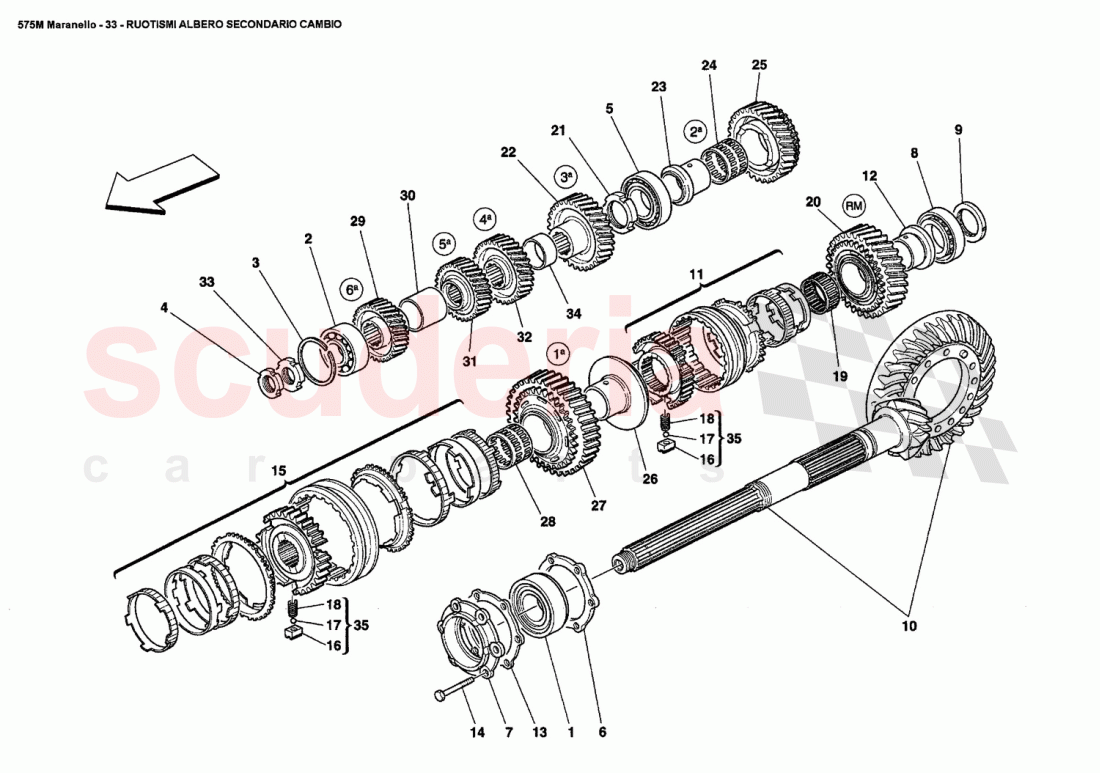

LAY SHAFT GEARS of Ferrari Ferrari 575M Maranello Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 144498
SECONDARY SHAFT BEARING, DIFFERENTIAL SIDE 		$264.15 1
1 144498
SECONDARY SHAFT BEARING, DIFFERENTIAL SIDE
DIFFERENTIAL SIDE 		$264.15 1
2 228054
ROLLER BEARING
IN STOCK 		$182.87 1
3 144511
STOP RING 		$0.67 1
4 163684
RING NUT 		$17.78 1
5 228055
ROLLER BEARING 		$152.37 (18.6% off) 1
6 143924
RING 		$61.60 1
7 189460
BUSHING 		$190.19 1
8 189462
ROLLER BEARING 		$182.87 1
9 189459
SHIM 		$48.90 1
10 207262
COMPLETE BEVEL GEAR PAIR R.11/43
Valid from engine Nr. 82253 (gearbox Nr. 1744) / 		$1,912.00 1
10 207262
COMPLETE BEVEL GEAR PAIR R.11/43
R. 11/43 / Valid till engine Nr. 82252 / Valid till stock exhaustion 		$1,912.00 1
11 189522
REVERSE SPEED SYNCHRONISER
SYNCHRONIZER 		$489.10 1
12 189525
BUSHING 		$111.39 1
13 155722
SHIM 		$22.24 1
14 16321430
SCREW 		$0.90 6
15 240521
COMPLETE 1st AND 2nd SPEED SYNCHRONISER 		$1,411.62 1
16 184991
PAD FOR SYNCHRONIZER
Not as spare part / Replaced by 194029 / See ref. 35 		- 6 Enquire
17 184997
BALL 		- 6 Enquire
18 195991
PAD FOR SYNCHRONIZER/BALL/ 		- 6 Enquire
19 150004
ROLLER BEARING CAGE 		$19.28 1
20 189524
REVERSE GEAR
Valid till engine Nr. 92428 		$2,324.63 1
20 210497
REVERSE GEAR
Valid from engine Nr. 92429 (gearbox Nr. 1) 		$842.34 1
21 189747
RING NUT 		$93.13 1
22 207261
3rd SPEED GEAR 		$638.55 1
23 189590
BUSHING 		$212.26 1
24 189580
ROLLER BEARING CAGE 		$26.40 1
25 189589
2nd SPEED GEAR 		$2,089.37 1
26 189579
BUSHING 		$351.43 1
27 189588
COMPLETE 1st SPEED GEAR 		$2,106.05 1
28 189580
ROLLER BEARING CAGE 		$26.40 1
29 189703
6th SPEED GEAR 		$407.58 1
30 189702
SHIM 		$44.49 1
31 189670
5th SPEED GEAR 		$421.16 1
32 189668
4th SPEED GEAR 		$434.75 1
33 163684
RING NUT 		$17.78 1
34 189701
SHIM 		$44.49 1
35 195991
PAD FOR SYNCHRONIZER/BALL/
SPRING REPLACEMENT KIT 		- 2 Enquire
