Name: DRIVING SHAFT - CONNECTING RODS AND PISTONS
Rating: 4.3 (1 reviews)

DRIVING SHAFT - CONNECTING RODS AND PISTONS of Ferrari Ferrari 575M Maranello

View All

Ferrari 575M Maranello - DRIVING SHAFT - CONNECTING RODS AND PISTONS

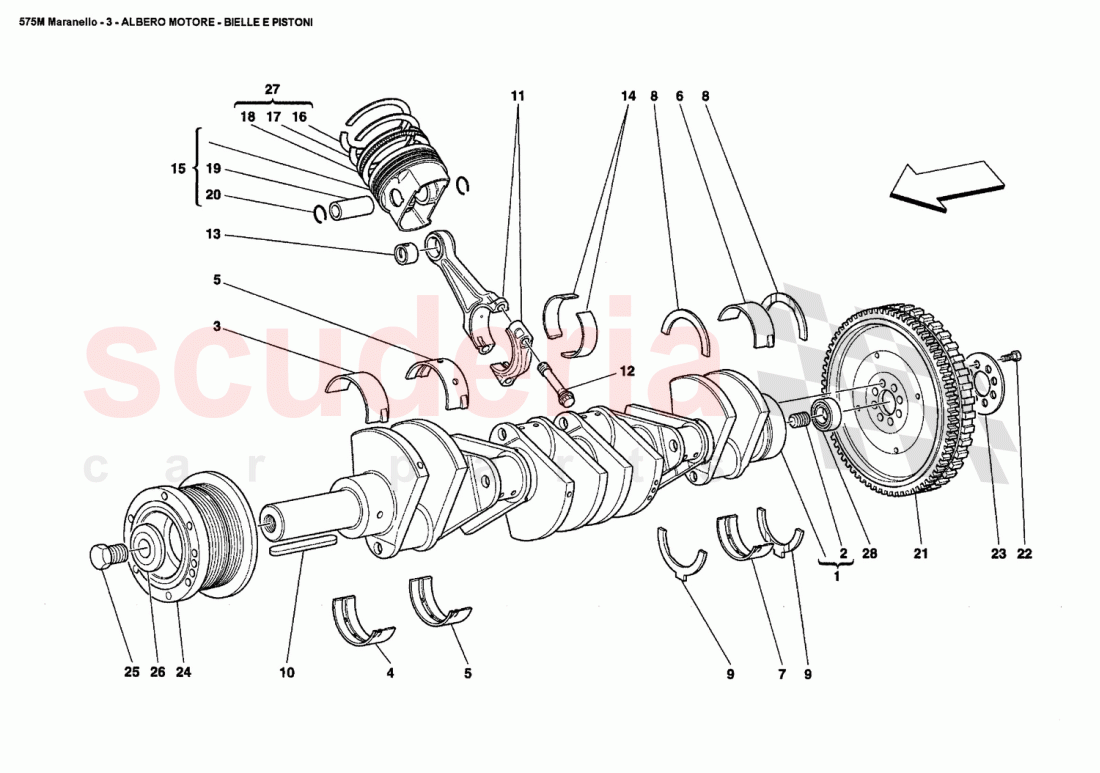

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	182735	CRANKSHAFT	$3,541.01	To Order
	182735	CRANKSHAFT	$3,541.01	To Order

Photo	Part No	Description	Price (each)	Stock
	176396	THREADED PLUG	$5.38	To Order

Photo	Part No	Description	Price (each)	Stock
	173485	COMPLETE HALF-BEARING SET	$1,980.04	To Order
	173486	COMPLETE HALF-BEARING SET	$1,980.04	To Order
	194251	COMPLETE HALF-BEARING SET	$555.70	To Order

Photo	Part No	Description	Price (each)	Stock
	164113	UPPER SHIM RING	Enquire	To Order
	164111	UPPER SHIM RING	$131.56	To Order
	164112	UPPER SHIM RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	164108	LOWER SHIM RING	$131.56	To Order
	164109	LOWER SHIM RING	Enquire	To Order
	164110	LOWER SHIM RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	144876	TAB	$5.58	To Order

Photo	Part No	Description	Price (each)	Stock
	184426	COMPL. CONNECTING ROD AND CAP	$307.59	To Order

Photo	Part No	Description	Price (each)	Stock
	177159	CON. ROD FASTENER SCREW	$38.04	To Order

Photo	Part No	Description	Price (each)	Stock
	184909	BUSHING	$40.55	To Order

Photo	Part No	Description	Price (each)	Stock
	173550	CONNECTING ROD HALF-BEARING	$17.74	To Order

Photo	Part No	Description	Price (each)	Stock
	223174	PISTON COMPLETE WITH PISTON RINGS	$1,420.09	To Order

Photo	Part No	Description	Price (each)	Stock
	180445	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180446	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180447	OIL SCRAPER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154717	GUDGEON PIN	$32.49	To Order

Photo	Part No	Description	Price (each)	Stock
	178890	STOP RING	$2.87	To Order
	178890	STOP RING	$2.87	To Order

Photo	Part No	Description	Price (each)	Stock
	193051	Flywheel	$1,392.69	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	201755	Bolt Hex Head M10 x 1.25	$1.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	215963	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	168565	Torsion Damper	$2,397.85	To Order

Photo	Part No	Description	Price (each)	Stock
	140925	SCREW	$118.34	To Order

Photo	Part No	Description	Price (each)	Stock
	140922	WASHER	$5.55	To Order

Photo	Part No	Description	Price (each)	Stock
	194252	COMPLETE PISTON RING SET	$188.52	To Order

Photo	Part No	Description	Price (each)	Stock
	103877	BEARING	$31.39	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	182735	CRANKSHAFT	182735 CRANKSHAFT / / / / / /	$3,541.01	1
1	182735	CRANKSHAFT	182735 CRANKSHAFT	$3,541.01	1
2	176396	THREADED PLUG	176396 THREADED PLUG	$5.38	1
3	173485	COMPLETE HALF-BEARING SET	173485 COMPLETE HALF-BEARING SET 1 st UNDERSIZE mm. 0,254	$1,980.04	1
3	173486	COMPLETE HALF-BEARING SET	173486 COMPLETE HALF-BEARING SET 2 nd UNDERSIZE mm. 0,508	$1,980.04	1
3	194251	COMPLETE HALF-BEARING SET	194251 COMPLETE HALF-BEARING SET NOMINAL / Red	$555.70 MSRP: ~~1,145.00~~ (51.5% off)	1
8	164113	UPPER SHIM RING	164113 UPPER SHIM RING 2 nd OVERSIZE mm. 0,254	-	2	Enquire
8	164111	UPPER SHIM RING	164111 UPPER SHIM RING Not as spare part / With the half-bearings complete series	$131.56 MSRP: ~~198.22~~ (33.6% off)	2
8	164112	UPPER SHIM RING	164112 UPPER SHIM RING 1 st OVERSIZE mm. 0,127	-	2	Enquire
9	164108	LOWER SHIM RING	164108 LOWER SHIM RING	$131.56 MSRP: ~~198.22~~ (33.6% off)	2
9	164109	LOWER SHIM RING	164109 LOWER SHIM RING	-	2	Enquire
9	164110	LOWER SHIM RING	164110 LOWER SHIM RING 2 nd OVERSIZE mm. 0,254--Not as spare part	-	2	Enquire
10	144876	TAB	144876 TAB	$5.58	1
11	184426	COMPL. CONNECTING ROD AND CAP	184426 COMPL. CONNECTING ROD AND CAP AND CAP	$307.59	12
12	177159	CON. ROD FASTENER SCREW	177159 CON. ROD FASTENER SCREW TIGHTENING SCREW	$38.04	24
13	184909	BUSHING	184909 BUSHING	$40.55	12
14	173550	CONNECTING ROD HALF-BEARING	173550 CONNECTING ROD HALF-BEARING	$17.74 MSRP: ~~19.35~~ (8.3% off)	24
15	223174	PISTON COMPLETE WITH PISTON RINGS	223174 PISTON COMPLETE WITH PISTON RINGS	$1,420.09	12
16	180445	SEAL RING	180445 SEAL RING 1st groove / With complete series 194252	-	12	Enquire
17	180446	SEAL RING	180446 SEAL RING 2nd groove	-	12	Enquire
18	180447	OIL SCRAPER RING	180447 OIL SCRAPER RING 3rd groove	-	12	Enquire
19	154717	GUDGEON PIN	154717 GUDGEON PIN	$32.49 MSRP: ~~46.84~~ (30.6% off)	12
20	178890	STOP RING	178890 STOP RING	$2.87	24
20	178890	STOP RING	178890 STOP RING	$2.87	24
21	193051	Flywheel ARRIVING SOON	193051 Flywheel ARRIVING SOON	$1,392.69 MSRP: ~~1,601.45~~ (13% off)	1
22	201755	Bolt Hex Head M10 x 1.25 IN STOCK	201755 Bolt Hex Head M10 x 1.25 IN STOCK	$1.06 MSRP: ~~1.95~~ (45.6% off)	8
23	215963	WASHER	215963 WASHER	-	1	Enquire
24	168565	Torsion Damper	168565 Torsion Damper	$2,397.85 MSRP: ~~3,753.93~~ (36.1% off)	1
25	140925	SCREW	140925 SCREW	$118.34	1
26	140922	WASHER	140922 WASHER	$5.55	1
27	194252	COMPLETE PISTON RING SET	194252 COMPLETE PISTON RING SET	$188.52	12
28	103877	BEARING IN STOCK	103877 BEARING IN STOCK	$31.39	1

Driving Shaft - Connecting Rods And Pistons

Ferrari 575M Maranello

Ferrari 575M Maranello - DRIVING SHAFT - CONNECTING RODS AND PISTONS
