Ferrari 575M Maranello - PNEUMATICS ACTUATOR SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
168038 DEPRESSION ACCUMULATION $605.91 To Order
168038 DEPRESSION ACCUMULATION $605.91 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.33 ARRIVING SOON
Photo Part No Description Price (each) Stock
12646604 WASHER $0.22 IN STOCK
Photo Part No Description Price (each) Stock
159541 UNION-R.H. VALVE CONNECTING PIPE $5.38 To Order
Photo Part No Description Price (each) Stock
161816257691 THREE-WAY UNION Enquire To Order
Photo Part No Description Price (each) Stock
188746 PIPE FROM UNION TO SOLENOID VALVE $25.55 To Order
168432 RUBBER PIPE FROM UNION TO SOLENOID VALVE $24.17 To Order
Photo Part No Description Price (each) Stock
121830 PIPE FROM UNION TO UNION FOR SOLENOID VALVE $7.34 To Order
126342 RUBBER HOSE FROM UNION TO AIR CAPACITY UNION $2.76 To Order
Photo Part No Description Price (each) Stock
161816257691 THREE-WAY UNION Enquire To Order
Photo Part No Description Price (each) Stock
121828 RUBBER PIPE $4.87 To Order
Photo Part No Description Price (each) Stock
315769 ON/OFF SOLENOID VALVE $53.27 ARRIVING SOON
Photo Part No Description Price (each) Stock
14304124 SCREW $0.14 To Order
Photo Part No Description Price (each) Stock
12601174 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
253896 NON-RETURN VALVE Enquire To Order
Photo Part No Description Price (each) Stock
126342 RUBBER HOSE FROM UNION TO AIR CAPACITY UNION $2.76 To Order
169700 COMPL. BREATHER PIPE $24.48 To Order
Photo Part No Description Price (each) Stock
111023 RUBBER PIPE FROM LH VALVE TO UNION $91.51 To Order
Photo Part No Description Price (each) Stock
13432870 COLLAR FOR HOSE UNION $11.71 IN STOCK
Photo Part No Description Price (each) Stock
193186 CHECK VALVE $30.53 To Order
Photo Part No Description Price (each) Stock
193184 RUBBER HOSE $20.61 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.42 IN STOCK
Photo Part No Description Price (each) Stock
100881 3 way union $5.00 To Order
Photo Part No Description Price (each) Stock
127213 RUBBER PIPE $16.74 To Order
Photo Part No Description Price (each) Stock
302220611 L.H. RUBBER HOSE Enquire To Order
Photo Part No Description Price (each) Stock
193185 RUBBER HOSE FROM UNION TO BRAKE BOOSTER $60.58 To Order
177947 RUBBER HOSE TO BRAKE BOOSTER $96.66 To Order
Photo Part No Description Price (each) Stock
232649 CLIP $1.08 IN STOCK
Photo Part No Description Price (each) Stock
161816257691 THREE-WAY UNION Enquire To Order
Photo Part No Description Price (each) Stock
314698 OIL BREATHER PIPE $4.77 To Order
Photo Part No Description Price (each) Stock
315769 ON/OFF SOLENOID VALVE $53.27 ARRIVING SOON
Photo Part No Description Price (each) Stock
147126 Rubber pipe from solenoid valve $86.99 To Order
188745 R.H. RUBBER HOSE $105.60 To Order
Photo Part No Description Price (each) Stock
14304124 SCREW $0.14 To Order
Photo Part No Description Price (each) Stock
12601174 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
13432070 HOSE COLLAR $0.49 IN STOCK
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH $0.54 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.33 ARRIVING SOON
Photo Part No Description Price (each) Stock
10519424 WASHER D.6.4 X 11.95 X 1.6 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.33 ARRIVING SOON
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 ARRIVING SOON
Photo Part No Description Price (each) Stock
10441690 BRACKET WITH SHEATH $1.80 To Order
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH $0.54 IN STOCK
View All

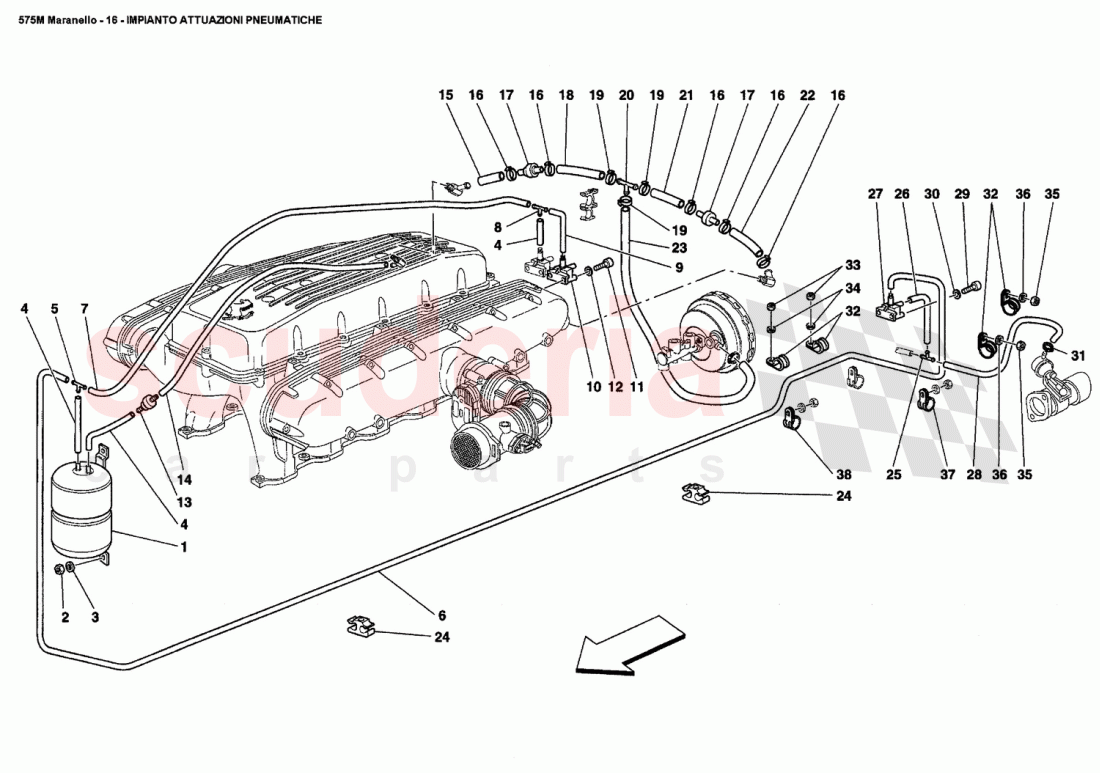

PNEUMATICS ACTUATOR SYSTEM of Ferrari Ferrari 575M Maranello Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 168038
DEPRESSION ACCUMULATION 		$605.91 1
1 168038
DEPRESSION ACCUMULATION
TANK 		$605.91 1
2 14059290
FLANGED NUT M6
ARRIVING SOON 		$1.33 2
3 12646604
WASHER
IN STOCK 		$0.22 (26.7% off) 2
4 159541
UNION-R.H. VALVE CONNECTING PIPE 		$5.38 3
5 161816257691
THREE-WAY UNION 		- 1 Enquire
6 188746
PIPE FROM UNION TO SOLENOID VALVE
VALVE / Not for GD 		$25.55 1
6 168432
RUBBER PIPE FROM UNION TO SOLENOID VALVE
Valid for GD 		$24.17 1
7 121830
PIPE FROM UNION TO UNION FOR SOLENOID VALVE
SOLENOID VALVE 		$7.34 1
7 126342
RUBBER HOSE FROM UNION TO AIR CAPACITY UNION 		$2.76 (54% off) 1
8 161816257691
THREE-WAY UNION 		- 1 Enquire
9 121828
RUBBER PIPE 		$4.87 1

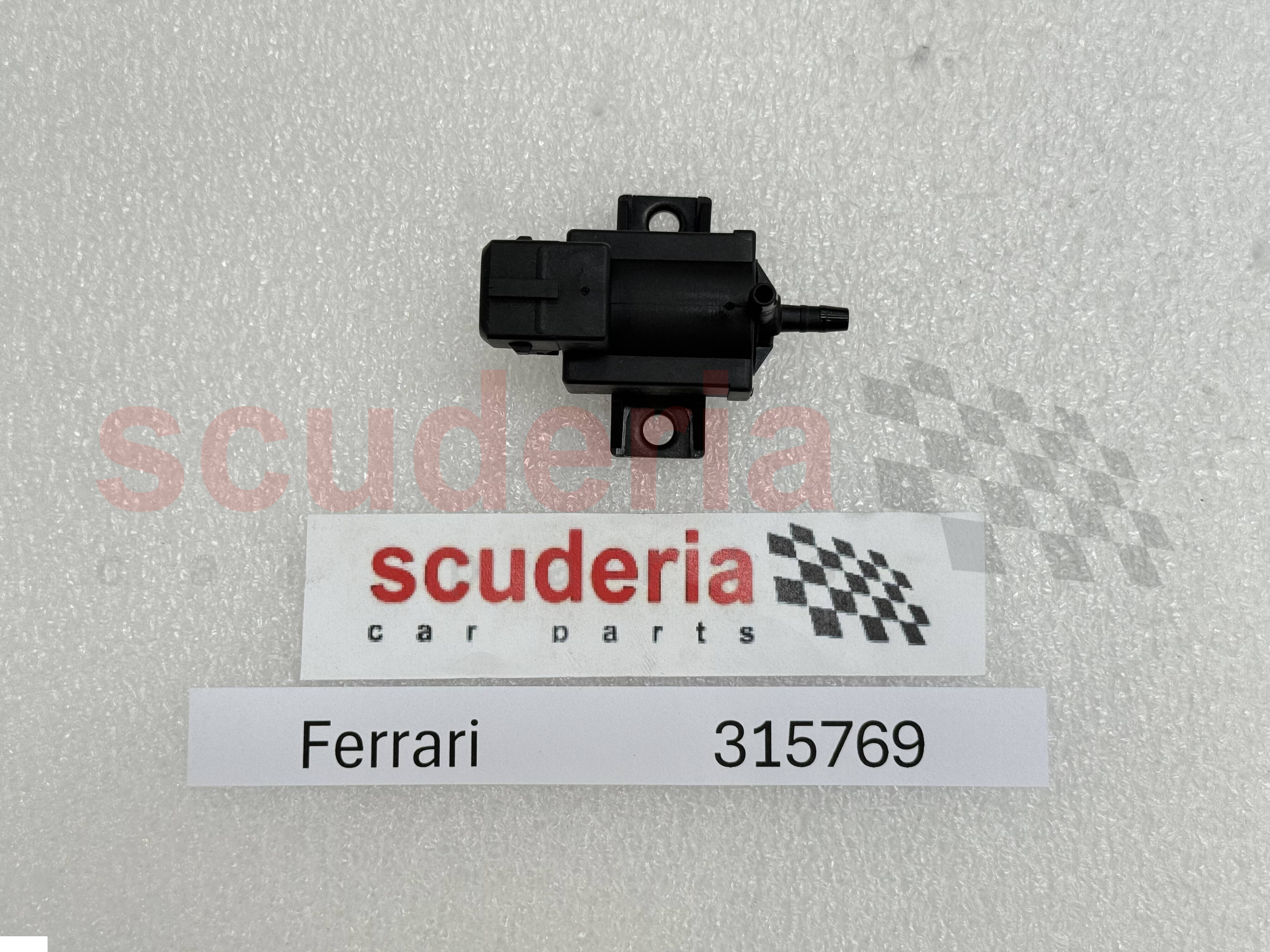

10 315769
ON/OFF SOLENOID VALVE
ARRIVING SOON 		$53.27 1
11 14304124
SCREW 		$0.14 (81.3% off) 2
12 12601174
WASHER 		$0.06 (82.9% off) 2
13 253896
NON-RETURN VALVE 		- 1 Enquire
14 126342
RUBBER HOSE FROM UNION TO AIR CAPACITY UNION 		$2.76 (54% off) 1
14 169700
COMPL. BREATHER PIPE 		$24.48 1
15 111023
RUBBER PIPE FROM LH VALVE TO UNION 		$91.51 1
16 13432870
COLLAR FOR HOSE UNION
IN STOCK 		$11.71 4
17 193186
CHECK VALVE 		$30.53 (24.8% off) 2
18 193184
RUBBER HOSE 		$20.61 1
19 262111
JUBILEE CLAMP
IN STOCK 		$1.42 3
20 100881
3 way union 		$5.00 (37.1% off) 1
21 127213
RUBBER PIPE 		$16.74 1
22 302220611
L.H. RUBBER HOSE 		- 1 Enquire
23 193185
RUBBER HOSE FROM UNION TO BRAKE BOOSTER
BRAKE BOOSTER 		$60.58 1
23 177947
RUBBER HOSE TO BRAKE BOOSTER 		$96.66 1
24 232649
CLIP
IN STOCK 		$1.08 4
25 161816257691
THREE-WAY UNION 		- 1 Enquire
26 314698
OIL BREATHER PIPE 		$4.77 1
27 315769
ON/OFF SOLENOID VALVE
ARRIVING SOON 		$53.27 1
28 147126
Rubber pipe from solenoid valve 		$86.99 1
28 188745
R.H. RUBBER HOSE 		$105.60 1
29 14304124
SCREW 		$0.14 (81.3% off) 2
30 12601174
WASHER 		$0.06 (82.9% off) 2
31 13432070
HOSE COLLAR
IN STOCK 		$0.49 (54.2% off) 1
32 10441290
BRACKET WITH SHEATH
IN STOCK 		$0.54 (67.9% off) 4
33 14059290
FLANGED NUT M6
ARRIVING SOON 		$1.33 2
34 10519424
WASHER D.6.4 X 11.95 X 1.6
IN STOCK 		$0.02 (92% off) 2
35 14059290
FLANGED NUT M6
ARRIVING SOON 		$1.33 2
36 127494
WASHER
ARRIVING SOON 		$0.08 (88.2% off) 2
37 10441690
BRACKET WITH SHEATH 		$1.80 1
38 10441290
BRACKET WITH SHEATH
IN STOCK 		$0.54 (67.9% off) 1
