Injection - Ignition Device

Ferrari 575M Maranello

Find Your Part

Ferrari 575M Maranello - INJECTION - IGNITION DEVICE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
198456 CONTROL UNIT IGNITION $2,313.53 To Order
211423 CONTROL UNIT IGNITION $2,396.43 To Order
198455 CONTROL UNIT IGNITION $2,488.37 To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
196496 RH SIDE ENGINE CONNECTING CABLES $1,626.25 To Order
187765 LH SIDE ENGINE CONNECTING CABLES $1,296.17 To Order
189490 LH SIDE ENGINE CONNECTING CABLES $919.38 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
183318 RUBBER BOOT $9.96 To Order
Photo Part No Description Price (each) Stock
897538 SCREW $1.52 To Order
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
10977524 SCREW $0.14 IN STOCK
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 IN STOCK
Photo Part No Description Price (each) Stock
182192 INJECTORS CONNECTING CABLES $127.46 To Order
Photo Part No Description Price (each) Stock
180563 PIPE FOR INJECTORS $1,834.24 To Order
Photo Part No Description Price (each) Stock
86768100 SCREW $0.44 To Order
Photo Part No Description Price (each) Stock
12601374 WASHER D.8.40-15 X 0.8 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
186914 IGNITION COIL $195.66 IN STOCK
Photo Part No Description Price (each) Stock
174954 Spark Plug $20.00 IN STOCK
Photo Part No Description Price (each) Stock
180552 ELECTRO-INJECTOR $280.95 To Order
Photo Part No Description Price (each) Stock
133902 INJECTOR O-RING $4.96 To Order
Photo Part No Description Price (each) Stock
144730 INJECTORS RETENTION CLIP $3.78 To Order
Photo Part No Description Price (each) Stock
10902534 SCREW $0.62 IN STOCK
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
10979434 SCREW $1.04 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH $0.53 IN STOCK
Photo Part No Description Price (each) Stock
10441390 BRACKET WITH SHEATH $0.53 IN STOCK
Photo Part No Description Price (each) Stock
188586 CONNECTOR FASTENER BRACKET $5.42 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
10519424 WASHER D.6.4 X 11.95 X 1.6 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH $0.53 IN STOCK
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH $0.53 IN STOCK
Photo Part No Description Price (each) Stock
155751 CLIP $4.35 To Order
Photo Part No Description Price (each) Stock
10977524 SCREW $0.14 IN STOCK
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 IN STOCK
View All

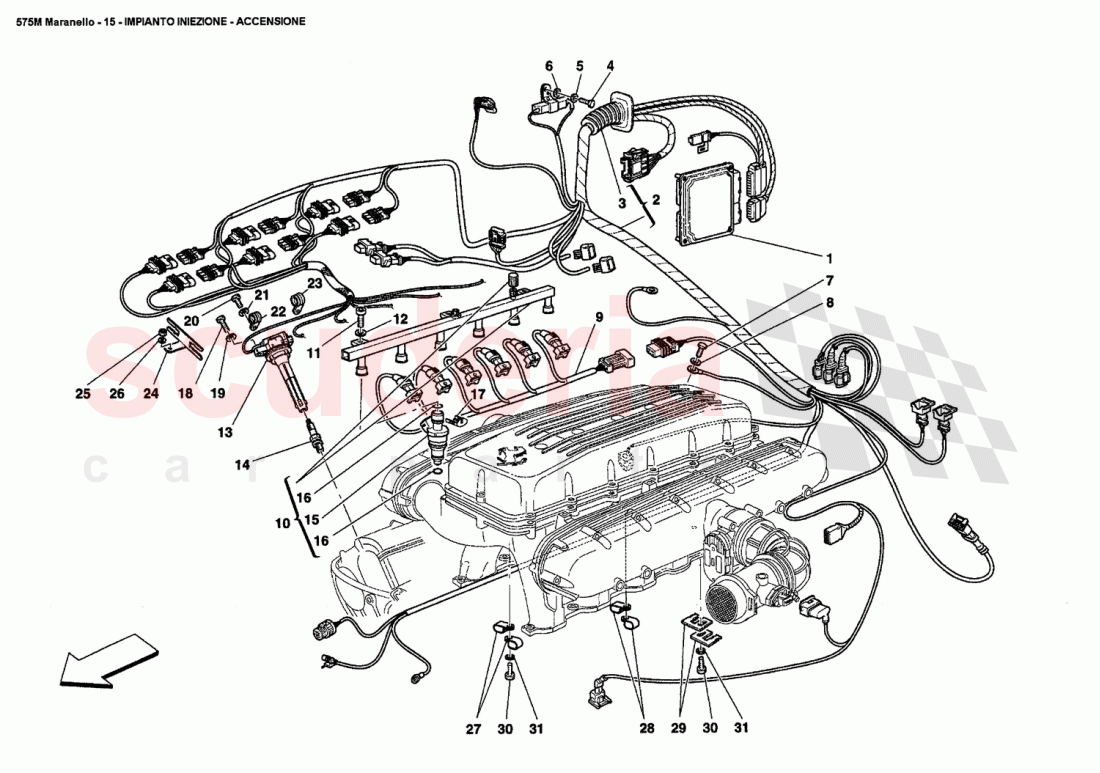

INJECTION - IGNITION DEVICE of Ferrari Ferrari 575M Maranello Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 198456
CONTROL UNIT IGNITION 		$2,313.53 2
1 211423
CONTROL UNIT IGNITION 		$2,396.43 2
1 198455
CONTROL UNIT IGNITION 		$2,488.37 (26.1% off) 2
1 202757
CONTROL UNIT IGNITION
Valid till engine Nr. 88442 		$2,488.37 2
1 211504
CONTROL UNIT IGNITION
Valid from engine Nr. 88443 (gearbox Nr. 1020) 		$2,396.43 2
1 211503
CONTROL UNIT IGNITION
Not for USA and CDN / Vatid from Ass. Nr. 56926 		$2,396.43 2
1 211422
CONTROL UNIT IGNITION
Valid for USA and CDN / Valid from Ass. Nr. 56926 		$2,396.43 2
1 198456
CONTROL UNIT IGNITION
Valid from Ass. Nr. 49203 till Ass. Nr. 52555 		$2,313.53 2
1 202756
CONTROL UNIT IGNITION
Valid from Ass. Nr. 52556 / Valid till Ass. Nr. 56925 		$2,488.37 2
2 196496
RH SIDE ENGINE CONNECTING CABLES 		$1,626.25 1
2 187765
LH SIDE ENGINE CONNECTING CABLES 		$1,296.17 1
2 189490
LH SIDE ENGINE CONNECTING CABLES 		$919.38 1
2 187764
RH SIDE ENGINE CONNECTING CABLES
CABLES / Not for GD / Valid till engine Nr. 72330 		$1,296.17 1
2 196495
RH SIDE ENGINE CONNECTING CABLES
Valid from engine Nr. 72331 		$1,119.89 1
2 189489
RH SIDE ENGINE CONNECTING CABLES
Valid for GD 		$919.38 1
3 183318
RUBBER BOOT 		$9.96 2
4 897538
SCREW 		$1.52 2
5 127494
WASHER
IN STOCK 		$0.08 (88.2% off) 2
6 12643724
WASHER
IN STOCK 		$0.06 (88% off) 2
7 10977524
SCREW
IN STOCK 		$0.14 2
8 127494
WASHER
IN STOCK 		$0.08 (88.2% off) 2
9 182192
INJECTORS CONNECTING CABLES 		$127.46 2
10 180563
PIPE FOR INJECTORS 		$1,834.24 2
11 86768100
SCREW 		$0.44 6
12 12601374
WASHER D.8.40-15 X 0.8
IN STOCK 		$0.02 (92% off) 6
13 186914
IGNITION COIL
IN STOCK 		$195.66 (32.8% off) 12
14 174954
Spark Plug
IN STOCK 		$20.00 12
15 180552
ELECTRO-INJECTOR 		$280.95 12
16 133902
INJECTOR O-RING 		$4.96 (17.3% off) 24
17 144730
INJECTORS RETENTION CLIP 		$3.78 (5.5% off) 12
18 10902534
SCREW
Valid till engine Nr. 79585
IN STOCK 		$0.62 24
18 231619
SCREW
Valid from engine Nr. 79586
IN STOCK 		$0.29 24
19 11197774
WASHER
IN STOCK 		$0.06 (80% off) 24
20 10979434
SCREW 		$1.04 10
21 11197774
WASHER
IN STOCK 		$0.06 (80% off) 10
22 10441290
BRACKET WITH SHEATH
IN STOCK 		$0.53 (68.5% off) 4
23 10441390
BRACKET WITH SHEATH
IN STOCK 		$0.53 6
24 188586
CONNECTOR FASTENER BRACKET 		$5.42 6
25 14059290
FLANGED NUT M6
IN STOCK 		$1.31 6
26 10519424
WASHER D.6.4 X 11.95 X 1.6
IN STOCK 		$0.02 (92% off) 6
27 10441290
BRACKET WITH SHEATH
IN STOCK 		$0.53 (68.5% off) 2
28 10441290
BRACKET WITH SHEATH
IN STOCK 		$0.53 (68.5% off) 2
29 155751
CLIP 		$4.35 (12.1% off) 2
30 10977524
SCREW
IN STOCK 		$0.14 3
31 127494
WASHER
IN STOCK 		$0.08 (88.2% off) 3
