Ferrari 550 Maranello - BRAKE SYSTEM -Not for GD-

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
163145 FRONT TOOTHED WHEEL SENSOR $227.65 To Order
Photo Part No Description Price (each) Stock
60909500 ALLEN HEAD SCREW M6 X 15 $1.96 IN STOCK
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 IN STOCK
Photo Part No Description Price (each) Stock
137313 R.H. and L.H. front flexible pipe $368.28 To Order
Photo Part No Description Price (each) Stock
116374 CLIP $2.19 IN STOCK
Photo Part No Description Price (each) Stock
163146 REAR TOOTHED WHEEL SENSOR $72.43 To Order
Photo Part No Description Price (each) Stock
60909500 ALLEN HEAD SCREW M6 X 15 $1.96 IN STOCK
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 IN STOCK
Photo Part No Description Price (each) Stock
168148 REAR SENSOR PROTECTION $48.52 To Order
Photo Part No Description Price (each) Stock
271771 PIPE Enquire To Order
Photo Part No Description Price (each) Stock
116374 CLIP $2.19 IN STOCK
Photo Part No Description Price (each) Stock
171432 BRAKE PIPE FROM PUMP TO ABS CENTER UNIT $16.66 To Order
Photo Part No Description Price (each) Stock
143055 FIXING CLIP $0.60 To Order
Photo Part No Description Price (each) Stock
171430 BRAKE PIPE FROM PUMP TO REGULATOR $8.03 To Order
Photo Part No Description Price (each) Stock
127515 FIXING CLIP $0.28 To Order
Photo Part No Description Price (each) Stock
164068 BRAKE PIPE FROM ABS CENTER UNIT TO RH FRONT FLEXIBLE PIPE $19.70 To Order
Photo Part No Description Price (each) Stock
141505 FIXING CLIP $0.81 To Order
Photo Part No Description Price (each) Stock
171431 BRAKE PIPE FROM REGULATOR TO ABS CENTER UNIT $12.73 To Order
Photo Part No Description Price (each) Stock
10104661 3-WAY UNION $4.50 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.32 IN STOCK
Photo Part No Description Price (each) Stock
12639724 WASHER $0.05 IN STOCK
Photo Part No Description Price (each) Stock
154309 PRESSURE REGULATOR $37.89 To Order
Photo Part No Description Price (each) Stock
164067 BRAKE PIPE FROM ABS CENTER UNIT TO LH FRONT FLEXIBLE PIPE $14.99 To Order
Photo Part No Description Price (each) Stock
164069 BRAKE PIPE FROM ABS CENTER UNIT TO UNION FOR RH REAR BRAKE $27.28 To Order
Photo Part No Description Price (each) Stock
164070 BRAKE PIPE FROM ABS CENTER UNIT TO UNION FOR LH REAR BRAKE $28.79 To Order
Photo Part No Description Price (each) Stock
169152 UNION $241.28 To Order
Photo Part No Description Price (each) Stock
15896470 NUT $6.36 To Order
Photo Part No Description Price (each) Stock
127493 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
164071 BRAKE PIPE FROM UNION TO RH REAR FLEXIBLE PIPE $25.76 To Order
Photo Part No Description Price (each) Stock
164072 BRAKE PIPE FROM UNION TO LH REAR FLEXIBLE PIPE $19.70 To Order
Photo Part No Description Price (each) Stock
148835 Buffer $13.95 To Order
Photo Part No Description Price (each) Stock
165361 BRACKET $3.35 To Order
Photo Part No Description Price (each) Stock
148835 Buffer $13.95 To Order
Photo Part No Description Price (each) Stock
127515 FIXING CLIP $0.28 To Order
Photo Part No Description Price (each) Stock
15896470 NUT $6.36 To Order
Photo Part No Description Price (each) Stock
127493 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
12637824 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
124551 FIXING CLIP $1.45 To Order
Photo Part No Description Price (each) Stock
150738 CLIP $0.54 To Order
Photo Part No Description Price (each) Stock
10519424 WASHER D.6.4 X 11.95 X 1.6 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
128292 CLIP -For GD q.ty 2- $1.99 To Order
Photo Part No Description Price (each) Stock
62790300 NUT $0.29 IN STOCK
Photo Part No Description Price (each) Stock
10519224 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
212645 CLIP $3.02 To Order
Photo Part No Description Price (each) Stock
215411 CLIP $1.35 To Order
Photo Part No Description Price (each) Stock
212645 CLIP $3.02 To Order
View All

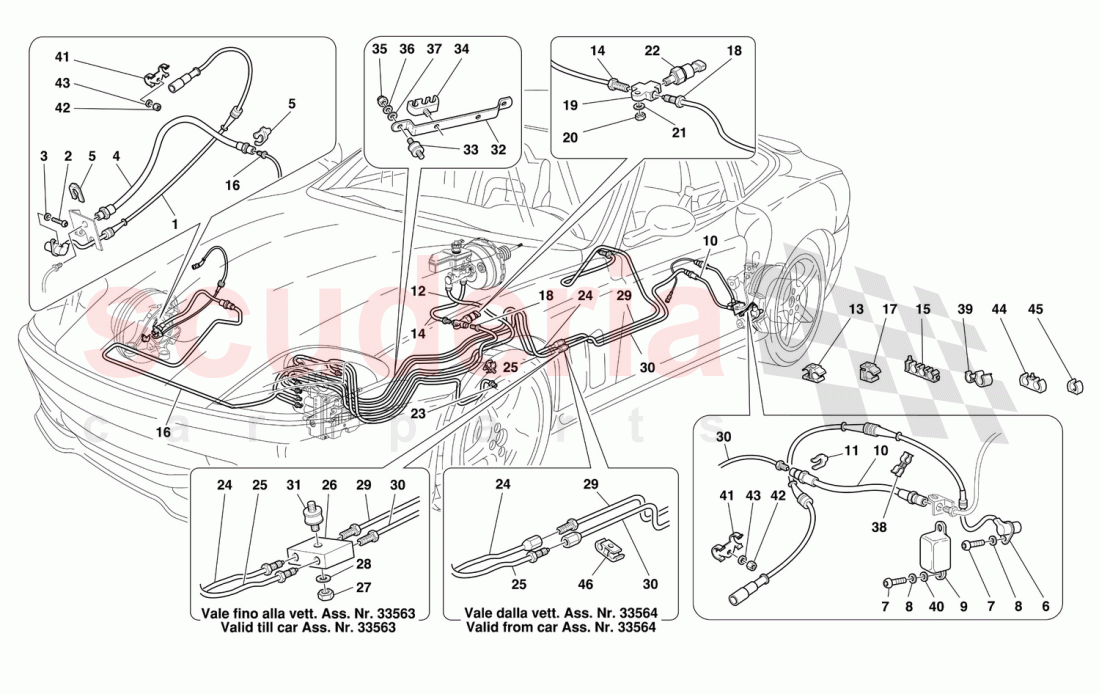

BRAKE SYSTEM -Not for GD- of Ferrari Ferrari 550 Maranello Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 178980
BRAKE PIPE FROM REAR JOINT TO LH REAR FLEXIBLE PIPE
TO L.H. REAR FLEXIBLE PIPE / Valid from car Ass. Nr. 33564 		$18.18 1
- 178979
BRAKE PIPE FROM REAR JOINT TO RH REAR FLEXIBLE PIPE
TO R.H. REAR FLEXIBLE PIPE / Valid from car Ass. Nr. 33564 		$22.73 1
- 178977
BRAKE PIPE FROM ABS CENTER UNIT TO RH REAR JOINT
TO R.H. REAR JOINT / Valid from car Ass. Nr. 33564 		$27.28 1
- 178978
BRAKE PIPE FROM ABS CENTER UNIT TO LH REAR JOINT
TO L.H. REAR JOINT / Valid from car Ass. Nr. 33564 		$25.76 1
1 163145
FRONT TOOTHED WHEEL SENSOR
SENSOR 		$227.65 2
2 60909500
ALLEN HEAD SCREW M6 X 15
IN STOCK 		$1.96 (34.4% off) 2
3 127494
WASHER
IN STOCK 		$0.08 (88.2% off) 2
4 137313
R.H. and L.H. front flexible pipe 		$368.28 2
5 116374
CLIP
IN STOCK 		$2.19 (37.4% off) 2
6 163146
REAR TOOTHED WHEEL SENSOR
SENSOR 		$72.43 (22.7% off) 2
7 60909500
ALLEN HEAD SCREW M6 X 15
IN STOCK 		$1.96 (34.4% off) 6
8 127494
WASHER
IN STOCK 		$0.08 (88.2% off) 6
9 168148
REAR SENSOR PROTECTION 		$48.52 2
10 271771
PIPE 		- 2 Enquire
11 116374
CLIP
IN STOCK 		$2.19 (37.4% off) 2
12 171432
BRAKE PIPE FROM PUMP TO ABS CENTER UNIT
ABS CENTER UNIT 		$16.66 1
13 143055
FIXING CLIP 		$0.60 3
14 171430
BRAKE PIPE FROM PUMP TO REGULATOR
REGULATOR 		$8.03 1
15 127515
FIXING CLIP 		$0.28 2
16 164068
BRAKE PIPE FROM ABS CENTER UNIT TO RH FRONT FLEXIBLE PIPE
TO R.H. FRONT FLEXIBLE PIPE 		$19.70 1
17 141505
FIXING CLIP 		$0.81 (67.7% off) 3
18 171431
BRAKE PIPE FROM REGULATOR TO ABS CENTER UNIT
TO ABS CENTER UNIT 		$12.73 1
19 10104661
3-WAY UNION 		$4.50 1
20 14059290
FLANGED NUT M6
IN STOCK 		$1.32 1
21 12639724
WASHER
IN STOCK 		$0.05 (90% off) 1
22 154309
PRESSURE REGULATOR 		$37.89 (24.2% off) 1
23 164067
BRAKE PIPE FROM ABS CENTER UNIT TO LH FRONT FLEXIBLE PIPE
TO L.H. FRONT FLEXIBLE PIPE 		$14.99 1
24 164069
BRAKE PIPE FROM ABS CENTER UNIT TO UNION FOR RH REAR BRAKE
TO UNION FOR R.H. REAR / BRAKE / Valid till car Ass. Nr. 33563 		$27.28 1
25 164070
BRAKE PIPE FROM ABS CENTER UNIT TO UNION FOR LH REAR BRAKE
TO UNION FOR L.H. REAR / BRAKE / Valid till car Ass. Nr. 33563 		$28.79 1
26 169152
UNION
Valid till car Ass. Nr. 33563 		$241.28 1
27 15896470
NUT
Valid till car Ass. Nr. 33563 		$6.36 1
28 127493
WASHER
Valid till car Ass. Nr. 33563 		$0.06 (80% off) 1
29 164071
BRAKE PIPE FROM UNION TO RH REAR FLEXIBLE PIPE
R.H. REAR FLEXIBLE PIPE / Valid till car Ass. Nr. 33563 		$25.76 1
30 164072
BRAKE PIPE FROM UNION TO LH REAR FLEXIBLE PIPE
L.H. REAR FLEXIBLE PIPE / Valid till car Ass. Nr. 33563 		$19.70 1
31 148835
Buffer
Valid till car Ass. Nr. 33563 		$13.95 (36.6% off) 1
32 165361
BRACKET 		$3.35 1
33 148835
Buffer 		$13.95 (36.6% off) 2
34 127515
FIXING CLIP 		$0.28 2
35 15896470
NUT 		$6.36 4
36 127493
WASHER 		$0.06 (80% off) 4
37 12637824
WASHER
IN STOCK 		$0.06 (88% off) 4
38 124551
FIXING CLIP 		$1.45 5
39 150738
CLIP 		$0.54 6
40 10519424
WASHER D.6.4 X 11.95 X 1.6
IN STOCK 		$0.02 (92% off) 4
41 128292
CLIP -For GD q.ty 2- 		$1.99 4
42 62790300
NUT
IN STOCK 		$0.29 (61.3% off) 4
43 10519224
WASHER
IN STOCK 		$0.06 (80% off) 4
44 212645
CLIP 		$3.02 5
45 215411
CLIP 		$1.35 5
46 212645
CLIP
Valid from car Ass. Nr. 33564 		$3.02 2
