Brake And Clutch Hydraulic System

Ferrari 550 Maranello

Find Your Part

Ferrari 550 Maranello - BRAKE AND CLUTCH HYDRAULIC SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
154009 CLUTCH CONTROL TUBE $672.70 To Order
Photo Part No Description Price (each) Stock
10441590 BRACKET WITH SHEATH $0.52 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.32 IN STOCK
Photo Part No Description Price (each) Stock
175211 Clutch master cylinder $297.45 IN STOCK
Photo Part No Description Price (each) Stock
13516824 STUD BOLT $0.44 IN STOCK
Photo Part No Description Price (each) Stock
14040711 NUT $0.35 IN STOCK
Photo Part No Description Price (each) Stock
12601374 WASHER D.8.40-15 X 0.8 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
169363 BRAKE BOOSTER WITH PUMP $736.48 To Order
Photo Part No Description Price (each) Stock
171783 BRAKE OIL TANK $60.26 To Order
Photo Part No Description Price (each) Stock
147985 NUT $0.14 IN STOCK
Photo Part No Description Price (each) Stock
12601374 WASHER D.8.40-15 X 0.8 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
173882 FRONT RUBBER HOSE $12.69 To Order
Photo Part No Description Price (each) Stock
157934 SCREW COLLAR $0.81 To Order
Photo Part No Description Price (each) Stock
184497 CONNECTOR $41.24 To Order
Photo Part No Description Price (each) Stock
175189 SEAT RING $24.23 IN STOCK
Photo Part No Description Price (each) Stock
153592 PLUG $62.18 To Order
Photo Part No Description Price (each) Stock
144552 UNION $14.39 To Order
Photo Part No Description Price (each) Stock
151475 CABLE GROMMET $9.09 To Order
Photo Part No Description Price (each) Stock
171785 BOOSTER $741.09 To Order
Photo Part No Description Price (each) Stock
171782 BRAKE PUMP $736.16 To Order
Photo Part No Description Price (each) Stock
262111 SCREW CLAMP $1.39 To Order
Photo Part No Description Price (each) Stock
169745 INSULATING SHIELD FOR BRAKE BOOSTER $103.03 To Order
Photo Part No Description Price (each) Stock
175212 PROTECTION BOOT $32.48 To Order
View All

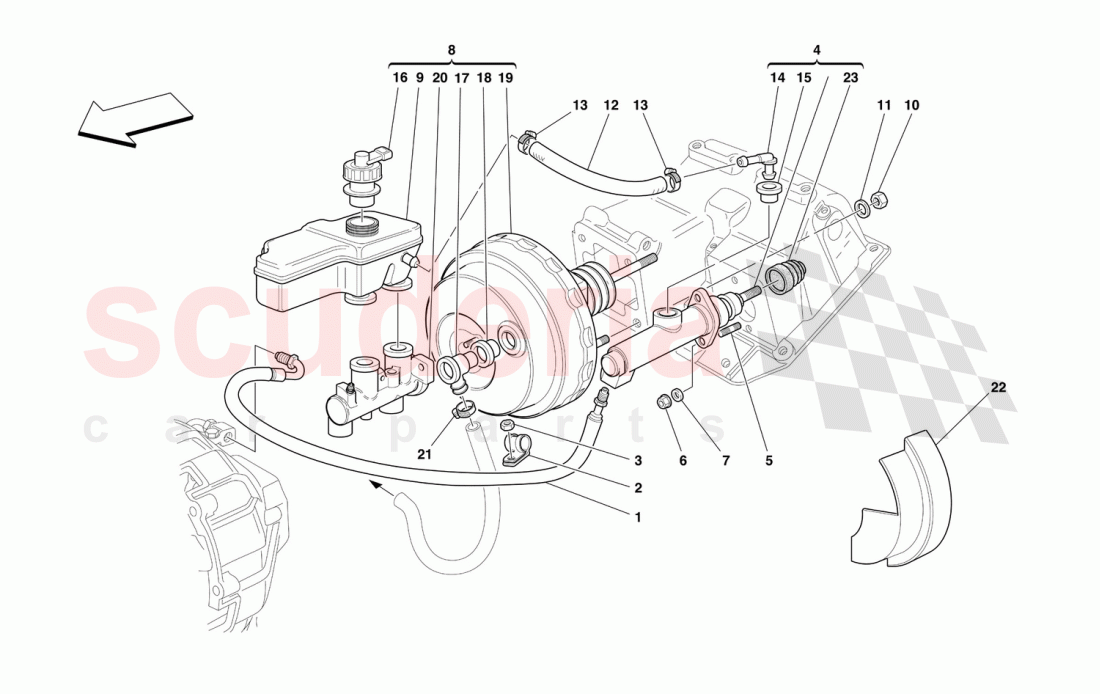

BRAKE AND CLUTCH HYDRAULIC SYSTEM of Ferrari Ferrari 550 Maranello Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 172812
INSULATING SHIELD FOR BRAKE BOOSTER
Valid for GD 		$107.58 1
- 175189
SEAT RING
Valid for clutch pump 175211
IN STOCK 		$24.23 (17.1% off) 1
- 184497
CONNECTOR
Valid for clutch pump 175211 		$41.24 (54.4% off) 1
- 14040711
NUT
IN STOCK 		$0.35 2
- 175211
Clutch master cylinder
IN STOCK 		$297.45 (17.7% off) 1
- 156119
CLUTCH CONTROL TUBE
Valid for GD 		$287.91 1
1 154009
CLUTCH CONTROL TUBE
Not for GD 		$672.70 (35% off) 1
2 10441590
BRACKET WITH SHEATH 		$0.52 2
3 14059290
FLANGED NUT M6
IN STOCK 		$1.32 2
4 175211
Clutch master cylinder
Not as spare part now / Replaced by 175211
IN STOCK 		$297.45 (17.7% off) 1
5 13516824
STUD BOLT
IN STOCK 		$0.44 (64.8% off) 2
6 14040711
NUT
Not as spare part replaced by 177778
IN STOCK 		$0.35 2
7 12601374
WASHER D.8.40-15 X 0.8
IN STOCK 		$0.02 (92% off) 2
8 169363
BRAKE BOOSTER WITH PUMP 		$736.48 1
9 171783
BRAKE OIL TANK 		$60.26 1
10 147985
NUT
IN STOCK 		$0.14 (72% off) 4
11 12601374
WASHER D.8.40-15 X 0.8
IN STOCK 		$0.02 (92% off) 4
12 173882
FRONT RUBBER HOSE 		$12.69 1
13 157934
SCREW COLLAR 		$0.81 (86.8% off) 2
14 184497
CONNECTOR
Valid for clutch pump 123416 		$41.24 (54.4% off) 1
15 175189
SEAT RING
Valid for clutch pump 123416
IN STOCK 		$24.23 (17.1% off) 1
16 153592
PLUG 		$62.18 (30.2% off) 2
17 144552
UNION 		$14.39 1
18 151475
CABLE GROMMET 		$9.09 1
19 171785
BOOSTER 		$741.09 1
20 171782
BRAKE PUMP 		$736.16 1
21 262111
SCREW CLAMP 		$1.39 1
22 169745
INSULATING SHIELD FOR BRAKE BOOSTER
Not for GD 		$103.03 1
23 175212
PROTECTION BOOT
Valid for clutch pump 175211 		$32.48 1
