WATER PUMP of Ferrari Ferrari 550 Maranello

View All

Ferrari 550 Maranello - WATER PUMP

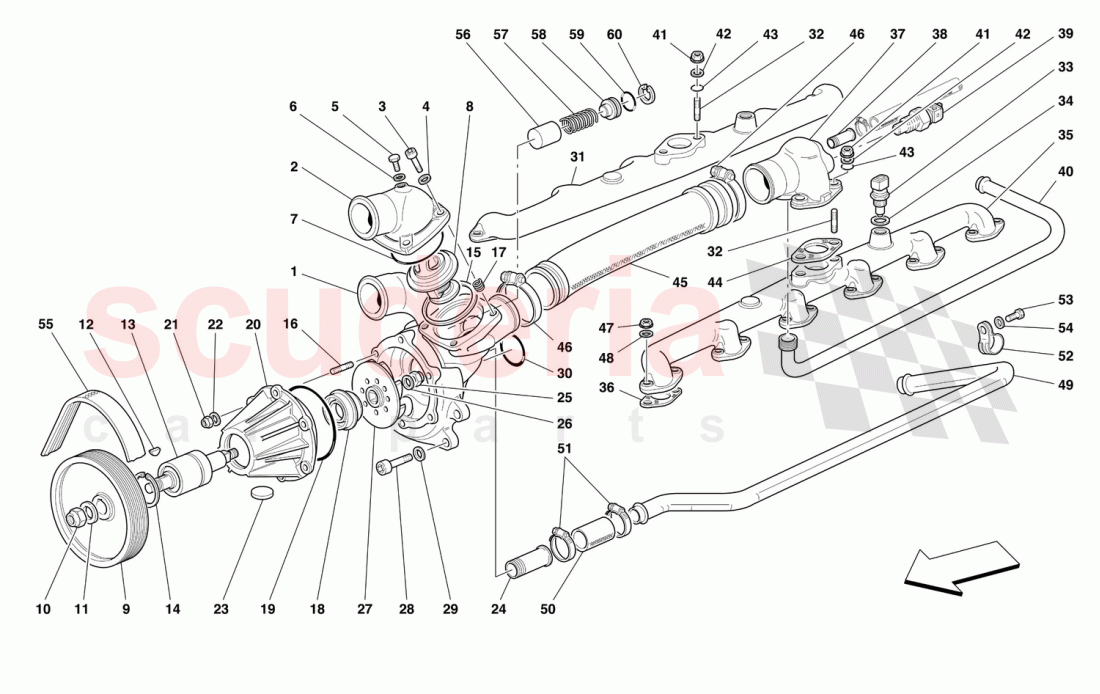

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	153199	WATER PUMP BODY COMPLETED WITH STUDS	$796.29	To Order

Photo	Part No	Description	Price (each)	Stock
	163952	THERMOSTAT VALVE COVER	$131.70	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	130282	Connection for drain	$7.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock

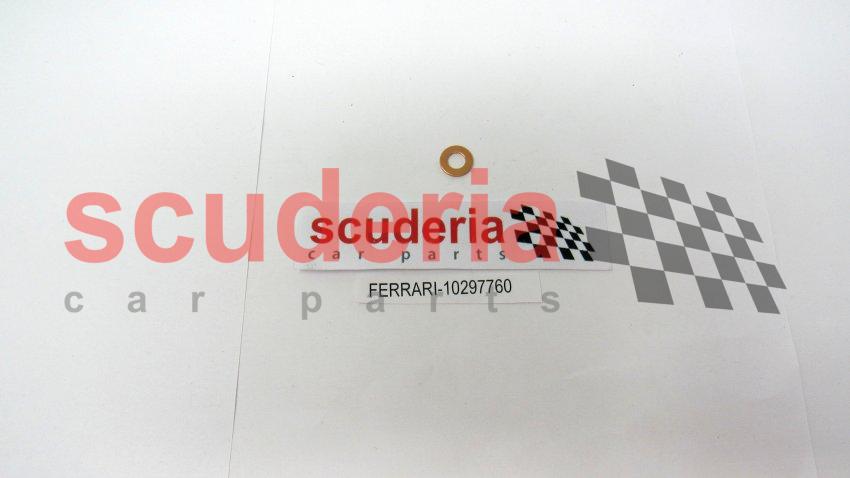

	10297760	GASKET	$0.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	149279	O-Ring	$4.10	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	950840	WATER THERMOSTAT	$93.85	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	166454	PULLEY (Ã˜ 102)	$211.93	To Order

Photo	Part No	Description	Price (each)	Stock
	102742	Nyloc Nut M10 x 1.25 x 10mm	$0.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12647021	WASHER	$0.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10202320	Woodruff Key	$1.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock

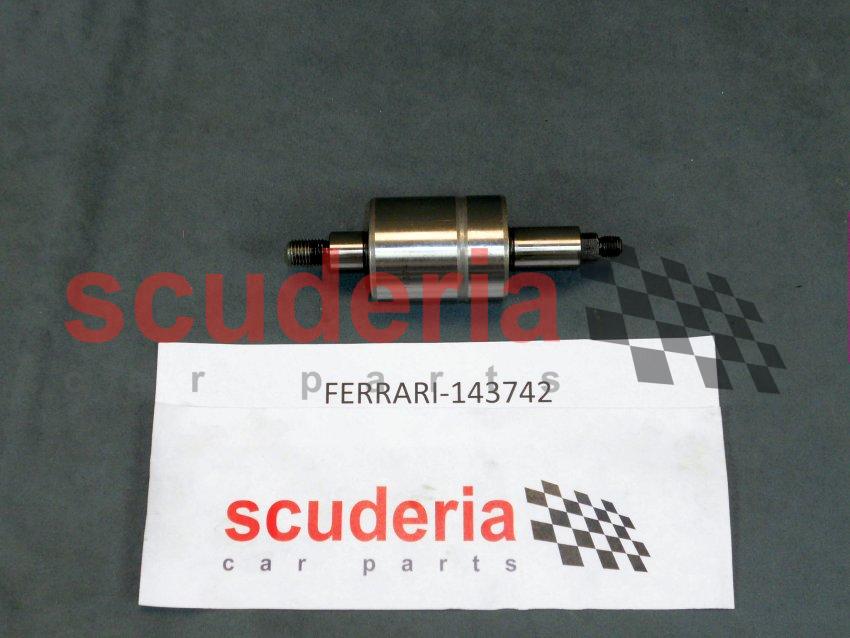

	143742	BEARING WITH SHAFT	$262.05	IN STOCK

Photo	Part No	Description	Price (each)	Stock

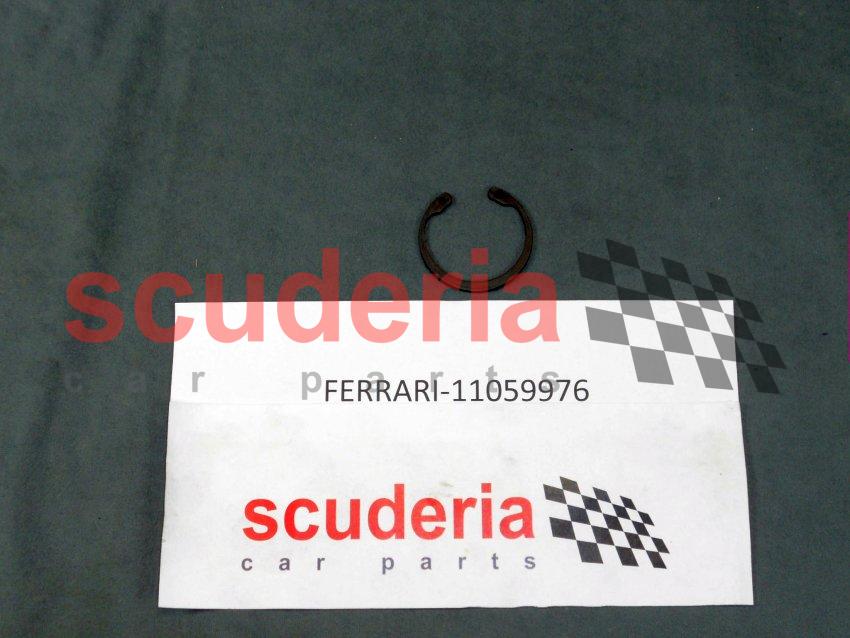

	11059976	SEEGER RING	$1.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock

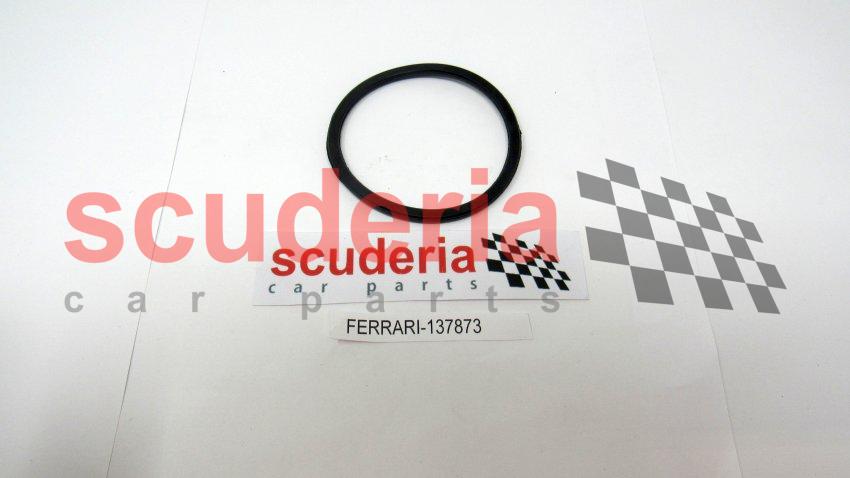

	137873	O-Ring	$4.99	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13540924	STUD BOLT	$33.81	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13525470	THREADED INSERT	$0.50	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	183759	Water Pump Seal	$34.06	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	137868	O-RING WATER PUMP D.82.14 X 3	$13.11	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	176173	WATER PUMP COVER	$484.81	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	9162535	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	141068	UNION	$215.56	To Order

Photo	Part No	Description	Price (each)	Stock
	100436	BLIND NUT	$10.48	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER 10 X 18 X 2.5	$4.99	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	154542	Water Pump Impeller	$116.56	To Order

Photo	Part No	Description	Price (each)	Stock
	14306424	SCREW	$0.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock

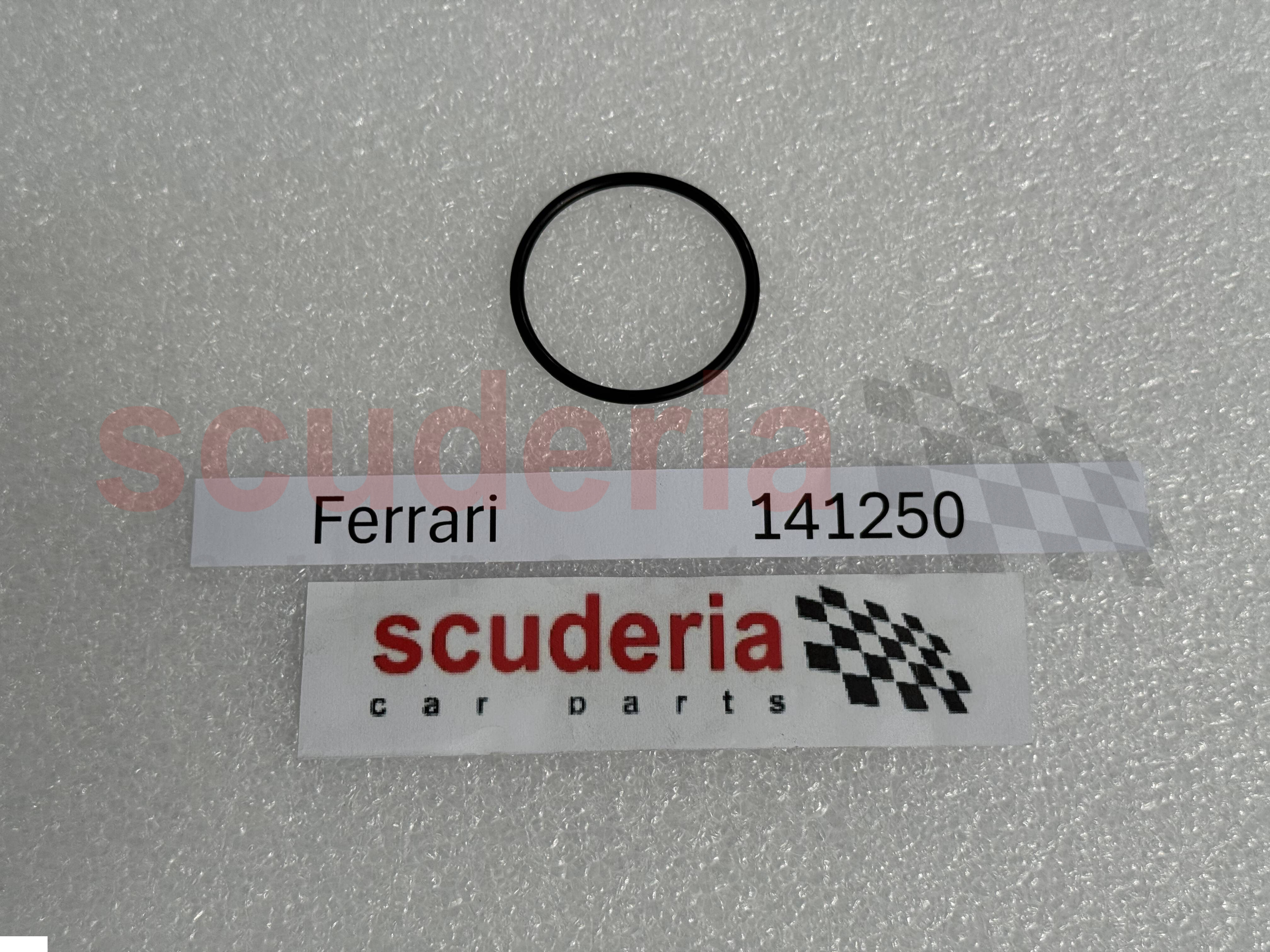

	141250	O-Ring	$0.17	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	142088	R.H. HEAD WATER MANIFOLD	$672.04	To Order

Photo	Part No	Description	Price (each)	Stock
	13516724	STUD	$1.79	To Order

Photo	Part No	Description	Price (each)	Stock
	125769	Water Temperature Transmitter	$56.12	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10298460	GASKET	$0.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	143323	L.H. HEAD WATER MANIFOLD	$605.55	To Order

Photo	Part No	Description	Price (each)	Stock
	141332	GASKET	$1.38	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	154198	WATER OUTLET MANIFOLD CONNECTION DUCT	$342.36	To Order

Photo	Part No	Description	Price (each)	Stock
	155093	CONNECTOR	$13.44	To Order

Photo	Part No	Description	Price (each)	Stock
	948822	WATER TEMPERATURE TRANSMITTER	$374.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	170165	PIPE FROM DUCT	$74.17	To Order

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	$0.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER D.8.40-15 X 0.8	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock

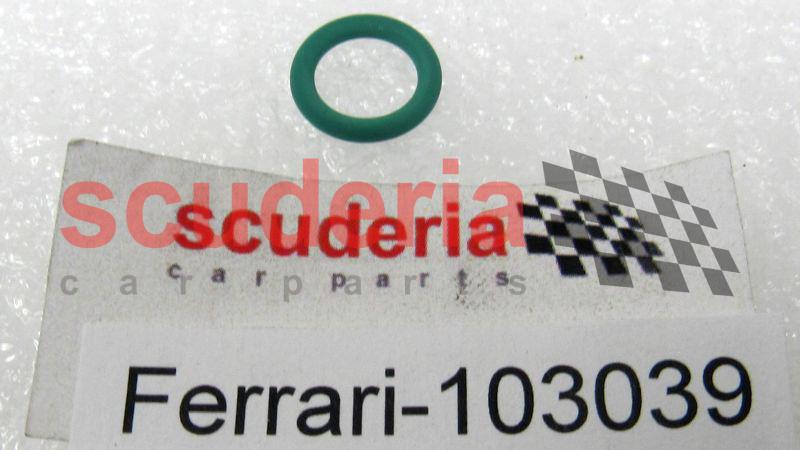

	103039	Sealing ring	$0.89	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	142103	GASKET	$3.27	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	181599	WATER HOSE BETWEEN MANIFOLD AND WATER PUMP	$317.91	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13000790	SCREW COLLAR	$0.70	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	154716	PIPE CONNECTING WATER PUMP	$252.08	To Order

Photo	Part No	Description	Price (each)	Stock
	175223	RUBBER HOSE	$8.29	To Order

Photo	Part No	Description	Price (each)	Stock
	13000490	Screw Collar	$0.72	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	145661	BRACKET WITH SHEATH	$3.27	To Order

Photo	Part No	Description	Price (each)	Stock
	16043224	SCREW	$0.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	199834	Water & Power Steering Belt	$28.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	176046	BUSHING FOR BYPASS	$30.42	To Order

Photo	Part No	Description	Price (each)	Stock
	176047	SPRING FOR BYPASS	$12.55	To Order

Photo	Part No	Description	Price (each)	Stock
	176048	CAP FOR BYPASS SPRING	$14.82	To Order

Photo	Part No	Description	Price (each)	Stock

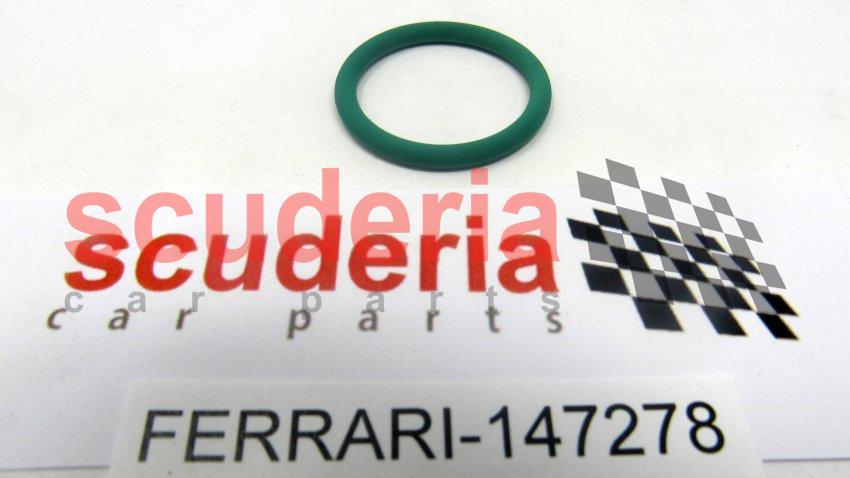

	147278	O-Ring	$0.49	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11058376	SEEGER RING	$0.09	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	199834	Water & Power Steering Belt IN STOCK	199834 Water & Power Steering Belt Valid from engine Nr. 51923 and / till engine Nr. 58890 IN STOCK	$28.29	1
-	201455	WATER AND HYDR. STEERING	201455 WATER AND HYDR. STEERING Valid from engine Nr. 58891	$33.46 MSRP: ~~53.50~~ (37.5% off)	1
-	175223	RUBBER HOSE	175223 RUBBER HOSE	$8.29 MSRP: ~~11.58~~ (28.4% off)	1
-	160833	PIPE CONNECTING WATER PUMP	160833 PIPE CONNECTING WATER PUMP Valid for GD	$34.80	1
-	13000790	SCREW COLLAR IN STOCK	13000790 SCREW COLLAR IN STOCK	$0.70 MSRP: ~~2.25~~ (68.9% off)	2
-	181599	WATER HOSE BETWEEN MANIFOLD AND WATER PUMP IN STOCK	181599 WATER HOSE BETWEEN MANIFOLD AND WATER PUMP MANIFOLD AND WATER PUMP / Valid after stock exhaustion of 154480 IN STOCK	$317.91 MSRP: ~~395.00~~ (19.5% off)	1
-	173895	PIPE FROM DUCT	173895 PIPE FROM DUCT Valid for GD	$59.03	1
-	176045	WATER PUMP ROTOR ARRIVING SOON	176045 WATER PUMP ROTOR Valid from engine Nr. 53756 ARRIVING SOON	$142.29 MSRP: ~~162.38~~ (12.4% off)	1
-	950840	WATER THERMOSTAT ARRIVING SOON	950840 WATER THERMOSTAT ARRIVING SOON	$93.85	1
-	231619	SCREW IN STOCK	231619 SCREW Valid from engine Nr. 53756 IN STOCK	$0.29	4
-	183760	COMPLETE WATER PUMP	183760 COMPLETE WATER PUMP	$2,259.64	1
-	153199	WATER PUMP BODY COMPLETED WITH STUDS	153199 WATER PUMP BODY COMPLETED WITH STUDS WITH STUDS / Valid till engine Nr. 53755	$796.29	1
-	182693	WATER PUMP BODY COMPLETED WITH STUDS	182693 WATER PUMP BODY COMPLETED WITH STUDS WITH STUDS / Valid from engine Nr. 53756	-	1	Enquire
-	183760	COMPLETE WATER PUMP	183760 COMPLETE WATER PUMP Valid till engine Nr. 53755	$2,259.64	1
1	153199	WATER PUMP BODY COMPLETED WITH STUDS	153199 WATER PUMP BODY COMPLETED WITH STUDS Not as spare part / With complete pump body / Valid till engine Nr. 53755	$796.29	1
2	163952	THERMOSTAT VALVE COVER IN STOCK	163952 THERMOSTAT VALVE COVER IN STOCK	$131.70	1
3	231619	SCREW IN STOCK	231619 SCREW Valid till engine Nr. 53755 IN STOCK	$0.29	4
4	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	4
5	130282	Connection for drain IN STOCK	130282 Connection for drain IN STOCK	$7.20 MSRP: ~~8.50~~ (15.3% off)	1
6	10297760	GASKET IN STOCK	10297760 GASKET IN STOCK	$0.34 MSRP: ~~1.00~~ (66% off)	1
7	149279	O-Ring IN STOCK	149279 O-Ring IN STOCK	$4.10 MSRP: ~~9.75~~ (57.9% off)	1
8	950840	WATER THERMOSTAT ARRIVING SOON	950840 WATER THERMOSTAT Not as spare part now / Replaced by 183758 ARRIVING SOON	$93.85	1
9	166454	PULLEY (Ã˜ 102)	166454 PULLEY (Ã˜ 102)	$211.93 MSRP: ~~451.49~~ (53.1% off)	1
10	102742	Nyloc Nut M10 x 1.25 x 10mm IN STOCK	102742 Nyloc Nut M10 x 1.25 x 10mm IN STOCK	$0.43 MSRP: ~~3.25~~ (86.8% off)	1
11	12647021	WASHER IN STOCK	12647021 WASHER IN STOCK	$0.31	1
12	10202320	Woodruff Key IN STOCK	10202320 Woodruff Key IN STOCK	$1.06	1
13	143742	BEARING WITH SHAFT IN STOCK	143742 BEARING WITH SHAFT IN STOCK	$262.05	1
14	11059976	SEEGER RING IN STOCK	11059976 SEEGER RING IN STOCK	$1.06 MSRP: ~~1.50~~ (29.3% off)	1
15	137873	O-Ring IN STOCK	137873 O-Ring IN STOCK	$4.99 MSRP: ~~7.55~~ (33.9% off)	1
16	13540924	STUD BOLT IN STOCK	13540924 STUD BOLT IN STOCK	$33.81	6
17	13525470	THREADED INSERT IN STOCK	13525470 THREADED INSERT IN STOCK	$0.50 MSRP: ~~2.50~~ (80% off)	4
18	183759	Water Pump Seal ARRIVING SOON	183759 Water Pump Seal ARRIVING SOON	$34.06 MSRP: ~~50.62~~ (32.7% off)	1
19	137868	O-RING WATER PUMP D.82.14 X 3 ARRIVING SOON	137868 O-RING WATER PUMP D.82.14 X 3 ARRIVING SOON	$13.11	1
20	176173	WATER PUMP COVER ARRIVING SOON	176173 WATER PUMP COVER ARRIVING SOON	$484.81 MSRP: ~~490.00~~ (1.1% off)	1
21	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.32	6
22	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	6
23	9162535	THREADED PLUG	9162535 THREADED PLUG	-	1	Enquire
24	141068	UNION	141068 UNION	$215.56	1
25	100436	BLIND NUT IN STOCK	100436 BLIND NUT IN STOCK	$10.48 MSRP: ~~10.95~~ (4.3% off)	1
26	84653800	WASHER 10 X 18 X 2.5 IN STOCK	84653800 WASHER 10 X 18 X 2.5 IN STOCK	$4.99	1
27	154542	Water Pump Impeller	154542 Water Pump Impeller Valid till engine Nr. 53755	$116.56 MSRP: ~~156.95~~ (25.7% off)	1
28	14306424	SCREW IN STOCK	14306424 SCREW IN STOCK	$0.23 MSRP: ~~0.41~~ (43.9% off)	4
29	11193874	WASHER IN STOCK	11193874 WASHER IN STOCK	$0.06	4
30	141250	O-Ring IN STOCK	141250 O-Ring IN STOCK	$0.17 MSRP: ~~0.50~~ (66% off)	1
31	142088	R.H. HEAD WATER MANIFOLD	142088 R.H. HEAD WATER MANIFOLD	$672.04	1
32	13516724	STUD	13516724 STUD	$1.79	4
33	125769	Water Temperature Transmitter IN STOCK	125769 Water Temperature Transmitter IN STOCK	$56.12	2
34	10298460	GASKET IN STOCK	10298460 GASKET IN STOCK	$0.14 MSRP: ~~1.25~~ (88.8% off)	2
35	143323	L.H. HEAD WATER MANIFOLD	143323 L.H. HEAD WATER MANIFOLD	$605.55	1
36	141332	GASKET IN STOCK	141332 GASKET IN STOCK	$1.38 MSRP: ~~2.15~~ (35.8% off)	12
37	154198	WATER OUTLET MANIFOLD CONNECTION DUCT	154198 WATER OUTLET MANIFOLD CONNECTION DUCT CONNECTION DUCT	$342.36	1
38	155093	CONNECTOR	155093 CONNECTOR	$13.44 MSRP: ~~26.05~~ (48.4% off)	1
39	948822	WATER TEMPERATURE TRANSMITTER IN STOCK	948822 WATER TEMPERATURE TRANSMITTER TRANSMITTER IN STOCK	$374.21	1
40	170165	PIPE FROM DUCT	170165 PIPE FROM DUCT Not for GD	$74.17	1
41	147985	NUT IN STOCK	147985 NUT IN STOCK	$0.14 MSRP: ~~0.50~~ (72% off)	4
42	12601374	WASHER D.8.40-15 X 0.8 IN STOCK	12601374 WASHER D.8.40-15 X 0.8 IN STOCK	$0.02 MSRP: ~~0.25~~ (92% off)	4
43	103039	Sealing ring IN STOCK	103039 Sealing ring IN STOCK	$0.89 MSRP: ~~1.20~~ (25.8% off)	4
44	142103	GASKET IN STOCK	142103 GASKET IN STOCK	$3.27 MSRP: ~~5.10~~ (35.9% off)	2
45	181599	WATER HOSE BETWEEN MANIFOLD AND WATER PUMP IN STOCK	181599 WATER HOSE BETWEEN MANIFOLD AND WATER PUMP MANIFOLD AND WATER PUMP / Valid till stock exhaustion IN STOCK	$317.91 MSRP: ~~395.00~~ (19.5% off)	1
46	13000790	SCREW COLLAR IN STOCK	13000790 SCREW COLLAR Not as spare part now / Replaced by 134109 IN STOCK	$0.70 MSRP: ~~2.25~~ (68.9% off)	2
47	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.32	24
48	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	24
49	154716	PIPE CONNECTING WATER PUMP	154716 PIPE CONNECTING WATER PUMP Not for GD	$252.08	1
50	175223	RUBBER HOSE	175223 RUBBER HOSE Not as spare part now / Replaced by 175223	$8.29 MSRP: ~~11.58~~ (28.4% off)	1
51	13000490	Screw Collar IN STOCK	13000490 Screw Collar IN STOCK	$0.72 MSRP: ~~1.90~~ (62.1% off)	2
52	145661	BRACKET WITH SHEATH	145661 BRACKET WITH SHEATH	$3.27	1
53	16043224	SCREW IN STOCK	16043224 SCREW IN STOCK	$0.14 MSRP: ~~0.50~~ (72% off)	1
54	127496	WASHER	127496 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	1
55	199834	Water & Power Steering Belt IN STOCK	199834 Water & Power Steering Belt Valid till engine Nr. 51922 IN STOCK	$28.29	1
56	176046	BUSHING FOR BYPASS	176046 BUSHING FOR BYPASS Valid from engine Nr. 53756	$30.42	1
57	176047	SPRING FOR BYPASS	176047 SPRING FOR BYPASS Valid from engine Nr. 53756	$12.55	1
58	176048	CAP FOR BYPASS SPRING	176048 CAP FOR BYPASS SPRING Valid from engine Nr. 53756	$14.82	1
59	147278	O-Ring IN STOCK	147278 O-Ring Valid from engine Nr. 53756 IN STOCK	$0.49 MSRP: ~~1.04~~ (52.9% off)	1
60	11058376	SEEGER RING	11058376 SEEGER RING Valid from engine Nr. 53756	$0.09	1
