Ferrari 512 TR - Air injection - Ignition

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
147567 Connectors and cables box $515.47 To Order
Photo Part No Description Price (each) Stock
145476 L.H. BRACKET $1.45 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
154916 AIR FLOW METER $756.06 To Order
Photo Part No Description Price (each) Stock
144092 PLUG -Not for catalyzed cars- $5.20 To Order
Photo Part No Description Price (each) Stock
149338 Ignition/supply control system $1,527.87 To Order
Photo Part No Description Price (each) Stock
144256 Injector $377.68 To Order
Photo Part No Description Price (each) Stock
133902 INJECTOR O-RING $4.96 To Order
Photo Part No Description Price (each) Stock
149924 Delivery pipe $2,166.88 To Order
Photo Part No Description Price (each) Stock
11500024 Stud for cover of flywheel $0.67 To Order
Photo Part No Description Price (each) Stock
101239 CAP NUT $1.23 To Order
Photo Part No Description Price (each) Stock
14499370 Washer $0.23 To Order
Photo Part No Description Price (each) Stock
11499924 STUD BOLT $12.62 To Order
Photo Part No Description Price (each) Stock
148533 Protection $6.04 To Order
Photo Part No Description Price (each) Stock
14040711 NUT $0.35 IN STOCK
Photo Part No Description Price (each) Stock
84653800 WASHER 10 X 18 X 2.5 $4.96 IN STOCK
Photo Part No Description Price (each) Stock
150907 INJECTION SYSTEM CABLES (CYL.7/12) $1,339.32 To Order
150906 INJECTION SYSTEM CABLES (CYL. 1/6) $917.87 To Order
Photo Part No Description Price (each) Stock
139465 BELLOWS FOR CABLE $198.30 To Order
Photo Part No Description Price (each) Stock
149023 Cap $3.41 To Order
Photo Part No Description Price (each) Stock
130975A ANGOLAR SPEED SENSOR Enquire To Order
Photo Part No Description Price (each) Stock
140621 THICKNESS $10.01 To Order
Photo Part No Description Price (each) Stock
14305021 Screw $0.11 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
11001224 Stud bolt $0.78 To Order
Photo Part No Description Price (each) Stock
144805 SUPPORT $86.16 To Order
Photo Part No Description Price (each) Stock
15896470 NUT $6.32 To Order
Photo Part No Description Price (each) Stock
11199279 WASHER $0.11 To Order
Photo Part No Description Price (each) Stock
167321 PRESSURE REGULATOR $699.35 To Order
Photo Part No Description Price (each) Stock
277569 COMPL. BREATHER PIPE $58.02 To Order
Photo Part No Description Price (each) Stock
148861 BRACKET $0.81 To Order
Photo Part No Description Price (each) Stock
150180 Spark Plug $31.12 To Order
Photo Part No Description Price (each) Stock
897538 SCREW $1.52 To Order
Photo Part No Description Price (each) Stock
11193274 WASHER $0.03 IN STOCK
Photo Part No Description Price (each) Stock
148421 Coil and module support $62.35 To Order
Photo Part No Description Price (each) Stock
10903724 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
14499370 Washer $0.23 To Order
Photo Part No Description Price (each) Stock
138224 IGNITION COIL $517.35 To Order
Photo Part No Description Price (each) Stock
13274972 SCREW $1.93 To Order
Photo Part No Description Price (each) Stock
149951 WASHER $0.29 IN STOCK
Photo Part No Description Price (each) Stock
62769800 WASHER D.5-14 X 2.5 $0.21 ARRIVING SOON
Photo Part No Description Price (each) Stock
201401 POWER MODULE $617.66 To Order
Photo Part No Description Price (each) Stock
13274672 SCREW $0.59 To Order
Photo Part No Description Price (each) Stock
188916 High tension complete cables $2,211.11 To Order
Photo Part No Description Price (each) Stock
150753 Cap $30.48 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
152211 SEAL RING $4.09 To Order
Photo Part No Description Price (each) Stock
149320 Connectors fix. box $39.20 To Order
Photo Part No Description Price (each) Stock
148682 BRACKET FOR CABLES FIXING $4.55 To Order
Photo Part No Description Price (each) Stock
145810 TESTER PUSH $9.12 To Order
Photo Part No Description Price (each) Stock
146196 TESTER PUSH CABLE $14.64 To Order
Photo Part No Description Price (each) Stock
146042 PM connector (black) $12.77 To Order
Photo Part No Description Price (each) Stock
146043 PF connector (black) $8.73 To Order
Photo Part No Description Price (each) Stock
144730 INJECTORS RETENTION CLIP $3.77 To Order
View All

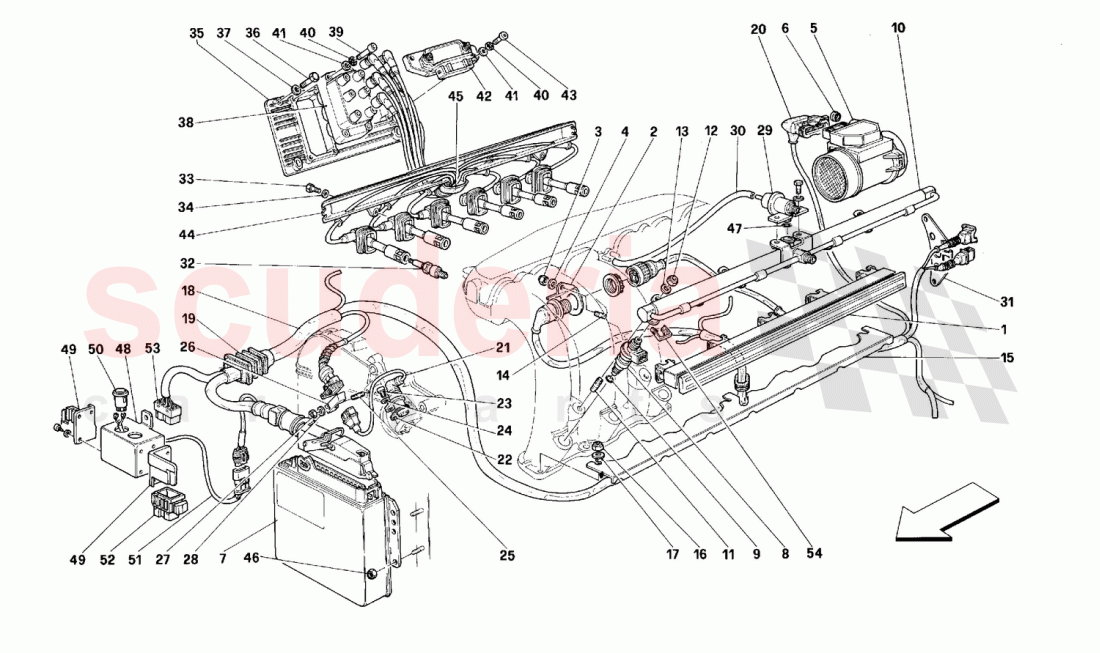

Air injection - Ignition of Ferrari Ferrari 512 TR Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 188963
High tension complete cables
for 7/12 cylinders 		$2,146.71 1
- 150180
Spark Plug
As an alternative 		$31.12 -
- 147202
INJECTION SYSTEM CABLES (CYL. 1/6)
Valid for USA, CDN, AUS, / CH, SA, ZA, J 		$914.80 (40.4% off) 1
- 147203
INJECTION SYSTEM CABLES (CYL.7/12)
Valid for USA, CDN, AUS, / CH, SA, ZA, J 		$996.94 1
1 147567
Connectors and cables box 		$515.47 (50% off) 2
2 145476
L.H. BRACKET 		$1.45 2
3 14059290
FLANGED NUT M6
IN STOCK 		$1.31 2
4 11197774
WASHER
IN STOCK 		$0.06 (80% off) 2
5 154916
AIR FLOW METER 		$756.06 2
6 144092
PLUG -Not for catalyzed cars- 		$5.20 2
7 149338
Ignition/supply control system
system 		$1,527.87 2
8 144256
Injector 		$377.68 12
9 133902
INJECTOR O-RING 		$4.96 (17.3% off) 24
10 149924
Delivery pipe 		$2,166.88 2
11 11500024
Stud for cover of flywheel 		$0.67 8
12 101239
CAP NUT 		$1.23 (66.3% off) 8
13 14499370
Washer 		$0.23 8
14 11499924
STUD BOLT 		$12.62 (25.7% off) 2
15 148533
Protection 		$6.04 2
16 14040711
NUT
IN STOCK 		$0.35 6
17 84653800
WASHER 10 X 18 X 2.5
IN STOCK 		$4.96 6
18 150907
INJECTION SYSTEM CABLES (CYL.7/12)
Not for USA, CDN, AUS, / CH, SA, ZA, J 		$1,339.32 1
18 150906
INJECTION SYSTEM CABLES (CYL. 1/6)
Not for USA, CDN, AUS, / CH, SA, ZA, J 		$917.87 1
19 139465
BELLOWS FOR CABLE 		$198.30 (30.9% off) 2
20 149023
Cap 		$3.41 2
21 130975A
ANGOLAR SPEED SENSOR 		- 2 Enquire
22 140621
THICKNESS 		$10.01 (77.1% off) 2
23 14305021
Screw 		$0.11 2
24 11197774
WASHER
IN STOCK 		$0.06 (80% off) 2
25 11001224
Stud bolt 		$0.78 2
26 144805
SUPPORT 		$86.16 2
27 15896470
NUT 		$6.32 2
28 11199279
WASHER 		$0.11 2
29 167321
PRESSURE REGULATOR 		$699.35 (32.3% off) 2
30 277569
COMPL. BREATHER PIPE 		$58.02 2
31 148861
BRACKET 		$0.81 2
32 150180
Spark Plug 		$31.12 12
33 897538
SCREW 		$1.52 4
34 11193274
WASHER
IN STOCK 		$0.03 4
35 148421
Coil and module support 		$62.35 2
36 10903724
SCREW 		- 8 Enquire
37 14499370
Washer 		$0.23 8
38 138224
IGNITION COIL 		$517.35 (14.7% off) 2
39 13274972
SCREW 		$1.93 8
40 149951
WASHER
IN STOCK 		$0.29 12
41 62769800
WASHER D.5-14 X 2.5
ARRIVING SOON 		$0.21 (30% off) 12
42 201401
POWER MODULE 		$617.66 2
43 13274672
SCREW 		$0.59 4
44 188916
High tension complete cables
for 1/6 cylinders 		$2,211.11 1
45 150753
Cap 		$30.48 2
46 14059290
FLANGED NUT M6
IN STOCK 		$1.31 8
47 152211
SEAL RING 		$4.09 (37.1% off) 2
48 149320
Connectors fix. box 		$39.20 1
49 148682
BRACKET FOR CABLES FIXING 		$4.55 2
50 145810
TESTER PUSH
Valid for USA 		$9.12 2
51 146196
TESTER PUSH CABLE
Valid for USA 		$14.64 2
52 146042
PM connector (black) 		$12.77 2
53 146043
PF connector (black) 		$8.73 2
54 144730
INJECTORS RETENTION CLIP 		$3.77 (5.8% off) 6
