Timing System - Covers

Ferrari 512 TR

Find Your Part

Ferrari 512 TR - Timing system - Covers

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
143385 Front cover Enquire To Order
Photo Part No Description Price (each) Stock
13450424 Stud $0.84 To Order
Photo Part No Description Price (each) Stock
150197 Gasket $34.81 To Order
Photo Part No Description Price (each) Stock
13449624 Stud securing crankcase to gearbox $1.29 To Order
Photo Part No Description Price (each) Stock
102742 Nyloc Nut M10 x 1.25 x 10mm $0.43 IN STOCK
Photo Part No Description Price (each) Stock
12601474 WASHER $0.03 IN STOCK
Photo Part No Description Price (each) Stock
147863 R.H. cover $516.30 To Order
Photo Part No Description Price (each) Stock
152472 L.H. cover $553.77 To Order
Photo Part No Description Price (each) Stock
127635 THREADED PLUG $2.88 To Order
Photo Part No Description Price (each) Stock
13544324 STUD $13.55 To Order
Photo Part No Description Price (each) Stock
147985 NUT $0.14 IN STOCK
Photo Part No Description Price (each) Stock
11500024 Stud for cover of flywheel $0.67 To Order
Photo Part No Description Price (each) Stock
102742 Nyloc Nut M10 x 1.25 x 10mm $0.43 IN STOCK
Photo Part No Description Price (each) Stock
12601474 WASHER $0.03 IN STOCK
Photo Part No Description Price (each) Stock
123705 R.H. belt protection plate $71.18 To Order
Photo Part No Description Price (each) Stock
154689 L.H. belt protection plate $37.35 To Order
Photo Part No Description Price (each) Stock
12601174 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
10977724 SCREW $0.06 IN STOCK
Photo Part No Description Price (each) Stock
13541524 STUD BOLT $0.58 To Order
Photo Part No Description Price (each) Stock
148601 Cables support $21.75 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.32 IN STOCK
Photo Part No Description Price (each) Stock
128029 Adhesive protection $1.93 To Order
Photo Part No Description Price (each) Stock
128030 Adhesive protection $6.35 To Order
Photo Part No Description Price (each) Stock
128031 Adhesive protection $2.73 To Order
Photo Part No Description Price (each) Stock
128032 Adhesive protection $2.84 To Order
Photo Part No Description Price (each) Stock
128033 Adhesive protection $2.24 To Order
Photo Part No Description Price (each) Stock
14499370 Washer $0.23 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.32 IN STOCK
Photo Part No Description Price (each) Stock
147892 L.H. cover $462.05 To Order
Photo Part No Description Price (each) Stock
123706 L.H. belt protection plate $89.48 To Order
Photo Part No Description Price (each) Stock
151605 Bracket $2.88 To Order
Photo Part No Description Price (each) Stock
10450390 BRACKET WITH SHEATH $1.95 To Order
Photo Part No Description Price (each) Stock
320600 CLIP $2.12 To Order
View All

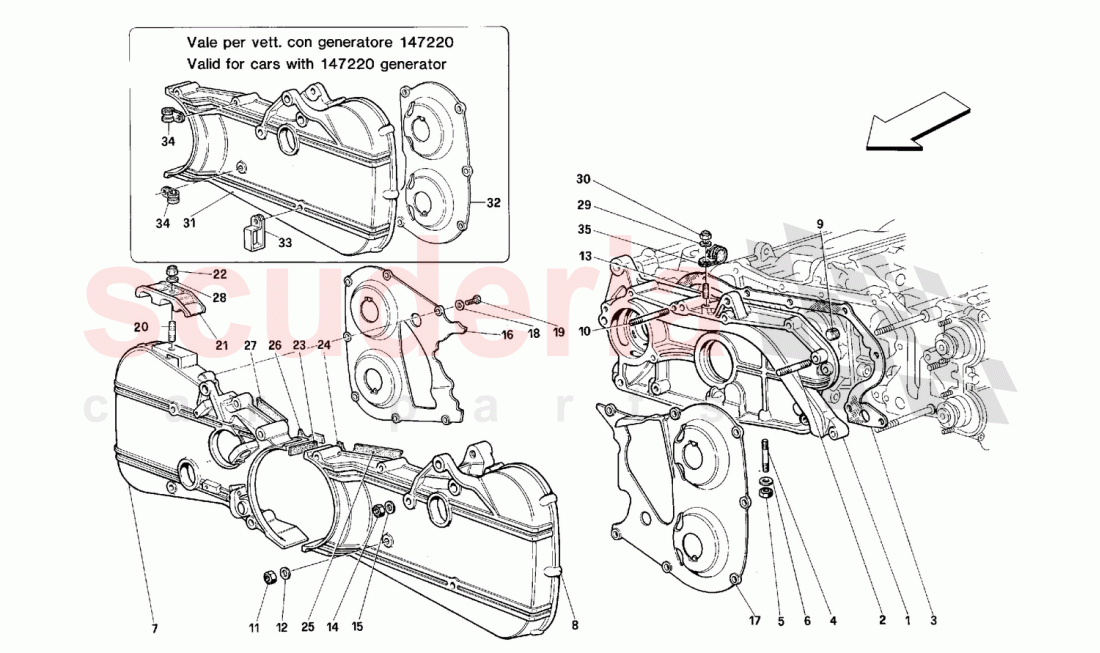

Timing system - Covers of Ferrari Ferrari 512 TR Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 143385
Front cover
Not as spare parts / With crankcase complete / 137712 		- 1 Enquire
2 13450424
Stud 		$0.84 1
3 150197
Gasket 		$34.81 (47.9% off) 1
4 13449624
Stud securing crankcase to gearbox 		$1.29 (92.5% off) 3
5 102742
Nyloc Nut M10 x 1.25 x 10mm
IN STOCK 		$0.43 (86.8% off) 3
6 12601474
WASHER
IN STOCK 		$0.03 3
7 147863
R.H. cover 		$516.30 1
8 152472
L.H. cover
Valid for cars with / generator 154153 / See ref. 1 draw. 53 		$553.77 1
9 127635
THREADED PLUG 		$2.88 (30.9% off) 1
10 13544324
STUD 		$13.55 3
11 147985
NUT
IN STOCK 		$0.14 (72% off) 3
12 12601374
WASHER D.8.40-15 X 0.8
IN STOCK 		$0.02 (92% off) 3
13 11500024
Stud for cover of flywheel 		$0.67 1
14 102742
Nyloc Nut M10 x 1.25 x 10mm
IN STOCK 		$0.43 (86.8% off) 1
15 12601474
WASHER
IN STOCK 		$0.03 1
16 123705
R.H. belt protection plate 		$71.18 (90.9% off) 1
17 154689
L.H. belt protection plate
Valid for cars with / generator 154153 / See ref. 1 draw. 53 		$37.35 (48.5% off) 1
18 12601174
WASHER
generator 147220 Q.ty 13 / See ref. 1 draw. 52 		$0.06 (82.9% off) 14
19 10977724
SCREW
generator 147220 Q.ty 13 / See ref. 1 draw. 52
IN STOCK 		$0.06 14
20 13541524
STUD BOLT 		$0.58 1
21 148601
Cables support 		$21.75 1
22 14059290
FLANGED NUT M6
IN STOCK 		$1.32 1
23 128029
Adhesive protection
Not as spare part 		$1.93 1
24 128030
Adhesive protection 		$6.35 1
25 128031
Adhesive protection 		$2.73 1
26 128032
Adhesive protection 		$2.84 1
27 128033
Adhesive protection 		$2.24 1
28 14499370
Washer 		$0.23 1
29 11197774
WASHER
IN STOCK 		$0.06 (80% off) 1
30 14059290
FLANGED NUT M6
IN STOCK 		$1.32 1
31 147892
L.H. cover
Valid for cars with / generator 147220 / See ref. 1 draw. 52 		$462.05 1
32 123706
L.H. belt protection plate
Valid for cars with / generator 147220 / See ref. 1 draw. 52 		$89.48 (81.7% off) 1
33 151605
Bracket
Valid for cars with / generator 147220 / See ref. 1 draw. 52 		$2.88 1
34 10450390
BRACKET WITH SHEATH
Valid for cars with / generator 147220 / See ref. 1 draw. 52 		$1.95 2
35 320600
CLIP
Valid for cars with / generator 147220 / See ref. 1 draw. 52 		$2.12 1
