Timing System - Valves

Ferrari 512 M

Find Your Part

Ferrari 512 M - Timing system - Valves

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
149863 Tappet for valve control $15.21 To Order
Photo Part No Description Price (each) Stock
117569 VALVE SETTING PLATE mm. 3,25 $20.28 To Order
Photo Part No Description Price (each) Stock
139855 Intake valve $79.71 To Order
Photo Part No Description Price (each) Stock
149217 Exhaust valve $68.41 To Order
Photo Part No Description Price (each) Stock
117565 EXHAUST VALVE GUIDE $101.36 To Order
Photo Part No Description Price (each) Stock
148313 Intake valve seat $8.87 To Order
Photo Part No Description Price (each) Stock
148312 Exhaust valve seat $9.19 To Order
Photo Part No Description Price (each) Stock
156648 Valve return inner spring $62.11 To Order
Photo Part No Description Price (each) Stock
160049 Valve return outer spring $62.11 To Order
Photo Part No Description Price (each) Stock
117567 UPPER CUP FOR RETAINING SPRING $31.99 To Order
Photo Part No Description Price (each) Stock
117568 LOWER CUP FOR RETAINING SPRING $6.07 To Order
Photo Part No Description Price (each) Stock
141565 Oil retainer on valve guide $34.05 IN STOCK
Photo Part No Description Price (each) Stock
117283 Cotter for valve spring cup $2.37 To Order
Photo Part No Description Price (each) Stock
117565 EXHAUST VALVE GUIDE $101.36 To Order
View All

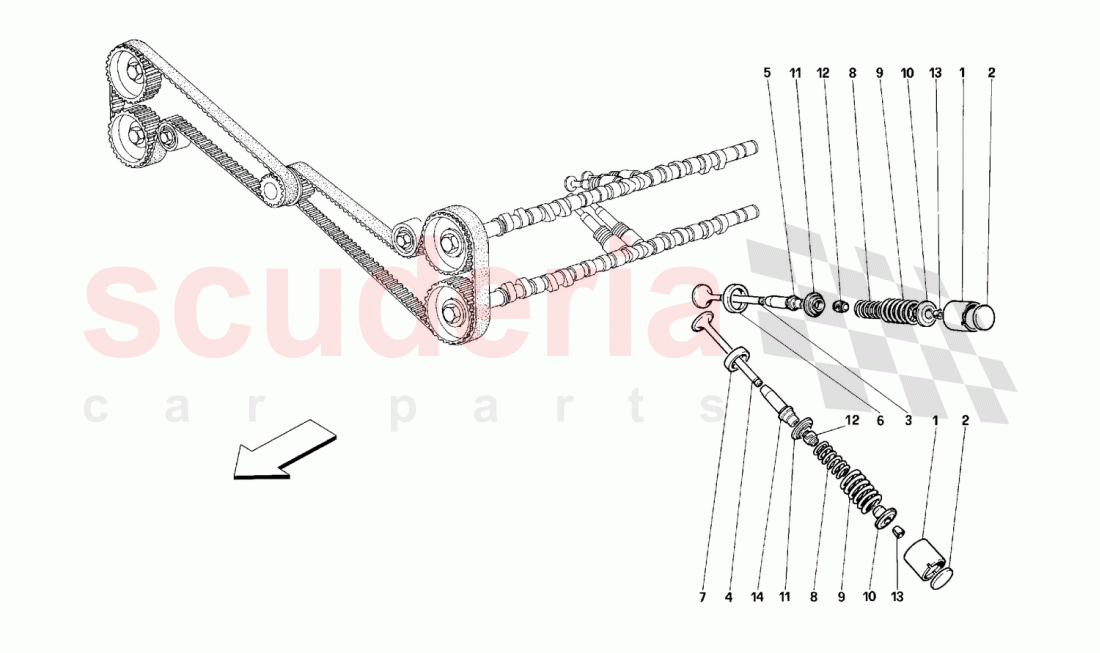

Timing system - Valves of Ferrari Ferrari 512 M Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 117566
Intake valve guide oversized by
by 0.2 mm. 		$88.81 (25.9% off) 24
- 117566
Intake valve guide oversized by
0.2 mm. 		$88.81 (25.9% off) 24
- 117594
DITTO, THICKNESS mm. 4,50 		$20.28 48
- 117595
DITTO, THICKNESS mm. 4,55 		$20.28 48
- 117596
DITTO, THICKNESS mm. 4,60 		$20.28 48
- 153742
DITTO, THICKNESS mm. 4,275 		$12.86 48
- 117590
DITTO, THICKNESS mm. 4,30 		$36.76 48
- 117591
DITTO, THICKNESS mm. 4,35 		$19.01 48
- 117592
DITTO, THICKNESS mm. 4,40 		$20.28 48
- 117593
DITTO, THICKNESS mm. 4,45 		$20.28 48
- 117587
DITTO, THICKNESS mm. 4,15 		$48.17 48
- 153740
DITTO, THICKNESS mm. 4,175 		$40.55 48
- 117588
DITTO, THICKNESS mm. 4,20 		$36.76 48
- 153741
DITTO, THICKNESS mm. 4,225 		$12.86 (24.5% off) 48
- 117589
DITTO, THICKNESS mm. 4,25 		$36.76 48
- 153737
DITTO, THICKNESS mm. 4,025 		$39.28 48
- 117585
DITTO, THICKNESS mm. 4,05 		$40.55 48
- 153738
DITTO, THICKNESS mm. 4,075 		$39.28 48
- 117586
DITTO, THICKNESS mm. 4,10 		$48.17 48
- 153739
DITTO, THICKNESS mm. 4,125 		$30.41 48
- 153735
DITTO, THICKNESS mm. 3,925 		$12.86 (26% off) 48
- 117583
DITTO, THICKNESS mm. 3,95
IN STOCK 		$40.55 48
- 153736
DITTO, THICKNESS mm. 3,975 		$40.55 48
- 117584
DITTO, THICKNESS mm. 4,00
IN STOCK 		$48.17 48
- 153733
DITTO, THICKNESS mm. 3,825 		$12.86 (26% off) 48
- 117581
DITTO, THICKNESS mm. 3,85
IN STOCK 		$48.17 48
- 153734
DITTO, THICKNESS mm. 3,875 		$12.86 (26% off) 48
- 117582
DITTO, THICKNESS mm. 3,90
IN STOCK 		$48.17 48
- 153731
DITTO, THICKNESS mm. 3,725 		$12.86 (26% off) 48
- 117579
DITTO, THICKNESS mm. 3,75
IN STOCK 		$48.17 48
- 153732
DITTO, THICKNESS mm. 3,775 		$12.86 (26% off) 48
- 117580
DITTO, THICKNESS mm. 3,80 		$48.17 48
- 117574
DITTO, THICKNESS mm. 3,50 		$20.28 48
- 117575
DITTO, THICKNESS mm. 3,55
IN STOCK 		$40.55 48
- 117576
DITTO, THICKNESS mm. 3,60 		$48.17 48
- 117577
DITTO, THICKNESS mm. 3,65
IN STOCK 		$48.17 48
- 117578
DITTO, THICKNESS mm. 3,70
IN STOCK 		$48.17 48
- 117570
DITTO, THICKNESS mm. 3,30 		$20.28 48
- 117571
DITTO, THICKNESS mm. 3,35 		$20.28 48
- 117572
DITTO, THICKNESS mm. 3,40 		$20.28 48
- 117573
DITTO, THICKNESS mm. 3,45 		$20.28 48
1 149863
Tappet for valve control 		$15.21 48
2 117569
VALVE SETTING PLATE mm. 3,25
thickness 3,25 mm. 		$20.28 (3.9% off) 48
3 139855
Intake valve 		$79.71 24
4 149217
Exhaust valve 		$68.41 24
5 117565
EXHAUST VALVE GUIDE 		$101.36 (48.4% off) 24
6 148313
Intake valve seat 		$8.87 24
7 148312
Exhaust valve seat 		$9.19 24
8 156648
Valve return inner spring 		$62.11 48
9 160049
Valve return outer spring 		$62.11 48
10 117567
UPPER CUP FOR RETAINING SPRING 		$31.99 (66.3% off) 48
11 117568
LOWER CUP FOR RETAINING SPRING 		$6.07 48
12 141565
Oil retainer on valve guide
IN STOCK 		$34.05 48
13 117283
Cotter for valve spring cup 		$2.37 (13.8% off) 96
14 117565
EXHAUST VALVE GUIDE 		$101.36 (48.4% off) 24
