Crankshaft - Connecting Rods And Pistons

Ferrari 512 M

Find Your Part

Ferrari 512 M - Crankshaft - Connecting rods and pistons

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
155591 Crankshaft $5,662.51 To Order
Photo Part No Description Price (each) Stock
100185 Dowel $1.42 To Order
Photo Part No Description Price (each) Stock
14326150 CAP $0.51 IN STOCK
Photo Part No Description Price (each) Stock
138900 Flywheel compl. $782.85 To Order
Photo Part No Description Price (each) Stock
103877 BEARING $31.67 IN STOCK
Photo Part No Description Price (each) Stock
159139 Feather key on crankshaft $2.99 To Order
Photo Part No Description Price (each) Stock
161495 Connecting rod, complete $433.11 To Order
Photo Part No Description Price (each) Stock
158186 CONNECTING ROD TIGHTENING SCREW $214.87 To Order
Photo Part No Description Price (each) Stock
163528 THREADED PLUG $3.78 ARRIVING SOON
Photo Part No Description Price (each) Stock
202389 CONNECTING ROD HALF BEARING $47.33 To Order
Photo Part No Description Price (each) Stock
107100 Bush for gudgeon pin $40.37 To Order
Photo Part No Description Price (each) Stock
158107 Piston complete with rings $1,596.25 To Order
Photo Part No Description Price (each) Stock
165354 Set of piston rings $112.31 To Order
Photo Part No Description Price (each) Stock
163990 AC seal ring (1st groove) Enquire To Order
Photo Part No Description Price (each) Stock
119850 AC seal ring (2nd groove) Enquire To Order
Photo Part No Description Price (each) Stock
119851 ROF scraper ring (3rd groove) Enquire To Order
Photo Part No Description Price (each) Stock
100174 Ring for gudgeon pin $5.26 To Order
Photo Part No Description Price (each) Stock
201755 Bolt Hex Head M10 x 1.25 $1.06 ARRIVING SOON
Photo Part No Description Price (each) Stock
108662 Safety plate $18.48 To Order
Photo Part No Description Price (each) Stock
138391 Sealing ring $49.24 To Order
Photo Part No Description Price (each) Stock
119537 Gudgeon pin $99.58 To Order
View All

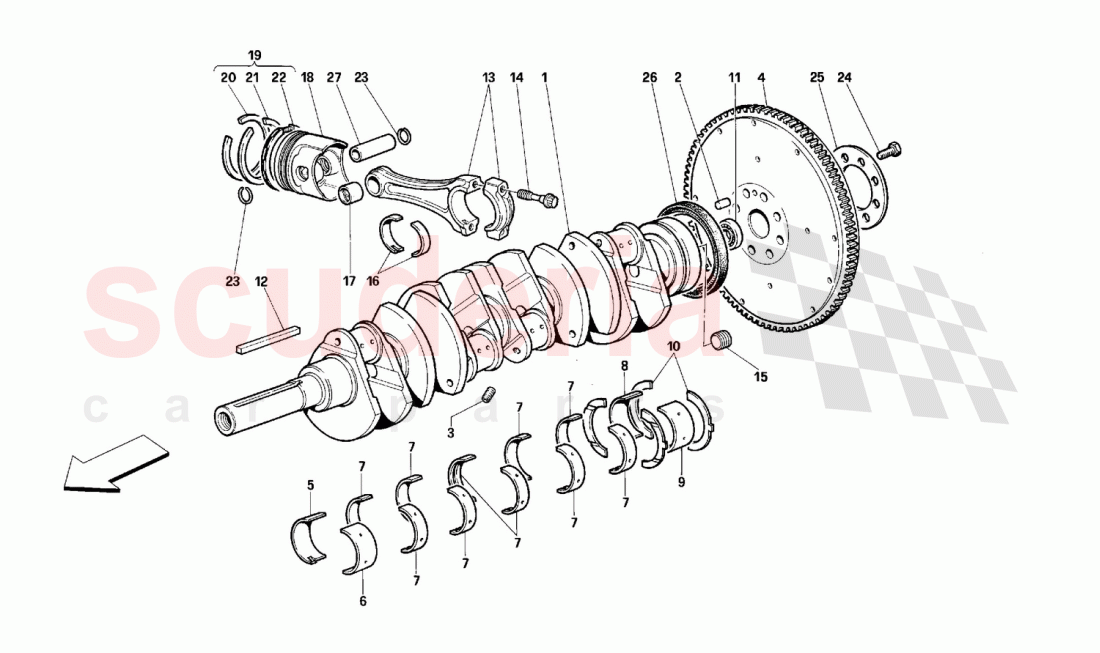

Crankshaft - Connecting rods and pistons of Ferrari Ferrari 512 M Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 166565
2nd undersize 0.508 mm on Ø 		$100.78 -
- 166566
3rd undersize 0.762 mm on Ø 		$100.78 -
- 166564
1st undersize 0.254 mm on Ø 		$59.18 (28.9% off) -
- 202389
CONNECTING ROD HALF BEARING
Valid after stock exhaustion / of 146889 		$47.33 (29.6% off) 24
- 161495
Connecting rod, complete 		$433.11 12
- 108605
Half bearing set -
2nd undersize 0.508 mm 		- 1 Enquire
- 113984
SHIM 1st OVERSIZE mm 0.127 		$82.50 -
- 100147
SHIM 2nd OVERSIZE mm 0.250 		$14.73 (25.6% off) -
- 108603
Half bearing set -
Standard 		$172.95 1
- 108604
Half bearing set -
1st undersize 0.254 mm 		$517.40 1
1 155591
Crankshaft 		$5,662.51 1
2 100185
Dowel 		$1.42 (95% off) 1
3 14326150
CAP
IN STOCK 		$0.51 (66% off) 12
4 138900
Flywheel compl. 		$782.85 1
10 4150813
Shim for rear support 		- 2 Enquire
11 103877
BEARING
IN STOCK 		$31.67 1
12 159139
Feather key on crankshaft 		$2.99 1
13 161495
Connecting rod, complete
Not as spare part / With assembly 161495 		$433.11 12
14 158186
CONNECTING ROD TIGHTENING SCREW 		$214.87 24
15 163528
THREADED PLUG
ARRIVING SOON 		$3.78 (11.1% off) 2
16 202389
CONNECTING ROD HALF BEARING 		$47.33 (29.6% off) 24
17 107100
Bush for gudgeon pin 		$40.37 12
18 158107
Piston complete with rings 		$1,596.25 (14.6% off) 12
19 165354
Set of piston rings 		$112.31 12
20 163990
AC seal ring (1st groove)
Not as spare part / With set 165354 		- 12 Enquire
21 119850
AC seal ring (2nd groove)
Not as spare part / With set 165354 		- 12 Enquire
22 119851
ROF scraper ring (3rd groove)
(3rd groove) / Not as spare part / With set 165354 		- 12 Enquire
23 100174
Ring for gudgeon pin 		$5.26 (38.1% off) 24
24 201755
Bolt Hex Head M10 x 1.25
ARRIVING SOON 		$1.06 (45.6% off) 8
25 108662
Safety plate 		$18.48 (75.3% off) 1
26 138391
Sealing ring 		$49.24 (32.8% off) 1
27 119537
Gudgeon pin 		$99.58 (54.1% off) 12
