Vents

Ferrari 488 Spider

Find Your Part

Ferrari 488 Spider - VENTS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
315504 COMPL. HEAD WATER BREATHER PIPE $264.14 To Order
Photo Part No Description Price (each) Stock
323682 RUBBER PIPE COMPL. WITH SHEATH $98.10 To Order
Photo Part No Description Price (each) Stock
324497 SELF-BLEEDING PIPE MOUNTING BRACKET $23.88 To Order
Photo Part No Description Price (each) Stock
318122 BRACKET WITH SHEATH $8.04 To Order
Photo Part No Description Price (each) Stock
13126970 COLLAR $1.33 To Order
Photo Part No Description Price (each) Stock
140727 CLIP $0.23 IN STOCK
Photo Part No Description Price (each) Stock
213069 CLIP $0.26 To Order
Photo Part No Description Price (each) Stock
10441590 BRACKET WITH SHEATH $0.52 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
10260960 GASKET $0.15 IN STOCK
Photo Part No Description Price (each) Stock
11903811 HOSE CONNECTOR $4.11 To Order
Photo Part No Description Price (each) Stock
311359 PIPE FROM TANK TO REAR COVER $89.29 To Order
311745 PIPE FROM TANK TO REAR COVER $238.99 To Order
311745 PIPE FROM TANK TO REAR COVER $238.99 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
320566 PIPE FROM TANK TO MANIFOLD PLENUM $188.67 To Order
320566 PIPE FROM TANK TO MANIFOLD PLENUM $188.67 To Order
Photo Part No Description Price (each) Stock
322006 RH VAPOUR INLET PIPE $238.99 To Order
322002 RH VAPOUR INLET PIPE $90.55 To Order
322002 RH VAPOUR INLET PIPE $90.55 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
322008 LH VAPOUR INLET PIPE $238.99 To Order
322008 LH VAPOUR INLET PIPE $238.99 To Order
322004 LH VAPOUR INLET PIPE $90.55 To Order
...and 1 more part variants. See table on right for more details.
View All

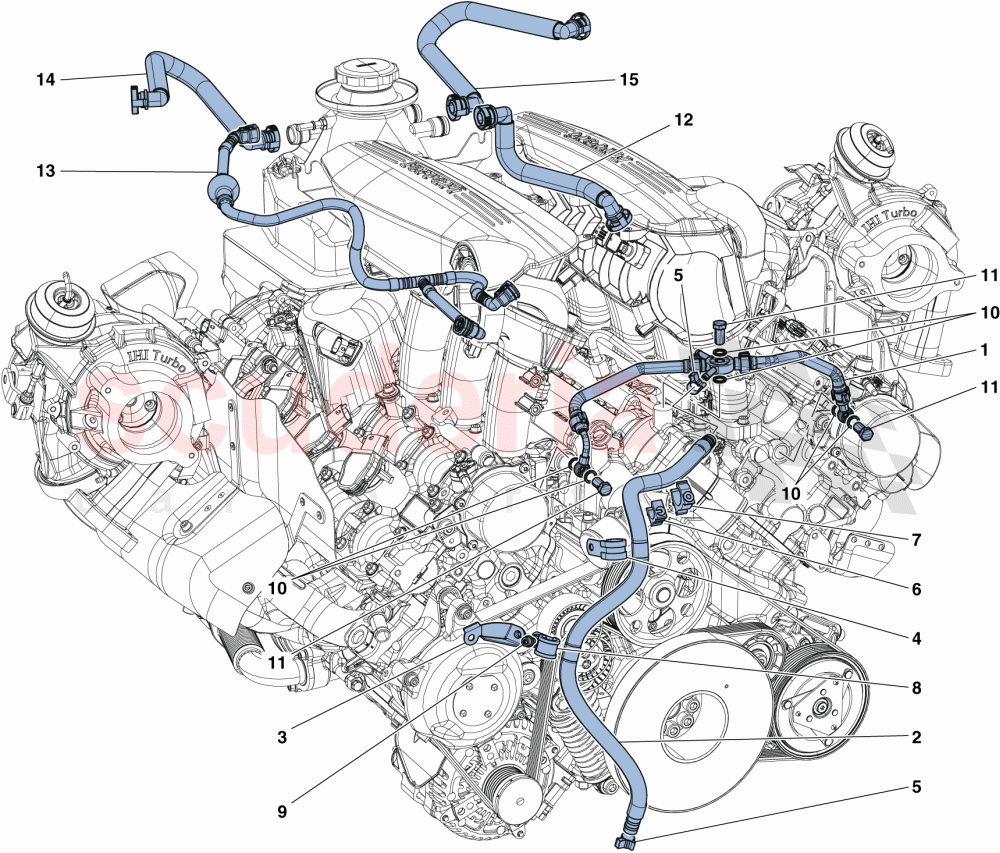

VENTS of Ferrari Ferrari 488 Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 315504
COMPL. HEAD WATER BREATHER PIPE 		$264.14 1
2 323682
RUBBER PIPE COMPL. WITH SHEATH 		$98.10 1
3 324497
SELF-BLEEDING PIPE MOUNTING BRACKET 		$23.88 1
4 318122
BRACKET WITH SHEATH 		$8.04 1
5 13126970
COLLAR 		$1.33 2
6 140727
CLIP
IN STOCK 		$0.23 (69.3% off) 1
7 213069
CLIP 		$0.26 1
8 10441590
BRACKET WITH SHEATH 		$0.52 1
9 248334
SCREW
M6 X 12
IN STOCK 		$0.58 1
10 10260960
GASKET
Also comes with engine gasket set
IN STOCK 		$0.15 6
11 11903811
HOSE CONNECTOR 		$4.11 3
12 311359
PIPE FROM TANK TO REAR COVER
Applicable for EU GS, AUS, UK; Applicable up to engine No. 384015 		$89.29 1
12 311745
PIPE FROM TANK TO REAR COVER
Applicable for EU GS, AUS, UK; Applicable from engine No. 384016 		$238.99 1
12 311745
PIPE FROM TANK TO REAR COVER
Applicable for USA, CDN, USA LIGHT 		$238.99 1
12 311359
PIPE FROM TANK TO REAR COVER
Not for EU GS, AUS, USA, CDN, UK, USA LIGHT 		$89.29 1
13 320566
PIPE FROM TANK TO MANIFOLD PLENUM
Not for EU GS, AUS, USA, CDN, UK, USA LIGHT 		$188.67 1
13 320566
PIPE FROM TANK TO MANIFOLD PLENUM
Applicable for EU GS, AUS, UK; Applicable up to engine No. 384015 		$188.67 1
14 322006
RH VAPOUR INLET PIPE
Applicable for USA, CDN, USA LIGHT 		$238.99 1
14 322002
RH VAPOUR INLET PIPE
Not for EU GS, AUS, USA, CDN, UK, USA LIGHT 		$90.55 1
14 322002
RH VAPOUR INLET PIPE
Applicable for EU GS, AUS, UK; Applicable up to engine No. 384015 		$90.55 1
14 322006
RH VAPOUR INLET PIPE
Applicable for EU GS, AUS, UK; Applicable from engine No. 384016 		$238.99 1
15 322008
LH VAPOUR INLET PIPE
Applicable for EU GS, AUS, UK; Applicable from engine No. 384016 		$238.99 1
15 322008
LH VAPOUR INLET PIPE
Applicable for USA, CDN, USA LIGHT 		$238.99 1
15 322004
LH VAPOUR INLET PIPE
Not for EU GS, AUS, USA, CDN, UK, USA LIGHT 		$90.55 1
15 322004
LH VAPOUR INLET PIPE
Applicable for EU GS, AUS, UK; Applicable up to engine No. 384015 		$90.55 1
