Name: LEFT HAND CYLINDER HEAD
Rating: 5.0 (1 reviews)

LEFT HAND CYLINDER HEAD of Ferrari Ferrari 488 Spider

View All

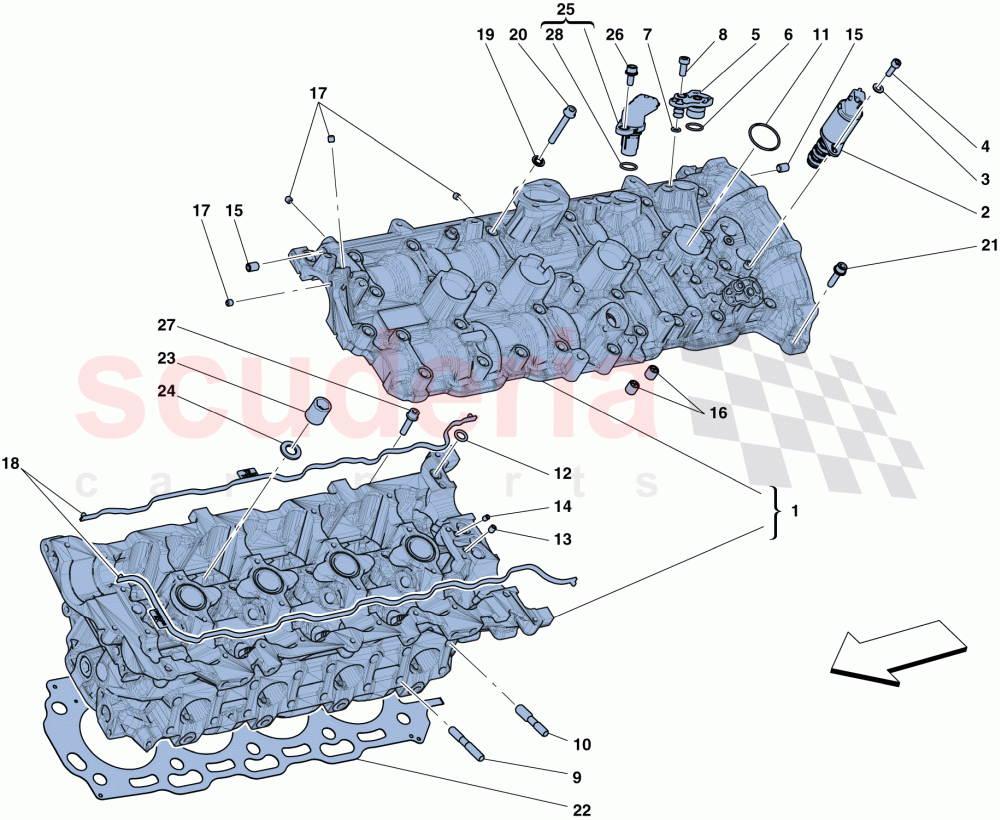

Ferrari 488 Spider - LEFT HAND CYLINDER HEAD

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	322085	LH CYLINDER HEAD	$2,248.55	To Order

Photo	Part No	Description	Price (each)	Stock
	801187	OIL PRESSURE REGULATOR VALVE	$226.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11181574	WASHER	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14304124	SCREW	$0.14	To Order

Photo	Part No	Description	Price (each)	Stock
	806088	PLUG	$6.79	To Order

Photo	Part No	Description	Price (each)	Stock
	14453281	O-RING	$1.25	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14452781	GASKET	$0.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13026924	SCREW	$0.29	To Order

Photo	Part No	Description	Price (each)	Stock
	307168	STUD BOLT	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	306320	STUD BOLT	$2.67	To Order

Photo	Part No	Description	Price (each)	Stock
	166657	O-Ring D.29.87	$0.46	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	127816	O-RING	$3.38	To Order

Photo	Part No	Description	Price (each)	Stock
	256827	GRUB SCREW	$4.91	To Order

Photo	Part No	Description	Price (each)	Stock
	226414	GRUB SCREW	$6.19	To Order

Photo	Part No	Description	Price (each)	Stock
	277903	PLUG	$0.56	To Order

Photo	Part No	Description	Price (each)	Stock
	200458	CHECK VALVE	$9.30	IN STOCK
	342272	CHECK VALVE	$12.23	To Order

Photo	Part No	Description	Price (each)	Stock
	199760	THREADED PLUG	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	673009081	LH HEAD COVER GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296075	WASHER 13 X 5.8	$1.16	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	296759	SCREW	$0.62	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	278646	LH HEAD-CRANKCASE GASKET	$167.58	To Order
	319512	LH HEAD-CRANKCASE GASKET	$146.52	To Order

Photo	Part No	Description	Price (each)	Stock
	271125	NUT	$6.45	To Order

Photo	Part No	Description	Price (each)	Stock
	271129	WASHER	$1.11	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	224573	TIMING SENSOR	$37.41	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	849672	TIMING SENSOR SEAL	$4.41	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	322085	LH CYLINDER HEAD	322085 LH CYLINDER HEAD	$2,248.55	1
2	801187	OIL PRESSURE REGULATOR VALVE IN STOCK	801187 OIL PRESSURE REGULATOR VALVE IN STOCK	$226.45	2
3	11181574	WASHER IN STOCK	11181574 WASHER IN STOCK	$0.02	2
4	14304124	SCREW	14304124 SCREW	$0.14 MSRP: ~~0.75~~ (81.3% off)	2
5	806088	PLUG	806088 PLUG	$6.79	2
6	14453281	O-RING IN STOCK	14453281 O-RING Also comes with engine gasket set IN STOCK	$1.25	4
7	14452781	GASKET IN STOCK	14452781 GASKET Also comes with engine gasket set IN STOCK	$0.19	4
8	13026924	SCREW	13026924 SCREW	$0.29	2
9	307168	STUD BOLT	307168 STUD BOLT	$1.97 MSRP: ~~2.40~~ (17.9% off)	6
10	306320	STUD BOLT	306320 STUD BOLT	$2.67 MSRP: ~~3.27~~ (18.3% off)	4
11	166657	O-Ring D.29.87 IN STOCK	166657 O-Ring D.29.87 IN STOCK	$0.46 MSRP: ~~0.50~~ (8% off)	4
12	127816	O-RING	127816 O-RING	$3.38 MSRP: ~~4.95~~ (31.7% off)	1
13	256827	GRUB SCREW	256827 GRUB SCREW	$4.91	1
14	226414	GRUB SCREW	226414 GRUB SCREW	$6.19	1
15	277903	PLUG	277903 PLUG	$0.56	2
16	200458	CHECK VALVE IN STOCK	200458 CHECK VALVE Applicable up to engine No. 405808 IN STOCK	$9.30	2
16	342272	CHECK VALVE	342272 CHECK VALVE Applicable from engine No. 405809	$12.23	2
17	199760	THREADED PLUG IN STOCK	199760 THREADED PLUG IN STOCK	$0.29	4
18	673009081	LH HEAD COVER GASKET	673009081 LH HEAD COVER GASKET Also comes with engine gasket set; Replaced by Part Nos. 339988 and 339989; No longer supplied	-	1	Enquire
19	296075	WASHER 13 X 5.8 IN STOCK	296075 WASHER 13 X 5.8 IN STOCK	$1.16	30
20	296759	SCREW	296759 SCREW	$0.62	30
21	231620	SCREW IN STOCK	231620 SCREW M6 X 25 IN STOCK	$0.31 MSRP: ~~0.35~~ (11.4% off)	3
22	278646	LH HEAD-CRANKCASE GASKET	278646 LH HEAD-CRANKCASE GASKET Applicable up to engine No. 297220	$167.58	1
22	319512	LH HEAD-CRANKCASE GASKET	319512 LH HEAD-CRANKCASE GASKET Applicable from engine No. 297221	$146.52	1
23	271125	NUT	271125 NUT	$6.45	10
24	271129	WASHER IN STOCK	271129 WASHER IN STOCK	$1.11	10
25	224573	TIMING SENSOR ARRIVING SOON	224573 TIMING SENSOR ARRIVING SOON	$37.41 MSRP: ~~55.44~~ (32.5% off)	2
26	231619	SCREW IN STOCK	231619 SCREW M6 X 18 IN STOCK	$0.29	2
27	231619	SCREW IN STOCK	231619 SCREW M6 X 22 IN STOCK	$0.29	1
28	849672	TIMING SENSOR SEAL IN STOCK	849672 TIMING SENSOR SEAL IN STOCK	$4.41	2

Left Hand Cylinder Head

Ferrari 488 Spider

Ferrari 488 Spider - LEFT HAND CYLINDER HEAD

Add to Shopping Cart
