Ferrari 488 Spider - MANIFOLDS, TURBOCHARGING SYSTEM AND PIPES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
319026 RH EXHAUST MANIFOLD $4,343.21 To Order
Photo Part No Description Price (each) Stock

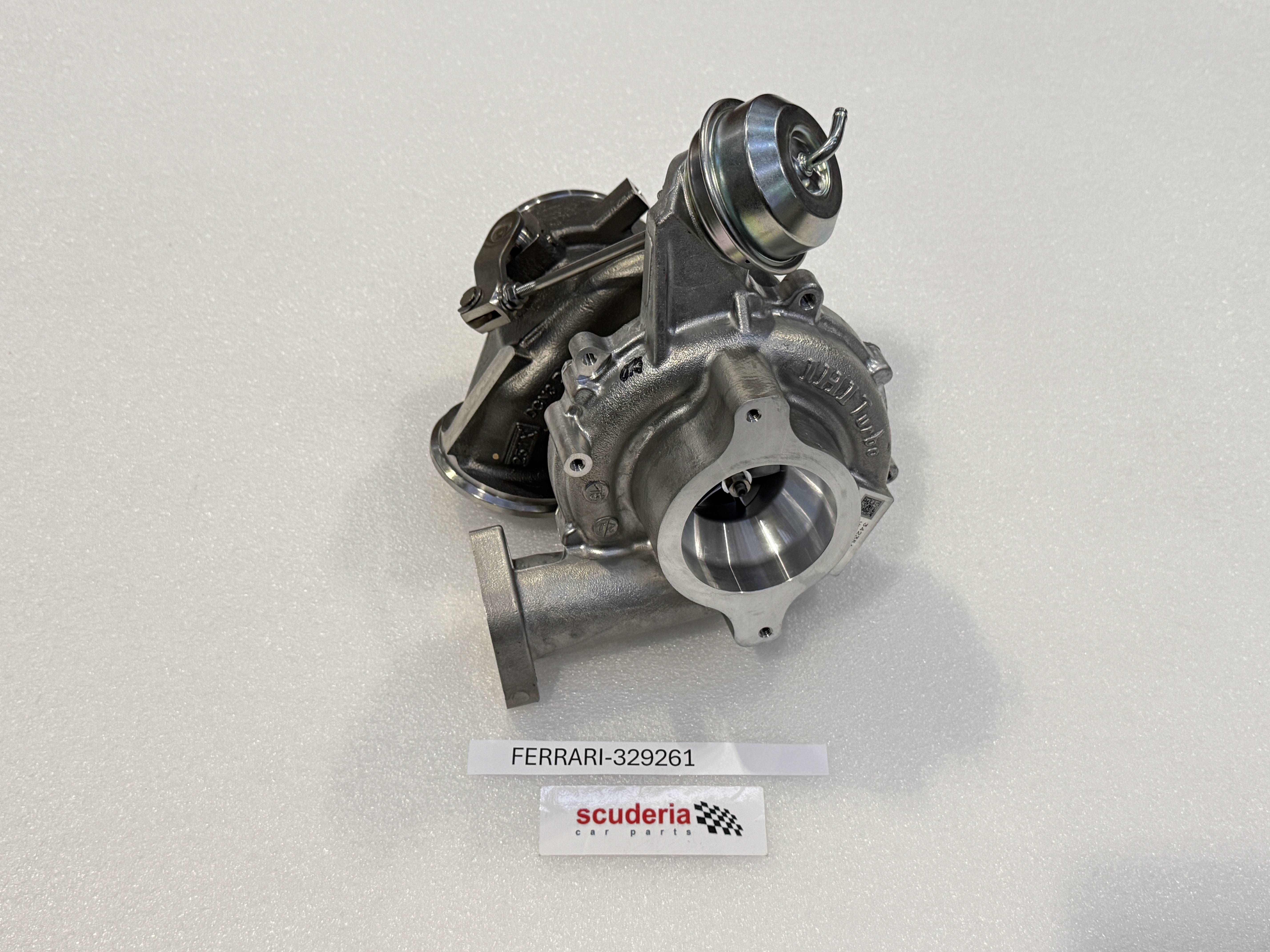

329261 RH TURBOCHARGER $16,637.68 IN STOCK

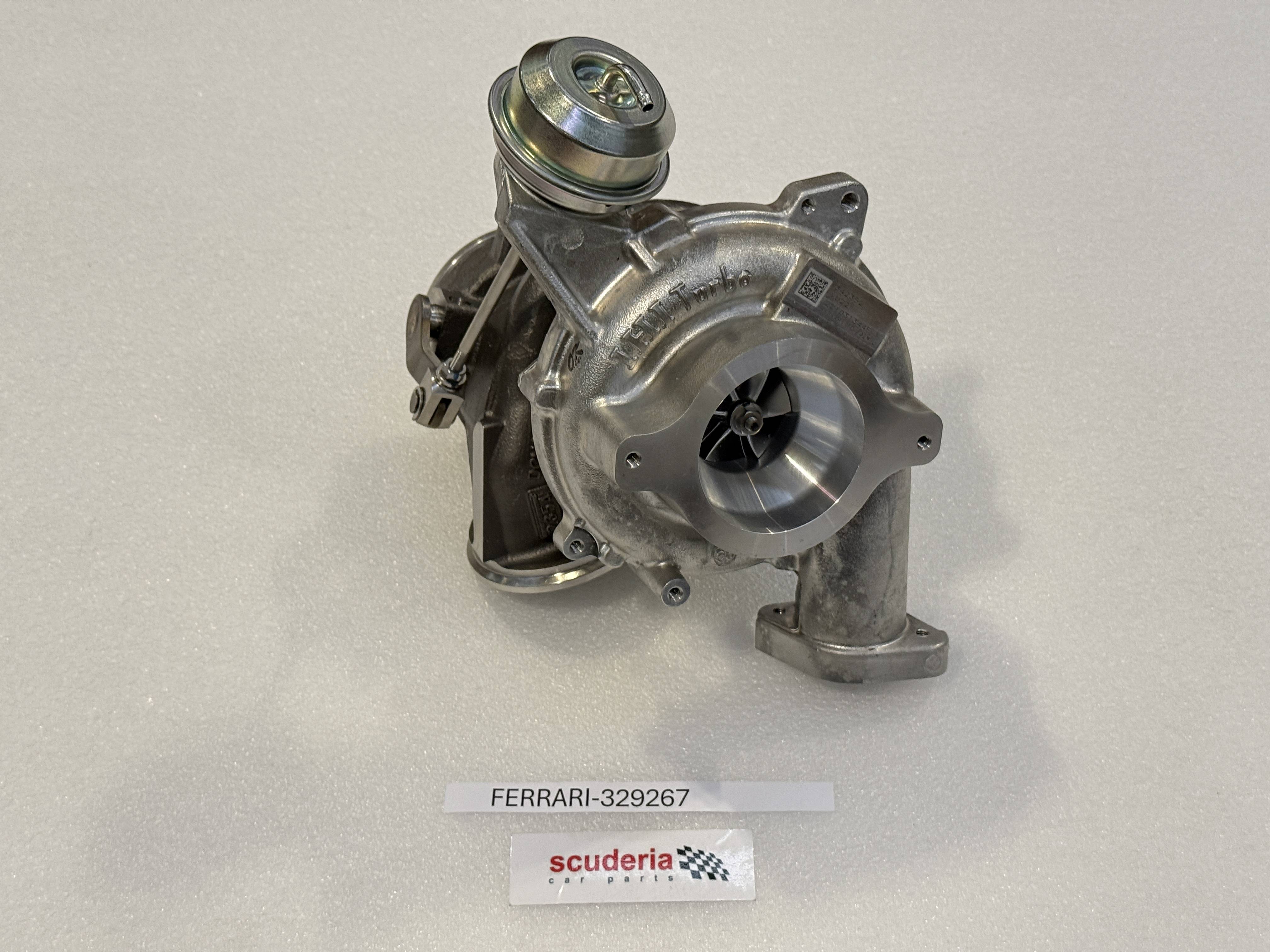

329267 LH TURBOCHARGER $16,637.68 IN STOCK
Photo Part No Description Price (each) Stock
314780 STEEL RING SEAL $215.90 IN STOCK
Photo Part No Description Price (each) Stock
287210 V-CLAMP FOR FASTENING CATALYTIC CONVERTER TO TURBO $47.08 To Order
Photo Part No Description Price (each) Stock
292736 EXHAUST MANIFOLD GASKET $92.57 IN STOCK
Photo Part No Description Price (each) Stock
307964 COPPER NUT $3.30 IN STOCK
Photo Part No Description Price (each) Stock
290216 THREADED CONNECTOR WITH SEAL RING $26.48 To Order
Photo Part No Description Price (each) Stock
10261060 GASKET COPPER 12 - 16 X 1.5 $0.14 IN STOCK
Photo Part No Description Price (each) Stock
322189 LH EXHAUST MANIFOLD HEAT SHIELD $102.20 To Order
322188 RH EXHAUST MANIFOLD HEAT SHIELD $102.20 To Order
Photo Part No Description Price (each) Stock
321692 LH TURBO HEAT SHIELD $97.15 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
280460 SCREW $4.03 To Order
Photo Part No Description Price (each) Stock
309013 TURBO-CAT. CONVERTER FLANGE GASKET $74.31 IN STOCK
Photo Part No Description Price (each) Stock
314448 CALIBRATED BUSH $27.13 To Order
338842 CALIBRATED BUSH $31.12 To Order
Photo Part No Description Price (each) Stock
14076611 NUT $1.17 IN STOCK
Photo Part No Description Price (each) Stock
325811 TURBO SUPPORT PLATE $492.09 To Order
Photo Part No Description Price (each) Stock
320401 RH TURBO MOUNTING BRACKET $441.62 To Order
320402 LH TURBO MOUNTING BRACKET $441.62 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
322386 RH CYLINDER HEAD HEAT SHIELD $504.72 To Order
321689 LH CYLINDER HEAD HEAT SHIELD $504.72 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
View All

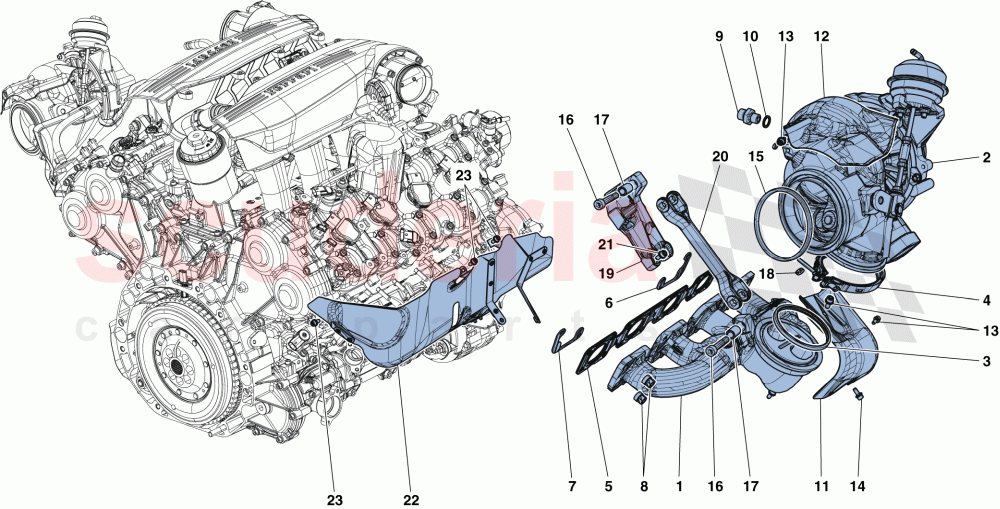

MANIFOLDS, TURBOCHARGING SYSTEM AND PIPES of Ferrari Ferrari 488 Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 319026
RH EXHAUST MANIFOLD 		$4,343.21 1
2 329261
RH TURBOCHARGER
IN STOCK 		$16,637.68 1
2 329267
LH TURBOCHARGER
IN STOCK 		$16,637.68 1
3 314780
STEEL RING SEAL
Also comes with engine gasket set
IN STOCK 		$215.90 2
4 287210
V-CLAMP FOR FASTENING CATALYTIC CONVERTER TO TURBO 		$47.08 2
5 292736
EXHAUST MANIFOLD GASKET
Also comes with engine gasket set
IN STOCK 		$92.57 (31.3% off) 2
8 307964
COPPER NUT
IN STOCK 		$3.30 20
9 290216
THREADED CONNECTOR WITH SEAL RING 		$26.48 2
10 10261060
GASKET COPPER 12 - 16 X 1.5
Also comes with engine gasket set
IN STOCK 		$0.14 (71.4% off) 2
11 322189
LH EXHAUST MANIFOLD HEAT SHIELD 		$102.20 1
11 322188
RH EXHAUST MANIFOLD HEAT SHIELD 		$102.20 1
12 321692
LH TURBO HEAT SHIELD 		$97.15 1
13 248334
SCREW
M6 X 12
IN STOCK 		$0.58 8
14 280460
SCREW 		$4.03 2
15 309013
TURBO-CAT. CONVERTER FLANGE GASKET
Also comes with engine gasket set
IN STOCK 		$74.31 2
17 314448
CALIBRATED BUSH
Applicable until depletion 		$27.13 4
17 338842
CALIBRATED BUSH
Applicable after depletion of 314448 		$31.12 4
18 14076611
NUT
IN STOCK 		$1.17 2
19 325811
TURBO SUPPORT PLATE 		$492.09 2
20 320401
RH TURBO MOUNTING BRACKET 		$441.62 1
20 320402
LH TURBO MOUNTING BRACKET 		$441.62 1
21 231619
SCREW
M6 X 22
IN STOCK 		$0.29 8
22 322386
RH CYLINDER HEAD HEAT SHIELD 		$504.72 1
22 321689
LH CYLINDER HEAD HEAT SHIELD 		$504.72 1
23 248334
SCREW
M6 X 14
IN STOCK 		$0.58 7
