Ferrari 488 Spider - LUBRICATION SYSTEM: TANK, PUMP AND FILTER

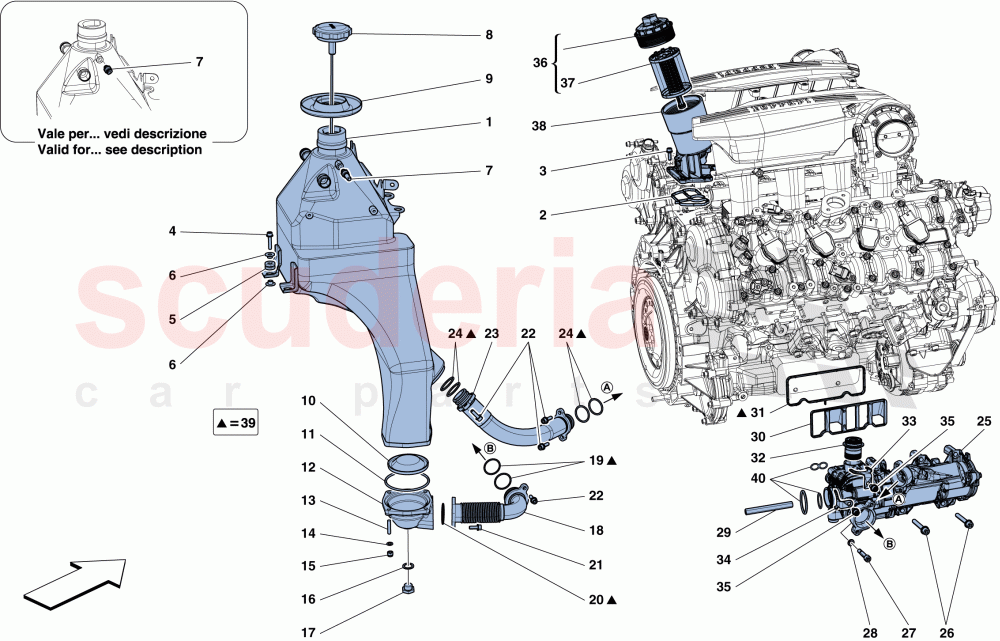

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	325249	COMPL. OIL TANK	$2,407.45	To Order

Photo	Part No	Description	Price (each)	Stock
	270805	OIL FILTER GASKET	$12.17	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.30	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	177576	CABLE GROMMET	$2.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	819489	FLANGED BUSHING	$13.85	To Order

Photo	Part No	Description	Price (each)	Stock
	14326101	THREADED PLUG	$1.10	To Order
	317584	THREADED CONNECTOR	$23.94	To Order
	14326101	THREADED PLUG	$1.10	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	317655	CAP COMPL. WITH DIPSTICK	$302.65	To Order

Photo	Part No	Description	Price (each)	Stock
	294022	RING FOR ENGINE OIL TANK	$50.43	To Order

Photo	Part No	Description	Price (each)	Stock
	100332	OIL PICKUP FILTER	$17.81	To Order

Photo	Part No	Description	Price (each)	Stock
	125521	O-RING	$10.51	To Order

Photo	Part No	Description	Price (each)	Stock
	255176	OIL PICKUP	$150.55	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11500524	STUD BOLT	$0.33	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10261460	COPPER WASHER 16 X 24 X 1.5	$0.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	293107	THREADED PLUG	$77.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	317832	OIL DELIVERY PIPE FROM TANK TO PUMP	$479.21	To Order

Photo	Part No	Description	Price (each)	Stock
	14458481	O-RING	$2.19	To Order

Photo	Part No	Description	Price (each)	Stock
	862084	GASKET	$4.90	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	317835	OIL RECOVERY PIPE FROM ENGINE TO TANK	$290.04	To Order

Photo	Part No	Description	Price (each)	Stock
	139934	O-RING	$0.82	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	887314	COMPL. OIL PUMPS	$3,464.27	To Order

Photo	Part No	Description	Price (each)	Stock
	285494	SCREW	$0.93	To Order

Photo	Part No	Description	Price (each)	Stock
	239462	CALIBRATED SCREW	$6.65	To Order

Photo	Part No	Description	Price (each)	Stock
	986847	CONICAL WASHER	$0.59	To Order

Photo	Part No	Description	Price (each)	Stock
	303379	OIL RECOVERY PUMP FILTER	$29.17	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	309348	OIL RECOVERY PUMP GASKET	$14.74	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	320781	CHECK VALVE	$70.61	To Order

Photo	Part No	Description	Price (each)	Stock
	310610	CHECK VALVE MOUNTING BRACKET	$11.73	To Order

Photo	Part No	Description	Price (each)	Stock
	310612	OIL PUMP BUSHING MOUNTING BRACKET	$11.73	To Order

Photo	Part No	Description	Price (each)	Stock
	282391	SCREW	$0.81	To Order

Photo	Part No	Description	Price (each)	Stock
	295943	OIL FILTER	$149.04	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	295948	OIL FILTER	$103.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	315644	OIL FILTER MOUNT	$239.60	To Order

Photo	Part No	Description	Price (each)	Stock
	336913	OIL PUMP GASKET KIT	$25.20	To Order

Photo	Part No	Description	Price (each)	Stock
	804104	OIL PUMP GASKET KIT	$26.05	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	325249	COMPL. OIL TANK	325249 COMPL. OIL TANK	$2,407.45	1
2	270805	OIL FILTER GASKET IN STOCK	270805 OIL FILTER GASKET IN STOCK	$12.17 MSRP: ~~12.42~~ (2% off)	1
3	231619	SCREW IN STOCK	231619 SCREW M6 X 20 IN STOCK	$0.29	4
4	231620	SCREW IN STOCK	231620 SCREW M6 X 30 IN STOCK	$0.30 MSRP: ~~0.35~~ (14.3% off)	4
5	177576	CABLE GROMMET IN STOCK	177576 CABLE GROMMET IN STOCK	$2.19	6
6	819489	FLANGED BUSHING	819489 FLANGED BUSHING	$13.85	8
7	14326101	THREADED PLUG	14326101 THREADED PLUG Applicable for USA, CDN, USA LIGHT	$1.10 MSRP: ~~1.65~~ (33.3% off)	1
7	317584	THREADED CONNECTOR	317584 THREADED CONNECTOR Applicable for EU GS, AUS, UK; Applicable up to engine No. 384015	$23.94	1
7	14326101	THREADED PLUG	14326101 THREADED PLUG Applicable for EU GS, AUS, UK; Applicable from engine No. 384016	$1.10 MSRP: ~~1.65~~ (33.3% off)	1
7	317584	THREADED CONNECTOR	317584 THREADED CONNECTOR Not for EU GS, AUS, USA, CDN, UK, USA LIGHT	$23.94	1
8	317655	CAP COMPL. WITH DIPSTICK	317655 CAP COMPL. WITH DIPSTICK	$302.65	1
9	294022	RING FOR ENGINE OIL TANK	294022 RING FOR ENGINE OIL TANK	$50.43	1
10	100332	OIL PICKUP FILTER	100332 OIL PICKUP FILTER	$17.81	1
11	125521	O-RING	125521 O-RING	$10.51	1
12	255176	OIL PICKUP IN STOCK	255176 OIL PICKUP IN STOCK	$150.55	1
13	11500524	STUD BOLT	11500524 STUD BOLT	$0.33 MSRP: ~~1.00~~ (67% off)	4
14	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	4
15	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.31	4
16	10261460	COPPER WASHER 16 X 24 X 1.5 IN STOCK	10261460 COPPER WASHER 16 X 24 X 1.5 Also comes with engine gasket set IN STOCK	$0.32 MSRP: ~~1.00~~ (68% off)	1
17	293107	THREADED PLUG IN STOCK	293107 THREADED PLUG IN STOCK	$77.32	1
18	317832	OIL DELIVERY PIPE FROM TANK TO PUMP	317832 OIL DELIVERY PIPE FROM TANK TO PUMP	$479.21	1
19	14458481	O-RING	14458481 O-RING Also comes with engine gasket set	$2.19	2
20	862084	GASKET	862084 GASKET	$4.90	1
21	231619	SCREW IN STOCK	231619 SCREW M6 X 18 IN STOCK	$0.29	3
22	231619	SCREW IN STOCK	231619 SCREW M6 X 20 IN STOCK	$0.29	6
23	317835	OIL RECOVERY PIPE FROM ENGINE TO TANK	317835 OIL RECOVERY PIPE FROM ENGINE TO TANK	$290.04	1
24	139934	O-RING IN STOCK	139934 O-RING IN STOCK	$0.82 MSRP: ~~2.25~~ (63.6% off)	4
25	887314	COMPL. OIL PUMPS	887314 COMPL. OIL PUMPS	$3,464.27	1
26	285494	SCREW	285494 SCREW M8 X 50	$0.93	5
27	239462	CALIBRATED SCREW	239462 CALIBRATED SCREW	$6.65	2
28	986847	CONICAL WASHER	986847 CONICAL WASHER	$0.59	2
30	303379	OIL RECOVERY PUMP FILTER IN STOCK	303379 OIL RECOVERY PUMP FILTER IN STOCK	$29.17	1
31	309348	OIL RECOVERY PUMP GASKET IN STOCK	309348 OIL RECOVERY PUMP GASKET Also comes with engine gasket set IN STOCK	$14.74	1
32	320781	CHECK VALVE	320781 CHECK VALVE	$70.61	1
33	310610	CHECK VALVE MOUNTING BRACKET	310610 CHECK VALVE MOUNTING BRACKET	$11.73	1
34	310612	OIL PUMP BUSHING MOUNTING BRACKET	310612 OIL PUMP BUSHING MOUNTING BRACKET	$11.73	1
35	282391	SCREW	282391 SCREW M6 X 12	$0.81	2
36	295943	OIL FILTER IN STOCK	295943 OIL FILTER IN STOCK	$149.04	1
37	295948	OIL FILTER IN STOCK	295948 OIL FILTER IN STOCK	$103.19 MSRP: ~~105.09~~ (1.8% off)	1
38	315644	OIL FILTER MOUNT	315644 OIL FILTER MOUNT	$239.60	1
39	336913	OIL PUMP GASKET KIT	336913 OIL PUMP GASKET KIT	$25.20	1
40	804104	OIL PUMP GASKET KIT IN STOCK	804104 OIL PUMP GASKET KIT IN STOCK	$26.05	1
