Engine Compartment Lid And Release Mechanism

Ferrari 488 Spider

Find Your Part

Ferrari 488 Spider - ENGINE COMPARTMENT LID AND RELEASE MECHANISM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
87413911 COMPL. REAR LID $5,707.29 To Order
87381811 COMPL. REAR LID $3,813.16 To Order
Photo Part No Description Price (each) Stock
87624800 ENGINE COMPARTMENT LID HINGE $257.81 To Order
Photo Part No Description Price (each) Stock
16286124 SCREW $0.35 To Order
16286121 SCREW $0.66 IN STOCK
Photo Part No Description Price (each) Stock
12647021 WASHER $0.31 IN STOCK
Photo Part No Description Price (each) Stock
87667600 RH ENGINE COMPARTMENT LID AIR VENT GRILLE TRIM $206.26 To Order
Photo Part No Description Price (each) Stock
87667500 LH ENGINE COMPARTMENT LID AIR VENT GRILLE TRIM $206.26 To Order
Photo Part No Description Price (each) Stock
87780900 GAS STRUT REAR LID $38.35 IN STOCK
Photo Part No Description Price (each) Stock
69106400 PIN $2.24 To Order
Photo Part No Description Price (each) Stock
87667000 COMPL. RH ENGINE COMPARTMENT LID AIR VENT GRILLE $628.60 To Order
Photo Part No Description Price (each) Stock
87666900 COMPL. LH ENGINE COMPARTMENT LID AIR VENT GRILLE $628.60 To Order
Photo Part No Description Price (each) Stock
87934400 SPACER $2.45 To Order
87934500 SPACER $2.56 To Order
Photo Part No Description Price (each) Stock
11566224 SCREW $0.34 ARRIVING SOON
Photo Part No Description Price (each) Stock
83467200 LOCK STRIKER $46.39 To Order
Photo Part No Description Price (each) Stock
87513800 REAR LID HANDLE, COMPL. WITH CABLE $219.14 To Order
87258800 REAR LID HANDLE, COMPL. WITH CABLE $206.26 To Order
Photo Part No Description Price (each) Stock
82926600 BRACKET FOR ENGINE COMPARTMENT LID HANDLE $219.14 To Order
83028900 BRACKET FOR ENGINE COMPARTMENT LID HANDLE $47.68 To Order
Photo Part No Description Price (each) Stock
11612826 SCREW $3.01 To Order
Photo Part No Description Price (each) Stock
303385 CLIP $0.26 IN STOCK
Photo Part No Description Price (each) Stock
248061 CLIP 10 X 3.8 BLACK $1.96 IN STOCK
Photo Part No Description Price (each) Stock
303385 CLIP $0.26 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.33 ARRIVING SOON
Photo Part No Description Price (each) Stock
113113 WASHER $0.94 To Order
Photo Part No Description Price (each) Stock
67161800 VIBRATION DAMPER $39.94 IN STOCK
Photo Part No Description Price (each) Stock
84076100 ENGINE COMPARTMENT LID LOCK $127.61 To Order
Photo Part No Description Price (each) Stock
87231800 ENGINE COMPARTMENT LID LOCK SHIM $7.85 To Order
Photo Part No Description Price (each) Stock
87231900 ENGINE COMPARTMENT LID LOCK SHIM $13.58 To Order
Photo Part No Description Price (each) Stock
87232000 LOCK SPACER $2.92 To Order
Photo Part No Description Price (each) Stock
88158700 SPACER $3.52 To Order
Photo Part No Description Price (each) Stock
11566224 SCREW $0.34 ARRIVING SOON
11566224 SCREW $0.34 ARRIVING SOON
View All

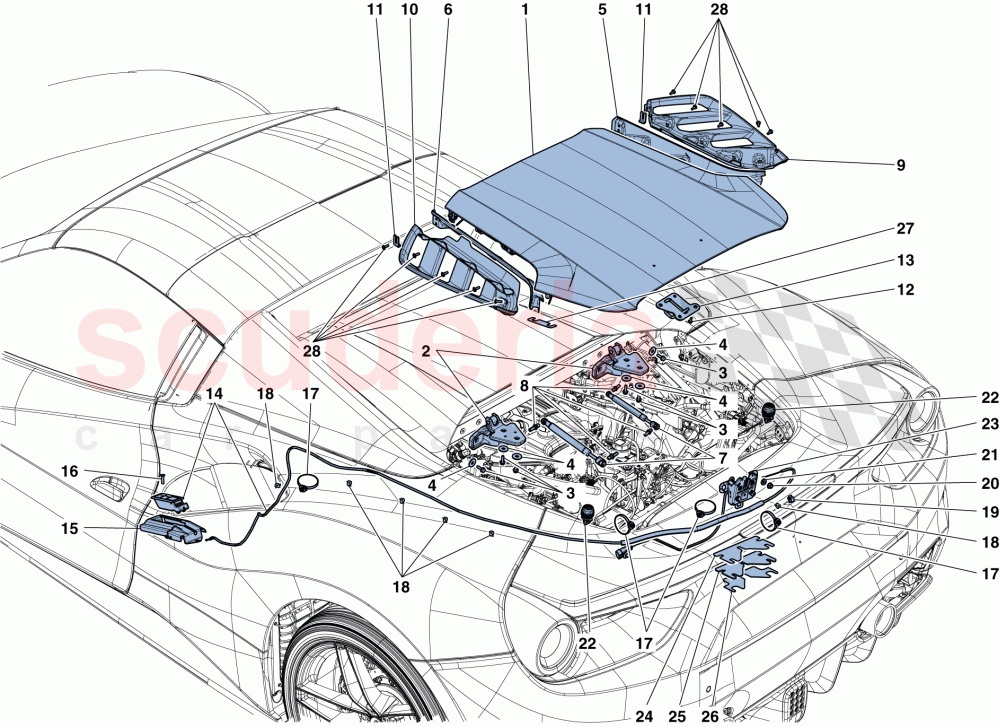

ENGINE COMPARTMENT LID AND RELEASE MECHANISM of Ferrari Ferrari 488 Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 87413911
COMPL. REAR LID
Applicable for USA, CDN 		$5,707.29 1
1 87381811
COMPL. REAR LID
Not for USA, CDN 		$3,813.16 1
2 87624800
ENGINE COMPARTMENT LID HINGE 		$257.81 2
3 16286124
SCREW
M6 X 20; No longer supplied; Replaced by 16286121 		$0.35 8
3 16286121
SCREW
M6 X 20
IN STOCK 		$0.66 (51.1% off) 8
4 12647021
WASHER
IN STOCK 		$0.31 8
5 87667600
RH ENGINE COMPARTMENT LID AIR VENT GRILLE TRIM 		$206.26 1
6 87667500
LH ENGINE COMPARTMENT LID AIR VENT GRILLE TRIM 		$206.26 1
7 87780900
GAS STRUT REAR LID
IN STOCK 		$38.35 2
8 69106400
PIN 		$2.24 4
9 87667000
COMPL. RH ENGINE COMPARTMENT LID AIR VENT GRILLE 		$628.60 1
10 87666900
COMPL. LH ENGINE COMPARTMENT LID AIR VENT GRILLE 		$628.60 1
11 87934400
SPACER
Th. 1 mm; No longer supplied 		$2.45 2
11 87934500
SPACER
Th. 2 mm; No longer supplied 		$2.56 2
12 11566224
SCREW
M5 X 16
ARRIVING SOON 		$0.34 4
13 83467200
LOCK STRIKER 		$46.39 1
14 87513800
REAR LID HANDLE, COMPL. WITH CABLE
Not for GD 		$219.14 1
14 87258800
REAR LID HANDLE, COMPL. WITH CABLE
Applicable for GD 		$206.26 1
15 82926600
BRACKET FOR ENGINE COMPARTMENT LID HANDLE
Not for GD 		$219.14 1
15 83028900
BRACKET FOR ENGINE COMPARTMENT LID HANDLE
Applicable for GD 		$47.68 1
16 11612826
SCREW
M6 X 25 		$3.01 1
17 303385
CLIP
IN STOCK 		$0.26 4
18 248061
CLIP 10 X 3.8 BLACK
IN STOCK 		$1.96 6
19 303385
CLIP
IN STOCK 		$0.26 1
20 14059290
FLANGED NUT M6
ARRIVING SOON 		$1.33 3
21 113113
WASHER 		$0.94 (63.3% off) 3
22 67161800
VIBRATION DAMPER
IN STOCK 		$39.94 (24.5% off) 2
23 84076100
ENGINE COMPARTMENT LID LOCK 		$127.61 1
24 87231800
ENGINE COMPARTMENT LID LOCK SHIM
Th. 1 mm 		$7.85 2
25 87231900
ENGINE COMPARTMENT LID LOCK SHIM
Th. 3 mm 		$13.58 1
26 87232000
LOCK SPACER 		$2.92 1
27 88158700
SPACER
Applicable until depletion 		$3.52 4
28 11566224
SCREW
M5 X 16; No longer supplied; Replaced by 85833700
ARRIVING SOON 		$0.34 10
28 11566224
SCREW
M5 X 14
ARRIVING SOON 		$0.34 10
