Ferrari 488 Spider - DOORS - SUBSTRUCTURE AND TRIM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
87281211 COMPL. LH DOOR STRUCTURE $5,397.72 To Order
86885511 COMPL. RH DOOR STRUCTURE $6,027.52 To Order
87281111 COMPL. RH DOOR STRUCTURE $5,397.72 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
87627100 LH DOOR INNER PERIMETER SEAL $462.54 To Order
86743100 RH DOOR INNER PERIMETER SEAL $367.65 To Order
87627000 RH DOOR INNER PERIMETER SEAL $462.54 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
83987400 LOWER DOOR PERIMETER SEAL $151.18 To Order
Photo Part No Description Price (each) Stock
279762 CLAMP $0.45 IN STOCK
Photo Part No Description Price (each) Stock
66092400 PLASTIC TRIM CLIP $0.26 IN STOCK
86004700 CLIP $0.69 To Order
Photo Part No Description Price (each) Stock
86742900 RH DOOR OUTER PERIMETER SEAL $320.22 To Order
86742800 LH DOOR OUTER PERIMETER SEAL $320.22 To Order
Photo Part No Description Price (each) Stock
88822200 SCREW $0.60 To Order
Photo Part No Description Price (each) Stock
81486500 LH DOOR TRIANGLE TRIM $121.16 To Order
81486300 RH DOOR TRIANGLE TRIM $121.16 To Order
Photo Part No Description Price (each) Stock
86726400 RH DOOR INNER CORNER TRIANGLE TRIM $43.95 IN STOCK
86716600 LH DOOR INNER CORNER TRIANGLE TRIM $42.53 To Order
Photo Part No Description Price (each) Stock
83888400 DOOR ALIGNMENT FOAM PAD $3.33 To Order
Photo Part No Description Price (each) Stock
15689801 SCREW $0.08 IN STOCK
Photo Part No Description Price (each) Stock
14115885 BLOCK $0.14 IN STOCK
Photo Part No Description Price (each) Stock
87820112 LH DOOR PANEL -INTP- -Leather- -High power Hi-Fi version- -No longer supplied- -Replaced by 87820100- $5,280.51 To Order

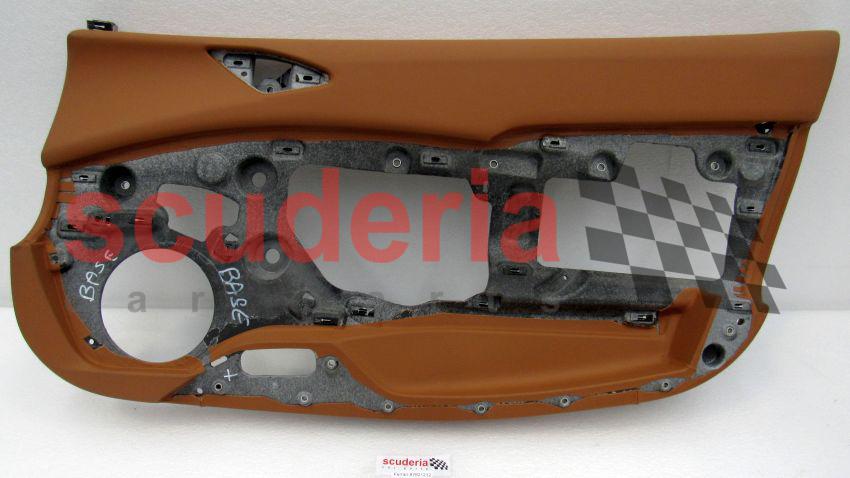

87821212 PANNELLO PORTA DX. -INTP- -Pelle- -Standard- $3,527.02 IN STOCK
87820800 RH DOOR PANEL $5,280.51 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
231620 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
68700200 CLIP $3.64 IN STOCK
Photo Part No Description Price (each) Stock
880041 Allen Head Bolt M6 X 26 $5.41 IN STOCK
Photo Part No Description Price (each) Stock
62797600 Allen Bolt Countersunk M6 x 20 $0.97 IN STOCK
Photo Part No Description Price (each) Stock
87514000 LH TWEETER SURROUND $121.16 To Order
87363700 LH TWEETER SURROUND $123.74 To Order
87514000 LH TWEETER SURROUND $121.16 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
86917700 UPPER RH DOOR CARD $515.66 To Order
86916412 MEDAGLIONE SUPERIORE SX. -INTA- -Alcantara- $515.66 To Order
Photo Part No Description Price (each) Stock
87169500 COMPL. RH ARMREST $1,666.91 To Order
87168012 APPOGGIABRACCIA SX. CPL -INTP- -Pelle- -Versione ossatura medaglione in carbonio- Enquire To Order
Photo Part No Description Price (each) Stock
88822200 SCREW $0.60 To Order
Photo Part No Description Price (each) Stock
897538 SCREW $1.54 To Order
Photo Part No Description Price (each) Stock
87363300 LH DOOR WOOFER GRILLE $232.04 To Order
87809800 LH DOOR WOOFER GRILLE $268.92 To Order
87363900 RH DOOR WOOFER GRILLE $232.04 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
11566224 SCREW $0.34 ARRIVING SOON
Photo Part No Description Price (each) Stock
68700800 CLIP $0.97 IN STOCK
Photo Part No Description Price (each) Stock
86214900 RH DOOR PULL HANDLE BRACKET $45.11 To Order
86215200 LH DOOR PULL HANDLE BRACKET $45.11 To Order
Photo Part No Description Price (each) Stock
88328200 LH DOOR PULL HANDLE Enquire To Order
87060212 RH DOOR PULL HANDLE -INTP- -Leather- -STC1- -STC2- -Applicable for GD- $913.18 To Order
87817700 LH DOOR PULL HANDLE Enquire To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
88328800 RH DOOR PULL HANDLE Enquire To Order
87058012 RH DOOR PULL HANDLE $684.89 To Order
87818900 RH DOOR PULL HANDLE Enquire To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
87231500 PASSENGER SIDE GRAB HANDLE SPACER $19.76 To Order
86858100 DRIVER SIDE GRAB HANDLE SPACER $24.07 To Order
Photo Part No Description Price (each) Stock
14371279 BRACKET $2.24 To Order
Photo Part No Description Price (each) Stock
87818600 RH DOOR CARD Enquire To Order
87818800 RH DOOR CARD Enquire To Order
87312512 RH DOOR CARD $3,132.71 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
87315600 LH DOOR CARD Enquire To Order
87810400 LH DOOR CARD Enquire To Order
87051712 LH DOOR CARD $3,302.88 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
87874100 LH DOOR PANEL POCKET Enquire To Order
87302600 LH DOOR PANEL POCKET Enquire To Order
87873312 LH DOOR PANEL POCKET $1,483.84 To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
86214500 MIRROR CONTROLS PANEL $489.88 To Order
Photo Part No Description Price (each) Stock
87464900 LH DOOR PANEL CARD SUBSTRUCTURE $2,979.68 To Order
87169400 RH DOOR CARD SUBSTRUCTURE. $2,979.68 To Order
87465200 RH DOOR PANEL CARD SUBSTRUCTURE $3,036.18 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
83198200 JBL LOGO $26.63 To Order
Photo Part No Description Price (each) Stock
11566224 SCREW $0.34 ARRIVING SOON
Photo Part No Description Price (each) Stock
177553 CLAMP $0.43 To Order
Photo Part No Description Price (each) Stock
MC43254 CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
13311277 Screw $0.43 To Order
Photo Part No Description Price (each) Stock
83735800 ADHESIVE CAP $1.54 IN STOCK
Photo Part No Description Price (each) Stock
12648925 WASHER $0.35 ARRIVING SOON
View All
DOORS - SUBSTRUCTURE AND TRIM of Ferrari Ferrari 488 Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 87281211
COMPL. LH DOOR STRUCTURE
Applicable for CINA, USA, CDN, GOLFO, USA LIGHT 		$5,397.72 1
1 86885511
COMPL. RH DOOR STRUCTURE
Applicable for GD 		$6,027.52 1
1 87281111
COMPL. RH DOOR STRUCTURE
Applicable for CINA, USA, CDN, GOLFO, USA LIGHT 		$5,397.72 1
1 86087611
COMPL. LH DOOR STRUCTURE
Not for CINA, USA, CDN, GOLFO, GD, USA LIGHT 		$5,708.46 1
1 86885411
COMPL. LH DOOR STRUCTURE
Applicable for GD 		$6,027.52 1
1 86087511
COMPL. RH DOOR STRUCTURE
Not for CINA, USA, CDN, GOLFO, GD, USA LIGHT 		$5,708.46 1
2 87627100
LH DOOR INNER PERIMETER SEAL
Applicable for CINA, USA, CDN, GOLFO, USA LIGHT 		$462.54 1
2 86743100
RH DOOR INNER PERIMETER SEAL
Not for CINA, USA, CDN, GOLFO, USA LIGHT 		$367.65 1
2 87627000
RH DOOR INNER PERIMETER SEAL
Applicable for CINA, USA, CDN, GOLFO, USA LIGHT 		$462.54 1
2 86743000
LH DOOR INNER PERIMETER SEAL
Not for CINA, USA, CDN, GOLFO, USA LIGHT
IN STOCK 		$287.54 1
3 83987400
LOWER DOOR PERIMETER SEAL 		$151.18 (32.8% off) 2
4 279762
CLAMP
No longer supplied
IN STOCK 		$0.45 2
5 66092400
PLASTIC TRIM CLIP
IN STOCK 		$0.26 (74% off) 10
5 86004700
CLIP 		$0.69 2
6 86742900
RH DOOR OUTER PERIMETER SEAL 		$320.22 1
6 86742800
LH DOOR OUTER PERIMETER SEAL 		$320.22 1
7 88822200
SCREW 		$0.60 2
8 81486500
LH DOOR TRIANGLE TRIM 		$121.16 (30.6% off) 1
8 81486300
RH DOOR TRIANGLE TRIM 		$121.16 1
9 86726400
RH DOOR INNER CORNER TRIANGLE TRIM
IN STOCK 		$43.95 1
9 86716600
LH DOOR INNER CORNER TRIANGLE TRIM 		$42.53 1
10 83888400
DOOR ALIGNMENT FOAM PAD 		$3.33 4
11 15689801
SCREW
IN STOCK 		$0.08 16
12 14115885
BLOCK
IN STOCK 		$0.14 16
13 87820112
LH DOOR PANEL -INTP- -Leather- -High power Hi-Fi version- -No longer supplied- -Replaced by 87820100-
INTP; Leather; High power Hi-Fi version 		$5,280.51 1
13 87821212
PANNELLO PORTA DX. -INTP- -Pelle- -Standard-
INTP; Leather; Standard
IN STOCK 		$3,527.02 1
13 87820800
RH DOOR PANEL
INTP; Leather; High power Hi-Fi version 		$5,280.51 1
13 87820512
PANNELLO PORTA SX. -INTP- -Pelle- -Standard-
INTP; Leather; Standard 		$5,280.51 1
14 231620
SCREW
M6 X 25
IN STOCK 		$0.31 (11.4% off) 12
15 68700200
CLIP
No longer supplied
IN STOCK 		$3.64 (33.8% off) 38
16 880041
Allen Head Bolt M6 X 26
IN STOCK 		$5.41 2
17 62797600
Allen Bolt Countersunk M6 x 20
IN STOCK 		$0.97 (33.1% off) 6
18 87514000
LH TWEETER SURROUND
Applicable up to Ass. No. 133502 		$121.16 1
18 87363700
LH TWEETER SURROUND
Standard; Applicable from Ass. No. 133503 		$123.74 1
18 87514000
LH TWEETER SURROUND
High power Hi-Fi version; Applicable from Ass. No. 133503 		$121.16 1
18 87514200
RH TWEETER SURROUND
Applicable up to Ass. No. 133502 		$121.16 1
18 87364300
RH TWEETER SURROUND
Standard; Applicable from Ass. No. 133503 		$123.74 1
18 87514200
RH TWEETER SURROUND
High power Hi-Fi version; Applicable from Ass. No. 133503 		$121.16 1
19 86917700
UPPER RH DOOR CARD
INTA; Leather; DUAL 		$515.66 1
19 86916412
MEDAGLIONE SUPERIORE SX. -INTA- -Alcantara-
INTA; Leather; DUAL 		$515.66 1
20 87169500
COMPL. RH ARMREST
INTP; Leather; Carbon centre door card substructure 		$1,666.91 1
20 87168012
APPOGGIABRACCIA SX. CPL -INTP- -Pelle- -Versione ossatura medaglione in carbonio-
INTP; Leather; Carbon centre door card substructure 		- 1 Enquire
21 88822200
SCREW
M4 X 10 		$0.60 6
22 897538
SCREW
M5 X 20 		$1.54 16
23 87363300
LH DOOR WOOFER GRILLE
High power Hi-Fi version 		$232.04 1
23 87809800
LH DOOR WOOFER GRILLE
NART grey; High power Hi-Fi version; Interior in paint finish aluminium 		$268.92 1
23 87363900
RH DOOR WOOFER GRILLE
High power Hi-Fi version 		$232.04 1
23 87811100
RH DOOR WOOFER GRILLE
NART grey; High power Hi-Fi version; Interior in paint finish aluminium 		$268.92 1
23 87363500
LH DOOR WOOFER GRILLE
Standard 		$206.26 1
23 87812900
LH DOOR WOOFER GRILLE
NART grey; Interior in paint finish aluminium 		- 1 Enquire
23 87364100
RH DOOR WOOFER GRILLE
Standard 		$206.26 1
23 87813600
RH DOOR WOOFER GRILLE
NART grey; Interior in paint finish aluminium 		- 1 Enquire
24 11566224
SCREW
M5 X 16
ARRIVING SOON 		$0.34 10
25 68700800
CLIP
IN STOCK 		$0.97 10
26 86214900
RH DOOR PULL HANDLE BRACKET 		$45.11 1
26 86215200
LH DOOR PULL HANDLE BRACKET 		$45.11 1
27 88328200
LH DOOR PULL HANDLE
INTA; Alcantara; STC1; STC2; Interior in paint finish aluminium; Applicable for GD 		- 1 Enquire
27 87060212
RH DOOR PULL HANDLE -INTP- -Leather- -STC1- -STC2- -Applicable for GD-
INTP; Leather; STC1; STC2; Applicable for GD 		$913.18 1
27 87817700
LH DOOR PULL HANDLE
INTP; Leather; STC1; STC2; Interior in paint finish aluminium; Applicable for GD 		- 1 Enquire
27 88328700
LH DOOR PULL HANDLE
INTA; Alcantara; STC1; STC2; Applicable for GD 		- 1 Enquire
27 88278612
RH DOOR PULL HANDLE
INTA; Alcantara; STC1; STC2; Not for GD 		$747.90 1
27 88278400
RH DOOR PULL HANDLE
INTA; Alcantara; STC1; STC2; Interior in paint finish aluminium; Not for GD 		- 1 Enquire
27 86918012
MANIGLIONE TIRAPORTA DX. -INTP- -Pelle- -STC1- -STC2- -No per GD-
INTP; Leather; STC1; STC2; Not for GD 		$660.92 1
27 87811612
RH DOOR PULL HANDLE
INTP; Leather; STC1; STC2; Interior in paint finish aluminium; Not for GD 		$921.36 1
28 88328800
RH DOOR PULL HANDLE
INTA; Alcantara; STC1; STC2; Interior in paint finish aluminium; Applicable for GD 		- 1 Enquire
28 87058012
RH DOOR PULL HANDLE
INTP; Leather; STC1; STC2; Applicable for GD 		$684.89 1
28 87818900
RH DOOR PULL HANDLE
INTP; Leather; STC1; STC2; Interior in paint finish aluminium; Applicable for GD 		- 1 Enquire
28 88329300
RH DOOR PULL HANDLE
INTA; Alcantara; STC1; STC2; Applicable for GD 		- 1 Enquire
28 88278512
LH DOOR PULL HANDLE
INTA; Alcantara; STC1; STC2; Not for GD 		$747.90 1
28 88278300
LH DOOR PULL HANDLE
INTA; Alcantara; STC1; STC2; Interior in paint finish aluminium; Not for GD 		- 1 Enquire
28 86916712
MANIGLIONE TIRAPORTA SX. -INTP- -Pelle- -STC1- -STC2- -No per GD-
INTP; Leather; STC1; STC2; Not for GD 		$660.72 1
28 87810512
LH DOOR PULL HANDLE
INTP; Leather; STC1; STC2; Interior in paint finish aluminium; Not for GD 		$690.23 1
29 87231500
PASSENGER SIDE GRAB HANDLE SPACER 		$19.76 1
29 86858100
DRIVER SIDE GRAB HANDLE SPACER 		$24.07 1
30 14371279
BRACKET 		$2.24 2
31 87818600
RH DOOR CARD
INTA; Alcantara; STC1; STC2; DUAL; Interior in paint finish aluminium; Applicable for GD 		- 1 Enquire
31 87818800
RH DOOR CARD
INTP; Leather; STC1; STC2; DUAL; Interior in paint finish aluminium; Applicable for GD 		- 1 Enquire
31 87312512
RH DOOR CARD
INTA; Alcantara; STC1; STC2; DUAL; Not for GD 		$3,132.71 1
31 87316400
RH DOOR CARD
INTA; Alcantara; STC1; STC2; DUAL; Applicable for GD 		$3,302.88 1
31 86916912
MEDAGLIONE PANNELLO PORTA DX. -INTP- -Pelle- -STC1- -STC2- -No per GD-
INTP; Leather; STC1; STC2; DUAL; Not for GD 		$3,302.88 1
31 87057312
MEDAGLIONE PANNELLO PORTA DX. -INTP- -Pelle- -STC1- -STC2- -Vale per GD-
INTP; Leather; STC1; STC2; DUAL; Applicable for GD 		$3,302.88 1
32 87315600
LH DOOR CARD
INTA; Alcantara; STC1; STC2; DUAL; Applicable for GD 		- 1 Enquire
32 87810400
LH DOOR CARD
INTP; Leather; STC1; STC2; Interior in paint finish aluminium; DUAL; Not for GD 		- 1 Enquire
32 87051712
LH DOOR CARD
INTP; Leather; STC1; STC2; DUAL; Applicable for GD 		$3,302.88 1
32 87310712
LH DOOR CARD
INTA; Alcantara; STC1; STC2; DUAL; Not for GD 		$3,302.88 1
32 87810300
LH DOOR CARD
INTA; Alcantara; STC1; STC2; Interior in paint finish aluminium; DUAL; Not for GD 		- 1 Enquire
32 86915712
MEDAGLIONE PANNELLO PORTA SX. -INTP- -Pelle- -STC1- -STC2- -No per GD-
INTP; Leather; STC1; STC2; DUAL; Not for GD 		$3,302.88 1
33 87874100
LH DOOR PANEL POCKET
INTA; Alcantara; STC1; STC2; Applicable for GD 		- 1 Enquire
33 87302600
LH DOOR PANEL POCKET
INTA; Alcantara; STC1; STC2; Not for GD; Applicable until depletion 		- 1 Enquire
33 87873312
LH DOOR PANEL POCKET
INTA; Alcantara; STC1; STC2; Not for GD; Applicable after depletion of 87302600 		$1,483.84 1
33 86207700
LH DOOR PANEL POCKET
INTP; Leather; STC1; STC2; Not for GD; Applicable until depletion 		- 1 Enquire
33 87872900
LH DOOR PANEL POCKET
INTP; Leather; STC1; STC2; Not for GD; Applicable after depletion of 86207700 		$1,483.84 1
33 87873712
LH DOOR PANEL POCKET
INTP; Leather; STC1; STC2; Applicable for GD 		$863.74 1
33 87873412
RH DOOR PANEL POCKET.
INTA; Alcantara; STC1; STC2; Not for GD; Applicable after depletion of 87312200 		$850.86 1
33 87874200
RH DOOR PANEL POCKET.
INTA; Alcantara; STC1; STC2; Applicable for GD 		- 1 Enquire
33 87873800
RH DOOR PANEL POCKET.
INTP; Leather; STC1; STC2; Applicable for GD 		- 1 Enquire
33 87312200
RH DOOR PANEL POCKET.
INTA; Alcantara; STC1; STC2; Not for GD; Applicable until depletion 		- 1 Enquire
33 86160700
RH DOOR PANEL POCKET.
INTP; Leather; STC1; STC2; Not for GD; Applicable until depletion 		- 1 Enquire
33 87873012
RH DOOR PANEL POCKET. -INTP- -Leather- -STC1- -STC2- -Not for GD- -Applicable after depletion of 86160700-
INTP; Leather; STC1; STC2; Not for GD; Applicable after depletion of 86160700 		$850.86 1
34 86214500
MIRROR CONTROLS PANEL 		$489.88 1
36 87464900
LH DOOR PANEL CARD SUBSTRUCTURE
Carbon; Applicable for GD 		$2,979.68 1
36 87169400
RH DOOR CARD SUBSTRUCTURE.
Carbon; Not for GD 		$2,979.68 1
36 87465200
RH DOOR PANEL CARD SUBSTRUCTURE
Carbon; Applicable for GD 		$3,036.18 1
36 87167900
LH DOOR CARD SUBSTRUCTURE.
Carbon; Not for GD 		$3,036.18 1
37 83198200
JBL LOGO
High power Hi-Fi version 		$26.63 1
38 11566224
SCREW
M5 X 14
ARRIVING SOON 		$0.34 2
39 177553
CLAMP 		$0.43 (65.6% off) 2
40 MC43254
CLAMP 		- 2 Enquire
41 13311277
Screw 		$0.43 2
42 83735800
ADHESIVE CAP
IN STOCK 		$1.54 2
43 12648925
WASHER
ARRIVING SOON 		$0.35 2

Haven't found what you're looking for?

More: Ferrari Doors Tuning Parts Need help? Call us

View Cart / Checkout
