Exhaust System

Ferrari 488 GTB

Find Your Part

Ferrari 488 GTB - EXHAUST SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
844311 CENTRAL SILENCER $3,624.48 To Order
Photo Part No Description Price (each) Stock
321608 COMPL. RH CATALYTIC CONVERTER $7,159.25 To Order
Photo Part No Description Price (each) Stock
321609 COMPL. LH CATALYTIC CONVERTER $7,159.25 To Order
Photo Part No Description Price (each) Stock
319368 RH CATALYTIC CONVERTER HEAT SHIELD $72.42 To Order
Photo Part No Description Price (each) Stock
319369 LH CATALYTIC CONVERTER HEAT SHIELD $72.42 To Order
Photo Part No Description Price (each) Stock
319366 RH CHASSIS TURBO HEAT SHIELD $58.44 To Order
Photo Part No Description Price (each) Stock
962333 LH CHASSIS TURBO HEAT SHIELD $62.26 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
300595 RH CATALYTIC CONVERTER BRACKET $91.49 To Order
Photo Part No Description Price (each) Stock
300596 LH CATALYTIC CONVERTER BRACKET $91.49 To Order
Photo Part No Description Price (each) Stock
216575 SCREW $1.01 IN STOCK
Photo Part No Description Price (each) Stock
305308 RH BRACKET COMPL. WITH BUSHES $152.49 To Order
Photo Part No Description Price (each) Stock
305310 LH BRACKET COMPL. WITH BUSHES $152.49 To Order
Photo Part No Description Price (each) Stock
320008 RH CATALYTIC CONVERTER SHIELD $125.80 To Order
Photo Part No Description Price (each) Stock
320009 LH CATALYTIC CONVERTER SHIELD $125.80 To Order
Photo Part No Description Price (each) Stock
324642 RING CLAMP EXHAUST $32.20 To Order
Photo Part No Description Price (each) Stock
289529 FLEXIBLE SILENCER MOUNTING BUSH $47.27 IN STOCK
Photo Part No Description Price (each) Stock
283425 SQUARE HEADED SCREW M6 X 18.5MM $2.19 IN STOCK
Photo Part No Description Price (each) Stock
240598 BRACKET PLATE $13.33 IN STOCK
Photo Part No Description Price (each) Stock
875279 SILENCER MOUNTING BRACKET $47.01 To Order
Photo Part No Description Price (each) Stock
875282 SILENCER MOUNTING BRACKET $47.01 To Order
Photo Part No Description Price (each) Stock
11585024 SCREW $0.31 To Order
Photo Part No Description Price (each) Stock
12648978 WASHER $0.48 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.32 IN STOCK
Photo Part No Description Price (each) Stock
11627826 SCREW $0.93 IN STOCK
Photo Part No Description Price (each) Stock
16044321 SCREW $0.51 IN STOCK
Photo Part No Description Price (each) Stock
13578324 WASHER $0.21 IN STOCK
Photo Part No Description Price (each) Stock
14059311 FLANGED NUT M8 X 1.25 $0.25 IN STOCK
Photo Part No Description Price (each) Stock
12601374 WASHER D.8.40-15 X 0.8 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
11566224 SCREW $0.34 IN STOCK
Photo Part No Description Price (each) Stock
110860 THREADED PLUG $14.64 IN STOCK
Photo Part No Description Price (each) Stock
10298460 GASKET $0.14 IN STOCK
Photo Part No Description Price (each) Stock
292582 OXYGEN SENSOR $189.11 IN STOCK
Photo Part No Description Price (each) Stock
784822 REAR OXYGEN SENSOR $78.78 IN STOCK
Photo Part No Description Price (each) Stock
303385 CLIP $0.26 IN STOCK
Photo Part No Description Price (each) Stock
303385 CLIP $0.26 IN STOCK
Photo Part No Description Price (each) Stock
292945 NUT $11.86 To Order
Photo Part No Description Price (each) Stock
70003133 BYPASS VALVE ACTUATOR KIT $444.81 To Order
View All

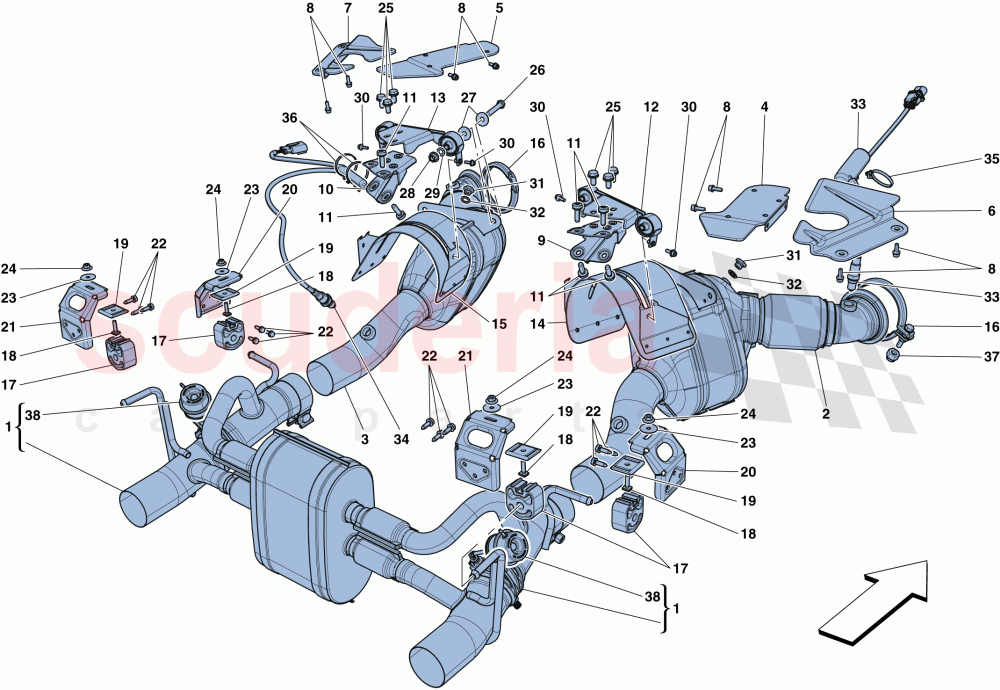

EXHAUST SYSTEM of Ferrari Ferrari 488 GTB Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 844311
CENTRAL SILENCER 		$3,624.48 1
2 321608
COMPL. RH CATALYTIC CONVERTER 		$7,159.25 1
3 321609
COMPL. LH CATALYTIC CONVERTER 		$7,159.25 1
4 319368
RH CATALYTIC CONVERTER HEAT SHIELD 		$72.42 1
5 319369
LH CATALYTIC CONVERTER HEAT SHIELD 		$72.42 1
6 319366
RH CHASSIS TURBO HEAT SHIELD 		$58.44 1
7 962333
LH CHASSIS TURBO HEAT SHIELD 		$62.26 1
8 231619
SCREW
M6 X 18
IN STOCK 		$0.29 8
9 300595
RH CATALYTIC CONVERTER BRACKET 		$91.49 1
10 300596
LH CATALYTIC CONVERTER BRACKET 		$91.49 1
11 216575
SCREW
IN STOCK 		$1.01 8
12 305308
RH BRACKET COMPL. WITH BUSHES 		$152.49 1
13 305310
LH BRACKET COMPL. WITH BUSHES 		$152.49 1
14 320008
RH CATALYTIC CONVERTER SHIELD 		$125.80 1
15 320009
LH CATALYTIC CONVERTER SHIELD 		$125.80 1
16 324642
RING CLAMP EXHAUST 		$32.20 2
17 289529
FLEXIBLE SILENCER MOUNTING BUSH
IN STOCK 		$47.27 (27.4% off) 4
18 283425
SQUARE HEADED SCREW M6 X 18.5MM
IN STOCK 		$2.19 4
19 240598
BRACKET PLATE
IN STOCK 		$13.33 (32.1% off) 4
20 875279
SILENCER MOUNTING BRACKET 		$47.01 2
21 875282
SILENCER MOUNTING BRACKET 		$47.01 2
22 11585024
SCREW 		$0.31 12
23 12648978
WASHER
IN STOCK 		$0.48 4
24 14059290
FLANGED NUT M6
IN STOCK 		$1.32 4
25 11627826
SCREW
IN STOCK 		$0.93 6
26 16044321
SCREW
IN STOCK 		$0.51 (62.2% off) 4
27 13578324
WASHER
IN STOCK 		$0.21 8
28 14059311
FLANGED NUT M8 X 1.25
IN STOCK 		$0.25 (50% off) 4
29 12601374
WASHER D.8.40-15 X 0.8
IN STOCK 		$0.02 (92% off) 4
30 11566224
SCREW
M5 X 16
IN STOCK 		$0.34 4
31 110860
THREADED PLUG
IN STOCK 		$14.64 (18.7% off) 2
32 10298460
GASKET
IN STOCK 		$0.14 (88.8% off) 2
33 292582
OXYGEN SENSOR
IN STOCK 		$189.11 (22.7% off) 2
34 784822
REAR OXYGEN SENSOR
IN STOCK 		$78.78 2
35 303385
CLIP
IN STOCK 		$0.26 2
36 303385
CLIP
IN STOCK 		$0.26 4
37 292945
NUT 		$11.86 2
38 70003133
BYPASS VALVE ACTUATOR KIT
Also order collar, part number 241986 		$444.81 2
