TIMING SYSTEM - DRIVE of Ferrari Ferrari 458 Speciale

View All

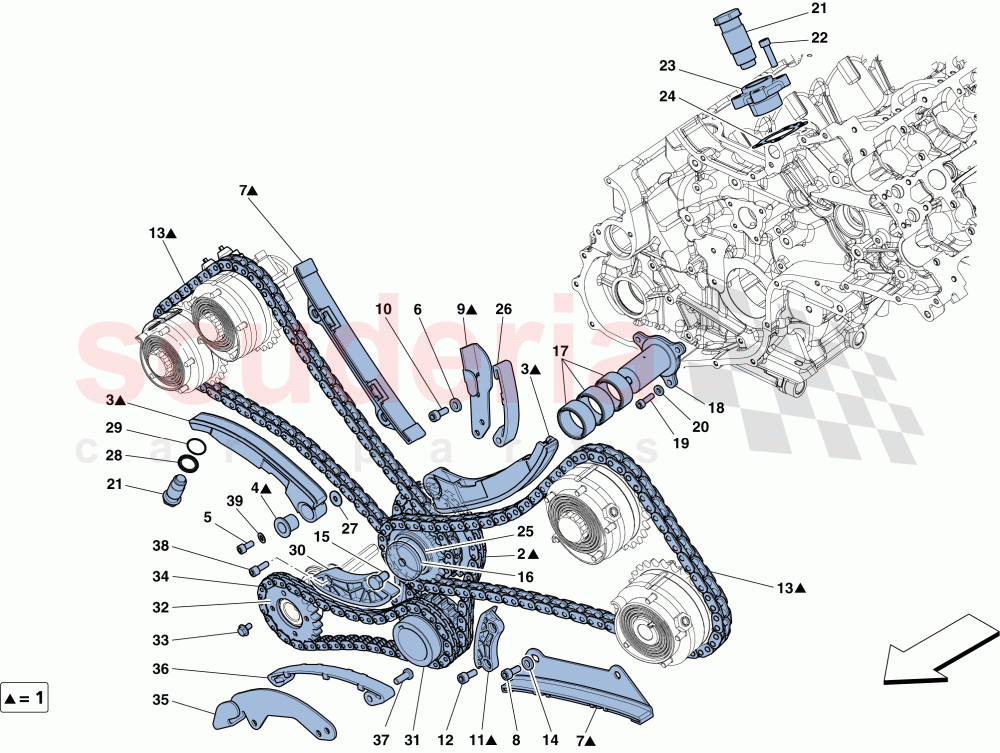

Ferrari 458 Speciale - TIMING SYSTEM - DRIVE

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	315694	VALVE TIMING AND PUMP DRIVE SYSTEM	$1,147.78	To Order

Photo	Part No	Description	Price (each)	Stock
	175286	DRIVE CHAIN	$42.86	To Order

Photo	Part No	Description	Price (each)	Stock
	186184	TIMING CHAIN GUIDING SHOE	$146.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	175303	BUSH	$32.78	To Order

Photo	Part No	Description	Price (each)	Stock
	14306424	SCREW	$0.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14498801	WASHER	$0.11	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	186185	Fixed Tension Guide - Timing Chain	$57.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	86768100	SCREW	$0.44	To Order

Photo	Part No	Description	Price (each)	Stock
	186159	CHAIN SUPPORT	$29.97	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	282393	SCREW	$0.67	To Order

Photo	Part No	Description	Price (each)	Stock
	282397	SCREW	$0.46	To Order

Photo	Part No	Description	Price (each)	Stock
	193616	VALVE TIMING CHAIN	$126.83	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	163759	WASHER	$13.40	To Order

Photo	Part No	Description	Price (each)	Stock
	16043124	SCREW	$0.17	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	175282	ROLLER BEARING CAGE	$9.86	To Order

Photo	Part No	Description	Price (each)	Stock
	212970	MOUNTING	$146.06	To Order

Photo	Part No	Description	Price (each)	Stock
	14304124	SCREW	$0.14	To Order

Photo	Part No	Description	Price (each)	Stock
	11181574	WASHER	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	197880	HYDRAULIC TENSIONER	$143.04	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	190060	TENSIONER BUSHING	$33.63	To Order

Photo	Part No	Description	Price (each)	Stock
	193565	DRIVE GEAR	$201.79	To Order

Photo	Part No	Description	Price (each)	Stock
	196683	TIMING CHAIN TENSIONER	$44.29	To Order

Photo	Part No	Description	Price (each)	Stock
	175306	SHOULDER	$4.03	To Order

Photo	Part No	Description	Price (each)	Stock
	190171	SPACER	$6.46	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	192069	O-RING D.26 X 1.5	$0.50	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	249844	FIXED SHOE	$98.37	To Order

Photo	Part No	Description	Price (each)	Stock
	291034	CRANKSHAFT GEAR	$607.19	To Order

Photo	Part No	Description	Price (each)	Stock
	255815	PUMP DRIVE GEAR	$361.40	To Order

Photo	Part No	Description	Price (each)	Stock
	255780	SCREW	$1.10	To Order

Photo	Part No	Description	Price (each)	Stock
	253294	CHAIN	$713.97	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	253293	MOUNTING	$61.79	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	272014	SHOE	$63.05	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	282393	SCREW	$0.67	To Order

Photo	Part No	Description	Price (each)	Stock
	282396	SCREW	$0.53	To Order

Photo	Part No	Description	Price (each)	Stock
	255527	WASHER	$0.06	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	315694	VALVE TIMING AND PUMP DRIVE SYSTEM	315694 VALVE TIMING AND PUMP DRIVE SYSTEM	$1,147.78	1
2	175286	DRIVE CHAIN	175286 DRIVE CHAIN	$42.86	1
3	186184	TIMING CHAIN GUIDING SHOE IN STOCK	186184 TIMING CHAIN GUIDING SHOE IN STOCK	$146.06	2
4	175303	BUSH	175303 BUSH	$32.78	2
5	14306424	SCREW IN STOCK	14306424 SCREW IN STOCK	$0.23 MSRP: ~~0.41~~ (43.9% off)	2
6	14498801	WASHER IN STOCK	14498801 WASHER IN STOCK	$0.11 MSRP: ~~0.20~~ (45% off)	2
7	186185	Fixed Tension Guide - Timing Chain IN STOCK	186185 Fixed Tension Guide - Timing Chain IN STOCK	$57.21	2
8	86768100	SCREW	86768100 SCREW	$0.44	4
9	186159	CHAIN SUPPORT IN STOCK	186159 CHAIN SUPPORT IN STOCK	$29.97	1
10	282393	SCREW	282393 SCREW M6 X 14	$0.67	2
12	282397	SCREW	282397 SCREW M6 X 25	$0.46	2
13	193616	VALVE TIMING CHAIN IN STOCK	193616 VALVE TIMING CHAIN IN STOCK	$126.83	2
14	163759	WASHER	163759 WASHER	$13.40	4
15	16043124	SCREW IN STOCK	16043124 SCREW IN STOCK	$0.17	1
16	194262	SHOULDER	194262 SHOULDER	$39.14	1
17	175282	ROLLER BEARING CAGE	175282 ROLLER BEARING CAGE	$9.86 MSRP: ~~11.69~~ (15.7% off)	3
18	212970	MOUNTING	212970 MOUNTING	$146.06	1
19	14304124	SCREW	14304124 SCREW	$0.14 MSRP: ~~0.75~~ (81.3% off)	4
20	11181574	WASHER IN STOCK	11181574 WASHER IN STOCK	$0.02	4
21	197880	HYDRAULIC TENSIONER	197880 HYDRAULIC TENSIONER	$143.04 MSRP: ~~190.38~~ (24.9% off)	2
22	231619	SCREW IN STOCK	231619 SCREW M6 X 22 IN STOCK	$0.29	4
23	190060	TENSIONER BUSHING	190060 TENSIONER BUSHING	$33.63	1
25	193565	DRIVE GEAR	193565 DRIVE GEAR	$201.79	1
26	196683	TIMING CHAIN TENSIONER	196683 TIMING CHAIN TENSIONER	$44.29	1
27	175306	SHOULDER	175306 SHOULDER	$4.03	2
28	190171	SPACER IN STOCK	190171 SPACER IN STOCK	$6.46	1
29	192069	O-RING D.26 X 1.5 IN STOCK	192069 O-RING D.26 X 1.5 IN STOCK	$0.50 MSRP: ~~0.60~~ (16.7% off)	1
30	249844	FIXED SHOE	249844 FIXED SHOE	$98.37	1
31	291034	CRANKSHAFT GEAR	291034 CRANKSHAFT GEAR	$607.19	1
32	255815	PUMP DRIVE GEAR	255815 PUMP DRIVE GEAR	$361.40	1
33	255780	SCREW	255780 SCREW	$1.10	4
34	253294	CHAIN IN STOCK	253294 CHAIN IN STOCK	$713.97	1
35	253293	MOUNTING IN STOCK	253293 MOUNTING IN STOCK	$61.79	1
36	272014	SHOE IN STOCK	272014 SHOE IN STOCK	$63.05	1
37	282393	SCREW	282393 SCREW M6 X 14	$0.67	2
38	282396	SCREW	282396 SCREW M6 X 22	$0.53	2
39	255527	WASHER IN STOCK	255527 WASHER IN STOCK	$0.06	1

Timing System - Drive

Ferrari 458 Speciale

Ferrari 458 Speciale - TIMING SYSTEM - DRIVE
