Crankcase

Ferrari 458 Speciale

Find Your Part

Ferrari 458 Speciale - CRANKCASE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
278162 CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY $6,114.02 To Order
Photo Part No Description Price (each) Stock
236261 STUD BOLT $7.08 To Order
236262 STUD BOLT $33.26 To Order
Photo Part No Description Price (each) Stock
178348 WASHER D.10.2-20 X 2 $0.74 IN STOCK
Photo Part No Description Price (each) Stock
134704 O-RING $0.14 IN STOCK
Photo Part No Description Price (each) Stock
176421 CENTERING DOWEL $4.09 To Order
Photo Part No Description Price (each) Stock
133988 HEX NUT M10 X 1.25 X 8 $0.20 IN STOCK
Photo Part No Description Price (each) Stock
802590 STUD BOLT CRANKCASE $13.22 IN STOCK
Photo Part No Description Price (each) Stock
185360 CENTERING DOWEL $2.82 IN STOCK
Photo Part No Description Price (each) Stock
254979 STUD BOLT $2.22 To Order
13546934 STUD BOLT $1.70 IN STOCK
Photo Part No Description Price (each) Stock
243339 CYLINDER SLEEVE $1,496.70 To Order
306484 CYLINDER SLEEVE $355.76 To Order
Photo Part No Description Price (each) Stock
186251 O-RING $2.45 IN STOCK
Photo Part No Description Price (each) Stock
262417 COMPL. PISTON COOLING NOZZLE $46.03 To Order
Photo Part No Description Price (each) Stock
262413 SCREW $0.79 To Order
Photo Part No Description Price (each) Stock

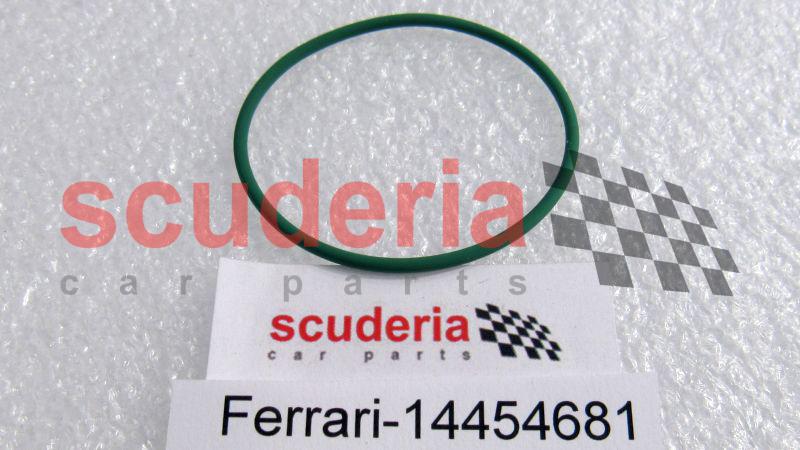

14454681 O-RING $0.63 IN STOCK
Photo Part No Description Price (each) Stock
242269 REAR MAIN OIL SEAL $46.90 To Order
Photo Part No Description Price (each) Stock
175611 CENTERING DOWEL $1.70 To Order
Photo Part No Description Price (each) Stock
307477 THREADED PLUG $3.35 IN STOCK
Photo Part No Description Price (each) Stock
10263460 COPPER GASKET D.28-22.3 X 1.5 $0.35 IN STOCK
Photo Part No Description Price (each) Stock
282753 THREADED PLUG $5.80 To Order
Photo Part No Description Price (each) Stock
104280 MAGNETIC THREADED OIL DRAIN PLUG M22 X 1.5 $5.46 IN STOCK
Photo Part No Description Price (each) Stock
10261860 GASKET $0.43 IN STOCK
Photo Part No Description Price (each) Stock
231620 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
231625 SCREW $0.57 IN STOCK
Photo Part No Description Price (each) Stock
255568 RH ENGINE STRUT $204.64 To Order
255569 LH ENGINE STRUT $204.64 To Order
Photo Part No Description Price (each) Stock
11307034 SCREW $0.71 To Order
Photo Part No Description Price (each) Stock
11190574 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
296230 RH FLEXIBLE ENGINE MOUNTING BUSH $422.08 To Order
296231 LH FLEXIBLE ENGINE MOUNTING BUSH $422.08 To Order
Photo Part No Description Price (each) Stock
278028 STAFFA LIMITATRICE ESCURSIONE TAMPONE SX. $166.27 To Order
278027 STAFFA LIMITATRICE ESCURSIONE TAMPONE DX. $166.27 To Order
Photo Part No Description Price (each) Stock
243841 SCREW $1.45 IN STOCK
Photo Part No Description Price (each) Stock
127497 SPRING WASHER M10 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
126648 WASHER D.10.5-21 X 2 $1.68 IN STOCK
Photo Part No Description Price (each) Stock
260084 ENGINE MOUNTING BUSH HEAT SHIELD $60.10 To Order
Photo Part No Description Price (each) Stock
11599534 SCREW $1.71 IN STOCK
Photo Part No Description Price (each) Stock
127498 WASHER $0.14 To Order
Photo Part No Description Price (each) Stock
10738021 WASHER $1.11 IN STOCK
Photo Part No Description Price (each) Stock
248334 SCREW $0.59 IN STOCK
Photo Part No Description Price (each) Stock
261440 FRONT COMPL. CRANKCASE COVER $2,987.14 To Order
Photo Part No Description Price (each) Stock
247049 BEARING $47.05 IN STOCK
Photo Part No Description Price (each) Stock
11060276 SEEGER RING $0.42 IN STOCK
Photo Part No Description Price (each) Stock
187718 BLEED PLUG $6.25 To Order
Photo Part No Description Price (each) Stock
127497 SPRING WASHER M10 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
231625 SCREW $0.57 IN STOCK
231626 SCREW $0.71 IN STOCK
231619 SCREW $0.29 IN STOCK
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
236143 GASKET CRANKCASE $7.27 IN STOCK
Photo Part No Description Price (each) Stock
249747 RPM SENSOR $171.89 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock

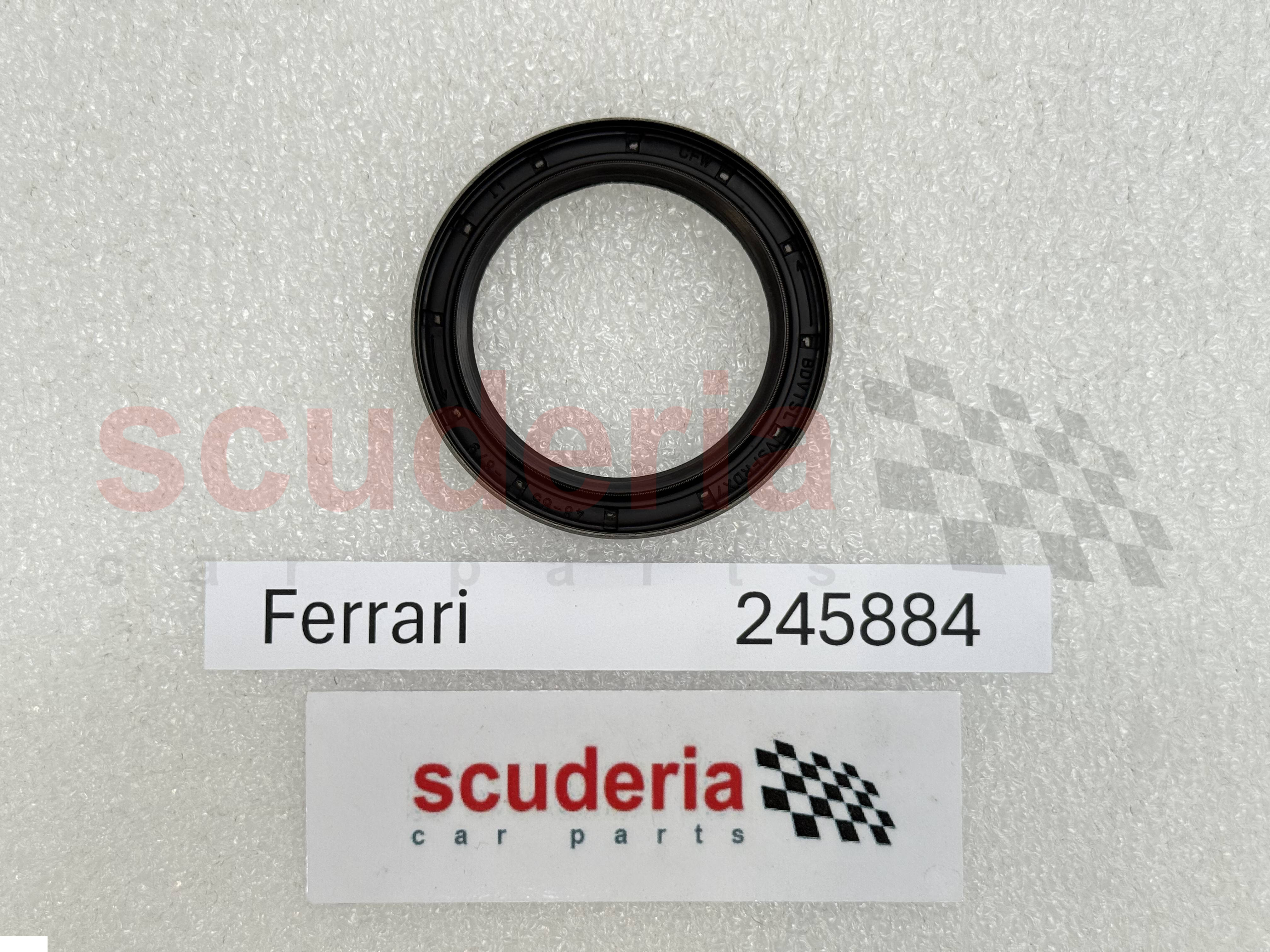

245884 Crank-Shaft Seal $39.63 IN STOCK
Photo Part No Description Price (each) Stock
253787 CONNECTOR $230.22 To Order
Photo Part No Description Price (each) Stock
183010 O-RING D-32.93 $1.62 IN STOCK
Photo Part No Description Price (each) Stock
223405 CAP $6.26 To Order
Photo Part No Description Price (each) Stock
193885 THREADED PLUG $2.87 To Order
Photo Part No Description Price (each) Stock
10263460 COPPER GASKET D.28-22.3 X 1.5 $0.35 IN STOCK
Photo Part No Description Price (each) Stock
239437 WATER INLET BUSH $14.50 To Order
Photo Part No Description Price (each) Stock
255866 PUMP DRIVE JOINT $1,036.04 To Order
View All

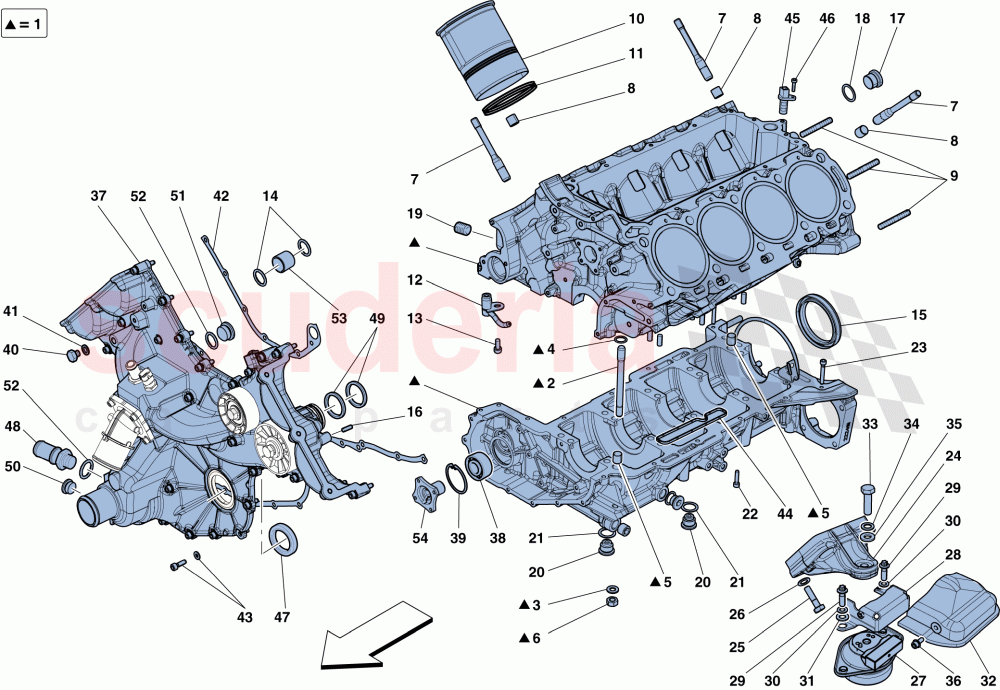

CRANKCASE of Ferrari Ferrari 458 Speciale Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 278162
CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY
Lead free 		$6,114.02 1
2 236261
STUD BOLT
M12 X 1.75; Shank M10 X 1.25 		$7.08 10
2 236262
STUD BOLT
M12 X 1.75; Shank M10 X 1.25 		$33.26 10
3 178348
WASHER D.10.2-20 X 2
IN STOCK 		$0.74 20
4 134704
O-RING
IN STOCK 		$0.14 (86% off) 20
5 176421
CENTERING DOWEL 		$4.09 2
6 133988
HEX NUT M10 X 1.25 X 8
IN STOCK 		$0.20 (42.9% off) 20
7 802590
STUD BOLT CRANKCASE
IN STOCK 		$13.22 20
8 185360
CENTERING DOWEL
IN STOCK 		$2.82 4
9 254979
STUD BOLT
Shaft length 55 mm 		$2.22 3
9 13546934
STUD BOLT
Shaft length 50 mm
IN STOCK 		$1.70 4
10 243339
CYLINDER SLEEVE 		$1,496.70 8
10 306484
CYLINDER SLEEVE
Applicable from Ass. No. 218667 		$355.76 8
11 186251
O-RING
IN STOCK 		$2.45 (23.4% off) 24
12 262417
COMPL. PISTON COOLING NOZZLE 		$46.03 8
13 262413
SCREW 		$0.79 8
14 14454681
O-RING
IN STOCK 		$0.63 (68.2% off) 2
15 242269
REAR MAIN OIL SEAL 		$46.90 1
16 175611
CENTERING DOWEL 		$1.70 2
17 307477
THREADED PLUG
IN STOCK 		$3.35 1
18 10263460
COPPER GASKET D.28-22.3 X 1.5
IN STOCK 		$0.35 (65% off) 1
19 282753
THREADED PLUG 		$5.80 2
20 104280
MAGNETIC THREADED OIL DRAIN PLUG M22 X 1.5
IN STOCK 		$5.46 (20.9% off) 2
21 10261860
GASKET
IN STOCK 		$0.43 (57% off) 2
22 231620
SCREW
M6 X 25
IN STOCK 		$0.31 (11.4% off) 11
23 231625
SCREW
IN STOCK 		$0.57 2
24 255568
RH ENGINE STRUT 		$204.64 1
24 255569
LH ENGINE STRUT 		$204.64 1
25 11307034
SCREW 		$0.71 8
26 11190574
WASHER
IN STOCK 		$0.06 8
27 296230
RH FLEXIBLE ENGINE MOUNTING BUSH 		$422.08 1
27 296231
LH FLEXIBLE ENGINE MOUNTING BUSH 		$422.08 1
28 278028
STAFFA LIMITATRICE ESCURSIONE TAMPONE SX. 		$166.27 1
28 278027
STAFFA LIMITATRICE ESCURSIONE TAMPONE DX. 		$166.27 1
29 243841
SCREW
IN STOCK 		$1.45 6
30 127497
SPRING WASHER M10
IN STOCK 		$0.06 (92% off) 6
31 126648
WASHER D.10.5-21 X 2
IN STOCK 		$1.68 (4% off) 6
32 260084
ENGINE MOUNTING BUSH HEAT SHIELD 		$60.10 2
33 11599534
SCREW
IN STOCK 		$1.71 2
34 127498
WASHER 		$0.14 (76.7% off) 2
35 10738021
WASHER
IN STOCK 		$1.11 2
36 248334
SCREW
M6 X 14
IN STOCK 		$0.59 4
37 261440
FRONT COMPL. CRANKCASE COVER 		$2,987.14 1
38 247049
BEARING
IN STOCK 		$47.05 1
39 11060276
SEEGER RING
IN STOCK 		$0.42 (76% off) 1
40 187718
BLEED PLUG 		$6.25 2
41 127497
SPRING WASHER M10
IN STOCK 		$0.06 (92% off) 2
43 231625
SCREW
M6 X 50
IN STOCK 		$0.57 3
43 231626
SCREW
M6 X 70
IN STOCK 		$0.71 1
43 231619
SCREW
M6 X 18
IN STOCK 		$0.29 11
43 231619
SCREW
M6 X 22
IN STOCK 		$0.29 4
43 231620
SCREW
M6 X 25
IN STOCK 		$0.31 (11.4% off) 3
43 231620
SCREW
M6 X 30
IN STOCK 		$0.31 (11.4% off) 1
43 231622
SCREW
M6 X 35
IN STOCK 		$0.34 (32% off) 8
43 231624
SCREW
M6 X 45
IN STOCK 		$0.42 1
44 236143
GASKET CRANKCASE
IN STOCK 		$7.27 (30.8% off) 2
45 249747
RPM SENSOR 		$171.89 1
46 231619
SCREW
M6 X 20
IN STOCK 		$0.29 1
47 245884
Crank-Shaft Seal
IN STOCK 		$39.63 (26.3% off) 1
48 253787
CONNECTOR 		$230.22 1
49 183010
O-RING D-32.93
IN STOCK 		$1.62 (43.9% off) 2
50 223405
CAP 		$6.26 1
51 193885
THREADED PLUG 		$2.87 1
52 10263460
COPPER GASKET D.28-22.3 X 1.5
IN STOCK 		$0.35 (65% off) 2
53 239437
WATER INLET BUSH 		$14.50 1
54 255866
PUMP DRIVE JOINT 		$1,036.04 1
