Ferrari 458 Challenge - Lubrication plant - tank, pump and filter

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
781584 COMPL. OIL PUMP $3,591.57 To Order
Photo Part No Description Price (each) Stock
274261 COMPL. OIL TANK $1,751.16 To Order
Photo Part No Description Price (each) Stock
237937 COMPLETE CAP $286.96 To Order
Photo Part No Description Price (each) Stock
176179 RUBBER PIPE FROM TANK TO CONNECTOR $6.44 To Order
Photo Part No Description Price (each) Stock
258855 3-WAY CONNECTOR $40.09 IN STOCK
Photo Part No Description Price (each) Stock
165608 RUBBER PIPE $2.55 To Order
Photo Part No Description Price (each) Stock
141235 RUBBER PIPE $9.60 To Order
Photo Part No Description Price (each) Stock
274264 RH INLET PIPE $65.77 To Order
Photo Part No Description Price (each) Stock
274266 LH INLET PIPE $64.50 To Order
Photo Part No Description Price (each) Stock
13432070 HOSE COLLAR $0.49 ARRIVING SOON
Photo Part No Description Price (each) Stock
287204 PIPE WITH FLANGE $732.05 IN STOCK
Photo Part No Description Price (each) Stock
255176 OIL PICKUP $151.02 IN STOCK
Photo Part No Description Price (each) Stock
862084 GASKET $4.91 To Order
Photo Part No Description Price (each) Stock
239453 YOKE $6.56 To Order
Photo Part No Description Price (each) Stock
281311 OIL VAPOUR BREATHER PIPE $143.47 To Order
Photo Part No Description Price (each) Stock
10716370 COLLAR $0.78 IN STOCK
Photo Part No Description Price (each) Stock
100332 OIL PICKUP FILTER $17.87 To Order
Photo Part No Description Price (each) Stock
125521 O-RING $10.54 IN STOCK
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
177576 CABLE GROMMET $2.20 IN STOCK
Photo Part No Description Price (each) Stock
293107 THREADED PLUG $77.56 IN STOCK
Photo Part No Description Price (each) Stock
231620 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
253909 OIL RECOVERY PIPE $290.96 To Order
Photo Part No Description Price (each) Stock
121903 O-RING $0.70 IN STOCK
Photo Part No Description Price (each) Stock
239452 YOKE $6.56 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
10261460 COPPER WASHER 16 X 24 X 1.5 $0.32 IN STOCK
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
241986 COLLAR FOR HOSE UNION $0.96 IN STOCK
Photo Part No Description Price (each) Stock
275528 PUMP SEAL FILTER $30.35 IN STOCK
Photo Part No Description Price (each) Stock
14306424 SCREW $0.23 IN STOCK
Photo Part No Description Price (each) Stock
14306624 SCREW $0.27 IN STOCK
Photo Part No Description Price (each) Stock
239462 CALIBRATED SCREW $6.67 To Order
Photo Part No Description Price (each) Stock
986847 CONICAL WASHER $0.60 To Order
Photo Part No Description Price (each) Stock
247044 HEXAGONAL OIL PUMP DRIVE ROD $31.61 To Order
Photo Part No Description Price (each) Stock
271893 OIL PUMP GASKET KIT $82.34 IN STOCK
Photo Part No Description Price (each) Stock
291502 CONNECTOR $64.50 To Order
Photo Part No Description Price (each) Stock
270631 VACUUM PICK-UP PIPE $797.00 To Order
Photo Part No Description Price (each) Stock
270632 VACUUM PICK-UP PIPE $797.00 To Order
Photo Part No Description Price (each) Stock
270618 STAFFA SUPPORTO SENSORE $68.30 To Order
Photo Part No Description Price (each) Stock
270620 SENSOR MOUNTING $392.17 To Order
Photo Part No Description Price (each) Stock
270635 PRESSURE SENSOR -2.5 Bar- $493.36 To Order
Photo Part No Description Price (each) Stock
10902524 SCREW M10 X 1.25 X 45 $0.14 IN STOCK
Photo Part No Description Price (each) Stock
12644424 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
149707 SPACER $1.10 To Order
Photo Part No Description Price (each) Stock
812273 CABLE GROMMET $1.53 To Order
Photo Part No Description Price (each) Stock
270639 STUD BOLT $75.89 To Order
Photo Part No Description Price (each) Stock
271298 HEAT SHIELD $69.57 To Order
Photo Part No Description Price (each) Stock
11566227 SCREW $1.13 IN STOCK
Photo Part No Description Price (each) Stock
12601174 WASHER $0.06 To Order
View All

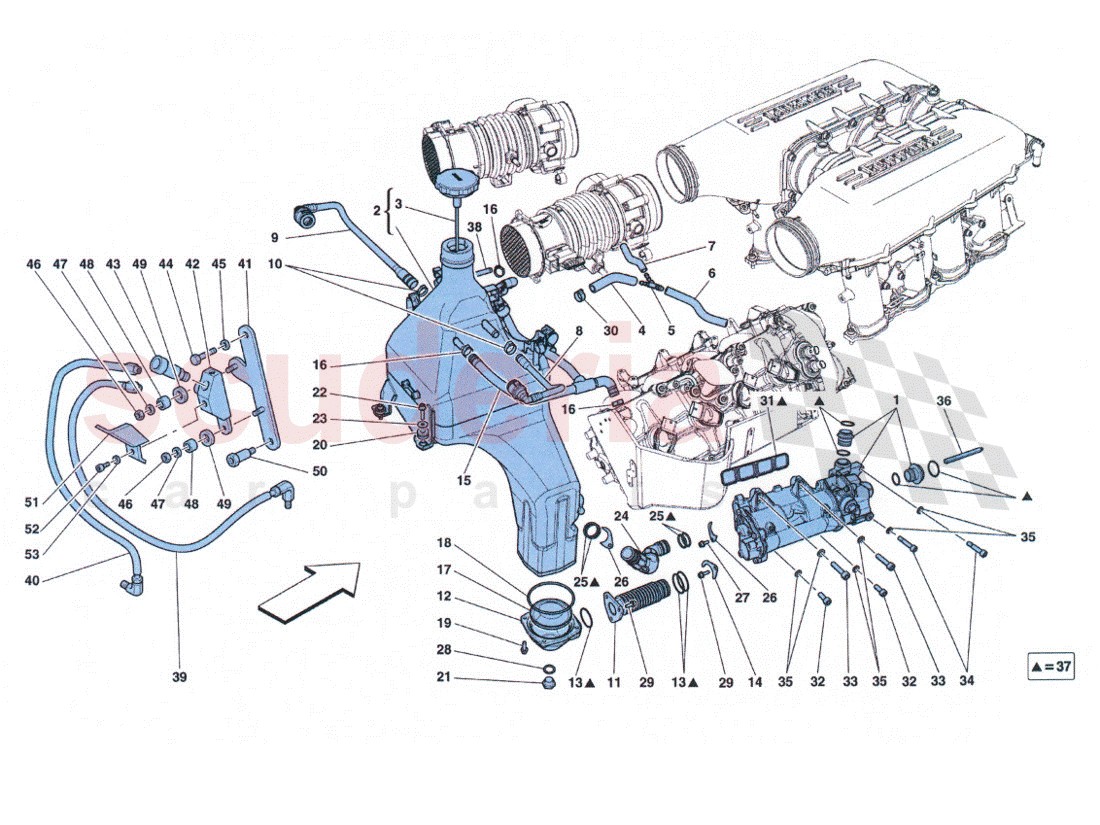

Lubrication plant - tank, pump and filter of Ferrari Ferrari 458 Challenge Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 781584
COMPL. OIL PUMP 		$3,591.57 1
2 274261
COMPL. OIL TANK 		$1,751.16 1
3 237937
COMPLETE CAP 		$286.96 1
4 176179
RUBBER PIPE FROM TANK TO CONNECTOR 		$6.44 1
5 258855
3-WAY CONNECTOR
IN STOCK 		$40.09 1
6 165608
RUBBER PIPE 		$2.55 1
7 141235
RUBBER PIPE 		$9.60 1
8 274264
RH INLET PIPE 		$65.77 1
9 274266
LH INLET PIPE 		$64.50 1
10 13432070
HOSE COLLAR
ARRIVING SOON 		$0.49 (54.2% off) 2
11 287204
PIPE WITH FLANGE
IN STOCK 		$732.05 1
12 255176
OIL PICKUP
IN STOCK 		$151.02 1
13 862084
GASKET 		$4.91 1
14 239453
YOKE 		$6.56 1
15 281311
OIL VAPOUR BREATHER PIPE 		$143.47 1
16 10716370
COLLAR
IN STOCK 		$0.78 3
17 100332
OIL PICKUP FILTER 		$17.87 1
18 125521
O-RING
IN STOCK 		$10.54 1
19 231619
SCREW
IN STOCK 		$0.29 4
20 177576
CABLE GROMMET
IN STOCK 		$2.20 4
21 293107
THREADED PLUG
IN STOCK 		$77.56 1
22 231620
SCREW
IN STOCK 		$0.31 (11.4% off) 4
23 12643724
WASHER
IN STOCK 		$0.06 (88% off) 4
24 253909
OIL RECOVERY PIPE 		$290.96 1
25 121903
O-RING
IN STOCK 		$0.70 (64.1% off) 4
26 239452
YOKE 		$6.56 2
27 248334
SCREW
IN STOCK 		$0.58 2
28 10261460
COPPER WASHER 16 X 24 X 1.5
IN STOCK 		$0.32 (68% off) 1
29 248334
SCREW
IN STOCK 		$0.58 4
30 241986
COLLAR FOR HOSE UNION
IN STOCK 		$0.96 1
31 275528
PUMP SEAL FILTER
IN STOCK 		$30.35 1
32 14306424
SCREW
IN STOCK 		$0.23 (43.9% off) 2
33 14306624
SCREW
IN STOCK 		$0.27 2
34 239462
CALIBRATED SCREW 		$6.67 2
35 986847
CONICAL WASHER 		$0.60 6
36 247044
HEXAGONAL OIL PUMP DRIVE ROD 		$31.61 1
37 271893
OIL PUMP GASKET KIT
IN STOCK 		$82.34 (32.7% off) 1
38 291502
CONNECTOR 		$64.50 1
39 270631
VACUUM PICK-UP PIPE 		$797.00 1
40 270632
VACUUM PICK-UP PIPE 		$797.00 1
41 270618
STAFFA SUPPORTO SENSORE 		$68.30 1
42 270620
SENSOR MOUNTING 		$392.17 1
43 270635
PRESSURE SENSOR -2.5 Bar- 		$493.36 1
44 10902524
SCREW M10 X 1.25 X 45
IN STOCK 		$0.14 2
45 12644424
WASHER
IN STOCK 		$0.06 (85% off) 2
46 14059290
FLANGED NUT M6
IN STOCK 		$1.31 2
47 12643724
WASHER
IN STOCK 		$0.06 (88% off) 2
48 149707
SPACER 		$1.10 (37.1% off) 2
49 812273
CABLE GROMMET 		$1.53 2
50 270639
STUD BOLT 		$75.89 1
51 271298
HEAT SHIELD 		$69.57 1
52 11566227
SCREW
IN STOCK 		$1.13 1
53 12601174
WASHER 		$0.06 (82.9% off) 1
