Ferrari 458 Challenge - Crankshaft - connecting rods and pistons

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
275436 CRANKSHAFT $2,182.92 To Order
Photo Part No Description Price (each) Stock
103877 BEARING $31.26 IN STOCK
Photo Part No Description Price (each) Stock
186201 TAB $0.94 IN STOCK
Photo Part No Description Price (each) Stock
286832 UPPER MAIN HALF BEARING BLUE $23.47 IN STOCK
286833 UPPER HALF-BEARING $22.70 IN STOCK
286834 UPPER HALF-BEARING $21.46 IN STOCK
Photo Part No Description Price (each) Stock
200194 Lower Main Half Bearing Blue $28.63 IN STOCK
286837 LOWER HALF-BEARING $22.70 IN STOCK
286838 LOWER HALF-BEARING $21.09 To Order
Photo Part No Description Price (each) Stock
222874 SHIM RING $30.29 To Order
Photo Part No Description Price (each) Stock
256341 ENGINE DAMPER FLYWHEEL $3,149.19 To Order
Photo Part No Description Price (each) Stock
229907 SCREW $7.92 To Order
Photo Part No Description Price (each) Stock

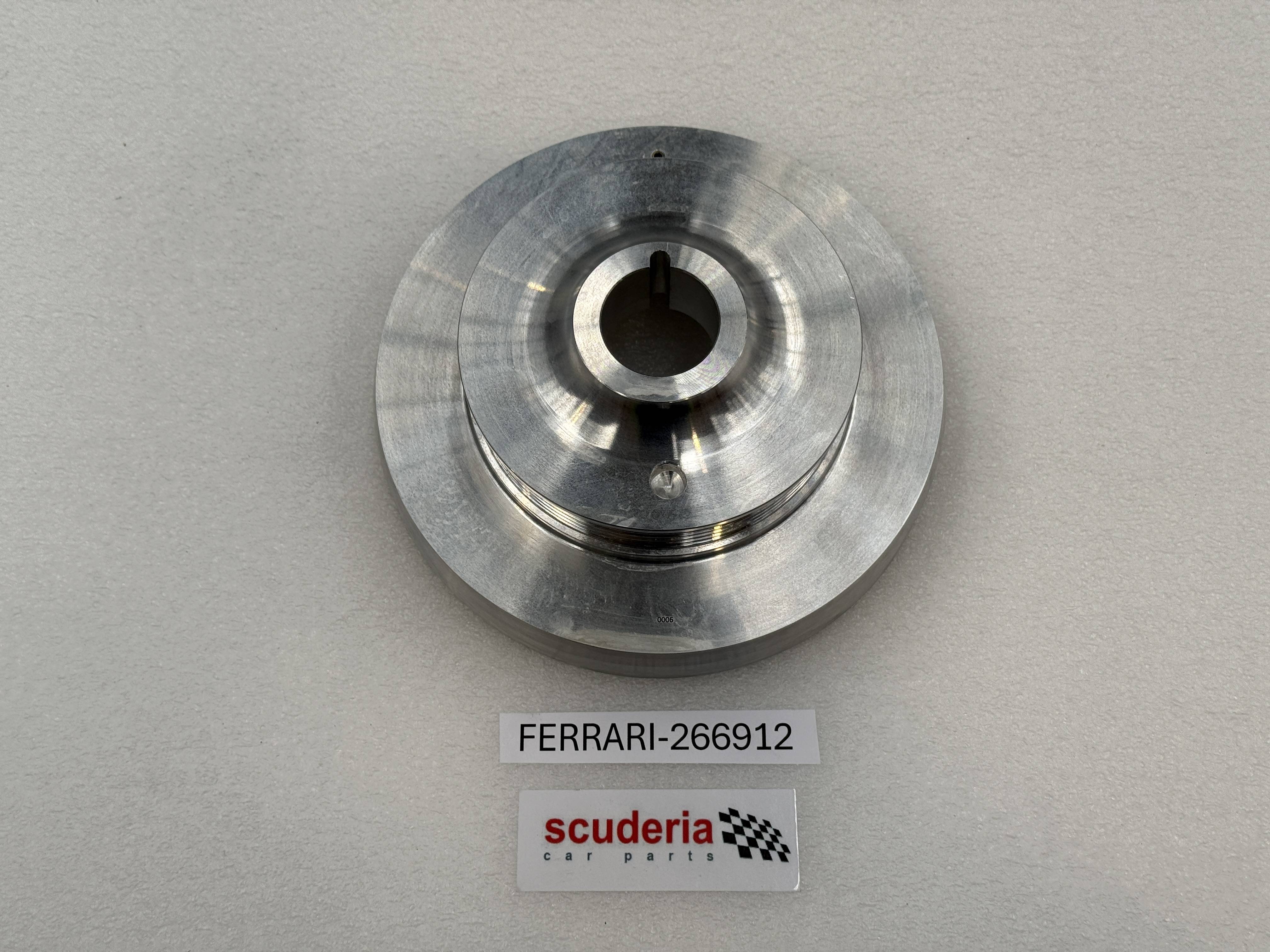

266912 TORSION DAMPER $1,470.06 IN STOCK
Photo Part No Description Price (each) Stock
196216 SCREW $65.23 IN STOCK
Photo Part No Description Price (each) Stock
263683 WASHER $45.45 To Order
Photo Part No Description Price (each) Stock
308488 COMPL. CONNECTING ROD AND CAP $2,186.97 To Order
Photo Part No Description Price (each) Stock
254807 SCREW $41.80 To Order
Photo Part No Description Price (each) Stock
224608 ALIGNMENT PIN $3.40 To Order
Photo Part No Description Price (each) Stock
234871 BUSHING $17.66 To Order
Photo Part No Description Price (each) Stock
260683 PISTON COMPL. WITH RINGS, RH CYLINDER BANK $1,186.90 To Order
260684 PISTON COMPL. WITH RINGS, LH CYLINDER BANK $1,186.90 To Order
Photo Part No Description Price (each) Stock
263328 PISTON RING SET $221.79 IN STOCK
Photo Part No Description Price (each) Stock
198260 GUDGEON PIN $57.68 To Order
Photo Part No Description Price (each) Stock
257919 STOP RING $5.22 To Order
Photo Part No Description Price (each) Stock
244417 CONNECTING ROD HALF-BEARING $23.97 To Order
244418 CONNECTING ROD HALF-BEARING $22.70 To Order
244416 CONNECTING ROD HALF-BEARING $22.70 To Order
View All

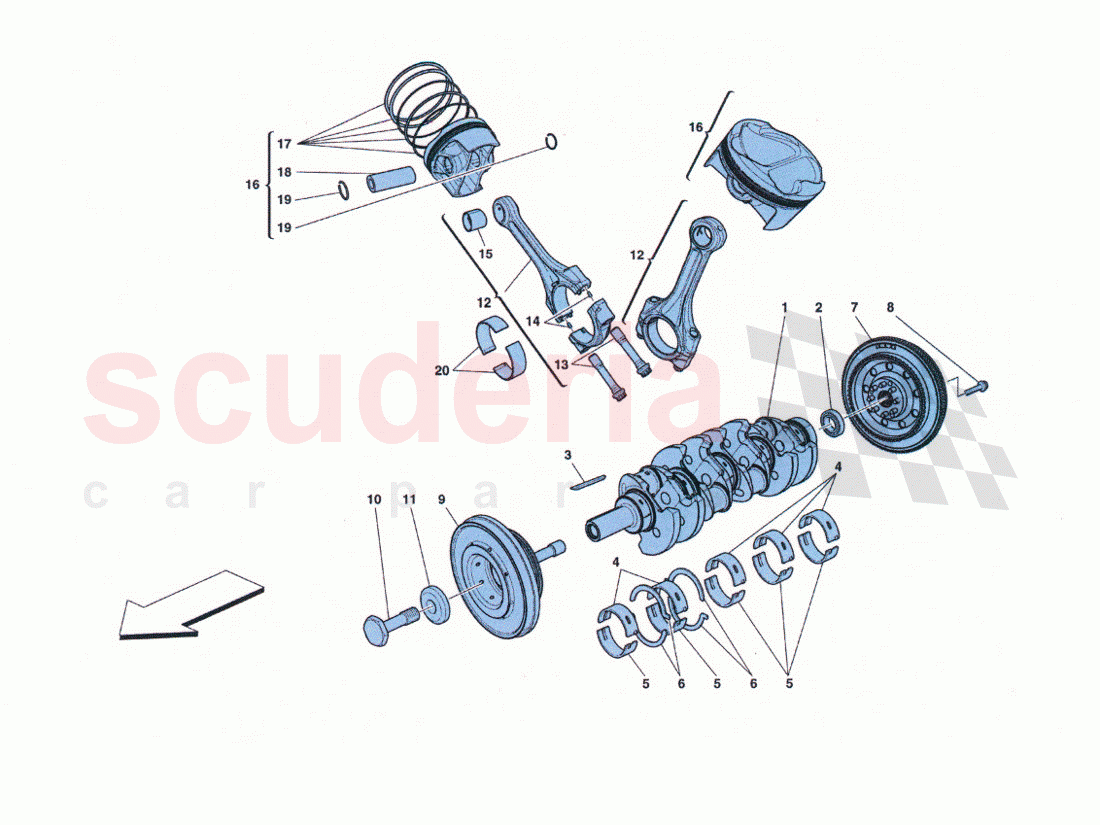

Crankshaft - connecting rods and pistons of Ferrari Ferrari 458 Challenge Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 275436
CRANKSHAFT 		$2,182.92 1
2 103877
BEARING
IN STOCK 		$31.26 1
3 186201
TAB
IN STOCK 		$0.94 1
4 286832
UPPER MAIN HALF BEARING BLUE
IN STOCK 		$23.47 5
4 286833
UPPER HALF-BEARING
IN STOCK 		$22.70 5
4 286834
UPPER HALF-BEARING
IN STOCK 		$21.46 5
5 200194
Lower Main Half Bearing Blue
IN STOCK 		$28.63 5
5 286837
LOWER HALF-BEARING
IN STOCK 		$22.70 5
5 286838
LOWER HALF-BEARING 		$21.09 5
6 222874
SHIM RING 		$30.29 4
7 256341
ENGINE DAMPER FLYWHEEL 		$3,149.19 1
8 229907
SCREW 		$7.92 8
9 266912
TORSION DAMPER
IN STOCK 		$1,470.06 1
10 196216
SCREW
IN STOCK 		$65.23 (1.6% off) 1
11 263683
WASHER 		$45.45 1
12 308488
COMPL. CONNECTING ROD AND CAP 		$2,186.97 8
13 254807
SCREW 		$41.80 16
14 224608
ALIGNMENT PIN 		$3.40 16
15 234871
BUSHING 		$17.66 8
16 260683
PISTON COMPL. WITH RINGS, RH CYLINDER BANK 		$1,186.90 4
16 260684
PISTON COMPL. WITH RINGS, LH CYLINDER BANK 		$1,186.90 4
17 263328
PISTON RING SET
IN STOCK 		$221.79 8
18 198260
GUDGEON PIN 		$57.68 8
19 257919
STOP RING 		$5.22 16
20 244417
CONNECTING ROD HALF-BEARING 		$23.97 16
20 244418
CONNECTING ROD HALF-BEARING 		$22.70 16
20 244416
CONNECTING ROD HALF-BEARING 		$22.70 16
