Ferrari 456 M GT/GTA - ELECTRICAL SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
174481 FRONT CABLES $1,600.94 To Order
Photo Part No Description Price (each) Stock
178352 DASHBOARD PANEL CONNECTION CABLES $1,717.15 To Order
Photo Part No Description Price (each) Stock
178354 REAR CABLES -Not for 456M GTA- $979.07 To Order
Photo Part No Description Price (each) Stock
174486 DOOR CONNECTION CABLES $1,110.24 To Order
Photo Part No Description Price (each) Stock
168529 INJECTORS CONNECTION CABLES $869.77 To Order
Photo Part No Description Price (each) Stock
174485 TUNNEL INSTRUMENTS CONNECTION CABLES $112.96 To Order
Photo Part No Description Price (each) Stock
175648 REAR LIGHT CONNECTION CABLES $845.28 To Order
Photo Part No Description Price (each) Stock
176141 FRONT LIGHT CONNECTION CABLES $302.78 To Order
Photo Part No Description Price (each) Stock
174489 TRUNK HOOD BONNET CONNECTION CABLES $43.67 To Order
Photo Part No Description Price (each) Stock
174492 CABLES FOR NUMBER PLATE LIGHTS $870.53 To Order
Photo Part No Description Price (each) Stock
174490 ABS/ASR CONNECTION CABLES $443.78 To Order
Photo Part No Description Price (each) Stock
176203 CABLES FOR MOTOR DEVICES CONNECTION $497.42 To Order
Photo Part No Description Price (each) Stock
174495 CABLES FOR RH MAIN BEARINGS CONNECTION $4,012.73 To Order
Photo Part No Description Price (each) Stock
174496 CABLES FOR LH MAIN BEARINGS CONNECTION $3,962.35 To Order
Photo Part No Description Price (each) Stock
175087 JUMPER CAN LINE $22.58 To Order
Photo Part No Description Price (each) Stock
179192 JUMPER CAN LINE WITH RESISTOR $13.69 To Order
View All

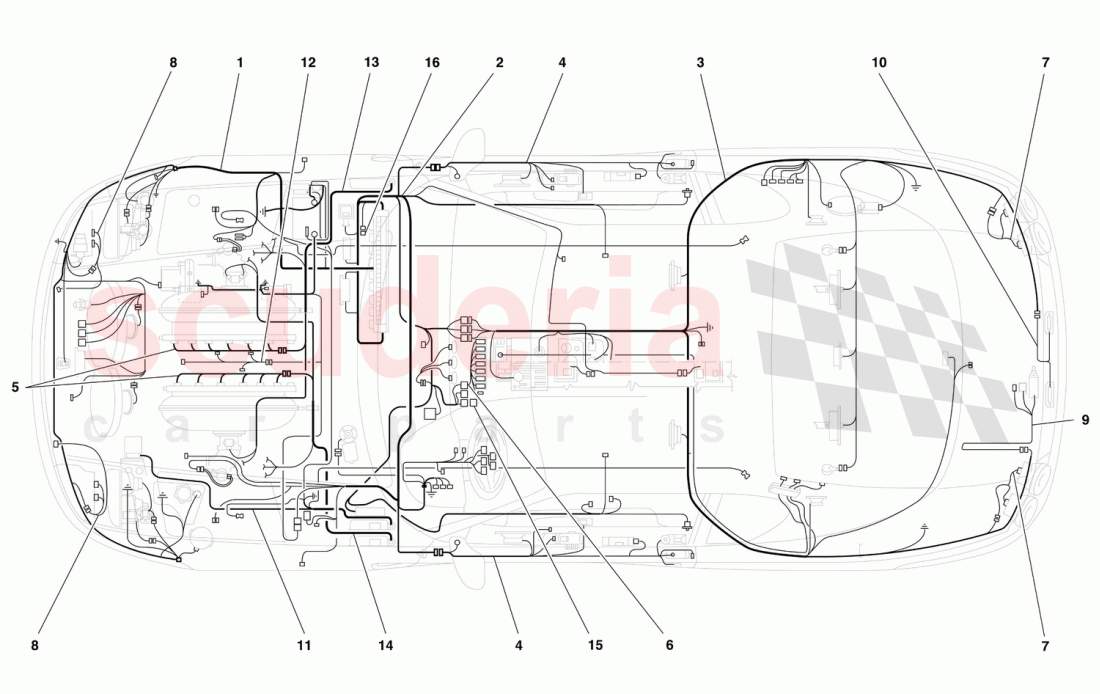

ELECTRICAL SYSTEM of Ferrari Ferrari 456 M GT/GTA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 180507
CABLES FOR LH MAIN BEARINGS CONNECTION
BEARINGS CONNECTION / Valid for USA M.Y. 2000, USA M.Y. 2001, / CDN M.Y. 2000 and CDN M.Y. 2001 		$858.57 1
- 177184
CABLES FOR LH MAIN BEARINGS CONNECTION
BEARINGS CONNECTION / Valid for GD / Valid till car Ass. Nr. 32851 		$2,503.11 1
- 179863
CABLES FOR LH MAIN BEARINGS CONNECTION
BEARINGS CONNECTION / Valid for GD / Valid from car Ass. Nr. 32852 		$2,364.85 1
- 179858
CABLES FOR LH MAIN BEARINGS CONNECTION
BEARINGS CONNECTION / Not for GD- -Not for USA M.Y. 2000, USA M.Y. 2001, / CDN M.Y. 2000 and CDN M.Y. 2001 / Valid from car Ass. Nr. 32533 		$813.38 1
- 179862
CABLES FOR RH MAIN BEARINGS CONNECTION
BEARINGS CONNECTION / Valid for GD / Valid from car Ass. Nr. 32852 		$1,148.09 1
- 180506
CABLES FOR RH MAIN BEARINGS CONNECTION
BEARINGS CONNECTION / Valid for USA M.Y. 2000, USA M.Y. 2001, / CDN M.Y. 2000 and CDN M.Y. 2001 		$813.38 1
- 179857
CABLES FOR RH MAIN BEARINGS CONNECTION
BEARINGS CONNECTION / Not for GD- -Not for USA M.Y. 2000, USA M.Y. 2001, / CDN M.Y. 2000 and CDN M.Y. 2001 / Valid from car Ass. Nr. 32533 		$828.44 1
- 177183
CABLES FOR RH MAIN BEARINGS CONNECTION
BEARINGS CONNECTION / Valid for GD / Valid till car Ass. Nr. 32851 		$1,069.45 1
- 179273
CABLES FOR MOTOR DEVICES CONNECTION
CONNECTION / Valid for GD / Valid from car Ass. Nr. 32031 		$376.56 1
- 179241
CABLES FOR MOTOR DEVICES CONNECTION
CONNECTION / Not for GD / Valid from car Ass. Nr. 32088 		$1,130.05 1
- 177182
CABLES FOR MOTOR DEVICES CONNECTION
CONNECTION / Valid for GD / Valid till car Ass. Nr. 32030 		$1,907.61 1
- 179861
ABS/ASR CONNECTION CABLES
Valid for GD / Valid from car Ass. Nr. 32852 		$738.06 1
- 180500
ABS/ASR CONNECTION CABLES
Valid for USA M.Y. 2000, USA M.Y. 2001, / CDN M.Y. 2000 and CDN M.Y. 2001 		$512.12 1
- 177175
ABS/ASR CONNECTION CABLES
Valid for GD / Valid till car Ass. Nr. 32851 		$723.00 1
- 179855
ABS/ASR CONNECTION CABLES
Not for GD / Not for USA M.Y. 2000, USA M.Y. 2001, / CDN M.Y. 2000 and CDN M.Y. 2001 / Valid from car Ass. Nr. 32533 		$497.06 1
- 177044
CABLES FOR NUMBER PLATE LIGHTS AND SIDE-MARKER
LIGHTS AND SIDE-MARKER / Valid for USA and CDN 		$92.08 1
- 176986
REAR LIGHT CONNECTION CABLES
Valid for USA and CDN 		$69.38 2
- 176981
TUNNEL INSTRUMENTS CONNECTION CABLES
CONNECTION CABLES / Valid for USA and CDN 		$497.06 1
- 178072
TUNNEL INSTRUMENTS CONNECTION CABLES
CONNECTION CABLES / Valid for J 		$391.62 1
- 180505
REAR CABLES
Valid for 456M GTA / Valid for USA M.Y. 2000, USA M.Y. 2001, / CDN M.Y. 2000 and CDN M.Y. 2001 		$994.13 1
- 179856
REAR CABLES -Valid for 456M GTA-
Not for USA M.Y. 2000, USA M.Y. 2001, / CDN M.Y. 2000 and CDN M.Y. 2001 / Valid from car Ass. Nr. 32533 GS / and from car Ass. Nr. 32852 GD 		$948.94 1
- 178353
REAR CABLES -Valid for 456M GTA-
Not for USA M.Y. 2000, USA M.Y. 2001, / CDN M.Y. 2000 and CDN M.Y. 2001 / Valid till car Ass. Nr. 32532 GS / and till car Ass. Nr. 32851 GD 		$1,054.38 1
- 180186
REAR CABLES -Not for 456M GTA-
Not for USA M.Y. 2000, USA M.Y. 2001, / CDN M.Y. 2000 and CDN M.Y. 2001 / Valid from car Ass. Nr. 32533 GS / and from car Ass. Nr. 32852 GD 		$602.50 1
- 180503
REAR CABLES
Not for 456M GTA / Valid for USA M.Y. 2000, USA M.Y. 2001, / CDN M.Y. 2000 and CDN M.Y. 2001 		$632.62 1
- 188135
DASHBOARD PANEL CONNECTION CABLES
Valid for USA M.Y. 2000, USA M.Y. 2001, / CDN M.Y. 2000 and CDN M.Y. 2001 / Valid from car Ass. Nr. 39537 		$4,255.54 1
- 188039
DASHBOARD PANEL CONNECTION CABLES
Valid for J / Valid from car Ass. Nr. 40665 		$1,021.92 1
- 180495
DASHBOARD PANEL CONNECTION CABLES
Valid for USA M.Y. 2000, USA M.Y. 2001, / CDN M.Y. 2000 and CDN M.Y. 2001 / Valid till car Ass. Nr. 39536 		$3,030.63 1
- 178071
DASHBOARD PANEL CONNECTION CABLES
Valid for J / Valid till car Ass. Nr. 32532 		$2,188.62 1
- 179864
DASHBOARD PANEL CONNECTION CABLES
Valid for J / Valid from car Ass. Nr. 32533 and / valid till car Ass. Nr. 40664 		$1,159.82 1
- 180204
DASHBOARD PANEL CONNECTION CABLES
Valid for GD / Valid from car Ass. Nr. 37347 / Valid till car Ass. Nr. 39536 		$3,474.57 1
- 188040
DASHBOARD PANEL CONNECTION CABLES
Valid for GD / Valid from car Ass. Nr. 39537 		$1,097.62 1
- 177160
DASHBOARD PANEL CONNECTION CABLES
Valid for GD / Valid till car Ass. Nr. 32851 		$1,616.23 1
- 179860
DASHBOARD PANEL CONNECTION CABLES
Valid for GD / Valid from car Ass. Nr. 32852 and / valid till car Ass. Nr. 37346 		- 1 Enquire
- 188039
DASHBOARD PANEL CONNECTION CABLES
Not for GD and J / Not for USA M.Y. 2000, USA M.Y. 2001, / CDN M.Y. 2000 and CDN M.Y. 2001 / Valid from car Ass. Nr. 39537 		$1,021.92 1
- 179854
DASHBOARD PANEL CONNECTION CABLES
Not for GD and J - Not for USA M.Y. 2000, / USA M.Y. 2001, CDN M.Y. 2000 and CDN M.Y. 2001 / Valid from car Ass. Nr. 32533 / and valid till car Ass. Nr. 34991 		- 1 Enquire
- 180203
DASHBOARD PANEL CONNECTION CABLES
Not for GD and J - Not for USA M.Y. 2000, / USA M.Y. 2001, CDN M.Y. 2000 and CDN M.Y. 2001 / Valid from car Ass. Nr. 34992 and / valid till car Ass. Nr. 39536 		$3,286.59 1
- 179846
FRONT CABLES
Valid for GD / Valid from car Ass. Nr. 32533 GS / and from car Ass. Nr. 32852 GD 		$1,205.01 1
- 179845
FRONT CABLES
Not for GD / Valid from car Ass. Nr. 32533 GS / and from car Ass. Nr. 32852 GD 		$1,259.16 1
- 177172
FRONT CABLES
Valid for GD / Valid till car Ass. Nr. 32532 GS / and till car Ass. Nr. 32851 GD 		$1,211.17 1
1 174481
FRONT CABLES
Not for GD / Valid till car Ass. Nr. 32532 GS / and till car Ass. Nr. 32851 GD 		$1,600.94 1
2 178352
DASHBOARD PANEL CONNECTION CABLES
Not for GD and J / Not for USA M.Y. 2000, USA M.Y. 2001, / CDN M.Y. 2000 and CDN M.Y. 2001 / Valid till car Ass. Nr. 32532 		$1,717.15 1
3 178354
REAR CABLES -Not for 456M GTA-
Not for USA M.Y. 2000, USA M.Y. 2001, / CDN M.Y. 2000 and CDN M.Y. 2001 / Valid till car Ass. Nr. 32532 GS / and till car Ass. Nr. 32851 GD 		$979.07 1
4 174486
DOOR CONNECTION CABLES 		$1,110.24 2
5 168529
INJECTORS CONNECTION CABLES 		$869.77 2
6 174485
TUNNEL INSTRUMENTS CONNECTION CABLES
CONNECTION CABLES / Not for USA, CDN and J 		$112.96 1
7 175648
REAR LIGHT CONNECTION CABLES
Not for USA and CDN 		$845.28 2
8 176141
FRONT LIGHT CONNECTION CABLES 		$302.78 2
9 174489
TRUNK HOOD BONNET CONNECTION CABLES
CONNECTION CABLES 		$43.67 1
10 174492
CABLES FOR NUMBER PLATE LIGHTS
LIGHTS / Not for USA and CDN 		$870.53 1
11 174490
ABS/ASR CONNECTION CABLES
Not for GD / Not for USA M.Y. 2000, USA M.Y. 2001, / CDN M.Y. 2000 and CDN M.Y. 2001 / Valid till car Ass. Nr. 32532 		$443.78 1
12 176203
CABLES FOR MOTOR DEVICES CONNECTION
CONNECTION / Not for GD / Valid till car Ass. Nr. 32087 		$497.42 1
13 174495
CABLES FOR RH MAIN BEARINGS CONNECTION
BEARINGS CONNECTION / Not for GD- -Not for USA M.Y. 2000, USA M.Y. 2001, / CDN M.Y. 2000 and CDN M.Y. 2001 / Valid till car Ass. Nr. 32532 		$4,012.73 1
14 174496
CABLES FOR LH MAIN BEARINGS CONNECTION
BEARINGS CONNECTION / Not for GD- -Not for USA M.Y. 2000, USA M.Y. 2001, / CDN M.Y. 2000 and CDN M.Y. 2001 / Valid till car Ass. Nr. 32532 		$3,962.35 1
15 175087
JUMPER CAN LINE
Not for 456M GTA / Valid till car Ass. Nr. 32532 GS / and till car Ass. Nr. 32851 GD 		$22.58 1
16 179192
JUMPER CAN LINE WITH RESISTOR
Not for 456M GTA / Valid from car Ass. Nr. 32533 GS / and from car Ass. Nr. 32852 GD 		$13.69 1
