Ferrari 456 M GT/GTA - AIR CONDITIONING SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
165563 AC CONDENSER $516.15 To Order
Photo Part No Description Price (each) Stock
14778814 SCREW $1.52 IN STOCK
Photo Part No Description Price (each) Stock
10519424 WASHER D.6.4 X 11.95 X 1.6 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
64827500 PIPE FROM CONDENSER TO FILTER $228.94 To Order
Photo Part No Description Price (each) Stock
64827400 PIPE FROM COMPRESSOR TO CONDENSER $270.85 To Order
Photo Part No Description Price (each) Stock
64799500 DEHYDRATOR FILTER WITH PRESSURE SWITCH $225.52 To Order
Photo Part No Description Price (each) Stock
285553 VIBRATION DAMPER $19.52 IN STOCK
Photo Part No Description Price (each) Stock
63994900 BRACKET FOR PUMP -Not as spare part- -Replaced by 69966100- $8.21 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
10519424 WASHER D.6.4 X 11.95 X 1.6 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
65460300 COMPLETE WATER PUMP $415.91 To Order
Photo Part No Description Price (each) Stock
65419600 PIPE FROM HOSE TO COMPRESSOR $180.56 To Order
Photo Part No Description Price (each) Stock
64791200 HOSE FROM EVAPORATOR TO PIPE $270.85 To Order
Photo Part No Description Price (each) Stock
61712500 BRACKET WITH SHEATH $1.52 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
64827600 PIPE FROM DEHYDRATOR FILTER TO HOSE $399.42 To Order
Photo Part No Description Price (each) Stock
64791300 HOSE FROM PIPE TO EVAPORATOR $255.80 To Order
Photo Part No Description Price (each) Stock
65674900 DELIVERY TUBE FROM WATER PUMP $252.06 To Order
Photo Part No Description Price (each) Stock
65674500 RETURN TUBE FROM VALVE TO NOURICE $60.94 To Order
Photo Part No Description Price (each) Stock
168068 L.H. LOWER BRACKET $10.29 To Order
Photo Part No Description Price (each) Stock
165561 L.H. UPPER BRACKET $13.39 To Order
Photo Part No Description Price (each) Stock
156989 SMALL PLATE $8.12 To Order
Photo Part No Description Price (each) Stock
12646604 WASHER $0.21 IN STOCK
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 IN STOCK
Photo Part No Description Price (each) Stock
64281500 UPPER FLANGE $4.24 To Order
Photo Part No Description Price (each) Stock
63961800 RUBBER PIPE-HOLDER $27.72 To Order
Photo Part No Description Price (each) Stock
65419500 DELIVERY TUBE FROM ENGINE TO PUMP $210.65 To Order
Photo Part No Description Price (each) Stock
61712600 BRACKET WITH SHEATH $1.67 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
10902424 SCREW $0.14 IN STOCK
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
65618200 PIPE FROM HOSE TO COMPRESSOR $225.70 To Order
Photo Part No Description Price (each) Stock
65655400 PIPE FROM DEHYDRATOR FILTER TO HOSE $164.10 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
63961900 FRAME FOR PIPE BUSHING $10.72 To Order
Photo Part No Description Price (each) Stock
319201 FUEL FILLER PIPE ASSEMBLY $703.28 IN STOCK
Photo Part No Description Price (each) Stock
12638124 WASHER $0.05 IN STOCK
Photo Part No Description Price (each) Stock
10459087 CABLE GROMMET $0.61 To Order
Photo Part No Description Price (each) Stock
66374400 PRESSURE SWITCH $214.26 To Order
Photo Part No Description Price (each) Stock
165562 BRACKET $70.71 To Order
Photo Part No Description Price (each) Stock
165136 SCREW $0.44 To Order
Photo Part No Description Price (each) Stock
165560 BRACKET $42.12 To Order
Photo Part No Description Price (each) Stock
165137 SCREW $0.55 To Order
Photo Part No Description Price (each) Stock
65990400 PIPE FROM HOSE TO COMPRESSOR $270.85 To Order
Photo Part No Description Price (each) Stock
65990500 PIPE FROM DEHYDRATOR FILTER TO HOSE $180.56 To Order
View All

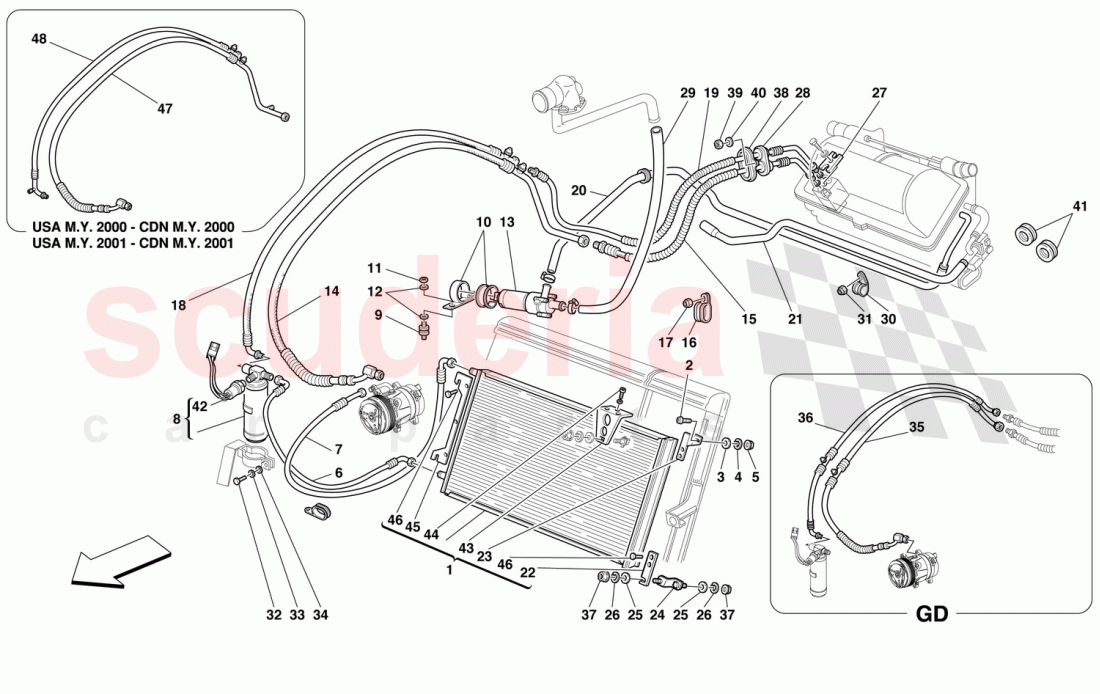

AIR CONDITIONING SYSTEM of Ferrari Ferrari 456 M GT/GTA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 66374400
PRESSURE SWITCH 		$214.26 1
- 65846100
DELIVERY TUBE FROM WATER PUMP
WATER PUMP / Valid for GD 		$225.70 1
- 65618300
RETURN TUBE FROM VALVE TO NOURICE
TO NOURICE / Valid for GD 		$180.56 1
1 165563
AC CONDENSER 		$516.15 1
2 14778814
SCREW
IN STOCK 		$1.52 1
3 10519424
WASHER D.6.4 X 11.95 X 1.6
IN STOCK 		$0.02 (92% off) 2
4 127494
WASHER
IN STOCK 		$0.08 (88.2% off) 2
5 14059290
FLANGED NUT M6
IN STOCK 		$1.31 2
6 64827500
PIPE FROM CONDENSER TO FILTER
TO DEHYDRATOR FILTER 		$228.94 1
7 64827400
PIPE FROM COMPRESSOR TO CONDENSER
TO CONDENSER 		$270.85 1
8 64799500
DEHYDRATOR FILTER WITH PRESSURE SWITCH
PRESSURE SWITCH 		$225.52 (40.8% off) 1
9 285553
VIBRATION DAMPER
IN STOCK 		$19.52 2
10 63994900
BRACKET FOR PUMP -Not as spare part- -Replaced by 69966100- 		$8.21 1
11 14059290
FLANGED NUT M6
IN STOCK 		$1.31 2
12 10519424
WASHER D.6.4 X 11.95 X 1.6
IN STOCK 		$0.02 (92% off) 2
13 65460300
COMPLETE WATER PUMP 		$415.91 1
14 65419600
PIPE FROM HOSE TO COMPRESSOR
COMPRESSOR / Not for GD / Not for USA M.Y. 2000, USA M.Y. 2001, / CDN M.Y. 2000 and CDN M.Y. 2001 		$180.56 1
15 64791200
HOSE FROM EVAPORATOR TO PIPE
PIPE 		$270.85 (25.4% off) 1
16 61712500
BRACKET WITH SHEATH
IN STOCK 		$1.52 1
17 14059290
FLANGED NUT M6
IN STOCK 		$1.31 1
18 64827600
PIPE FROM DEHYDRATOR FILTER TO HOSE
FILTER TO HOSE / Not for GD / Not for USA M.Y. 2000, USA M.Y. 2001, / CDN M.Y. 2000 and CDN M.Y. 2001 		$399.42 1
19 64791300
HOSE FROM PIPE TO EVAPORATOR
EVAPORETOR 		$255.80 (23.8% off) 1
20 65674900
DELIVERY TUBE FROM WATER PUMP
WATER PUMP / Not for GD 		$252.06 1
21 65674500
RETURN TUBE FROM VALVE TO NOURICE
TO NOURICE / Not for GD 		$60.94 1
22 168068
L.H. LOWER BRACKET 		$10.29 1
23 165561
L.H. UPPER BRACKET 		$13.39 1
24 156989
SMALL PLATE 		$8.12 1
25 12646604
WASHER
IN STOCK 		$0.21 (30% off) 2
26 127494
WASHER
IN STOCK 		$0.08 (88.2% off) 2
27 64281500
UPPER FLANGE 		$4.24 1
28 63961800
RUBBER PIPE-HOLDER 		$27.72 1
29 65419500
DELIVERY TUBE FROM ENGINE TO PUMP
TO PUMP 		$210.65 1
30 61712600
BRACKET WITH SHEATH
IN STOCK 		$1.67 1
31 14059290
FLANGED NUT M6
IN STOCK 		$1.31 1
32 10902424
SCREW
IN STOCK 		$0.14 (80% off) 1
33 127494
WASHER
IN STOCK 		$0.08 (88.2% off) 1
34 12643724
WASHER
IN STOCK 		$0.06 (88% off) 1
35 65618200
PIPE FROM HOSE TO COMPRESSOR
COMPRESSOR -Valid for GD 		$225.70 1
36 65655400
PIPE FROM DEHYDRATOR FILTER TO HOSE
FILTER TO HOSE -Valid for GD 		$164.10 1
37 14059290
FLANGED NUT M6
IN STOCK 		$1.31 2
38 63961900
FRAME FOR PIPE BUSHING 		$10.72 1
39 319201
FUEL FILLER PIPE ASSEMBLY
IN STOCK 		$703.28 2
40 12638124
WASHER
IN STOCK 		$0.05 (92.9% off) 2
41 10459087
CABLE GROMMET 		$0.61 2
42 66374400
PRESSURE SWITCH
Not as spare part now / Replaced by 66374400 		$214.26 1
43 165562
BRACKET 		$70.71 1
44 165136
SCREW 		$0.44 3
45 165560
BRACKET 		$42.12 1
46 165137
SCREW 		$0.55 7
47 65990400
PIPE FROM HOSE TO COMPRESSOR
COMPRESSOR / Valid for USA M.Y. 2000, USA M.Y. 2001, / CDN M.Y. 2000 and CDN M.Y. 2001 		$270.85 1
48 65990500
PIPE FROM DEHYDRATOR FILTER TO HOSE
FILTER TO HOSE / Valid for USA M.Y. 2000, USA M.Y. 2001, / CDN M.Y. 2000 and CDN M.Y. 2001 		$180.56 1
