Timing System - Tappets

Ferrari 430 Spider

Find Your Part

Ferrari 430 Spider - TIMING SYSTEM - TAPPETS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
247480 HYDRAULIC TAPPET $90.22 IN STOCK
Photo Part No Description Price (each) Stock
179763 VALVE SPRING SEMI-CONE $0.86 IN STOCK
Photo Part No Description Price (each) Stock
237390 UPPER STOP CAP $9.27 To Order
Photo Part No Description Price (each) Stock
197900 EXTERNAL VALVE RETURN SPRING $6.85 IN STOCK
Photo Part No Description Price (each) Stock
197901 INTERNAL VALVE RETURN SPRING $4.81 IN STOCK
Photo Part No Description Price (each) Stock
221473 VALVE STEM OIL SEAL $1.82 IN STOCK
Photo Part No Description Price (each) Stock
242574 LOWER STOP CAP $10.28 IN STOCK
Photo Part No Description Price (each) Stock
6213498 VALVE GUIDE $3.17 To Order
Photo Part No Description Price (each) Stock
198581 INTAKE VALVE $15.92 IN STOCK
Photo Part No Description Price (each) Stock
238485 EXHAUST VALVE $24.46 IN STOCK
Photo Part No Description Price (each) Stock
200144 RH INTAKE CAMSHAFT $516.66 To Order
211414 RH INTAKE CAMSHAFT $531.02 To Order
Photo Part No Description Price (each) Stock
200146 RH EXHAUST CAMSHAFT $516.66 To Order
211416 RH EXHAUST CAMSHAFT $548.16 To Order
Photo Part No Description Price (each) Stock
200145 LH INTAKE CAMSHAFT $516.66 To Order
211415 LH INTAKE CAMSHAFT $531.02 To Order
Photo Part No Description Price (each) Stock
200147 LH EXHAUST CAMSHAFT $516.66 To Order
211418 LH EXHAUST CAMSHAFT $548.16 To Order
Photo Part No Description Price (each) Stock
134701 O-RING $0.35 IN STOCK
Photo Part No Description Price (each) Stock
197558 VARIABLE VALVE TIMING ADJUSTER OIL PUMP $227.59 To Order
Photo Part No Description Price (each) Stock
184731 WASHER $0.38 To Order
Photo Part No Description Price (each) Stock
252305 SCREW $0.34 To Order
Photo Part No Description Price (each) Stock
218735 MOUNTING BUSHING FOR INTAKE VARIABLE VALVE TIMING ADJUSTER $190.62 To Order
206804 MOUNTING BUSHING FOR INTAKE VARIABLE VALVE TIMING ADJUSTER $285.51 To Order
199440 MOUNTING BUSHING FOR INTAKE VARIABLE VALVE TIMING ADJUSTER $177.93 To Order
Photo Part No Description Price (each) Stock
228497 RING $74.96 To Order
214742 RING Enquire To Order
Photo Part No Description Price (each) Stock
134701 O-RING $0.35 IN STOCK
Photo Part No Description Price (each) Stock
10618120 TAB $0.37 To Order
Photo Part No Description Price (each) Stock
193779 VARIABLE VALVE TIMING ADJUSTER FOR INTAKE CAMSHAFT $1,819.59 To Order
Photo Part No Description Price (each) Stock
199438 VARIABLE VALVE TIMING ADJUSTER FOR EXHAUST CAMSHAFT $1,556.90 To Order
Photo Part No Description Price (each) Stock
197062 OIL ACCUMULATOR FOR VARIABLE VALVE TIMING ADJUSTER $3,805.20 To Order
Photo Part No Description Price (each) Stock
195056 THREADED CONNECTOR $12.71 To Order
Photo Part No Description Price (each) Stock
10261060 GASKET COPPER 12 - 16 X 1.5 $0.14 IN STOCK
Photo Part No Description Price (each) Stock
197151 BRACKET $20.32 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
198463 ACCUMULATOR TO RH HEAD CYLINDERS TUBE $165.21 To Order
Photo Part No Description Price (each) Stock
198464 PIPE FROM ACCUMULATOR TO LH CYLINDER $165.21 To Order
Photo Part No Description Price (each) Stock
194192 GEAR WHEEL $876.94 To Order
Photo Part No Description Price (each) Stock
195649 WASHER $6.53 To Order
Photo Part No Description Price (each) Stock
218734 MOUNTING BUSHING FOR EXHAUST VARIABLE VALVE TIMING ADJUSTER $190.62 To Order
206805 MOUNTING BUSHING FOR EXHAUST VARIABLE VALVE TIMING ADJUSTER $227.59 To Order
199439 MOUNTING BUSHING FOR EXHAUST VARIABLE VALVE TIMING ADJUSTER $177.93 IN STOCK
Photo Part No Description Price (each) Stock
194977 SCREW $10.16 To Order
View All

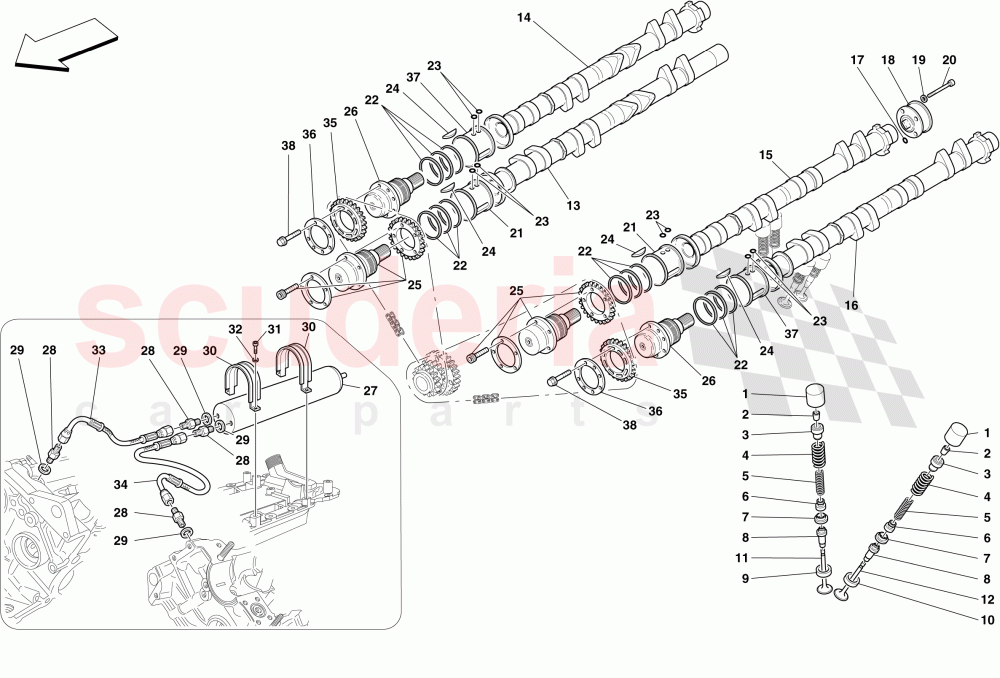

TIMING SYSTEM - TAPPETS of Ferrari Ferrari 430 Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 247480
HYDRAULIC TAPPET
IN STOCK 		$90.22 32
2 179763
VALVE SPRING SEMI-CONE
IN STOCK 		$0.86 (4.4% off) 64
3 237390
UPPER STOP CAP 		$9.27 32
4 197900
EXTERNAL VALVE RETURN SPRING
IN STOCK 		$6.85 32
5 197901
INTERNAL VALVE RETURN SPRING
IN STOCK 		$4.81 32
6 221473
VALVE STEM OIL SEAL
IN STOCK 		$1.82 (30% off) 32
7 242574
LOWER STOP CAP
IN STOCK 		$10.28 32
8 6213498
VALVE GUIDE 		$3.17 (26.8% off) 32
11 198581
INTAKE VALVE
IN STOCK 		$15.92 (33.6% off) 16
12 238485
EXHAUST VALVE
IN STOCK 		$24.46 16
13 200144
RH INTAKE CAMSHAFT
Applicable from engine No. 97781 		$516.66 1
13 211414
RH INTAKE CAMSHAFT
Applicable up to engine No. 97780 		$531.02 1
14 200146
RH EXHAUST CAMSHAFT
Applicable from engine No. 97781 		$516.66 1
14 211416
RH EXHAUST CAMSHAFT
Applicable up to engine No. 97780 		$548.16 1
15 200145
LH INTAKE CAMSHAFT
Applicable from engine No. 97781 		$516.66 (42.3% off) 1
15 211415
LH INTAKE CAMSHAFT
Applicable up to engine No. 97780 		$531.02 1
16 200147
LH EXHAUST CAMSHAFT
Applicable from engine No. 97781 		$516.66 1
16 211418
LH EXHAUST CAMSHAFT
Applicable up to engine No. 97780 		$548.16 1
17 134701
O-RING
IN STOCK 		$0.35 (30% off) 2
18 197558
VARIABLE VALVE TIMING ADJUSTER OIL PUMP 		$227.59 1
19 184731
WASHER 		$0.38 4
20 252305
SCREW 		$0.34 4
21 218735
MOUNTING BUSHING FOR INTAKE VARIABLE VALVE TIMING ADJUSTER
For vehicles up to engine No. 91154, also order piston ring 218734 ref. 22 and bush 228497 ref. 37; Applicable from engine No. 144865; Applicable after depletion of 206804 		$190.62 2
21 206804
MOUNTING BUSHING FOR INTAKE VARIABLE VALVE TIMING ADJUSTER
Applicable from engine No. 91154 up to engine No. 144864; Applicable until depletion 		$285.51 (44% off) 2
21 199440
MOUNTING BUSHING FOR INTAKE VARIABLE VALVE TIMING ADJUSTER
Applicable up to engine No. 91153 		$177.93 2
22 228497
RING
For vehicles up to engine No. 91154, also order bush 218735 ref. 21 and bush 218734 ref. 37; Applicable from engine No. 144865; Applicable after depletion of 179926 		$74.96 12
22 214742
RING
Applicable up to engine No. 144864; Applicable until depletion 		- 12 Enquire
23 134701
O-RING
IN STOCK 		$0.35 (30% off) 4
24 10618120
TAB 		$0.37 4
25 193779
VARIABLE VALVE TIMING ADJUSTER FOR INTAKE CAMSHAFT 		$1,819.59 2
26 199438
VARIABLE VALVE TIMING ADJUSTER FOR EXHAUST CAMSHAFT 		$1,556.90 2
27 197062
OIL ACCUMULATOR FOR VARIABLE VALVE TIMING ADJUSTER 		$3,805.20 1
28 195056
THREADED CONNECTOR 		$12.71 4
29 10261060
GASKET COPPER 12 - 16 X 1.5
IN STOCK 		$0.14 (71.4% off) 4
30 197151
BRACKET 		$20.32 2
31 248334
SCREW
IN STOCK 		$0.58 4
32 11197774
WASHER
IN STOCK 		$0.06 (80% off) 4
33 198463
ACCUMULATOR TO RH HEAD CYLINDERS TUBE 		$165.21 1
34 198464
PIPE FROM ACCUMULATOR TO LH CYLINDER 		$165.21 1
35 194192
GEAR WHEEL 		$876.94 2
36 195649
WASHER 		$6.53 2
37 218734
MOUNTING BUSHING FOR EXHAUST VARIABLE VALVE TIMING ADJUSTER
For vehicles up to engine No. 91154, also order bush 218735 ref. 21 and piston ring 228497 ref. 22; Applicable from engine No. 144865; Applicable after depletion of 206805 		$190.62 (28.1% off) 2
37 206805
MOUNTING BUSHING FOR EXHAUST VARIABLE VALVE TIMING ADJUSTER
Applicable from engine No. 91154 up to engine No. 144864; Applicable until depletion 		$227.59 2
37 199439
MOUNTING BUSHING FOR EXHAUST VARIABLE VALVE TIMING ADJUSTER
Applicable up to engine No. 91153
IN STOCK 		$177.93 2
38 194977
SCREW 		$10.16 16
