Ferrari 430 Spider - LUBRICATION SYSTEM - TANK - HEAT EXCHANGER

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
197150 HEAT EXCHANGER $5,689.46 To Order
Photo Part No Description Price (each) Stock
322664 GASKET HEAT EXCHANGER $50.88 ARRIVING SOON
Photo Part No Description Price (each) Stock
210388 CONNECTORS MOUNTING BRACKET $70.70 IN STOCK
Photo Part No Description Price (each) Stock
149707 SPACER $1.10 To Order
Photo Part No Description Price (each) Stock
177576 CABLE GROMMET $2.19 IN STOCK
Photo Part No Description Price (each) Stock
231622 SCREW $0.34 IN STOCK
Photo Part No Description Price (each) Stock
231620 SCREW $0.30 IN STOCK
Photo Part No Description Price (each) Stock
231620 SCREW $0.30 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
202251 BRACKET $97.98 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
192327 CONNECTOR $4.81 To Order
Photo Part No Description Price (each) Stock
127497 SPRING WASHER M10 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
211844 VENT PIPE $22.60 To Order
Photo Part No Description Price (each) Stock
195351 OIL PIPE FROM ENGINE TO SEPARATOR $422.10 To Order
225937 OIL PIPE FROM ENGINE TO SEPARATOR $271.34 To Order
Photo Part No Description Price (each) Stock
226035 WATER-OIL SEPARATOR $1,190.95 To Order
216061 WATER-OIL SEPARATOR $1,311.55 To Order
225960 WATER-OIL SEPARATOR $1,145.72 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
254573 TANK CAP $207.92 To Order
Photo Part No Description Price (each) Stock
211634 GASKET $56.80 IN STOCK
Photo Part No Description Price (each) Stock
176388 O-RING $2.19 IN STOCK
Photo Part No Description Price (each) Stock
13517124 STUD BOLT $16.84 To Order
Photo Part No Description Price (each) Stock
147985 NUT $0.14 IN STOCK
Photo Part No Description Price (each) Stock
12601374 WASHER D.8.40-15 X 0.8 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
223220 RH BREATHER PIPE $110.04 To Order
211813 RH BREATHER PIPE $238.57 To Order
Photo Part No Description Price (each) Stock
211814 LH BREATHER PIPE $234.49 IN STOCK
223221 LH BREATHER PIPE $110.04 To Order
Photo Part No Description Price (each) Stock
262111 SCREW CLAMP $1.39 To Order
177996 CLAMP $1.17 To Order
Photo Part No Description Price (each) Stock
262111 SCREW CLAMP $1.39 To Order
Photo Part No Description Price (each) Stock
216063 RH VAPOUR INTAKE PIPE $48.23 To Order
216068 RH VAPOUR INTAKE PIPE $286.42 To Order
Photo Part No Description Price (each) Stock
216064 LH VAPOUR INTAKE PIPE $48.23 To Order
216069 LH VAPOUR INTAKE PIPE $286.42 To Order
Photo Part No Description Price (each) Stock
195330 RUBBER PIPE $4.20 To Order
Photo Part No Description Price (each) Stock
258855 3-WAY CONNECTOR $40.02 IN STOCK
Photo Part No Description Price (each) Stock
159539 RUBBER PIPE $4.51 To Order
Photo Part No Description Price (each) Stock
10440990 BRACKET WITH SHEATH $1.26 To Order
Photo Part No Description Price (each) Stock
13432070 HOSE COLLAR $0.49 ARRIVING SOON
View All

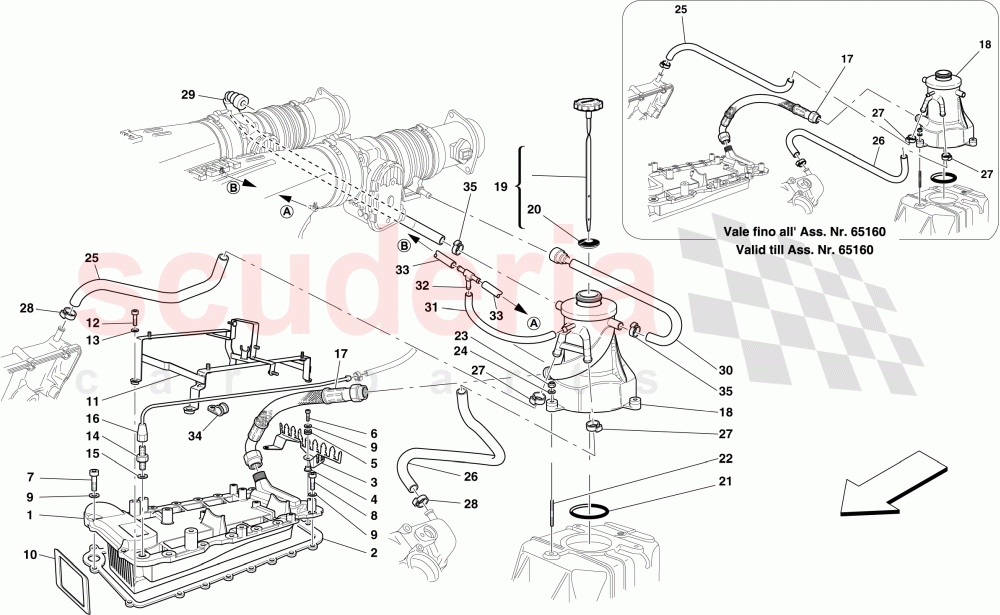

LUBRICATION SYSTEM - TANK - HEAT EXCHANGER of Ferrari Ferrari 430 Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 197150
HEAT EXCHANGER 		$5,689.46 1
2 322664

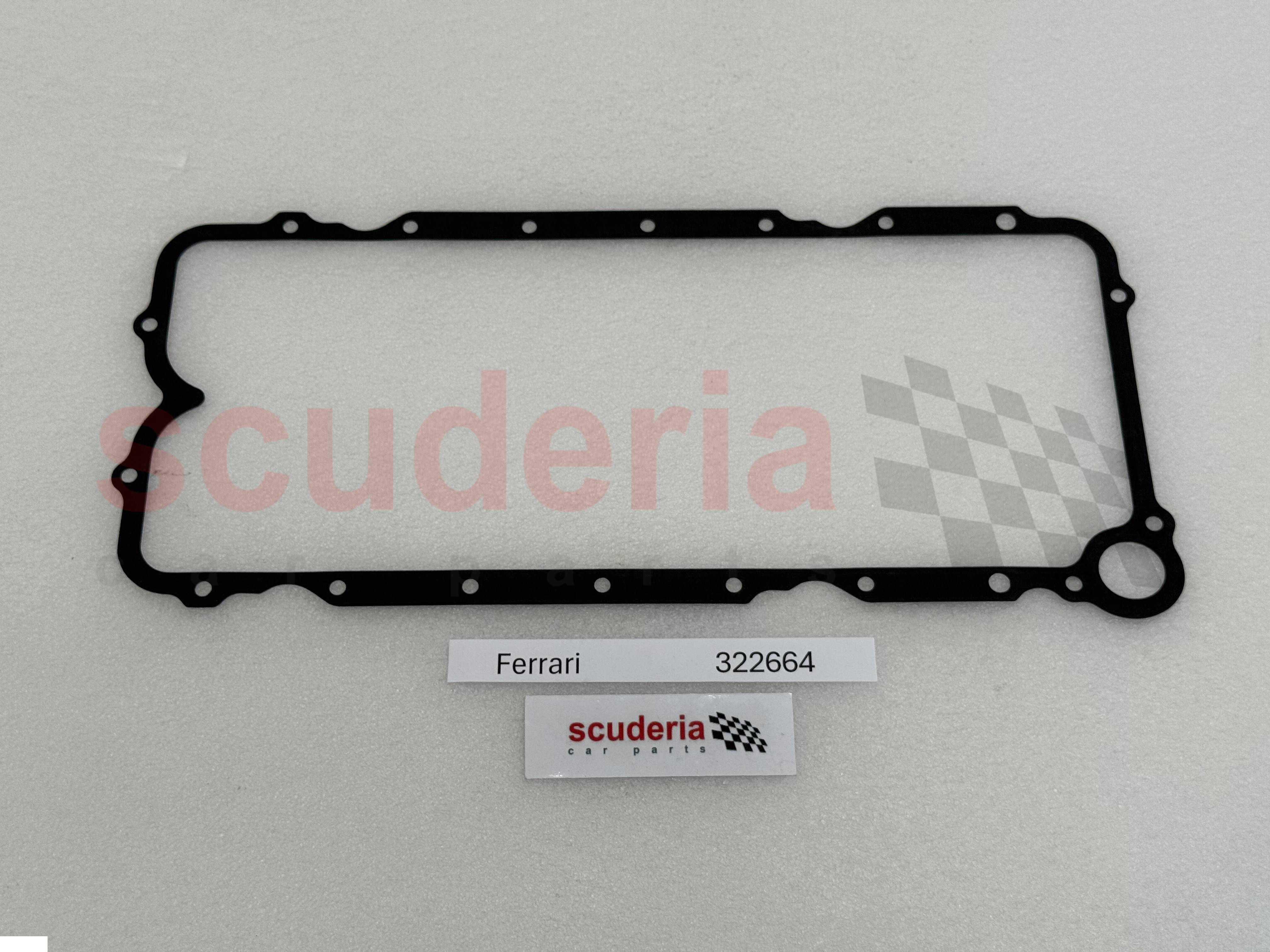

GASKET HEAT EXCHANGER
ARRIVING SOON 		$50.88 1
3 210388
CONNECTORS MOUNTING BRACKET
IN STOCK 		$70.70 1
4 149707
SPACER 		$1.10 (37.1% off) 2
5 177576
CABLE GROMMET
IN STOCK 		$2.19 2
6 231622
SCREW
M6 X 35
IN STOCK 		$0.34 (32% off) 2
7 231620
SCREW
M6 X 30
IN STOCK 		$0.30 (14.3% off) 2
8 231620
SCREW
M6 X 25
IN STOCK 		$0.30 (14.3% off) 15
9 11197774
WASHER
IN STOCK 		$0.06 (80% off) 19
11 202251
BRACKET 		$97.98 1
12 231619
SCREW
IN STOCK 		$0.29 4
13 11197774
WASHER
IN STOCK 		$0.06 (80% off) 4
14 192327
CONNECTOR 		$4.81 1
15 127497
SPRING WASHER M10
IN STOCK 		$0.06 (92% off) 1
16 211844
VENT PIPE 		$22.60 1
17 195351
OIL PIPE FROM ENGINE TO SEPARATOR
Applicable up to Ass. No. 65160 		$422.10 (22.9% off) 1
17 225937
OIL PIPE FROM ENGINE TO SEPARATOR
Applicable from Ass. No. 65161 		$271.34 1
18 226035
WATER-OIL SEPARATOR
Applicable for USA, CDN; Applicable from Ass. No. 65161 		$1,190.95 1
18 216061
WATER-OIL SEPARATOR
Not for USA, CDN; Applicable up to Ass. No. 65160 		$1,311.55 1
18 225960
WATER-OIL SEPARATOR
Not for USA, CDN; Applicable from Ass. No. 65161 		$1,145.72 1
18 216066
WATER-OIL SEPARATOR
Applicable for USA, CDN; Applicable up to Ass. No. 65160 		$1,326.62 1
19 254573
TANK CAP 		$207.92 (46.5% off) 1
20 211634
GASKET
IN STOCK 		$56.80 1
21 176388
O-RING
IN STOCK 		$2.19 (44.6% off) 1
22 13517124
STUD BOLT 		$16.84 3
23 147985
NUT
IN STOCK 		$0.14 (72% off) 3
24 12601374
WASHER D.8.40-15 X 0.8
IN STOCK 		$0.02 (92% off) 3
25 223220
RH BREATHER PIPE
Applicable from Ass. No. 65161 		$110.04 (48% off) 1
25 211813
RH BREATHER PIPE
Applicable up to Ass. No. 65160 		$238.57 1
26 211814
LH BREATHER PIPE
Applicable up to Ass. No. 65160
IN STOCK 		$234.49 1
26 223221
LH BREATHER PIPE
Applicable from Ass. No. 65161 		$110.04 (48% off) 1
27 262111
SCREW CLAMP
Applicable from Ass. No. 65161 		$1.39 2
27 177996
CLAMP
Applicable up to Ass. No. 65160 		$1.17 2
28 262111
SCREW CLAMP 		$1.39 2
29 216063
RH VAPOUR INTAKE PIPE
Not for USA, CDN 		$48.23 1
29 216068
RH VAPOUR INTAKE PIPE
Applicable for USA, CDN 		$286.42 1
30 216064
LH VAPOUR INTAKE PIPE
Not for USA, CDN 		$48.23 1
30 216069
LH VAPOUR INTAKE PIPE
Applicable for USA, CDN 		$286.42 1
31 195330
RUBBER PIPE 		$4.20 1
32 258855
3-WAY CONNECTOR
IN STOCK 		$40.02 1
33 159539
RUBBER PIPE 		$4.51 2
34 10440990
BRACKET WITH SHEATH 		$1.26 1
35 13432070
HOSE COLLAR
ARRIVING SOON 		$0.49 (54.2% off) 2
