Ferrari 430 Scuderia Spider 16M - CHASSIS - STRUCTURE, REAR ELEMENTS AND PANELS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
82467911 COMPLETE REAR FRAME Enquire To Order
81182511 COMPLETE REAR FRAME $13,022.28 To Order
81802711 COMPLETE REAR FRAME Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
211679 TAIL REAR WINDOW CROSSPIECE $829.62 To Order
211682 COMPLETE TAIL REAR WINDOW CROSSPIECE $240.04 To Order
Photo Part No Description Price (each) Stock
69326811 REAR CROSS MEMBER Enquire To Order
68887011 REAR CROSS MEMBER $2,334.83 To Order
Photo Part No Description Price (each) Stock
985234099 RH LOWER REAR CASTING $555.89 To Order
Photo Part No Description Price (each) Stock
234098 FUSIONE INFERIORE POSTERIORE SX. $286.59 To Order
Photo Part No Description Price (each) Stock
985207991 COMPLETE LOWER CROSS MEMBER $935.21 To Order
Photo Part No Description Price (each) Stock
70000950 REPAIR INSERTS KIT $1,678.86 To Order
Photo Part No Description Price (each) Stock
985245610 CROSS MEMBER $3,019.85 To Order
Photo Part No Description Price (each) Stock
81184311 COMPLETE REAR MOBILE FRAME $7,303.96 To Order
Photo Part No Description Price (each) Stock
81035511 COMPLETE REAR FRAME $8,160.57 To Order
82407911 COMPLETE REAR FRAME $8,160.57 To Order
Photo Part No Description Price (each) Stock
68011911 BRACKET FOR LOCK FOR ENGINE HOOD $121.27 To Order
Photo Part No Description Price (each) Stock
14642891 POP RIVET $0.14 To Order
Photo Part No Description Price (each) Stock
65133800 RIVET $0.14 IN STOCK
Photo Part No Description Price (each) Stock
15180411 Hexagonal Blind Rivet $1.34 IN STOCK
248150 ESAGONAL RIVET M8 $0.41 To Order
248146 HEXAGONAL RIVET $1.01 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
65151200 Rivet $4.13 IN STOCK
Photo Part No Description Price (each) Stock
65319800 Nut Knurled Rivet $0.79 IN STOCK
60853400 RIVET $0.58 To Order
166101 Knurled Rivet $1.45 IN STOCK
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
65065400 HEXAGONAL HEAD STUD BOLT $3.25 To Order
Photo Part No Description Price (each) Stock
13836771 SCREW $2.12 IN STOCK
Photo Part No Description Price (each) Stock
14306374 ALLEN SCREW SOCKET HEAD M8 X 20 $0.26 IN STOCK
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
84653800 WASHER 10 X 18 X 2.5 $4.97 IN STOCK
Photo Part No Description Price (each) Stock
62940900 Allen Head Screw M6 x 15 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
62940900 Allen Head Screw M6 x 15 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
183554 COMPLETE SCREW $9.78 To Order
Photo Part No Description Price (each) Stock
13028734 SCREW $0.50 IN STOCK
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
84653800 WASHER 10 X 18 X 2.5 $4.97 IN STOCK
Photo Part No Description Price (each) Stock
985179268 LH BRACKET Enquire To Order
985179269 RH BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
67607811 RH LOWER BRACKET $77.05 To Order
Photo Part No Description Price (each) Stock
67607911 LH LOWER BRACKET $77.05 To Order
Photo Part No Description Price (each) Stock
67608211 REAR BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
81358000 RH COIL SPLASH GUARD $889.95 To Order
Photo Part No Description Price (each) Stock
81358300 LH COIL SPLASH GUARD $889.95 To Order
Photo Part No Description Price (each) Stock
250657 SCREW $7.05 IN STOCK
View All

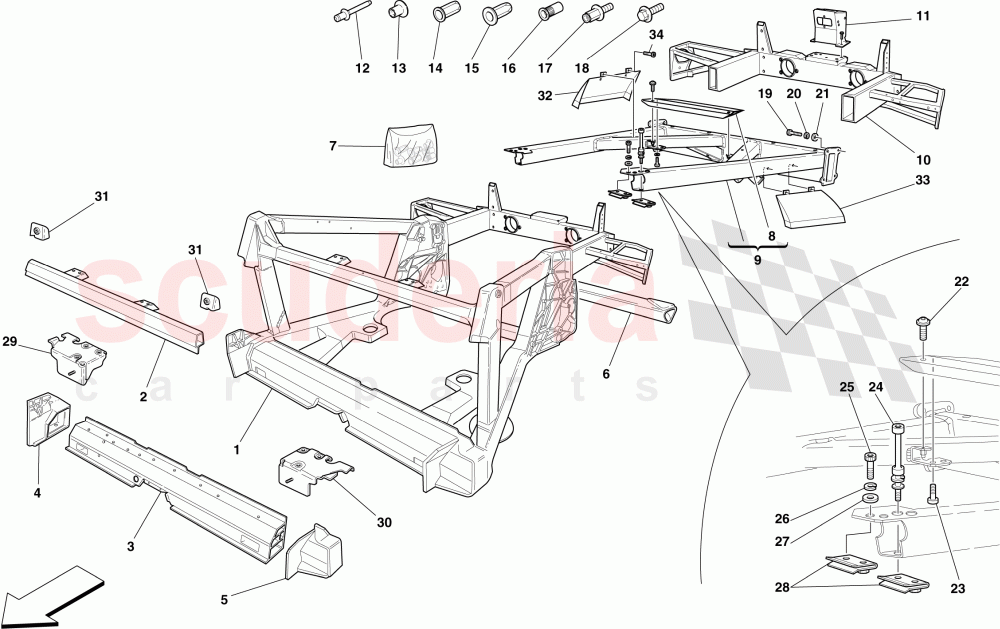

CHASSIS - STRUCTURE, REAR ELEMENTS AND PANELS of Ferrari Ferrari 430 Scuderia Spider 16M Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 82467911
COMPLETE REAR FRAME
Applicable for Spider 16M; Applicable for USA, CDN 		- 1 Enquire
1 81182511
COMPLETE REAR FRAME
Not for Spider 16M; Not for USA, CDN 		$13,022.28 1
1 81802711
COMPLETE REAR FRAME
Not for Spider 16M; Applicable for USA, CDN 		- 1 Enquire
1 82407811
COMPLETE REAR FRAME
Applicable for Spider 16M; Not for USA, CDN 		$18,962.38 1
2 211679
TAIL REAR WINDOW CROSSPIECE
Applicable for Spider 16M 		$829.62 1
2 211682
COMPLETE TAIL REAR WINDOW CROSSPIECE
Not for Spider 16M 		$240.04 1
3 69326811
REAR CROSS MEMBER
Applicable for Spider 16M; 		- 1 Enquire
3 68887011
REAR CROSS MEMBER
Not for Spider 16M; 		$2,334.83 1
4 985234099
RH LOWER REAR CASTING 		$555.89 1
5 234098
FUSIONE INFERIORE POSTERIORE SX. 		$286.59 1
6 985207991
COMPLETE LOWER CROSS MEMBER 		$935.21 1
7 70000950
REPAIR INSERTS KIT 		$1,678.86 1
8 985245610
CROSS MEMBER 		$3,019.85 1
9 81184311
COMPLETE REAR MOBILE FRAME 		$7,303.96 1
10 81035511
COMPLETE REAR FRAME
Not for Spider 16M 		$8,160.57 1
10 82407911
COMPLETE REAR FRAME
Applicable for Spider 16M 		$8,160.57 1
11 68011911
BRACKET FOR LOCK FOR ENGINE HOOD 		$121.27 1
12 14642891
POP RIVET
L. 14 mm 		$0.14 -
13 65133800
RIVET
L. 6.4 mm
IN STOCK 		$0.14 -
14 15180411
Hexagonal Blind Rivet
IN STOCK 		$1.34 -
14 248150
ESAGONAL RIVET M8
M8 		$0.41 -
14 248146
HEXAGONAL RIVET
M6 		$1.01 -
14 15624311
HEXAGONAL RIVET
M5
IN STOCK 		$4.36 -
14 15624211
Hexagonal Rivet
M4
IN STOCK 		$0.94 -
15 65151200
Rivet
M6
IN STOCK 		$4.13 -
16 65319800
Nut Knurled Rivet
M5
IN STOCK 		$0.79 -
16 60853400
RIVET 		$0.58 -
16 166101
Knurled Rivet
M4
IN STOCK 		$1.45 -
16 65135000
Knurled Rivet
M8
IN STOCK 		$1.10 -
16 65930400
Knurled Rivet
M6
IN STOCK 		$0.94 -
17 65065400
HEXAGONAL HEAD STUD BOLT
M6 		$3.25 -
18 13836771
SCREW
IN STOCK 		$2.12 -
19 14306374
ALLEN SCREW SOCKET HEAD M8 X 20
IN STOCK 		$0.26 (74% off) 8
20 127496
WASHER 		$0.06 (80% off) 8
21 84653800
WASHER 10 X 18 X 2.5
IN STOCK 		$4.97 8
22 62940900
Allen Head Screw M6 x 15
IN STOCK 		$1.31 (25.1% off) 2
23 62940900
Allen Head Screw M6 x 15
IN STOCK 		$1.31 (25.1% off) 4
24 183554
COMPLETE SCREW 		$9.78 (22.5% off) 4
25 13028734
SCREW
IN STOCK 		$0.50 (77.8% off) 4
26 127496
WASHER 		$0.06 (80% off) 4
27 84653800
WASHER 10 X 18 X 2.5
IN STOCK 		$4.97 4
28 985179268
LH BRACKET 		- 2 Enquire
28 985179269
RH BRACKET 		- 2 Enquire
29 67607811
RH LOWER BRACKET
Not for Spider 16M 		$77.05 1
30 67607911
LH LOWER BRACKET
Not for Spider 16M 		$77.05 1
31 67608211
REAR BRACKET
Not for Spider 16M 		- 2 Enquire
32 81358000
RH COIL SPLASH GUARD
Applicable for Spider 16M 		$889.95 1
33 81358300
LH COIL SPLASH GUARD
Applicable for Spider 16M 		$889.95 1
34 250657
SCREW
Applicable for Spider 16M
IN STOCK 		$7.05 4
