Chassis - Complete Front Structure And Panels

Ferrari 430 Scuderia Spider 16M

Find Your Part

Ferrari 430 Scuderia Spider 16M - CHASSIS - COMPLETE FRONT STRUCTURE AND PANELS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
65393611 Complete Front Cross Member $496.42 To Order
Photo Part No Description Price (each) Stock
68037611 COMPLETE FRONT SUBSTRUCTURE $2,352.30 To Order
69113511 COMPLETE FRONT SUBSTRUCTURE $2,447.32 To Order
Photo Part No Description Price (each) Stock
65393800 R.H. PLATE FOR FRONT HOOD BONNET HINGE $120.94 To Order
Photo Part No Description Price (each) Stock
65393900 L.H. PLATE FOR FRONT HOOD BONNET HINGE $120.94 To Order
Photo Part No Description Price (each) Stock
985202382 FRONT FIREWALL $592.20 To Order
212400 FRONT SHIELD -Valid for GD- $767.20 To Order
Photo Part No Description Price (each) Stock
67962711 LUGGAGE COMPARTMENT UPPER REAR WALL $114.65 To Order
Photo Part No Description Price (each) Stock
80305811 RH FRONT LATERAL TRELLIS $894.60 To Order
Photo Part No Description Price (each) Stock
80305911 LH FRONT LATERAL TRELLIS $819.01 To Order
Photo Part No Description Price (each) Stock
67656611 COMPLETE LUGGAGE COMPARTMENT BACK PANEL $573.39 To Order
Photo Part No Description Price (each) Stock
14642891 POP RIVET $0.14 To Order
Photo Part No Description Price (each) Stock
65133800 RIVET $0.14 IN STOCK
Photo Part No Description Price (each) Stock
15180411 Hexagonal Blind Rivet $1.34 IN STOCK
248150 ESAGONAL RIVET M8 $0.41 To Order
248146 HEXAGONAL RIVET $1.00 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
65151200 Rivet $4.12 IN STOCK
Photo Part No Description Price (each) Stock
60853400 RIVET $0.58 To Order
166101 Knurled Rivet $1.44 IN STOCK
65135000 Knurled Rivet $1.09 IN STOCK
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
65065400 HEXAGONAL HEAD STUD BOLT $3.24 To Order
Photo Part No Description Price (each) Stock
13836771 SCREW $2.11 IN STOCK
Photo Part No Description Price (each) Stock
80307311 LH. PLATE MOBILE PIPE $214.20 To Order
80307211 RH. PLATE MOBILE PIPE $188.99 To Order
Photo Part No Description Price (each) Stock
66219811 Luggage Compartment Upper Substructure Shield $225.64 To Order
Photo Part No Description Price (each) Stock
67963111 RH FENDER SUPPORT WALL $928.32 To Order
Photo Part No Description Price (each) Stock
68031911 LH FENDER SUPPORT WALL $928.32 To Order
Photo Part No Description Price (each) Stock
68037611 COMPLETE FRONT SUBSTRUCTURE $2,352.30 To Order
Photo Part No Description Price (each) Stock
65317411 RH BRACKET $57.15 To Order
Photo Part No Description Price (each) Stock
65317511 LH BRACKET $57.15 To Order
Photo Part No Description Price (each) Stock
70000950 REPAIR INSERTS KIT $1,674.33 To Order
Photo Part No Description Price (each) Stock
65709811 RH HINGE FIXED FASTENING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
65709911 LH FIXED HINGE FIXED FASTENER BRACKET $75.58 To Order
Photo Part No Description Price (each) Stock
69665511 COMPLETE WINDSCREEN UPPER CROSS MEMBER $1,532.10 To Order
Photo Part No Description Price (each) Stock
65548800 PLATE $2.99 To Order
Photo Part No Description Price (each) Stock
65897200 NUT $0.84 To Order
View All

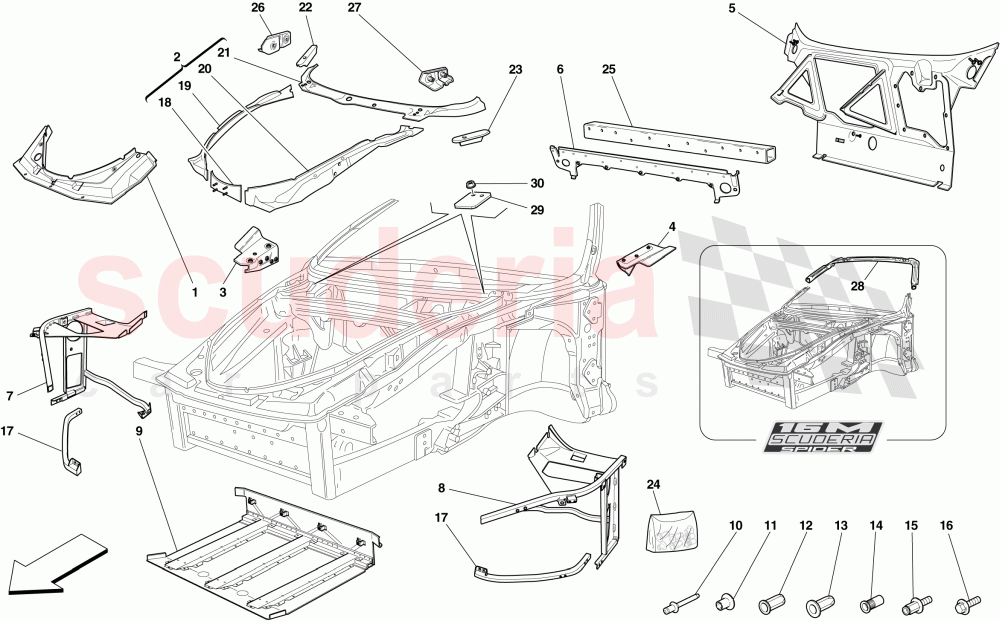

CHASSIS - COMPLETE FRONT STRUCTURE AND PANELS of Ferrari Ferrari 430 Scuderia Spider 16M Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 65393611
Complete Front Cross Member 		$496.42 (20.6% off) 1
2 68037611
COMPLETE FRONT SUBSTRUCTURE
Not for USA, CDN 		$2,352.30 (58.5% off) 1
2 69113511
COMPLETE FRONT SUBSTRUCTURE
Applicable for USA, CDN 		$2,447.32 1
3 65393800
R.H. PLATE FOR FRONT HOOD BONNET HINGE 		$120.94 1
4 65393900
L.H. PLATE FOR FRONT HOOD BONNET HINGE 		$120.94 1
5 985202382
FRONT FIREWALL
Not for GD 		$592.20 1
5 212400
FRONT SHIELD -Valid for GD-
Applicable for GD 		$767.20 1
6 67962711
LUGGAGE COMPARTMENT UPPER REAR WALL 		$114.65 1
7 80305811
RH FRONT LATERAL TRELLIS 		$894.60 1
8 80305911
LH FRONT LATERAL TRELLIS 		$819.01 1
9 67656611
COMPLETE LUGGAGE COMPARTMENT BACK PANEL 		$573.39 1
10 14642891
POP RIVET
L. 14 mm 		$0.14 -
11 65133800
RIVET
L. 6.4 mm
IN STOCK 		$0.14 -
12 15180411
Hexagonal Blind Rivet
IN STOCK 		$1.34 -
12 248150
ESAGONAL RIVET M8
M8 		$0.41 -
12 248146
HEXAGONAL RIVET
M6 		$1.00 -
12 15624311
HEXAGONAL RIVET
M5
IN STOCK 		$4.35 -
12 15624211
Hexagonal Rivet
M4
IN STOCK 		$0.94 -
13 65151200
Rivet
M6
IN STOCK 		$4.12 -
14 60853400
RIVET 		$0.58 -
14 166101
Knurled Rivet
M4
IN STOCK 		$1.44 -
14 65135000
Knurled Rivet
M8
IN STOCK 		$1.09 -
14 65930400
Knurled Rivet
M6
IN STOCK 		$0.94 -
14 65319800
Nut Knurled Rivet
M5
IN STOCK 		$0.79 -
15 65065400
HEXAGONAL HEAD STUD BOLT
M6 		$3.24 -
16 13836771
SCREW
IN STOCK 		$2.11 -
17 80307311
LH. PLATE MOBILE PIPE 		$214.20 1
17 80307211
RH. PLATE MOBILE PIPE 		$188.99 1
18 66219811
Luggage Compartment Upper Substructure Shield 		$225.64 1
19 67963111
RH FENDER SUPPORT WALL 		$928.32 1
20 68031911
LH FENDER SUPPORT WALL 		$928.32 1
21 68037611
COMPLETE FRONT SUBSTRUCTURE
No longer supplied 		$2,352.30 (58.5% off) 1
22 65317411
RH BRACKET 		$57.15 1
23 65317511
LH BRACKET 		$57.15 1
24 70000950
REPAIR INSERTS KIT 		$1,674.33 1
26 65709811
RH HINGE FIXED FASTENING BRACKET 		- 1 Enquire
27 65709911
LH FIXED HINGE FIXED FASTENER BRACKET 		$75.58 1
28 69665511
COMPLETE WINDSCREEN UPPER CROSS MEMBER
Applicable for Spider 16M 		$1,532.10 1
29 65548800
PLATE 		$2.99 2
30 65897200
NUT 		$0.84 4
