Ferrari 430 Scuderia Spider 16M - PNEUMATIC ACTUATOR SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
195645 VACUUM ACCUMULATOR TANK $189.23 To Order
Photo Part No Description Price (each) Stock
10902424 SCREW $0.14 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
12639724 WASHER $0.05 IN STOCK
Photo Part No Description Price (each) Stock
237943 PIPE $37.64 To Order
Photo Part No Description Price (each) Stock
178309 SOLENOID VALVE $100.37 IN STOCK
Photo Part No Description Price (each) Stock
178515 SOLENOID VALVE MOUNTING $4.12 To Order
Photo Part No Description Price (each) Stock
13432070 HOSE COLLAR $0.49 ARRIVING SOON
Photo Part No Description Price (each) Stock
88822200 SCREW $0.59 ARRIVING SOON
Photo Part No Description Price (each) Stock
127492 WASHER $0.02 To Order
Photo Part No Description Price (each) Stock
237946 PIPE $27.10 To Order
Photo Part No Description Price (each) Stock
237945 PIPE $40.65 To Order
Photo Part No Description Price (each) Stock
198275 RUBBER PIPE $35.31 To Order
Photo Part No Description Price (each) Stock
210351 PIPE FROM TANK TO LH SOLENOID VALVE $105.96 To Order
Photo Part No Description Price (each) Stock
241986 COLLAR FOR HOSE UNION $0.96 IN STOCK
Photo Part No Description Price (each) Stock
178491 CONNECTOR $22.72 To Order
Photo Part No Description Price (each) Stock
222112 COMPLETE RH VACUUM PIPE $340.63 To Order
Photo Part No Description Price (each) Stock
222114 COMPLETE LH VACUUM PIPE $340.63 To Order
Photo Part No Description Price (each) Stock
13432070 HOSE COLLAR $0.49 ARRIVING SOON
Photo Part No Description Price (each) Stock
124406 PIPE FROM TANK TO CONNECTOR $13.39 To Order
169692 PIPE FROM TANK TO SOLENOID VALVE $22.69 To Order
Photo Part No Description Price (each) Stock
200111 BRACKET $75.68 To Order
Photo Part No Description Price (each) Stock
14304124 SCREW $0.14 To Order
Photo Part No Description Price (each) Stock
12544179 Washer $0.53 To Order
Photo Part No Description Price (each) Stock
122126 RUBBER PIPE $9.97 To Order
Photo Part No Description Price (each) Stock
168248 RUBBER PIPE $34.05 To Order
Photo Part No Description Price (each) Stock
141546 CLIP $0.21 To Order
145543 CLIP $0.18 IN STOCK
View All

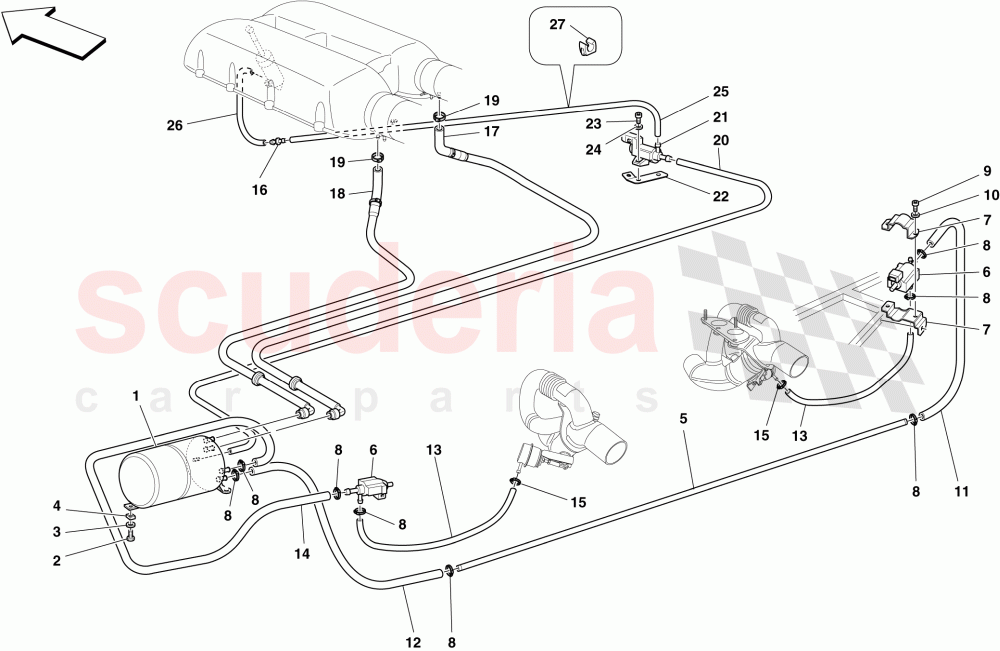

PNEUMATIC ACTUATOR SYSTEM of Ferrari Ferrari 430 Scuderia Spider 16M Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 195645
VACUUM ACCUMULATOR TANK 		$189.23 (29.2% off) 1
2 10902424
SCREW
IN STOCK 		$0.14 (80% off) 3
3 11197774
WASHER
IN STOCK 		$0.06 (80% off) 3
4 12639724
WASHER
IN STOCK 		$0.05 (90% off) 3
5 237943
PIPE 		$37.64 1
6 178309
SOLENOID VALVE
IN STOCK 		$100.37 (27.8% off) 2
7 178515
SOLENOID VALVE MOUNTING 		$4.12 2
8 13432070
HOSE COLLAR
ARRIVING SOON 		$0.49 (54.2% off) 8
9 88822200
SCREW
ARRIVING SOON 		$0.59 4
10 127492
WASHER 		$0.02 4
11 237946
PIPE 		$27.10 1
12 237945
PIPE 		$40.65 1
13 198275
RUBBER PIPE 		$35.31 1
14 210351
PIPE FROM TANK TO LH SOLENOID VALVE 		$105.96 1
15 241986
COLLAR FOR HOSE UNION
IN STOCK 		$0.96 2
16 178491
CONNECTOR 		$22.72 1
17 222112
COMPLETE RH VACUUM PIPE 		$340.63 1
18 222114
COMPLETE LH VACUUM PIPE 		$340.63 (34% off) 1
19 13432070
HOSE COLLAR
ARRIVING SOON 		$0.49 (54.2% off) 2
20 124406
PIPE FROM TANK TO CONNECTOR
No longer supplied; Replaced by 169692 		$13.39 1
20 169692
PIPE FROM TANK TO SOLENOID VALVE 		$22.69 1
22 200111
BRACKET 		$75.68 1
23 14304124
SCREW 		$0.14 (81.3% off) 2
24 12544179
Washer 		$0.53 2
25 122126
RUBBER PIPE 		$9.97 1
26 168248
RUBBER PIPE 		$34.05 1
27 141546
CLIP
D. 8 		$0.21 1
27 145543
CLIP
D. 12
IN STOCK 		$0.18 (76% off) 1
