Injection - Ignition System

Ferrari 430 Scuderia Spider 16M

Find Your Part

Ferrari 430 Scuderia Spider 16M - INJECTION - IGNITION SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
10902224 SCREW M6 X 16 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
192637 Spark Plug NGK $27.90 ARRIVING SOON
Photo Part No Description Price (each) Stock
216543 COMPLETE LH FUEL PIPE WITH ELECTROINJECTORS $1,097.70 IN STOCK
216542 COMPLETE RH FUEL PIPE WITH ELECTROINJECTORS $1,097.70 IN STOCK
Photo Part No Description Price (each) Stock
213635 ELECTRO-INJECTOR $292.93 IN STOCK
Photo Part No Description Price (each) Stock
133902 INJECTOR O-RING $4.98 To Order
Photo Part No Description Price (each) Stock
144730 INJECTORS RETENTION CLIP $3.79 To Order
Photo Part No Description Price (each) Stock
249571 RH. CYLINDER BANK INJECTOR CABLES $2,342.67 To Order
242611 RH. CYLINDER BANK INJECTOR CABLES $1,063.11 To Order
242613 RH. CYLINDER BANK INJECTOR CABLES $1,042.60 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
249568 LH. CYLINDER BANK INJECTOR CABLES $999.83 To Order
249570 LH. CYLINDER BANK INJECTOR CABLES $2,333.82 To Order
242610 LH. CYLINDER BANK INJECTOR CABLES $1,126.39 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
224384 LH REAR SHIELD $43.80 To Order
224383 RH REAR SHIELD $43.80 To Order
Photo Part No Description Price (each) Stock
250923 IGNITION ECU $1,666.12 To Order
245205 IGNITION ECU $4,635.99 To Order
226587 IGNITION ECU $4,635.99 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
200163 LH BRACKET $126.55 To Order
192535 RH BRACKET $25.67 To Order
Photo Part No Description Price (each) Stock
233311 BRACKET $36.25 To Order
81699800 BRACKET $227.80 To Order
Photo Part No Description Price (each) Stock
244164 IONISING KNOCK SENSOR CONTROL UNIT $911.25 To Order
Photo Part No Description Price (each) Stock
12644424 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
10519424 WASHER D.6.4 X 11.95 X 1.6 $0.02 IN STOCK
View All

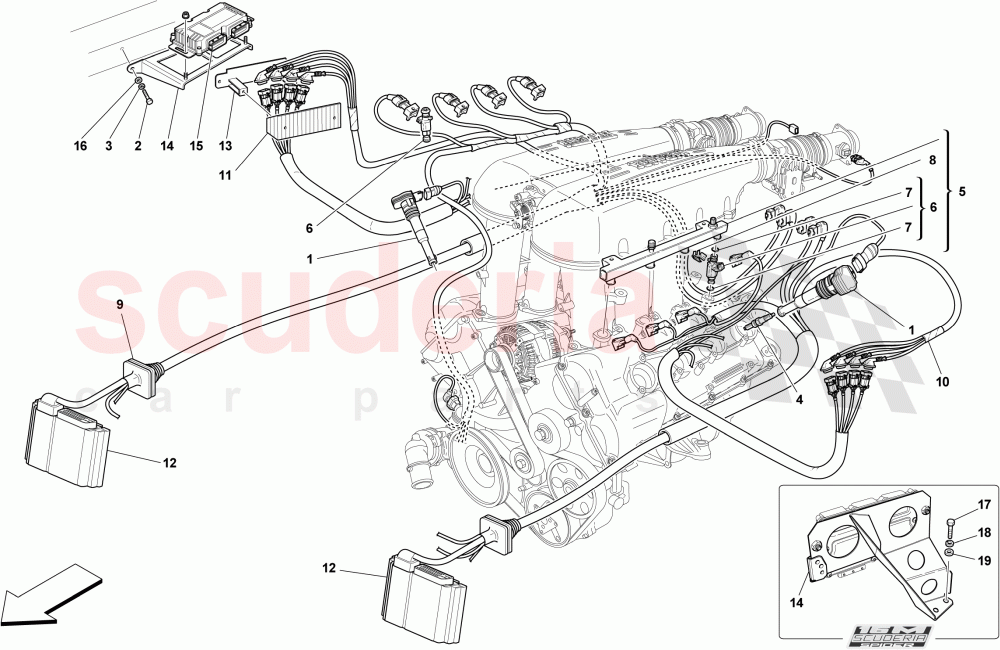

INJECTION - IGNITION SYSTEM of Ferrari Ferrari 430 Scuderia Spider 16M Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
2 10902224
SCREW M6 X 16
Not for Spider 16M
IN STOCK 		$0.06 (86.7% off) 3
3 11197774
WASHER
Not for Spider 16M
IN STOCK 		$0.06 (80% off) 3
4 192637
Spark Plug NGK
ARRIVING SOON 		$27.90 (6.2% off) 8
5 216543
COMPLETE LH FUEL PIPE WITH ELECTROINJECTORS
IN STOCK 		$1,097.70 1
5 216542
COMPLETE RH FUEL PIPE WITH ELECTROINJECTORS
IN STOCK 		$1,097.70 1
6 213635
ELECTRO-INJECTOR
IN STOCK 		$292.93 8
7 133902
INJECTOR O-RING 		$4.98 (17% off) 4
8 144730
INJECTORS RETENTION CLIP 		$3.79 (5.3% off) 8
9 249571
RH. CYLINDER BANK INJECTOR CABLES
Applicable for Spider 16M; Applicable for USA, CDN 		$2,342.67 1
9 242611
RH. CYLINDER BANK INJECTOR CABLES
Not for Spider 16M; Not for USA, CDN; Applicable from Ass. No. 73779 		$1,063.11 1
9 242613
RH. CYLINDER BANK INJECTOR CABLES
Not for Spider 16M; Applicable for USA, CDN 		$1,042.60 1
9 249569
RH. CYLINDER BANK INJECTOR CABLES
Applicable for Spider 16M; Not for USA, CDN 		$999.83 1
9 237980
RH. CYLINDER BANK INJECTOR CABLES
Not for Spider 16M; Not for USA, CDN; Applicable up to Ass. No. 73778 		$835.97 1
10 249568
LH. CYLINDER BANK INJECTOR CABLES
Applicable for Spider 16M; Not for USA, CDN 		$999.83 1
10 249570
LH. CYLINDER BANK INJECTOR CABLES
Applicable for Spider 16M; Applicable for USA, CDN 		$2,333.82 1
10 242610
LH. CYLINDER BANK INJECTOR CABLES
Not for Spider 16M; Not for USA, CDN; Applicable from Ass. No. 73779 		$1,126.39 1
10 242612
LH. CYLINDER BANK INJECTOR CABLES
Not for Spider 16M; Applicable for USA, CDN 		$1,027.49 1
10 237979
LH. CYLINDER BANK INJECTOR CABLES
Not for Spider 16M; Not for USA, CDN; Applicable up to Ass. No. 73778 		$843.00 1
11 224384
LH REAR SHIELD
Not for Spider 16M 		$43.80 1
11 224383
RH REAR SHIELD
Not for Spider 16M 		$43.80 1
12 250923
IGNITION ECU
Applicable for USA, CDN; Applicable from Ass. No. 80495 		$1,666.12 2
12 245205
IGNITION ECU
Applicable for Taiwan; Applicable for J 		$4,635.99 2
12 226587
IGNITION ECU
Not for USA, CDN, J 		$4,635.99 2
12 229081
IGNITION ECU
Applicable for USA, CDN; Applicable up to Ass. No. 80494 		$2,505.33 2
13 200163
LH BRACKET
Not for Spider 16M 		$126.55 1
13 192535
RH BRACKET
Not for Spider 16M 		$25.67 1
14 233311
BRACKET
Not for Spider 16M 		$36.25 1
14 81699800
BRACKET
Applicable for Spider 16M 		$227.80 1
15 244164
IONISING KNOCK SENSOR CONTROL UNIT 		$911.25 1
16 12644424
WASHER
Not for Spider 16M
IN STOCK 		$0.06 (85% off) 3
17 248334
SCREW
Applicable for Spider 16M
IN STOCK 		$0.58 2
18 11197774
WASHER
Applicable for Spider 16M
IN STOCK 		$0.06 (80% off) 2
19 10519424
WASHER D.6.4 X 11.95 X 1.6
Applicable for Spider 16M
IN STOCK 		$0.02 (92% off) 2
