Engine Compartment Lid -Not For Spider 16M-

Ferrari 430 Scuderia Spider 16M

Find Your Part

Ferrari 430 Scuderia Spider 16M - ENGINE COMPARTMENT LID -Not for Spider 16M-

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
69945011 PRESSED REAR LID $4,138.61 To Order
80841600 PRESSED REAR LID $23,851.46 To Order
Photo Part No Description Price (each) Stock
64877500 RH MOBILE HINGE $196.78 To Order
64877600 LH MOBILE HINGE $196.78 To Order
Photo Part No Description Price (each) Stock
62825300 BUSHING $32.95 To Order
Photo Part No Description Price (each) Stock
64807100 PIN $9.85 To Order
Photo Part No Description Price (each) Stock
11087974 SNAP RING $0.17 IN STOCK
Photo Part No Description Price (each) Stock
65398800 FRONT LID CHANNEL $329.66 To Order
Photo Part No Description Price (each) Stock
915271 SCREW M6 X 15 $1.13 To Order
Photo Part No Description Price (each) Stock
80363100 RH. GRILLE $434.83 To Order
80363300 LH. GRILLE $434.83 To Order
81242400 RH. GRILLE $431.59 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
168133 Screw M5 x 20 $0.87 IN STOCK
915271 SCREW M6 X 15 $1.13 To Order
Photo Part No Description Price (each) Stock
13579201 WASHER $0.05 To Order
12644478 WASHER $0.18 To Order
13577734 WASHER $0.29 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
80671300 LID SUPPORT ROD Enquire To Order
Photo Part No Description Price (each) Stock
62481000 BALL-JOINT $66.76 To Order
Photo Part No Description Price (each) Stock
16102314 NUT $0.06 To Order
Photo Part No Description Price (each) Stock
143331 THIRD STOP LIGHT MOBILE CONTACT $7.22 To Order
Photo Part No Description Price (each) Stock
64867900 LID STRIKER PLATE $329.66 To Order
Photo Part No Description Price (each) Stock
65524800 ADJUSTMENT PLATE $4.68 To Order
Photo Part No Description Price (each) Stock
11568124 SCREW $0.81 IN STOCK
Photo Part No Description Price (each) Stock
62940900 Allen Head Screw M6 x 15 $1.32 IN STOCK
Photo Part No Description Price (each) Stock
80818500 REAR FRAME $1,340.21 To Order
Photo Part No Description Price (each) Stock
69058800 VIBRATION DAMPER $0.70 To Order
Photo Part No Description Price (each) Stock
66073100 SHIM $2.58 To Order
Photo Part No Description Price (each) Stock
81130800 SHIM $4.42 To Order
81359600 SHIM $16.47 To Order
Photo Part No Description Price (each) Stock
81359700 SHIM $24.07 To Order
81130700 SHIM $7.25 IN STOCK
81359500 SHIM $19.01 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
64806700 RH FIXED HINGE $193.26 To Order
64806800 LH FIXED HINGE $193.26 To Order
Photo Part No Description Price (each) Stock
67509400 RUBBER PAD $9.19 To Order
Photo Part No Description Price (each) Stock
80818600 FRONT FRAME $1,159.91 To Order
Photo Part No Description Price (each) Stock
65855000 Gas Strut Engine Lid $63.89 To Order
Photo Part No Description Price (each) Stock
65526300 BRACKET $34.83 To Order
Photo Part No Description Price (each) Stock
86574700 SCREW $0.61 To Order
Photo Part No Description Price (each) Stock
85216400 PIN WITH WASHER $2.28 IN STOCK
Photo Part No Description Price (each) Stock
81343900 GUARD $380.36 To Order
Photo Part No Description Price (each) Stock
81315500 LID SUPPORT ROD $1,624.30 To Order
Photo Part No Description Price (each) Stock
62481000 BALL-JOINT $66.76 To Order
Photo Part No Description Price (each) Stock
16102314 NUT $0.06 To Order
View All

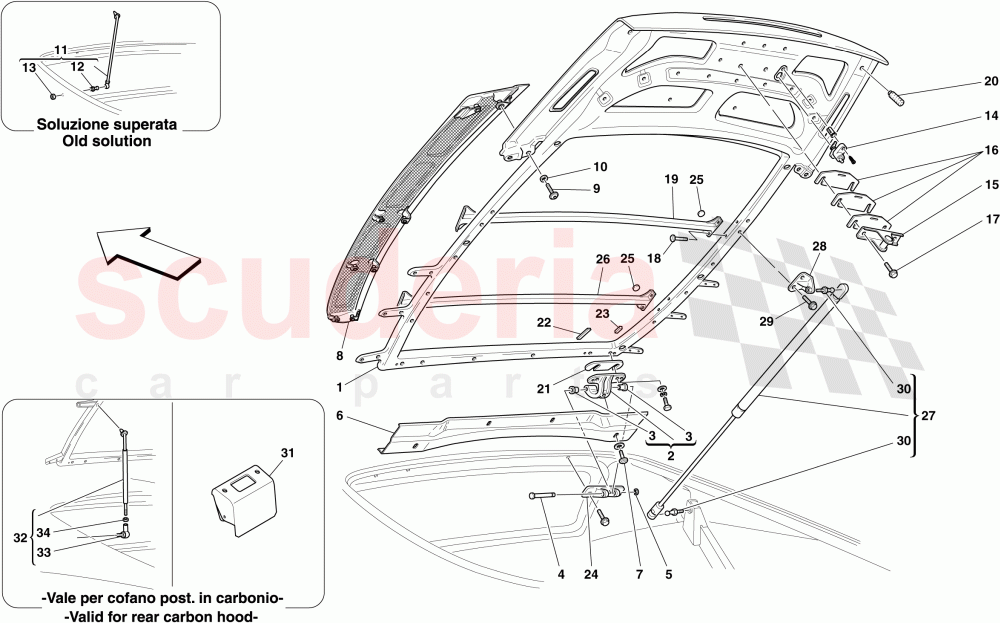

ENGINE COMPARTMENT LID -Not for Spider 16M- of Ferrari Ferrari 430 Scuderia Spider 16M Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 69945011
PRESSED REAR LID
Standard 		$4,138.61 1
1 80841600
PRESSED REAR LID
Carbon version 		$23,851.46 1
2 64877500
RH MOBILE HINGE 		$196.78 1
2 64877600
LH MOBILE HINGE 		$196.78 1
3 62825300
BUSHING 		$32.95 (32.3% off) 4
4 64807100
PIN 		$9.85 2
5 11087974
SNAP RING
IN STOCK 		$0.17 (65.3% off) 2
6 65398800
FRONT LID CHANNEL 		$329.66 1
7 915271
SCREW M6 X 15 		$1.13 4
8 80363100
RH. GRILLE
Black 		$434.83 1
8 80363300
LH. GRILLE
Black 		$434.83 1
8 81242400
RH. GRILLE
Applicable for rear lid in carbon 		$431.59 1
8 81242500
LH. GRILLE
Applicable for rear lid in carbon 		$318.40 1
9 168133
Screw M5 x 20
IN STOCK 		$0.87 (30.4% off) 16
9 915271
SCREW M6 X 15
No longer supplied; Replaced by 168133 		$1.13 16
10 13579201
WASHER
Th. 0.5 mm 		$0.05 16
10 12644478
WASHER
No longer supplied 		$0.18 16
10 13577734
WASHER
Th. 1.2 mm 		$0.29 16
10 67584200
WASHER
Th. 0.8 mm 		$1.28 16
11 80671300
LID SUPPORT ROD
No longer supplied 		- 1 Enquire
12 62481000
BALL-JOINT
No longer supplied 		$66.76 1
13 16102314
NUT
No longer supplied 		$0.06 (95.3% off) 1
14 143331
THIRD STOP LIGHT MOBILE CONTACT 		$7.22 (31.2% off) 1
15 64867900
LID STRIKER PLATE 		$329.66 1
16 65524800
ADJUSTMENT PLATE
Installed if necessary 		$4.68 4
17 11568124
SCREW
IN STOCK 		$0.81 2
18 62940900
Allen Head Screw M6 x 15
IN STOCK 		$1.32 (24.6% off) 8
19 80818500
REAR FRAME 		$1,340.21 1
20 69058800
VIBRATION DAMPER 		$0.70 2
21 66073100
SHIM 		$2.58 (45.7% off) 2
22 81130800
SHIM
Th. 5 mm; L. 760 mm 		$4.42 1
22 81359600
SHIM
Th. 6.8 mm; L. 615 mm; Applicable for rear lid in carbon 		$16.47 1
23 81359700
SHIM
Th. 6.8 mm; L. 1040 mm; Applicable for rear lid in carbon 		$24.07 1
23 81130700
SHIM
Th. 5 mm; L. 710 mm
IN STOCK 		$7.25 (46.5% off) 1
23 81359500
SHIM
Th. 6.8 mm; L. 760 mm; Applicable for rear lid in carbon 		$19.01 1
23 81130900
Spacer Th.5 mm - L.1040mm
Th. 5 mm; L. 1040 mm
IN STOCK 		$7.51 1
24 64806700
RH FIXED HINGE 		$193.26 1
24 64806800
LH FIXED HINGE 		$193.26 1
25 67509400
RUBBER PAD 		$9.19 (70.8% off) 6
26 80818600
FRONT FRAME 		$1,159.91 1
27 65855000
Gas Strut Engine Lid 		$63.89 (19% off) 2
28 65526300
BRACKET 		$34.83 2
29 86574700
SCREW 		$0.61 4
30 85216400
PIN WITH WASHER
IN STOCK 		$2.28 2
31 81343900
GUARD
Applicable for rear lid in carbon 		$380.36 1
32 81315500
LID SUPPORT ROD
Applicable for rear lid in carbon 		$1,624.30 1
33 62481000
BALL-JOINT
Applicable for rear lid in carbon 		$66.76 1
34 16102314
NUT
Applicable for rear lid in carbon 		$0.06 (95.3% off) 1
