Ferrari 430 Scuderia Spider 16M - CRANKCASE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
236095 COMPLETE CRANKCASE $3,573.75 To Order
Photo Part No Description Price (each) Stock
176421 CENTERING DOWEL $4.03 To Order
Photo Part No Description Price (each) Stock
229253 FRONT COVER $888.58 To Order
Photo Part No Description Price (each) Stock
55012820 RH HEAD-CRANKCASE GASKET $378.42 To Order
55012822 LH Cylinder Head Gasket $391.05 To Order
Photo Part No Description Price (each) Stock
232504 CYLINDER SLEEVE $998.64 To Order
Photo Part No Description Price (each) Stock
186251 O-RING $2.42 IN STOCK
Photo Part No Description Price (each) Stock
217967 STUD BOLT $11.77 To Order
Photo Part No Description Price (each) Stock
802590 STUD BOLT CRANKCASE $13.04 IN STOCK
Photo Part No Description Price (each) Stock
185360 CENTERING DOWEL $2.78 IN STOCK
Photo Part No Description Price (each) Stock
201850 DOWEL $4.03 IN STOCK
Photo Part No Description Price (each) Stock
200458 CHECK VALVE $9.17 IN STOCK
Photo Part No Description Price (each) Stock
201849 DOWEL $5.72 To Order
Photo Part No Description Price (each) Stock
177727 CENTRING DOWEL $2.45 To Order
Photo Part No Description Price (each) Stock
164400 THREADED PLUG $3.29 IN STOCK
Photo Part No Description Price (each) Stock
175611 CENTERING DOWEL $1.67 To Order
Photo Part No Description Price (each) Stock
13546834 STUD BOLT $1.43 To Order
Photo Part No Description Price (each) Stock
307477 THREADED PLUG $3.30 IN STOCK
Photo Part No Description Price (each) Stock
10263460 COPPER GASKET D.28-22.3 X 1.5 $0.35 IN STOCK
Photo Part No Description Price (each) Stock
13546934 STUD BOLT $1.67 IN STOCK
Photo Part No Description Price (each) Stock
100052 CENTERING DOWEL $2.22 To Order
Photo Part No Description Price (each) Stock
245464323979 FRONT COVER GASKET Enquire To Order
Photo Part No Description Price (each) Stock
188717 Front Crankshaft Seal $28.60 IN STOCK
Photo Part No Description Price (each) Stock
183010 O-RING D-32.93 $1.60 IN STOCK
Photo Part No Description Price (each) Stock
14324940 THREADED PLUG $1.93 To Order
Photo Part No Description Price (each) Stock
231622 SCREW $0.33 IN STOCK
231624 SCREW $0.41 IN STOCK
156828 SCREW $0.64 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
13525770 THREADED INSERT $2.60 To Order
Photo Part No Description Price (each) Stock
236815 PISTON COOLING NOZZLE $37.83 To Order
Photo Part No Description Price (each) Stock
11181474 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
252274 SCREW WITH WASHER $0.41 To Order
14302921 SCREW $0.06 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
13541624 STUD BOLT $0.46 To Order
Photo Part No Description Price (each) Stock
14305324 ALLEN SCREW M6 X 20 $0.08 IN STOCK
231620 SCREW $0.30 IN STOCK
Photo Part No Description Price (each) Stock
10261860 GASKET $0.43 IN STOCK
Photo Part No Description Price (each) Stock
104280 MAGNETIC THREADED OIL DRAIN PLUG M22 X 1.5 $5.39 IN STOCK
Photo Part No Description Price (each) Stock
178348 WASHER D.10.2-20 X 2 $0.73 IN STOCK
Photo Part No Description Price (each) Stock
133988 HEX NUT M10 X 1.25 X 8 $0.20 IN STOCK
Photo Part No Description Price (each) Stock
282756 THREADED PLUG $2.60 To Order
Photo Part No Description Price (each) Stock
236187 CONTAINMENT FLYWHEEL $25.59 To Order
Photo Part No Description Price (each) Stock
207221 LH ENGINE MOUNTING STRUT $1,430.77 To Order
207220 RH ENGINE MOUNTING STRUT $1,430.77 To Order
Photo Part No Description Price (each) Stock
11190574 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
11306934 SCREW $0.53 To Order
Photo Part No Description Price (each) Stock
133988 HEX NUT M10 X 1.25 X 8 $0.20 IN STOCK
Photo Part No Description Price (each) Stock
216357 Engine Mount $260.69 IN STOCK
Photo Part No Description Price (each) Stock
15970634 SCREW $0.38 To Order
Photo Part No Description Price (each) Stock
12647021 WASHER $0.30 IN STOCK
Photo Part No Description Price (each) Stock
127497 SPRING WASHER M10 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
11369634 SCREW $3.12 To Order
Photo Part No Description Price (each) Stock
176573 SELF-LOCKING HEX NUT M16 X 1.5 $1.73 IN STOCK
Photo Part No Description Price (each) Stock
12601774A WASHER Enquire To Order
Photo Part No Description Price (each) Stock
219872 RH CYLINDER BANK RPM SENSOR $148.33 To Order
219873 LH Cylinder Bank Speed Sensor $153.29 IN STOCK
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
217794 STUD BOLT $10.09 IN STOCK
Photo Part No Description Price (each) Stock
217796 STUD BOLT $10.09 To Order
Photo Part No Description Price (each) Stock
223577 THREADED INSERT M22 X 1.5 X 9MM $5.13 IN STOCK
Photo Part No Description Price (each) Stock
187718 BLEED PLUG $6.16 To Order
Photo Part No Description Price (each) Stock
127497 SPRING WASHER M10 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
10441590 BRACKET WITH SHEATH $0.52 To Order
Photo Part No Description Price (each) Stock
206672 STUD BOLT $5.72 To Order
Photo Part No Description Price (each) Stock
9162535 THREADED PLUG Enquire To Order
Photo Part No Description Price (each) Stock
134704 O-RING $0.14 IN STOCK
Photo Part No Description Price (each) Stock
213389 CONNECTOR $11.96 To Order
View All

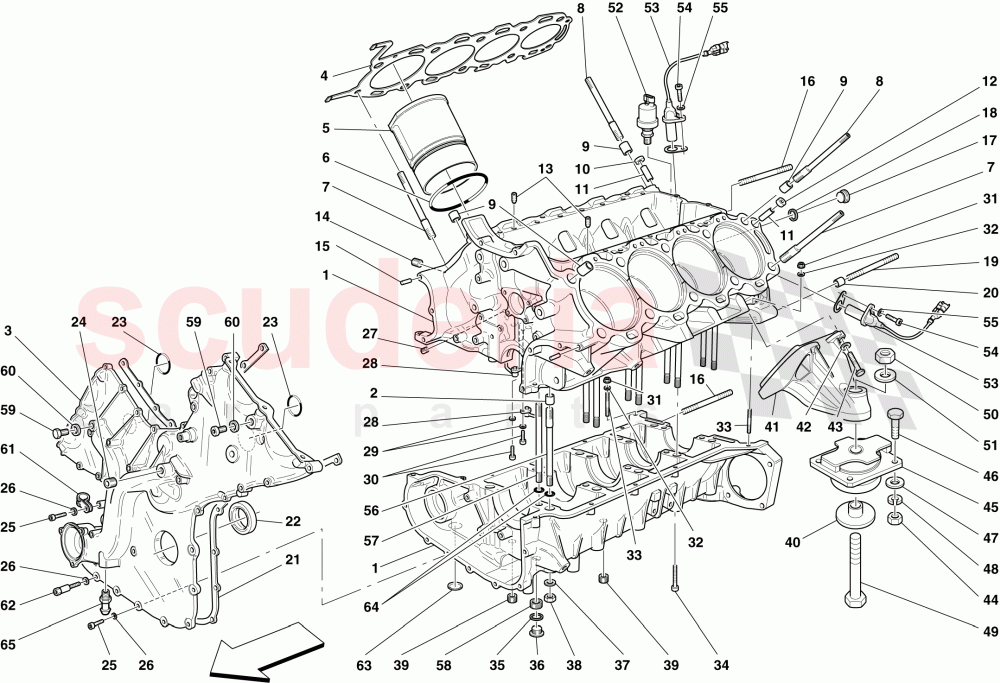

CRANKCASE of Ferrari Ferrari 430 Scuderia Spider 16M Diagram Tap to enlarge
