Pedal Board -Not For Gd-

Ferrari 430 Scuderia Spider 16M

Find Your Part

Ferrari 430 Scuderia Spider 16M - PEDAL BOARD -Not for GD-

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
176464 PEDAL BOARD MOUNTING $2,774.79 To Order
Photo Part No Description Price (each) Stock
176466 PEDAL MOUNTING PIN $148.34 To Order
Photo Part No Description Price (each) Stock
103163 SELF-LUBRICATING BUSHING $1.85 To Order
Photo Part No Description Price (each) Stock
176475 BALL-JOINT $166.50 To Order
Photo Part No Description Price (each) Stock
199754 FORK $81.73 To Order
Photo Part No Description Price (each) Stock
66535800 SCREW $5.08 To Order
Photo Part No Description Price (each) Stock
147985 NUT $0.14 IN STOCK
Photo Part No Description Price (each) Stock
176522 PLASTIC WASHER $14.22 IN STOCK
Photo Part No Description Price (each) Stock
16102314 NUT $0.06 To Order
Photo Part No Description Price (each) Stock
10902424 SCREW $0.14 IN STOCK
Photo Part No Description Price (each) Stock
10519424 WASHER D.6.4 X 11.95 X 1.6 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 IN STOCK
Photo Part No Description Price (each) Stock
219558 SWITCH MOUNTING $202.85 To Order
Photo Part No Description Price (each) Stock
201957 PUSH-BUTTON SWITCH $42.37 ARRIVING SOON
Photo Part No Description Price (each) Stock
16043224 SCREW $0.14 IN STOCK
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
176918 SHIM $126.78 To Order
Photo Part No Description Price (each) Stock
113834 WASHER $2.09 To Order
113835 WASHER $8.20 To Order
113836 WASHER $4.07 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
13516924 STUD BOLT $2.11 IN STOCK
Photo Part No Description Price (each) Stock
104030 NUT $0.24 IN STOCK
Photo Part No Description Price (each) Stock
84653800 WASHER 10 X 18 X 2.5 $4.98 IN STOCK
Photo Part No Description Price (each) Stock
13517024 STUD BOLT $0.47 To Order
Photo Part No Description Price (each) Stock
16102377 NUT $1.68 To Order
Photo Part No Description Price (each) Stock
13550321 WASHER $0.28 To Order
Photo Part No Description Price (each) Stock
12601374 WASHER D.8.40-15 X 0.8 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
176524 PEDAL BOARD MOUNTING GASKET $16.67 To Order
View All

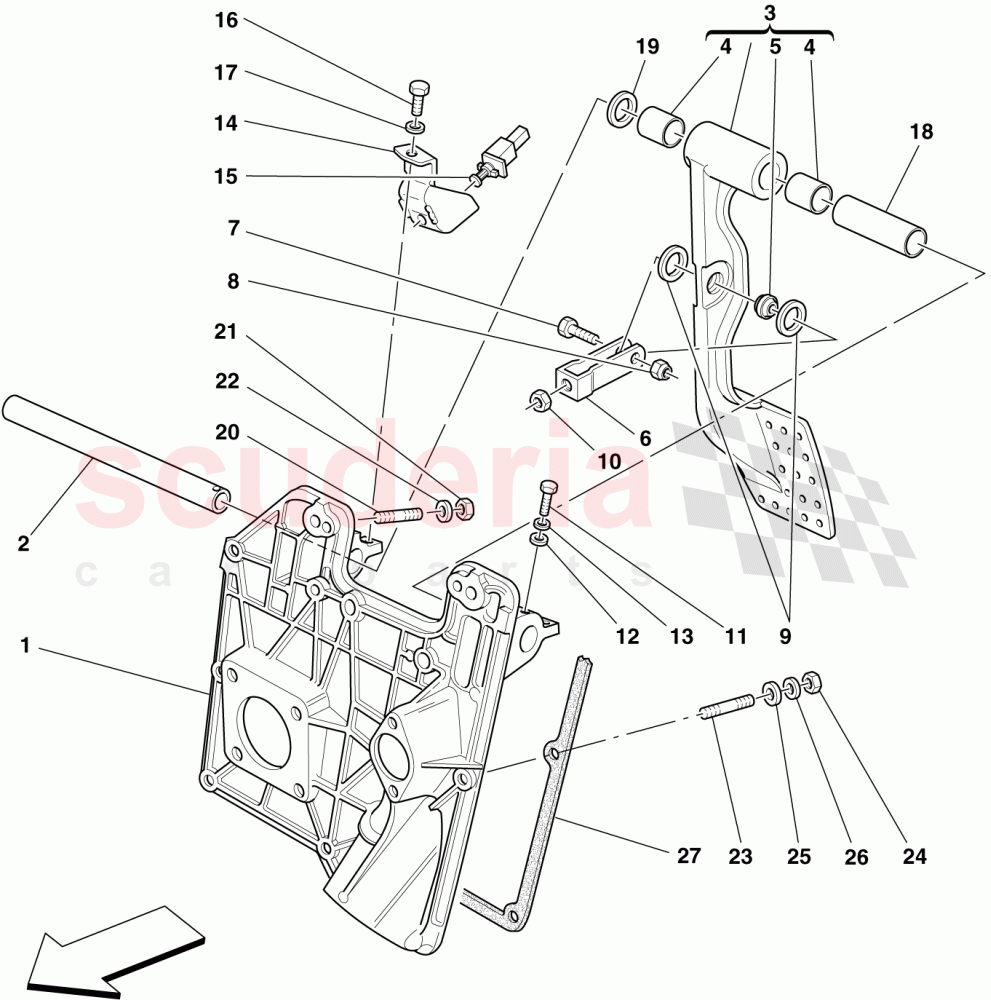

PEDAL BOARD -Not for GD- of Ferrari Ferrari 430 Scuderia Spider 16M Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 176464
PEDAL BOARD MOUNTING
Not for GD 		$2,774.79 1
2 176466
PEDAL MOUNTING PIN
Not for GD 		$148.34 1
4 103163
SELF-LUBRICATING BUSHING
Not for GD 		$1.85 (84.6% off) 2
5 176475
BALL-JOINT
Not for GD 		$166.50 1
6 199754
FORK
Not for GD 		$81.73 (25.5% off) 1
7 66535800
SCREW
Not for GD 		$5.08 1
8 147985
NUT
Not for GD
IN STOCK 		$0.14 (72% off) 1
9 176522
PLASTIC WASHER
Not for GD
IN STOCK 		$14.22 2
10 16102314
NUT
Not for GD 		$0.06 (95.3% off) 1
11 10902424
SCREW
Not for GD
IN STOCK 		$0.14 (80% off) 1
12 10519424
WASHER D.6.4 X 11.95 X 1.6
Not for GD
IN STOCK 		$0.02 (92% off) 1
13 127494
WASHER
Not for GD
IN STOCK 		$0.08 (88.2% off) 1
14 219558
SWITCH MOUNTING
Not for GD 		$202.85 1
15 201957
PUSH-BUTTON SWITCH
Not for GD
ARRIVING SOON 		$42.37 (29.1% off) 1
16 16043224
SCREW
Not for GD
IN STOCK 		$0.14 (72% off) 1
17 127496
WASHER
Not for GD 		$0.06 (80% off) 1
18 176918
SHIM
Not for GD 		$126.78 1
19 113834
WASHER
Th. 1.2 mm; Installed if necessary; Not for GD 		$2.09 1
19 113835
WASHER
Th. 1.3 mm; Installed if necessary; Not for GD 		$8.20 1
19 113836
WASHER
Th. 1.4 mm; Installed if necessary; Not for GD 		$4.07 1
19 178340
WASHER
Not for GD 		$3.55 1
20 13516924
STUD BOLT
Not for GD
IN STOCK 		$2.11 6
21 104030
NUT
Not for GD
IN STOCK 		$0.24 (76% off) 6
22 84653800
WASHER 10 X 18 X 2.5
Not for GD
IN STOCK 		$4.98 6
23 13517024
STUD BOLT
Not for GD 		$0.47 2
24 16102377
NUT
Not for GD 		$1.68 2
25 13550321
WASHER
Not for GD 		$0.28 (77.6% off) 2
26 12601374
WASHER D.8.40-15 X 0.8
Not for GD
IN STOCK 		$0.02 (92% off) 2
27 176524
PEDAL BOARD MOUNTING GASKET
Not for GD 		$16.67 1
