Pedal Board -Applicable For Gd-

Ferrari 430 Scuderia Spider 16M

Find Your Part

Ferrari 430 Scuderia Spider 16M - PEDAL BOARD -Applicable for GD-

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
214215 PEDAL BOARD MOUNTING $774.11 To Order
Photo Part No Description Price (each) Stock
177120 PEDAL MOUNTING PIN $143.92 To Order
Photo Part No Description Price (each) Stock
201578 COMPLETE BRAKE PEDAL $1,812.42 To Order
Photo Part No Description Price (each) Stock
103163 SELF-LUBRICATING BUSHING $1.85 To Order
Photo Part No Description Price (each) Stock
176475 BALL-JOINT $166.65 To Order
Photo Part No Description Price (each) Stock
199754 FORK $81.80 To Order
Photo Part No Description Price (each) Stock
66535800 SCREW $5.08 To Order
Photo Part No Description Price (each) Stock
147985 NUT $0.14 IN STOCK
Photo Part No Description Price (each) Stock
176522 PLASTIC WASHER $14.23 IN STOCK
Photo Part No Description Price (each) Stock
16102314 NUT $0.06 To Order
Photo Part No Description Price (each) Stock
10902424 SCREW $0.14 IN STOCK
Photo Part No Description Price (each) Stock
10519424 WASHER D.6.4 X 11.95 X 1.6 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 IN STOCK
Photo Part No Description Price (each) Stock
219557 SWITCH MOUNTING $203.03 To Order
Photo Part No Description Price (each) Stock
201957 PUSH-BUTTON SWITCH $42.41 ARRIVING SOON
Photo Part No Description Price (each) Stock
178496 SHIM $19.45 To Order
Photo Part No Description Price (each) Stock
113836 WASHER $4.07 To Order
Photo Part No Description Price (each) Stock
113836 WASHER $4.07 To Order
113833 WASHER $2.13 IN STOCK
113834 WASHER $2.10 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
13516924 STUD BOLT $2.11 IN STOCK
Photo Part No Description Price (each) Stock
12638524 WASHER D8.15-15 X 1.5 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
104030 NUT $0.24 IN STOCK
Photo Part No Description Price (each) Stock
13517524 STUD BOLT $3.21 To Order
Photo Part No Description Price (each) Stock
12601374 WASHER D.8.40-15 X 0.8 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
177131 PEDAL BOARD MOUNTING GASKET $16.08 IN STOCK
View All

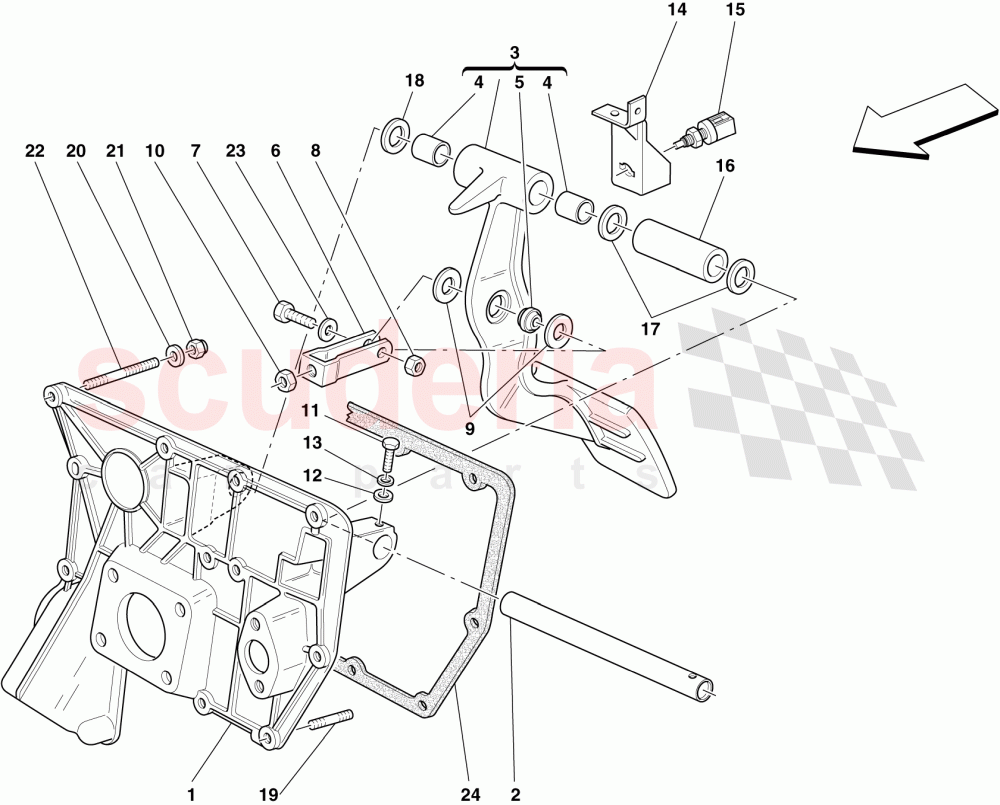

PEDAL BOARD -Applicable for GD- of Ferrari Ferrari 430 Scuderia Spider 16M Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 214215
PEDAL BOARD MOUNTING
Applicable for GD 		$774.11 1
2 177120
PEDAL MOUNTING PIN
Applicable for GD 		$143.92 1
3 201578
COMPLETE BRAKE PEDAL
Applicable for GD 		$1,812.42 1
4 103163
SELF-LUBRICATING BUSHING
Applicable for GD 		$1.85 (84.6% off) 2
5 176475
BALL-JOINT
Applicable for GD 		$166.65 1
6 199754
FORK
Applicable for GD 		$81.80 (25.4% off) 2
7 66535800
SCREW
Applicable for GD 		$5.08 1
8 147985
NUT
Applicable for GD
IN STOCK 		$0.14 (72% off) 1
9 176522
PLASTIC WASHER
Applicable for GD
IN STOCK 		$14.23 2
10 16102314
NUT
Applicable for GD 		$0.06 (95.3% off) 1
11 10902424
SCREW
Applicable for GD
IN STOCK 		$0.14 (80% off) 1
12 10519424
WASHER D.6.4 X 11.95 X 1.6
Applicable for GD
IN STOCK 		$0.02 (92% off) 1
13 127494
WASHER
Applicable for GD
IN STOCK 		$0.08 (88.2% off) 1
14 219557
SWITCH MOUNTING
Applicable for GD 		$203.03 1
15 201957
PUSH-BUTTON SWITCH
Applicable for GD
ARRIVING SOON 		$42.41 (29% off) 1
16 178496
SHIM
Applicable for GD 		$19.45 1
17 113836
WASHER
Th. 1.4 mm; Applicable for GD 		$4.07 2
18 113836
WASHER
Th. 1.4 mm; Installed if necessary; Applicable for GD 		$4.07 1
18 113833
WASHER
Th. 1.1 mm; Installed if necessary; Applicable for GD
IN STOCK 		$2.13 1
18 113834
WASHER
Th. 1.2 mm; Installed if necessary; Applicable for GD 		$2.10 1
18 113835
WASHER
Th. 1.3 mm; Installed if necessary; Applicable for GD 		$8.20 1
18 106083
WASHER
Th. 1 mm; Applicable for GD 		$0.54 1
19 13516924
STUD BOLT
Applicable for GD
IN STOCK 		$2.11 9
20 12638524
WASHER D8.15-15 X 1.5
Applicable for GD
IN STOCK 		$0.06 (76% off) 9
21 104030
NUT
Applicable for GD
IN STOCK 		$0.24 (76% off) 9
22 13517524
STUD BOLT
Applicable for GD 		$3.21 2
23 12601374
WASHER D.8.40-15 X 0.8
Applicable for GD
IN STOCK 		$0.02 (92% off) 2
24 177131
PEDAL BOARD MOUNTING GASKET
Applicable for GD
IN STOCK 		$16.08 1
