Name: ROOF KINEMATICS - UPPER PART -Applicable for Spider 16M-
Rating: 4.9 (1 reviews)

ROOF KINEMATICS - UPPER PART -Applicable for Spider 16M- of Ferrari Ferrari 430 Scuderia Spider 16M

View All

Ferrari 430 Scuderia Spider 16M - ROOF KINEMATICS - UPPER PART -Applicable for Spider 16M-

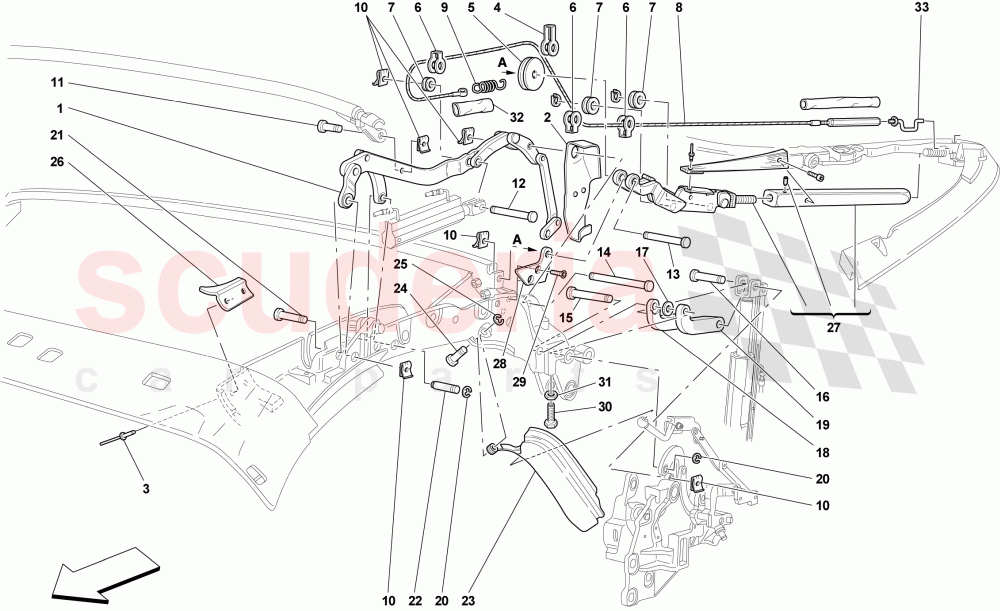

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	66458300	RH SWING ARM	$682.67	To Order
	66458200	LH SWING ARM	$682.67	To Order

Photo	Part No	Description	Price (each)	Stock
	66694000	LH SHIELD	$84.94	To Order
	66693900	RH SHIELD	$84.94	To Order

Photo	Part No	Description	Price (each)	Stock
	66693000	RIVET	$2.47	To Order

Photo	Part No	Description	Price (each)	Stock
	66688100	PULLEY BRACKET	$12.38	To Order

Photo	Part No	Description	Price (each)	Stock
	66688000	PULLEY	$12.38	To Order

Photo	Part No	Description	Price (each)	Stock
	66687900	PULLEY BRACKET	$10.57	To Order

Photo	Part No	Description	Price (each)	Stock
	66687800	PULLEY	$9.68	To Order

Photo	Part No	Description	Price (each)	Stock
	67047300	TENSIONING CABLE	$212.38	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	66688200	SPRING	$7.77	To Order

Photo	Part No	Description	Price (each)	Stock
	66682200	CLIP	$4.84	To Order

Photo	Part No	Description	Price (each)	Stock
	66682100	PIN	$8.32	To Order

Photo	Part No	Description	Price (each)	Stock
	66682800	PIN	$8.57	To Order

Photo	Part No	Description	Price (each)	Stock
	66682700	PIN	$8.78	To Order

Photo	Part No	Description	Price (each)	Stock
	66683200	PIN	$10.70	To Order

Photo	Part No	Description	Price (each)	Stock
	66683300	PIN	$9.35	To Order

Photo	Part No	Description	Price (each)	Stock
	66682900	PIN	$8.57	To Order

Photo	Part No	Description	Price (each)	Stock
	66694100	WASHER	$3.02	To Order

Photo	Part No	Description	Price (each)	Stock
	66683100	RH BRACKET	$197.21	To Order

Photo	Part No	Description	Price (each)	Stock
	66683000	LH BRACKET	$197.21	To Order

Photo	Part No	Description	Price (each)	Stock
	66682400	SEEGER	$3.94	To Order

Photo	Part No	Description	Price (each)	Stock
	66682000	PIN	$7.98	To Order

Photo	Part No	Description	Price (each)	Stock
	66682300	PIN	$16.89	To Order

Photo	Part No	Description	Price (each)	Stock
	66460200	LH PILLAR	$576.48	To Order
	66460300	RH PILLAR	$576.48	To Order

Photo	Part No	Description	Price (each)	Stock
	66682500	PIN	$9.24	To Order

Photo	Part No	Description	Price (each)	Stock
	66682600	SEEGER	$4.28	To Order

Photo	Part No	Description	Price (each)	Stock
	66681800	RH BRACKET	$45.50	To Order
	66681900	LH BRACKET	$45.50	To Order

Photo	Part No	Description	Price (each)	Stock
	67047100	COMPLETE CABLE LH TRIPLE JOINT	$1,259.17	To Order
	67047200	RH TRIPLE JOINT COMPLETE WITH CABLE	$1,259.17	To Order

Photo	Part No	Description	Price (each)	Stock
	67048800	TRIPLE JOINT COLUMN	$86.46	To Order

Photo	Part No	Description	Price (each)	Stock
	67048900	SCREW	$6.53	To Order

Photo	Part No	Description	Price (each)	Stock
	67048500	SCREW	$7.63	To Order

Photo	Part No	Description	Price (each)	Stock
	67048600	NUT	$8.05	To Order

Photo	Part No	Description	Price (each)	Stock
	67048700	SHEATH	$78.83	To Order

Photo	Part No	Description	Price (each)	Stock
	84688500	THREADED HOOK WITH NUT	$34.30	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	66458300	RH SWING ARM	66458300 RH SWING ARM	$682.67	1
1	66458200	LH SWING ARM	66458200 LH SWING ARM	$682.67 MSRP: ~~908.23~~ (24.8% off)	1
2	66694000	LH SHIELD	66694000 LH SHIELD	$84.94	1
2	66693900	RH SHIELD	66693900 RH SHIELD	$84.94	1
3	66693000	RIVET	66693000 RIVET	$2.47	4
4	66688100	PULLEY BRACKET	66688100 PULLEY BRACKET 37 mm	$12.38	2
5	66688000	PULLEY	66688000 PULLEY 37 mm	$12.38	2
6	66687900	PULLEY BRACKET	66687900 PULLEY BRACKET 20 mm	$10.57	6
7	66687800	PULLEY	66687800 PULLEY 20 mm	$9.68 MSRP: ~~9.85~~ (1.7% off)	6
8	67047300	TENSIONING CABLE IN STOCK	67047300 TENSIONING CABLE IN STOCK	$212.38 MSRP: ~~268.00~~ (20.8% off)	2
9	66688200	SPRING	66688200 SPRING	$7.77 MSRP: ~~8.25~~ (5.8% off)	2
10	66682200	CLIP	66682200 CLIP	$4.84 MSRP: ~~6.00~~ (19.3% off)	12
11	66682100	PIN	66682100 PIN	$8.32	2
12	66682800	PIN	66682800 PIN	$8.57	2
13	66682700	PIN	66682700 PIN	$8.78 MSRP: ~~21.30~~ (58.8% off)	2
14	66683200	PIN	66683200 PIN	$10.70	2
15	66683300	PIN	66683300 PIN	$9.35	2
16	66682900	PIN	66682900 PIN	$8.57	2
17	66694100	WASHER	66694100 WASHER	$3.02	2
18	66683100	RH BRACKET	66683100 RH BRACKET	$197.21	2
19	66683000	LH BRACKET	66683000 LH BRACKET	$197.21	2
20	66682400	SEEGER	66682400 SEEGER	$3.94	4
21	66682000	PIN	66682000 PIN	$7.98	2
22	66682300	PIN	66682300 PIN	$16.89	2
23	66460200	LH PILLAR	66460200 LH PILLAR	$576.48 MSRP: ~~796.48~~ (27.6% off)	1
23	66460300	RH PILLAR	66460300 RH PILLAR	$576.48 MSRP: ~~806.90~~ (28.6% off)	1
24	66682500	PIN	66682500 PIN	$9.24	2
25	66682600	SEEGER	66682600 SEEGER	$4.28	2
26	66681800	RH BRACKET	66681800 RH BRACKET	$45.50	1
26	66681900	LH BRACKET	66681900 LH BRACKET	$45.50	1
27	67047100	COMPLETE CABLE LH TRIPLE JOINT	67047100 COMPLETE CABLE LH TRIPLE JOINT Ref. 8	$1,259.17	1
27	67047200	RH TRIPLE JOINT COMPLETE WITH CABLE	67047200 RH TRIPLE JOINT COMPLETE WITH CABLE Ref. 8	$1,259.17	1
28	67048800	TRIPLE JOINT COLUMN	67048800 TRIPLE JOINT COLUMN	$86.46	2
29	67048900	SCREW	67048900 SCREW	$6.53	4
30	67048500	SCREW	67048500 SCREW	$7.63	2
31	67048600	NUT	67048600 NUT	$8.05	2
32	67048700	SHEATH	67048700 SHEATH	$78.83	2
33	84688500	THREADED HOOK WITH NUT	84688500 THREADED HOOK WITH NUT	$34.30	2

Roof Kinematics - Upper Part -Applicable For Spider 16M-

Ferrari 430 Scuderia Spider 16M

Ferrari 430 Scuderia Spider 16M - ROOF KINEMATICS - UPPER PART -Applicable for Spider 16M-
