DOORS - OPENING MECHANISM AND HINGES of Ferrari Ferrari 430 Scuderia Spider 16M

View All

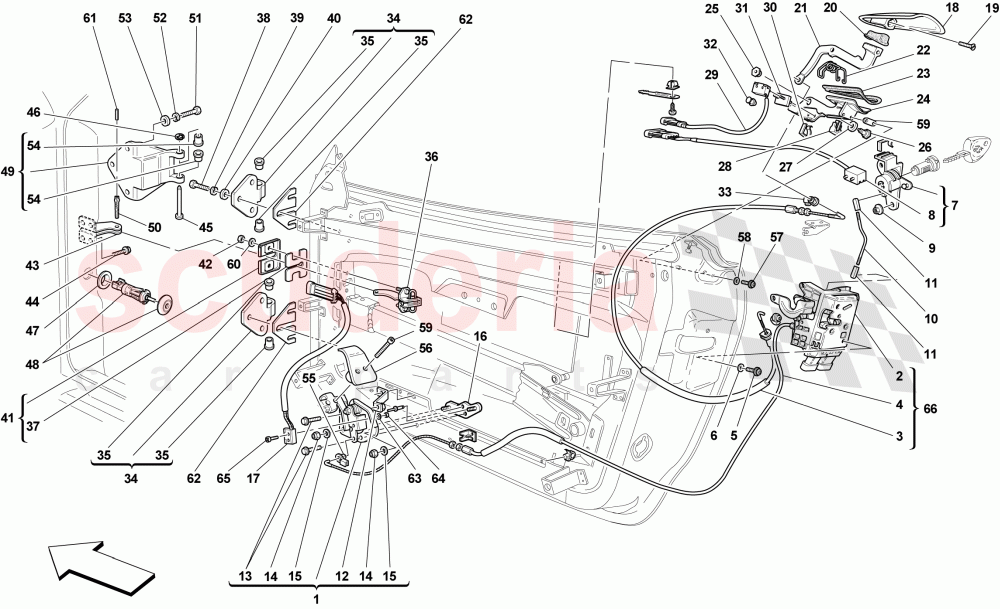

Ferrari 430 Scuderia Spider 16M - DOORS - OPENING MECHANISM AND HINGES

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	80360000	RH. INTERNAL DOOR OPENING HANDLE	$722.71	To Order
	80360100	LH. INTERNAL DOOR OPENING HANDLE	$684.68	To Order

Photo	Part No	Description	Price (each)	Stock
	68993200	LH Door Lock with Cables	$301.34	ARRIVING SOON
	80355200	RH DOOR LOCK	Enquire	To Order
	80355300	LH DOOR LOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68602600	External Door Release Cable	$27.49	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	65069300	DOOR INTERNAL OPENING CABLE	$21.50	To Order

Photo	Part No	Description	Price (each)	Stock
	62940900	Allen Head Screw M6 x 15	$1.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13550277	WASHER	$0.35	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	65839400	RH DOOR LOCK BLOCK	$304.29	To Order
	65839500	LH DOOR LOCK BLOCK	$304.29	To Order

Photo	Part No	Description	Price (each)	Stock
	63859200	MICROSWITCH	$272.47	To Order
	63859200	MICROSWITCH	$272.47	To Order

Photo	Part No	Description	Price (each)	Stock
	13046011	NUT	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	65836500	SAFETY TIE-ROD	$101.41	To Order

Photo	Part No	Description	Price (each)	Stock
	62794000	JOINT	$1.15	To Order

Photo	Part No	Description	Price (each)	Stock
	67743000	RH. BRACKET	Enquire	To Order
	67743100	LH. BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13027024	SCREW M6 X 16MM	$0.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER D.6.4 X 11.95 X 1.6	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	67744000	RH. BRACKET	$93.03	To Order
	67744100	LH. BRACKET	$93.03	To Order

Photo	Part No	Description	Price (each)	Stock
	171120	HANDLE MIRCO SWITCH	$151.37	To Order

Photo	Part No	Description	Price (each)	Stock
	82888600	RH. SIDE EXTERNAL HANDLE	Enquire	To Order
	82888700	LH. SIDE EXTERNAL HANDLE	Enquire	To Order
	63576010	RH EXTERNAL DOOR HANDLE	$211.92	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	13309277	SCREW	$0.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	64861100	RH INTERNAL GASKET	$19.48	To Order
	64861200	LH INTERNAL GASKET	$19.48	To Order

Photo	Part No	Description	Price (each)	Stock
	64860600	ARM	$110.49	To Order

Photo	Part No	Description	Price (each)	Stock
	64860700	HANDLE SPRING	$25.72	To Order

Photo	Part No	Description	Price (each)	Stock
	64860900	RH HANDLE GASKET	$163.29	To Order
	64861000	LH HANDLE GASKET	$163.29	To Order

Photo	Part No	Description	Price (each)	Stock
	64860510	LH HANDLE SEAT	$92.33	To Order
	64860410	RH Handle Seat	$92.33	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	65398700	BUSHING	$51.45	To Order

Photo	Part No	Description	Price (each)	Stock
	64860800	PIN	$71.59	To Order

Photo	Part No	Description	Price (each)	Stock
	65520700	WASHER	$12.36	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	65398600	GUIDE	$21.18	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	178187	MICROSWITCH	$75.68	To Order

Photo	Part No	Description	Price (each)	Stock
	63179900	Fastener Clip	$3.55	To Order

Photo	Part No	Description	Price (each)	Stock
	65806300	PLATE	$36.68	To Order

Photo	Part No	Description	Price (each)	Stock
	63853400	RUBBER BUSHING	$4.53	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14578283	TIE ROD RETAINING CLIP	$0.11	To Order

Photo	Part No	Description	Price (each)	Stock
	64803300	MOBILE HINGE	$240.89	To Order

Photo	Part No	Description	Price (each)	Stock
	62825300	BUSHING	$32.95	To Order

Photo	Part No	Description	Price (each)	Stock
	65195200	TIE-ROD DOOR	$302.75	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	63892300	DOOR GASKET	$4.53	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	16043436	SCREW	$0.44	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER 10 X 18 X 2.5	$4.98	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13550405	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	63895200	RH COLUMN	$28.75	To Order
	63895300	LH COLUMN	$27.23	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	67111800	BRACKET	$253.57	To Order

Photo	Part No	Description	Price (each)	Stock
	230083	SCREW	$1.35	To Order

Photo	Part No	Description	Price (each)	Stock
	64803400	PIN	$68.11	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11087974	SNAP RING	$0.17	IN STOCK

Photo	Part No	Description	Price (each)	Stock

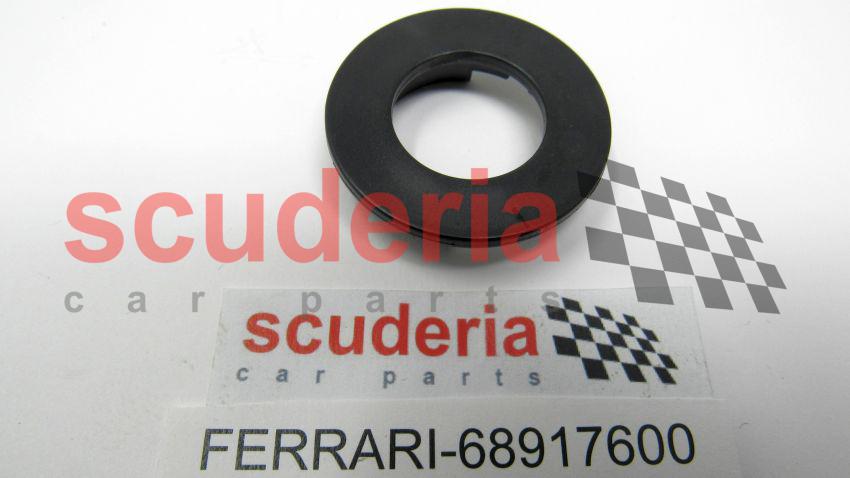

	68917600	SWITCH FIXING PLATE	$27.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	179697	PILLAR SWITCH	$30.52	To Order

Photo	Part No	Description	Price (each)	Stock
	64803200	FIXED HINGE	$145.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	66842800	Pin	$3.78	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	16043534	SCREW M8 X 22	$0.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER 10 X 18 X 2.5	$4.98	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13550405	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	62825300	BUSHING	$32.95	To Order

Photo	Part No	Description	Price (each)	Stock
	810790	FASTENER CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80681000	RH. INTERNAL DOOR OPENING HANDLE	$646.64	To Order
	80681200	LH. INTERNAL DOOR OPENING HANDLE	$646.64	To Order

Photo	Part No	Description	Price (each)	Stock
	11566224	SCREW	$0.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	82242400	WASHER	$0.09	To Order

Photo	Part No	Description	Price (each)	Stock
	86694200	SCREW	$126.79	To Order

Photo	Part No	Description	Price (each)	Stock
	12644424	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14163874	SPRING PIN	$0.87	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	65998600	SHIM	$6.07	To Order

Photo	Part No	Description	Price (each)	Stock
	63693700	WASHER	$0.69	To Order

Photo	Part No	Description	Price (each)	Stock
	63693800	NUT	$0.87	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	63992900	SCREW	$0.61	To Order

Photo	Part No	Description	Price (each)	Stock
	81230100	DOOR LOCKING RH. COMPLETE WITH CABLES WITHOUT EXTERIOR LOCKING	$229.32	To Order
	81230200	DOOR LOCKING RH. COMPLETE WITH CABLES WITHOUT EXTERIOR LOCKING	$266.25	To Order
	81189900	DOOR LOCKING LH. COMPLETE WITH CABLES WITHOUT EXTERIOR LOCKING	$266.25	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	80360000	RH. INTERNAL DOOR OPENING HANDLE	80360000 RH. INTERNAL DOOR OPENING HANDLE	$722.71	1
1	80360100	LH. INTERNAL DOOR OPENING HANDLE	80360100 LH. INTERNAL DOOR OPENING HANDLE	$684.68	1
2	68993200	LH Door Lock with Cables ARRIVING SOON	68993200 LH Door Lock with Cables Replaced by lock compl. with cables ref. 66; Not for GD; No longer supplied ARRIVING SOON	$301.34 MSRP: ~~446.46~~ (32.5% off)	1
2	80355200	RH DOOR LOCK	80355200 RH DOOR LOCK Replaced by lock compl. with cables ref. 66; Not for GD; No longer supplied	-	1	Enquire
2	80355300	LH DOOR LOCK	80355300 LH DOOR LOCK Replaced by lock compl. with cables ref. 66; Applicable for GD; No longer supplied	-	1	Enquire
3	68602600	External Door Release Cable IN STOCK	68602600 External Door Release Cable Replaced by lock compl. with cables ref. 66; No longer supplied IN STOCK	$27.49 MSRP: ~~39.65~~ (30.7% off)	1
4	65069300	DOOR INTERNAL OPENING CABLE	65069300 DOOR INTERNAL OPENING CABLE Replaced by lock compl. with cables ref. 66; No longer supplied	$21.50 MSRP: ~~71.95~~ (70.1% off)	2
5	62940900	Allen Head Screw M6 x 15 IN STOCK	62940900 Allen Head Screw M6 x 15 IN STOCK	$1.32 MSRP: ~~1.75~~ (24.6% off)	6
6	13550277	WASHER IN STOCK	13550277 WASHER IN STOCK	$0.35	6
7	65839400	RH DOOR LOCK BLOCK	65839400 RH DOOR LOCK BLOCK Applicable for GD	$304.29	1
7	65839500	LH DOOR LOCK BLOCK	65839500 LH DOOR LOCK BLOCK Not for GD	$304.29	1
8	63859200	MICROSWITCH	63859200 MICROSWITCH Applicable for GD	$272.47 MSRP: ~~349.80~~ (22.1% off)	1
8	63859200	MICROSWITCH	63859200 MICROSWITCH Not for GD	$272.47 MSRP: ~~349.80~~ (22.1% off)	1
9	13046011	NUT	13046011 NUT	$0.32	4
10	65836500	SAFETY TIE-ROD	65836500 SAFETY TIE-ROD	$101.41	2
11	62794000	JOINT	62794000 JOINT	$1.15 MSRP: ~~1.97~~ (41.6% off)	4
12	67743000	RH. BRACKET	67743000 RH. BRACKET	-	1	Enquire
12	67743100	LH. BRACKET	67743100 LH. BRACKET	-	1	Enquire
13	13027024	SCREW M6 X 16MM IN STOCK	13027024 SCREW M6 X 16MM IN STOCK	$0.20 MSRP: ~~1.00~~ (80% off)	2
14	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.32	4
15	10519424	WASHER D.6.4 X 11.95 X 1.6 IN STOCK	10519424 WASHER D.6.4 X 11.95 X 1.6 IN STOCK	$0.02 MSRP: ~~0.25~~ (92% off)	4
16	67744000	RH. BRACKET	67744000 RH. BRACKET	$93.03	1
16	67744100	LH. BRACKET	67744100 LH. BRACKET	$93.03	1
17	171120	HANDLE MIRCO SWITCH	171120 HANDLE MIRCO SWITCH	$151.37	2
18	82888600	RH. SIDE EXTERNAL HANDLE	82888600 RH. SIDE EXTERNAL HANDLE Carbon	-	1	Enquire
18	82888700	LH. SIDE EXTERNAL HANDLE	82888700 LH. SIDE EXTERNAL HANDLE Carbon	-	1	Enquire
18	63576010	RH EXTERNAL DOOR HANDLE	63576010 RH EXTERNAL DOOR HANDLE Standard	$211.92 MSRP: ~~269.94~~ (21.5% off)	1
18	63576110	LH EXTERNAL DOOR HANDLE	63576110 LH EXTERNAL DOOR HANDLE Standard	$211.92	1
19	13309277	SCREW IN STOCK	13309277 SCREW IN STOCK	$0.34	2
20	64861100	RH INTERNAL GASKET	64861100 RH INTERNAL GASKET	$19.48	1
20	64861200	LH INTERNAL GASKET	64861200 LH INTERNAL GASKET	$19.48	1
21	64860600	ARM	64860600 ARM	$110.49 MSRP: ~~147.90~~ (25.3% off)	2
22	64860700	HANDLE SPRING	64860700 HANDLE SPRING	$25.72 MSRP: ~~50.35~~ (48.9% off)	2
23	64860900	RH HANDLE GASKET	64860900 RH HANDLE GASKET	$163.29	1
23	64861000	LH HANDLE GASKET	64861000 LH HANDLE GASKET	$163.29	1
24	64860510	LH HANDLE SEAT	64860510 LH HANDLE SEAT	$92.33	1
24	64860410	RH Handle Seat IN STOCK	64860410 RH Handle Seat IN STOCK	$92.33	1
25	65398700	BUSHING	65398700 BUSHING	$51.45 MSRP: ~~95.05~~ (45.9% off)	2
26	64860800	PIN	64860800 PIN	$71.59 MSRP: ~~132.81~~ (46.1% off)	2
27	65520700	WASHER IN STOCK	65520700 WASHER IN STOCK	$12.36 MSRP: ~~25.69~~ (51.9% off)	4
28	65398600	GUIDE IN STOCK	65398600 GUIDE IN STOCK	$21.18	2
29	178187	MICROSWITCH	178187 MICROSWITCH	$75.68 MSRP: ~~103.40~~ (26.8% off)	2
30	63179900	Fastener Clip	63179900 Fastener Clip	$3.55 MSRP: ~~5.49~~ (35.3% off)	2
31	65806300	PLATE	65806300 PLATE	$36.68	2
32	63853400	RUBBER BUSHING IN STOCK	63853400 RUBBER BUSHING IN STOCK	$4.53	2
33	14578283	TIE ROD RETAINING CLIP	14578283 TIE ROD RETAINING CLIP	$0.11 MSRP: ~~0.75~~ (85.3% off)	2
34	64803300	MOBILE HINGE	64803300 MOBILE HINGE	$240.89	4
35	62825300	BUSHING	62825300 BUSHING	$32.95 MSRP: ~~48.70~~ (32.3% off)	8
36	65195200	TIE-ROD DOOR IN STOCK	65195200 TIE-ROD DOOR IN STOCK	$302.75	2
37	63892300	DOOR GASKET IN STOCK	63892300 DOOR GASKET IN STOCK	$4.53	2
38	16043436	SCREW IN STOCK	16043436 SCREW IN STOCK	$0.44	12
39	84653800	WASHER 10 X 18 X 2.5 IN STOCK	84653800 WASHER 10 X 18 X 2.5 IN STOCK	$4.98	12
40	13550405	WASHER IN STOCK	13550405 WASHER IN STOCK	$0.06 MSRP: ~~0.20~~ (70% off)	12
41	63895200	RH COLUMN	63895200 RH COLUMN	$28.75 MSRP: ~~44.39~~ (35.2% off)	1
41	63895300	LH COLUMN	63895300 LH COLUMN	$27.23 MSRP: ~~44.40~~ (38.7% off)	1
42	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.32	4
43	67111800	BRACKET	67111800 BRACKET	$253.57 MSRP: ~~384.79~~ (34.1% off)	2
44	230083	SCREW	230083 SCREW	$1.35	8
45	64803400	PIN IN STOCK	64803400 PIN IN STOCK	$68.11	4
46	11087974	SNAP RING IN STOCK	11087974 SNAP RING IN STOCK	$0.17 MSRP: ~~0.49~~ (65.3% off)	4
47	68917600	SWITCH FIXING PLATE IN STOCK	68917600 SWITCH FIXING PLATE IN STOCK	$27.23 MSRP: ~~36.78~~ (26% off)	2
48	179697	PILLAR SWITCH	179697 PILLAR SWITCH	$30.52 MSRP: ~~45.86~~ (33.4% off)	2
49	64803200	FIXED HINGE IN STOCK	64803200 FIXED HINGE IN STOCK	$145.31	4
50	66842800	Pin IN STOCK	66842800 Pin IN STOCK	$3.78 MSRP: ~~4.95~~ (23.6% off)	2
51	16043534	SCREW M8 X 22 IN STOCK	16043534 SCREW M8 X 22 IN STOCK	$0.34	12
52	84653800	WASHER 10 X 18 X 2.5 IN STOCK	84653800 WASHER 10 X 18 X 2.5 IN STOCK	$4.98	12
53	13550405	WASHER IN STOCK	13550405 WASHER IN STOCK	$0.06 MSRP: ~~0.20~~ (70% off)	12
54	62825300	BUSHING	62825300 BUSHING	$32.95 MSRP: ~~48.70~~ (32.3% off)	8
55	810790	FASTENER CLIP	810790 FASTENER CLIP	-	2	Enquire
56	80681000	RH. INTERNAL DOOR OPENING HANDLE	80681000 RH. INTERNAL DOOR OPENING HANDLE	$646.64	1
56	80681200	LH. INTERNAL DOOR OPENING HANDLE	80681200 LH. INTERNAL DOOR OPENING HANDLE	$646.64	1
57	11566224	SCREW IN STOCK	11566224 SCREW IN STOCK	$0.34	2
58	82242400	WASHER	82242400 WASHER	$0.09	2
59	86694200	SCREW	86694200 SCREW	$126.79	4
60	12644424	WASHER IN STOCK	12644424 WASHER IN STOCK	$0.06 MSRP: ~~0.40~~ (85% off)	4
61	14163874	SPRING PIN IN STOCK	14163874 SPRING PIN IN STOCK	$0.87	2
62	65998600	SHIM	65998600 SHIM	$6.07	4
63	63693700	WASHER	63693700 WASHER	$0.69	2
64	63693800	NUT IN STOCK	63693800 NUT IN STOCK	$0.87	2
65	63992900	SCREW	63992900 SCREW	$0.61 MSRP: ~~1.55~~ (60.6% off)	2
66	81230100	DOOR LOCKING RH. COMPLETE WITH CABLES WITHOUT EXTERIOR LOCKING	81230100 DOOR LOCKING RH. COMPLETE WITH CABLES WITHOUT EXTERIOR LOCKING Not for GD	$229.32	1
66	81230200	DOOR LOCKING RH. COMPLETE WITH CABLES WITHOUT EXTERIOR LOCKING	81230200 DOOR LOCKING RH. COMPLETE WITH CABLES WITHOUT EXTERIOR LOCKING Applicable for GD	$266.25	1
66	81189900	DOOR LOCKING LH. COMPLETE WITH CABLES WITHOUT EXTERIOR LOCKING	81189900 DOOR LOCKING LH. COMPLETE WITH CABLES WITHOUT EXTERIOR LOCKING Not for GD	$266.25	1
66	81261800	DOOR LOCKING LH. COMPLETE WITH CABLES WITHOUT EXTERIOR LOCKING	81261800 DOOR LOCKING LH. COMPLETE WITH CABLES WITHOUT EXTERIOR LOCKING Applicable for GD	$287.61	1
