Ferrari 360 Modena - FRAME - REAR ELEMENTS SUB-GROUPS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
66214900 COMPLETE RH SIDE FRAME $3,861.84 To Order
66453300 COMPLETE RH SIDE FRAME $3,861.84 To Order
Photo Part No Description Price (each) Stock
66453400 COMPLETE LH SIDE FRAME $3,861.84 To Order
66290100 COMPLETE LH SIDE FRAME $3,861.84 To Order
Photo Part No Description Price (each) Stock
66453500 RH REAR LATERAL CASTING $3,336.81 To Order
65941800 RH REAR LATERAL CASTING $3,166.86 To Order
Photo Part No Description Price (each) Stock
65941900 LH REAR LATERAL CASTING $3,166.86 To Order
66453600 LH REAR LATERAL CASTING $3,336.81 To Order
Photo Part No Description Price (each) Stock
166227 R.H. UPPER FRAME $257.95 To Order
Photo Part No Description Price (each) Stock
166127 L.H. UPPER FRAME $288.30 To Order
Photo Part No Description Price (each) Stock
66465000 R.H. LOWER FRAME $515.91 To Order
Photo Part No Description Price (each) Stock
66465100 L.H. LOWER FRAME $515.91 To Order
Photo Part No Description Price (each) Stock
181980 UPPER INNER CORE $317.73 To Order
Photo Part No Description Price (each) Stock
181979 LOWER INNER CORE $11.17 To Order
Photo Part No Description Price (each) Stock
6187237 R.H. BRACKET ENGINE SUPPORT $1,018.59 To Order
6234102 R.H. BRACKET ENGINE SUPPORT $126.41 To Order
Photo Part No Description Price (each) Stock
6187137 L.H. BRACKET ENGINE SUPPORT $1,138.06 To Order
6234101 L.H. BRACKET ENGINE SUPPORT $406.10 To Order
Photo Part No Description Price (each) Stock
65942200 R.H. SUPPORT FOR BRACKET $1,293.85 To Order
Photo Part No Description Price (each) Stock
65942311 LH STRUT MOUNT $711.74 To Order
Photo Part No Description Price (each) Stock
183978 REAR BUMPER CROSS MEMBER $277.41 To Order
Photo Part No Description Price (each) Stock
183834 R.H. REAR FRAME $546.26 To Order
Photo Part No Description Price (each) Stock
183833 L.H. REAR FRAME $445.43 To Order
Photo Part No Description Price (each) Stock
64810000 R.H. REAR FENDER FRAME $228.76 To Order
Photo Part No Description Price (each) Stock
65995500 L.H. REAR FENDER FRAME $425.02 To Order
Photo Part No Description Price (each) Stock
65151611 R.H. SIDE BRACKET $227.60 To Order
Photo Part No Description Price (each) Stock
65151711 L.H. SIDE BRACKET $227.60 To Order
Photo Part No Description Price (each) Stock
66292200 STANDARD HEAD POP RIVET $1.01 To Order
66292300 HALF REPOTTED HEAD POP RIVET $1.90 To Order
Photo Part No Description Price (each) Stock
65133800 RIVET $0.14 IN STOCK
Photo Part No Description Price (each) Stock
15624311 HEXAGONAL RIVET $4.38 IN STOCK
15624211 Hexagonal Rivet $0.95 IN STOCK
15180411 Hexagonal Blind Rivet $1.35 IN STOCK
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
65151200 Rivet $4.15 IN STOCK
Photo Part No Description Price (each) Stock
179299 RIVET M10 BLIND $6.53 To Order
166101 Knurled Rivet $1.46 IN STOCK
65135000 Knurled Rivet $1.10 IN STOCK
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
65065400 HEXAGONAL HEAD STUD BOLT $3.26 To Order
Photo Part No Description Price (each) Stock
13836971 SCREW $0.48 IN STOCK
Photo Part No Description Price (each) Stock
166288 R.H. BRACKET $22.75 To Order
Photo Part No Description Price (each) Stock
166188 L.H. BRACKET $22.75 To Order
Photo Part No Description Price (each) Stock
6166261 R.H. UPPER FUSION REAR PILLAR $419.41 To Order
Photo Part No Description Price (each) Stock
6166161 L.H. UPPER FUSION REAR PILLAR $419.41 To Order
Photo Part No Description Price (each) Stock
66051211 COMPLETE RH REAR PILLAR $635.48 To Order
Photo Part No Description Price (each) Stock
66051111 COMPLETE LH REAR PILLAR $635.48 To Order
Photo Part No Description Price (each) Stock
70000950 REPAIR INSERTS KIT $1,688.88 To Order
View All

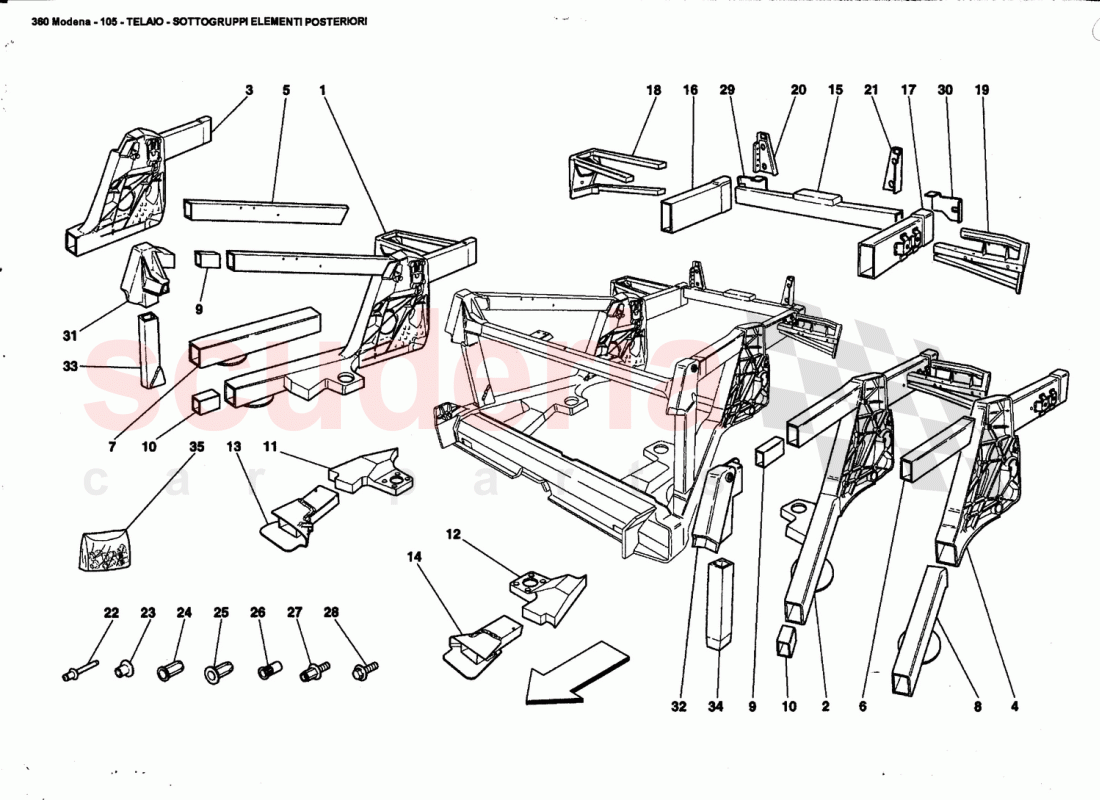

FRAME - REAR ELEMENTS SUB-GROUPS of Ferrari Ferrari 360 Modena Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 66214900
COMPLETE RH SIDE FRAME
FRAME / Valid till car Nr. 120068 for GS / and 120193 for GD 		$3,861.84 1
1 66453300
COMPLETE RH SIDE FRAME
FRAME / Valid from car Nr. 120069 for GS / and 120194 for GD 		$3,861.84 1
2 66453400
COMPLETE LH SIDE FRAME
FRAME / Valid from car Nr. 120069 for GS / and 120194 for GD 		$3,861.84 1
2 66290100
COMPLETE LH SIDE FRAME
FRAME / Valid till car Nr. 120068 for GS / and 120193 for GD 		$3,861.84 1
3 66453500
RH REAR LATERAL CASTING
CASTING / Valid from car Nr. 120069 for GS / and 120194 for GD 		$3,336.81 1
3 65941800
RH REAR LATERAL CASTING
CASTING / Valid till car Nr. 120068 for GS / and 120193 for GD 		$3,166.86 1
4 65941900
LH REAR LATERAL CASTING
CASTING / Valid till car Nr. 120068 for GS / and 120193 for GD 		$3,166.86 1
4 66453600
LH REAR LATERAL CASTING
CASTING / Valid from car Nr. 120069 for GS / and 120194 for GD 		$3,336.81 1
5 166227
R.H. UPPER FRAME 		$257.95 1
6 166127
L.H. UPPER FRAME 		$288.30 1
7 66465000
R.H. LOWER FRAME 		$515.91 1
8 66465100
L.H. LOWER FRAME 		$515.91 1
9 181980
UPPER INNER CORE 		$317.73 -
10 181979
LOWER INNER CORE 		$11.17 -
11 6187237
R.H. BRACKET ENGINE SUPPORT
SUPPORT / Valid from car Nr. 120069 for GS / and 120194 for GD / Valid till car Nr. 138027 		$1,018.59 1
11 6234102
R.H. BRACKET ENGINE SUPPORT
SUPPORT / Valid from car Nr. 120069 for GS / and 120194 for GD / Valid from car Nr. 138028 		$126.41 1
12 6187137
L.H. BRACKET ENGINE SUPPORT
SUPPORT / Valid from car Nr. 120069 for GS / and 120194 for GD / Valid till car Nr. 138027 		$1,138.06 1
12 6234101
L.H. BRACKET ENGINE SUPPORT
SUPPORT / Valid from car Nr. 138028 		$406.10 1
13 65942200
R.H. SUPPORT FOR BRACKET 		$1,293.85 1
14 65942311
LH STRUT MOUNT 		$711.74 1
15 183978
REAR BUMPER CROSS MEMBER
CROSS MEMBER 		$277.41 (47.2% off) 1
16 183834
R.H. REAR FRAME 		$546.26 1
17 183833
L.H. REAR FRAME 		$445.43 1
18 64810000
R.H. REAR FENDER FRAME 		$228.76 1
19 65995500
L.H. REAR FENDER FRAME 		$425.02 1
20 65151611
R.H. SIDE BRACKET 		$227.60 1
21 65151711
L.H. SIDE BRACKET 		$227.60 1
22 66292200
STANDARD HEAD POP RIVET 		$1.01 (96.1% off) -
22 66292300
HALF REPOTTED HEAD POP RIVET 		$1.90 -
23 65133800
RIVET
IN STOCK 		$0.14 -
24 15624311
HEXAGONAL RIVET
IN STOCK 		$4.38 -
24 15624211
Hexagonal Rivet
IN STOCK 		$0.95 -
24 15180411
Hexagonal Blind Rivet
IN STOCK 		$1.35 -
24 248150
ESAGONAL RIVET M8 		$0.41 -
24 248146
HEXAGONAL RIVET 		$1.01 -
25 65151200
Rivet
IN STOCK 		$4.15 -
26 179299
RIVET M10 BLIND 		$6.53 -
26 166101
Knurled Rivet
IN STOCK 		$1.46 -
26 65135000
Knurled Rivet
IN STOCK 		$1.10 -
26 65930400
Knurled Rivet
IN STOCK 		$0.95 -
26 65319800
Nut Knurled Rivet
IN STOCK 		$0.80 -
27 65065400
HEXAGONAL HEAD STUD BOLT 		$3.26 -
28 13836971
SCREW
IN STOCK 		$0.48 (63.1% off) -
29 166288
R.H. BRACKET 		$22.75 (17.4% off) 1
30 166188
L.H. BRACKET 		$22.75 (17.4% off) 1
31 6166261
R.H. UPPER FUSION REAR PILLAR 		$419.41 1
32 6166161
L.H. UPPER FUSION REAR PILLAR 		$419.41 1
33 66051211
COMPLETE RH REAR PILLAR 		$635.48 1
34 66051111
COMPLETE LH REAR PILLAR 		$635.48 1
35 70000950
REPAIR INSERTS KIT 		$1,688.88 1
