Ferrari 360 Modena - FRAME - FRONT ELEMENTS STRUCTURES AND PLATES

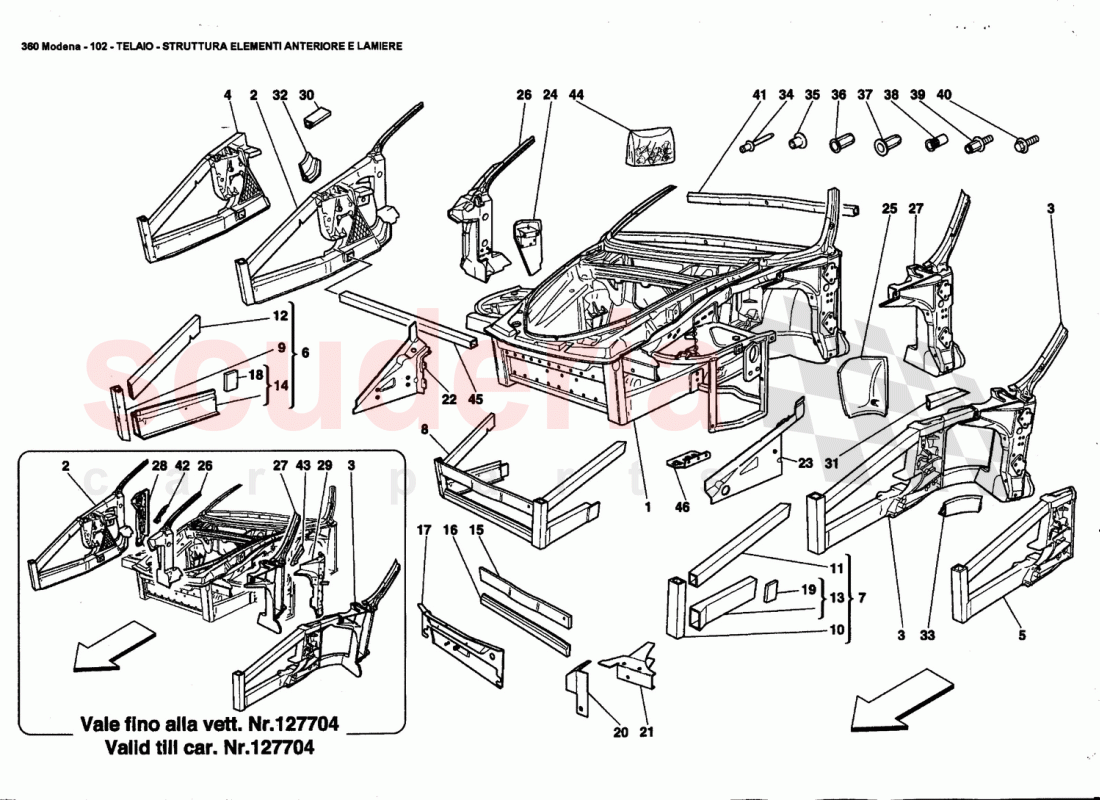

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	66452100	COMPLETE FRONT FRAME	$8,706.72	To Order
	67387300	COMPLETE FRONT FRAME	$4,152.98	To Order
	67632100	COMPLETE FRONT FRAME	$3,707.89	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	66452300	COMPLETE RH FRONT SIDE FRAME	$7,088.57	To Order
	67410300	COMPLETE RH FRONT SIDE FRAME	$7,088.57	To Order
	67386700	COMPLETE RH FRONT SIDE FRAME	$7,088.57	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	66452500	COMPLETE LH FRONT SIDE FRAME	$7,088.57	To Order
	67410700	COMPLETE LH FRONT SIDE FRAME	$7,088.57	To Order
	66452400	COMPLETE LH FRONT SIDE FRAME	$7,088.57	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	65940500	RH FRONT LATERAL SPRAG	$5,110.33	To Order
	66452600	RH FRONT LATERAL SPRAG	$4,986.60	To Order

Photo	Part No	Description	Price (each)	Stock
	67040100	LH FRONT LATERAL SPRAG	$10,395.73	To Order
	67040200	LH FRONT LATERAL SPRAG	$10,395.73	To Order
	65940600	LH FRONT LATERAL SPRAG	$5,110.33	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	65940300	COMPLETE RH FRONT LATERAL FRAME	$2,509.30	To Order

Photo	Part No	Description	Price (each)	Stock
	65940400	COMPLETE LH FRONT LATERAL FRAME	$2,509.30	To Order

Photo	Part No	Description	Price (each)	Stock
	65940200	COMPLETE FRONT FRAME	$3,027.52	To Order

Photo	Part No	Description	Price (each)	Stock
	166202	RH FRONT BUMPER PILLAR	$983.23	To Order

Photo	Part No	Description	Price (each)	Stock
	166102	LH FRONT BUMPER PILLAR	$983.23	To Order

Photo	Part No	Description	Price (each)	Stock
	166105	L.H. FRONT UPPER FRAME	$365.54	To Order

Photo	Part No	Description	Price (each)	Stock
	166205	R.H. FRONT UPPER FRAME	$145.01	To Order

Photo	Part No	Description	Price (each)	Stock
	177481	R.H. FRONT LOWER FRAME	$920.20	To Order

Photo	Part No	Description	Price (each)	Stock
	177482	L.H. FRONT LOWER FRAME	$920.20	To Order

Photo	Part No	Description	Price (each)	Stock
	166301	FRONT UPPER CROSS MEMBER -Valid from Ass. Nr. 74672- -Valid after stock exhaustion of 166301-	$844.56	To Order

Photo	Part No	Description	Price (each)	Stock
	183816	FRONT LOWER CROSS MEMBER	$726.89	To Order

Photo	Part No	Description	Price (each)	Stock
	65393511	TRUNK COMPARTMENT FRONT WALL	$402.49	To Order

Photo	Part No	Description	Price (each)	Stock
	66395711	R.H. FRONT REINFORCEMENT	$13.33	To Order

Photo	Part No	Description	Price (each)	Stock
	66395811	L.H. FRONT REINFORCEMENT	$13.33	To Order

Photo	Part No	Description	Price (each)	Stock
	66395500	R.H. BRACKET	$355.79	To Order
	66395400	L.H. BRACKET	$453.79	To Order

Photo	Part No	Description	Price (each)	Stock
	166170	LH BRAKET FOR FRONT BUMPER FIXING	$78.24	To Order
	166270	RH BRAKET FOR FRONT BUMPER FIXING	$70.72	To Order

Photo	Part No	Description	Price (each)	Stock
	65152700	R.H. FRONT SIDE WALL	$372.67	To Order

Photo	Part No	Description	Price (each)	Stock
	65152811	L.H. FRONT SIDE WALL	$567.24	To Order

Photo	Part No	Description	Price (each)	Stock
	175738	R.H. PLATE	$238.50	To Order
	179433	R.H. PLATE	$238.50	To Order

Photo	Part No	Description	Price (each)	Stock
	175737	L.H. PLATE	$238.50	To Order
	179432	L.H. PLATE	$238.50	To Order

Photo	Part No	Description	Price (each)	Stock
	65941600	COMPLETE R.H. DOOR PILLAR	$1,992.59	To Order
	67385900	COMPLETE R.H. DOOR PILLAR	$2,209.31	To Order

Photo	Part No	Description	Price (each)	Stock
	65941700	COMPLETE L.H. DOOR PILLAR	$2,281.55	To Order
	67385800	COMPLETE L.H. DOOR PILLAR	$2,209.31	To Order

Photo	Part No	Description	Price (each)	Stock
	64768211	COMPLETE FRONT R.H.	$1,384.57	To Order

Photo	Part No	Description	Price (each)	Stock
	64768311	CPL FRONT LH PILLAR	$1,354.47	To Order

Photo	Part No	Description	Price (each)	Stock
	166207	R.H. UPPER FRAME	$79.75	To Order

Photo	Part No	Description	Price (each)	Stock
	166107	L.H. UPPER FRAME	$81.25	To Order

Photo	Part No	Description	Price (each)	Stock
	985166215	RH LOWER EXTRUSION	$340.34	To Order

Photo	Part No	Description	Price (each)	Stock
	166115	L.H. LOWER FRAME	$64.62	To Order

Photo	Part No	Description	Price (each)	Stock
	66292200	STANDARD HEAD POP RIVET	$1.00	To Order
	66292300	HALF REPOTTED HEAD POP RIVET	$1.89	To Order

Photo	Part No	Description	Price (each)	Stock
	65133800	RIVET	$0.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	15624311	HEXAGONAL RIVET	$4.35	IN STOCK
	15624211	Hexagonal Rivet	$0.94	IN STOCK
	15180411	Hexagonal Blind Rivet	$1.34	IN STOCK

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	65151200	Rivet	$4.12	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	179299	RIVET M10 BLIND	$6.48	To Order
	166101	Knurled Rivet	$1.44	IN STOCK
	65135000	Knurled Rivet	$1.09	IN STOCK

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	65065400	HEXAGONAL HEAD STUD BOLT	$3.24	To Order

Photo	Part No	Description	Price (each)	Stock
	13836971	SCREW	$0.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	65160211	FRONT PILLAR R.H. UPPER	$201.67	To Order

Photo	Part No	Description	Price (each)	Stock
	65160311	FRONT PILLAR L.H. UPPER	$147.34	To Order

Photo	Part No	Description	Price (each)	Stock
	70000950	REPAIR INSERTS KIT	$1,675.04	To Order

Photo	Part No	Description	Price (each)	Stock
	166314	LOWER CROSS MEMBER	$165.53	To Order

Photo	Part No	Description	Price (each)	Stock
	65013100	BRACKET FOR CONTROL UNITS FIXING	$129.11	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	66452100	COMPLETE FRONT FRAME	66452100 COMPLETE FRONT FRAME Valid for GD / Valid from car Nr. 120194 to car Nr. 127704	$8,706.72	1
1	67387300	COMPLETE FRONT FRAME	67387300 COMPLETE FRONT FRAME Valid for GD / Valid from car Nr. 127705	$4,152.98	1
1	67632100	COMPLETE FRONT FRAME	67632100 COMPLETE FRONT FRAME Valid only for USA and CDN from car 129895 / See Table 102 Pos. 1	$3,707.89	1
1	67386200	COMPLETE FRONT FRAME	67386200 COMPLETE FRONT FRAME Not for GD / Valid from car Nr. 127705 / Not for USA and CDN from car 129895 / See Table 101 Pos. 2	$5,422.94	1
1	66451200	COMPLETE FRONT FRAME	66451200 COMPLETE FRONT FRAME Valid for GD / Valid till car Nr. 120193	$16,389.57	1
1	65940100	COMPLETE FRONT FRAME	65940100 COMPLETE FRONT FRAME Not for GD / Valid till car Nr. 120068	$9,113.89	1
1	66452000	COMPLETE FRONT FRAME	66452000 COMPLETE FRONT FRAME Not for GD / Valid from car Nr. 120069 to car Nr. 127704	$8,624.78	1
2	66452300	COMPLETE RH FRONT SIDE FRAME	66452300 COMPLETE RH FRONT SIDE FRAME SIDE FRAME / Valid for GD / Valid from car Nr. 120069 to car Nr. 127704	$7,088.57	1
2	67410300	COMPLETE RH FRONT SIDE FRAME	67410300 COMPLETE RH FRONT SIDE FRAME SIDE FRAME / Valid for GD / Valid from car Nr. 127705	$7,088.57	1
2	67386700	COMPLETE RH FRONT SIDE FRAME	67386700 COMPLETE RH FRONT SIDE FRAME SIDE FRAME / Not for GD / Valid from car Nr. 127705	$7,088.57	1
2	66451300	COMPLETE RH FRONT SIDE FRAME	66451300 COMPLETE RH FRONT SIDE FRAME SIDE FRAME / Valid for GD / Valid till car Nr. 120193	$5,972.98	1
2	65940700	COMPLETE RH FRONT SIDE FRAME	65940700 COMPLETE RH FRONT SIDE FRAME SIDE FRAME / Not for GD / Valid till car Nr. 120068	$7,088.57	1
2	66452200	COMPLETE RH FRONT SIDE FRAME	66452200 COMPLETE RH FRONT SIDE FRAME SIDE FRAME / Not for GD / Valid from car Nr. 120069 to car Nr. 127704	$7,088.57	1
3	66452500	COMPLETE LH FRONT SIDE FRAME	66452500 COMPLETE LH FRONT SIDE FRAME SIDE FRAME / Valid for GD / Valid from car Nr. 120069 to car Nr. 127704	$7,088.57	1
3	67410700	COMPLETE LH FRONT SIDE FRAME	67410700 COMPLETE LH FRONT SIDE FRAME SIDE FRAME / Valid for GD / Valid from car Nr. 127705	$7,088.57	1
3	66452400	COMPLETE LH FRONT SIDE FRAME	66452400 COMPLETE LH FRONT SIDE FRAME SIDE FRAME / Not for GD / Valid from car Nr. 120069 to car Nr. 127704	$7,088.57	1
3	67410600	COMPLETE LH FRONT SIDE FRAME	67410600 COMPLETE LH FRONT SIDE FRAME SIDE FRAME / Not for GD / Valid from car Nr. 127705	$5,972.98	1
3	66451400	COMPLETE LH FRONT SIDE FRAME	66451400 COMPLETE LH FRONT SIDE FRAME SIDE FRAME / Valid for GD / Valid till car Nr. 120193	$5,972.98	1
3	65940800	COMPLETE LH FRONT SIDE FRAME	65940800 COMPLETE LH FRONT SIDE FRAME SIDE FRAME / Not for GD / Valid till car Nr. 120068	$7,088.57	1
4	65940500	RH FRONT LATERAL SPRAG	65940500 RH FRONT LATERAL SPRAG SPRAG / Valid till car Nr. 120068 for GS / and 120193 for GD	$5,110.33	1
4	66452600	RH FRONT LATERAL SPRAG	66452600 RH FRONT LATERAL SPRAG SPRAG / Valid from car Nr. 120069 for GS / and 120194 for GD	$4,986.60	1
5	67040100	LH FRONT LATERAL SPRAG	67040100 LH FRONT LATERAL SPRAG SPRAG / Valid for GD / Valid till car Nr. 120193	$10,395.73	1
5	67040200	LH FRONT LATERAL SPRAG	67040200 LH FRONT LATERAL SPRAG SPRAG / Valid for GD / Valid from car Nr. 120194	$10,395.73	1
5	65940600	LH FRONT LATERAL SPRAG	65940600 LH FRONT LATERAL SPRAG SPRAG / Not for GD / Valid till car Nr. 120068	$5,110.33	1
5	66452800	LH FRONT LATERAL SPRAG	66452800 LH FRONT LATERAL SPRAG SPRAG / Not for GD / Valid from car Nr. 120069	$4,986.60	1
6	65940300	COMPLETE RH FRONT LATERAL FRAME	65940300 COMPLETE RH FRONT LATERAL FRAME LATERAL FRAME	$2,509.30 MSRP: ~~5,654.88~~ (55.6% off)	1
7	65940400	COMPLETE LH FRONT LATERAL FRAME	65940400 COMPLETE LH FRONT LATERAL FRAME LATERAL FRAME	$2,509.30	1
8	65940200	COMPLETE FRONT FRAME	65940200 COMPLETE FRONT FRAME	$3,027.52	1
9	166202	RH FRONT BUMPER PILLAR	166202 RH FRONT BUMPER PILLAR PILLAR	$983.23	1
10	166102	LH FRONT BUMPER PILLAR	166102 LH FRONT BUMPER PILLAR PILLAR	$983.23	1
11	166105	L.H. FRONT UPPER FRAME	166105 L.H. FRONT UPPER FRAME	$365.54	1
12	166205	R.H. FRONT UPPER FRAME	166205 R.H. FRONT UPPER FRAME	$145.01	1
13	177481	R.H. FRONT LOWER FRAME	177481 R.H. FRONT LOWER FRAME	$920.20	1
14	177482	L.H. FRONT LOWER FRAME	177482 L.H. FRONT LOWER FRAME	$920.20	1
15	166301	FRONT UPPER CROSS MEMBER -Valid from Ass. Nr. 74672- -Valid after stock exhaustion of 166301-	166301 FRONT UPPER CROSS MEMBER -Valid from Ass. Nr. 74672- -Valid after stock exhaustion of 166301-	$844.56	1
16	183816	FRONT LOWER CROSS MEMBER	183816 FRONT LOWER CROSS MEMBER	$726.89	1
17	65393511	TRUNK COMPARTMENT FRONT WALL	65393511 TRUNK COMPARTMENT FRONT WALL FRONT WALL	$402.49	1
18	66395711	R.H. FRONT REINFORCEMENT	66395711 R.H. FRONT REINFORCEMENT	$13.33	1
19	66395811	L.H. FRONT REINFORCEMENT	66395811 L.H. FRONT REINFORCEMENT	$13.33	1
20	66395500	R.H. BRACKET	66395500 R.H. BRACKET	$355.79	1
20	66395400	L.H. BRACKET	66395400 L.H. BRACKET	$453.79	1
21	166170	LH BRAKET FOR FRONT BUMPER FIXING	166170 LH BRAKET FOR FRONT BUMPER FIXING BUMPER FIXING	$78.24	1
21	166270	RH BRAKET FOR FRONT BUMPER FIXING	166270 RH BRAKET FOR FRONT BUMPER FIXING BUMPER FIXING	$70.72	1
22	65152700	R.H. FRONT SIDE WALL	65152700 R.H. FRONT SIDE WALL	$372.67	1
23	65152811	L.H. FRONT SIDE WALL	65152811 L.H. FRONT SIDE WALL	$567.24	1
24	175738	R.H. PLATE	175738 R.H. PLATE Not for GD	$238.50	1
24	179433	R.H. PLATE	179433 R.H. PLATE Valid for GD	$238.50	1
25	175737	L.H. PLATE	175737 L.H. PLATE Not for GD	$238.50	1
25	179432	L.H. PLATE	179432 L.H. PLATE Valid for GD	$238.50	1
26	65941600	COMPLETE R.H. DOOR PILLAR	65941600 COMPLETE R.H. DOOR PILLAR Valid till car Nr. 127704	$1,992.59	1
26	67385900	COMPLETE R.H. DOOR PILLAR	67385900 COMPLETE R.H. DOOR PILLAR Valid from car Nr. 127705	$2,209.31	1
27	65941700	COMPLETE L.H. DOOR PILLAR	65941700 COMPLETE L.H. DOOR PILLAR Valid till car Nr. 127704	$2,281.55	1
27	67385800	COMPLETE L.H. DOOR PILLAR	67385800 COMPLETE L.H. DOOR PILLAR Valid from car Nr. 127705	$2,209.31	1
28	64768211	COMPLETE FRONT R.H.	64768211 COMPLETE FRONT R.H. PILLAR / Valid till car Nr. 127704	$1,384.57	1
29	64768311	CPL FRONT LH PILLAR	64768311 CPL FRONT LH PILLAR PILLAR / Valid till car Nr. 127704	$1,354.47	1
30	166207	R.H. UPPER FRAME	166207 R.H. UPPER FRAME	$79.75	1
31	166107	L.H. UPPER FRAME	166107 L.H. UPPER FRAME	$81.25	1
32	985166215	RH LOWER EXTRUSION	985166215 RH LOWER EXTRUSION	$340.34	1
33	166115	L.H. LOWER FRAME	166115 L.H. LOWER FRAME	$64.62	1
34	66292200	STANDARD HEAD POP RIVET	66292200 STANDARD HEAD POP RIVET	$1.00 MSRP: ~~25.80~~ (96.1% off)	-
34	66292300	HALF REPOTTED HEAD POP RIVET	66292300 HALF REPOTTED HEAD POP RIVET	$1.89	-
35	65133800	RIVET IN STOCK	65133800 RIVET IN STOCK	$0.14	-
36	15624311	HEXAGONAL RIVET IN STOCK	15624311 HEXAGONAL RIVET IN STOCK	$4.35	-
36	15624211	Hexagonal Rivet IN STOCK	15624211 Hexagonal Rivet IN STOCK	$0.94	-
36	15180411	Hexagonal Blind Rivet IN STOCK	15180411 Hexagonal Blind Rivet IN STOCK	$1.34	-
36	248150	ESAGONAL RIVET M8	248150 ESAGONAL RIVET M8	$0.41	-
36	248146	HEXAGONAL RIVET	248146 HEXAGONAL RIVET	$1.00	-
37	65151200	Rivet IN STOCK	65151200 Rivet IN STOCK	$4.12	-
38	179299	RIVET M10 BLIND	179299 RIVET M10 BLIND	$6.48	-
38	166101	Knurled Rivet IN STOCK	166101 Knurled Rivet IN STOCK	$1.44	-
38	65135000	Knurled Rivet IN STOCK	65135000 Knurled Rivet IN STOCK	$1.09	-
38	65930400	Knurled Rivet IN STOCK	65930400 Knurled Rivet IN STOCK	$0.94	-
38	65319800	Nut Knurled Rivet IN STOCK	65319800 Nut Knurled Rivet IN STOCK	$0.79	-
39	65065400	HEXAGONAL HEAD STUD BOLT	65065400 HEXAGONAL HEAD STUD BOLT	$3.24	-
40	13836971	SCREW IN STOCK	13836971 SCREW IN STOCK	$0.47 MSRP: ~~1.30~~ (63.8% off)	-
41	166310	UNDER WINDSCREEN CROSS MEMBER	166310 UNDER WINDSCREEN CROSS MEMBER Not for GD	$391.28	1
41	166310	UNDER WINDSCREEN CROSS MEMBER	166310 UNDER WINDSCREEN CROSS MEMBER Valid for GD	$391.28	1
42	65160211	FRONT PILLAR R.H. UPPER	65160211 FRONT PILLAR R.H. UPPER CARPET SHIELD / Valid till car Nr. 127704	$201.67	1
43	65160311	FRONT PILLAR L.H. UPPER	65160311 FRONT PILLAR L.H. UPPER CARPET SHIELD / Valid till car Nr. 127704	$147.34	1
44	70000950	REPAIR INSERTS KIT	70000950 REPAIR INSERTS KIT	$1,675.04	1
45	166314	LOWER CROSS MEMBER	166314 LOWER CROSS MEMBER	$165.53	1
46	65013100	BRACKET FOR CONTROL UNITS FIXING	65013100 BRACKET FOR CONTROL UNITS FIXING FIXING	$129.11	3
