Brake System -Valid Far Gd-

Ferrari 360 Modena

Find Your Part

Ferrari 360 Modena - BRAKE SYSTEM -Valid far GD-

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
168828 ABS/ASR HYDRAULIC/ELECTRONIC CONTROL STATION $2,847.01 To Order
Photo Part No Description Price (each) Stock
177512 CONTROL STATION SUPPORTING BRACKET $723.61 To Order
Photo Part No Description Price (each) Stock
14040711 NUT $0.35 IN STOCK
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
12638524 WASHER D8.15-15 X 1.5 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
213657 BRAKE PIPE FROM FRONT PUMP TO CONTROL STATION $14.31 To Order
213657 BRAKE PIPE FROM FRONT PUMP TO CONTROL STATION $14.31 To Order
Photo Part No Description Price (each) Stock
213656 BRAKE PIPE FROM REAR PUMP TO CONTROL STATION $14.01 To Order
213656 BRAKE PIPE FROM REAR PUMP TO CONTROL STATION $14.01 To Order
Photo Part No Description Price (each) Stock
180386 PIPE FROM CONTROL STATION TO LH INTERMEDIATE PIPE $12.35 To Order
213661 PIPE FROM CONTROL STATION TO LH INTERMEDIATE PIPE Enquire To Order
Photo Part No Description Price (each) Stock
213660 PIPE FROM CONTROL STATION TO RH INTERMEDIATE PIPE $14.91 To Order
213660 PIPE FROM CONTROL STATION TO RH INTERMEDIATE PIPE $14.91 To Order
Photo Part No Description Price (each) Stock
177158 PIPE FROM CONTROL STATION TO LH FRONT BRAKE PIPE $9.85 To Order
213659 PIPE FROM CONTROL STATION O LH FRONT BRAKE PIPE $14.16 To Order
Photo Part No Description Price (each) Stock
177157 PIPE FROM CONTROL STATION TO UNION PIPE $8.73 To Order
213658 PIPE FROM CONTROL STATION TO UNION PIPE Enquire To Order
Photo Part No Description Price (each) Stock
271771 PIPE Enquire To Order
Photo Part No Description Price (each) Stock
213647 PIPE TO L.H. FRONT BRAKE Enquire To Order
173806 FRONT RH BRAKE PIPE $52.75 To Order
213645 PIPE TO R.H. FRONT BRAKE Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
185283 REAR MOUNTING $202.01 To Order
185283 REAR MOUNTING $202.01 To Order
Photo Part No Description Price (each) Stock
250657 SCREW $7.05 IN STOCK
Photo Part No Description Price (each) Stock
180361 PIPE TO R.H. REAR HOSE $129.10 To Order
213643 PIPE TO R.H. REAR HOSE Enquire To Order
Photo Part No Description Price (each) Stock
213644 PIPE TO L.H. REAR HOSE Enquire To Order
180362 PIPE TO L.H. REAR HOSE $30.14 To Order
Photo Part No Description Price (each) Stock
977803 Brake Pipe 325mm $36.52 To Order
Photo Part No Description Price (each) Stock
147985 NUT $0.14 IN STOCK
Photo Part No Description Price (each) Stock
12638524 WASHER D8.15-15 X 1.5 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
14040711 NUT $0.35 IN STOCK
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
12638524 WASHER D8.15-15 X 1.5 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
116374 CLIP $2.18 IN STOCK
Photo Part No Description Price (each) Stock
212645 CLIP $3.00 To Order
Photo Part No Description Price (each) Stock
178938 CABLE MOUNTING $30.23 To Order
Photo Part No Description Price (each) Stock
10977524 SCREW $0.14 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
177161 UNION PIPE TO RH FRONT BRAKE PIPE $100.70 To Order
Photo Part No Description Price (each) Stock
185147 ABS/ASR/EBD ELECTRONIC CONTROL STATION $1,257.95 To Order
Photo Part No Description Price (each) Stock
179237 R.H. FRONT SUPPORT $4.36 To Order
179096 L.H. FRONT SUPPORT $4.36 To Order
View All

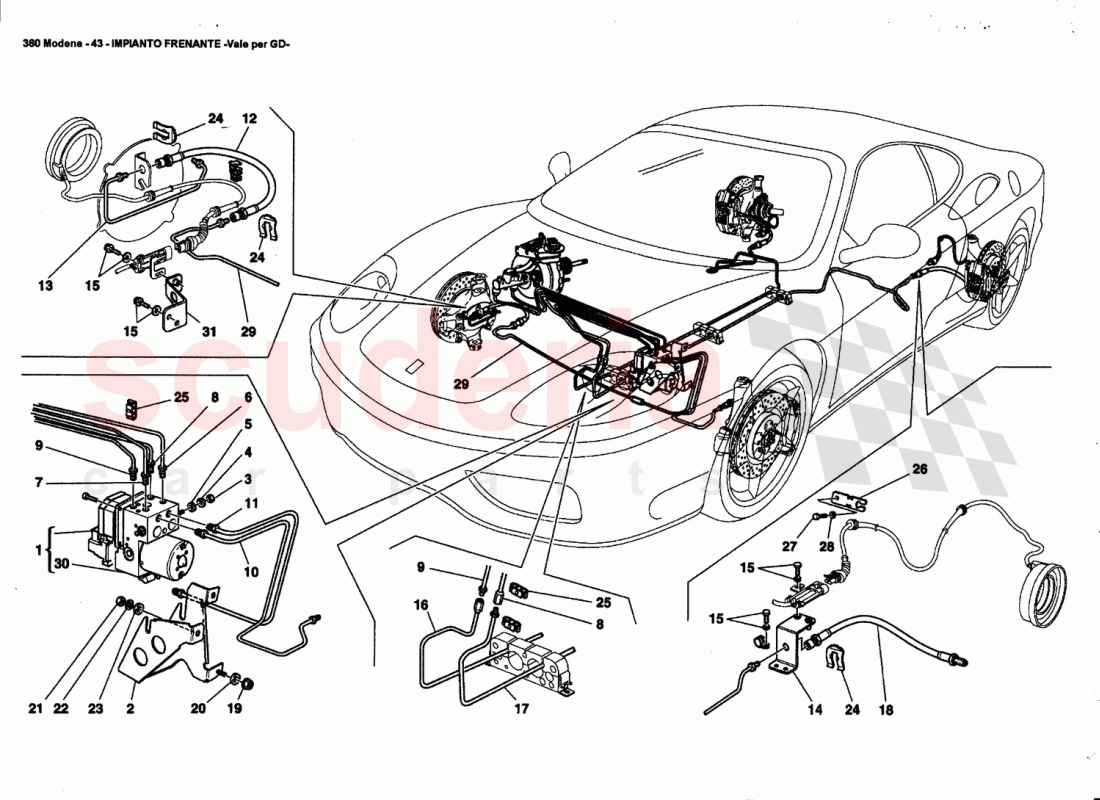

BRAKE SYSTEM -Valid far GD- of Ferrari Ferrari 360 Modena Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 168828
ABS/ASR HYDRAULIC/ELECTRONIC CONTROL STATION
CONTROL STATION 		$2,847.01 1
2 177512
CONTROL STATION SUPPORTING BRACKET
BRACKET 		$723.61 1
3 14040711
NUT
IN STOCK 		$0.35 2
4 127496
WASHER 		$0.06 (80% off) 2
5 12638524
WASHER D8.15-15 X 1.5
IN STOCK 		$0.06 (76% off) 2
6 213657
BRAKE PIPE FROM FRONT PUMP TO CONTROL STATION
TO CONTROL STATION / Valid from Ass. Nr. 57488 		$14.31 1
6 213657
BRAKE PIPE FROM FRONT PUMP TO CONTROL STATION
TO CONTROL STATION / Valid till Ass. Nr. 57487 		$14.31 1
7 213656
BRAKE PIPE FROM REAR PUMP TO CONTROL STATION
TO CONTROL STATION / Valid til! Ass. Nr. 57487 		$14.01 1
7 213656
BRAKE PIPE FROM REAR PUMP TO CONTROL STATION
TO CONTROL STATION / Valid from Ass. Nr. 57488 		$14.01 1
8 180386
PIPE FROM CONTROL STATION TO LH INTERMEDIATE PIPE
L.H. INTERMEDIATE PIPE / Valid till Ass. Nr. 57487 		$12.35 1
8 213661
PIPE FROM CONTROL STATION TO LH INTERMEDIATE PIPE
L.H. INTERMEDIATE PIPE / Valid from Ass. Nr. 57488 		- 1 Enquire
9 213660
PIPE FROM CONTROL STATION TO RH INTERMEDIATE PIPE
R.H. INTERMEDIATE PIPE / Valid till Ass. Nr. 57487 		$14.91 1
9 213660
PIPE FROM CONTROL STATION TO RH INTERMEDIATE PIPE
R.H. INTERMEDIATE PIPE / Valid from Ass. Nr. 57488 		$14.91 1
10 177158
PIPE FROM CONTROL STATION TO LH FRONT BRAKE PIPE
TO L.H. FRONT BRAKE PIPE / Valid till Ass. Nr. 57487 		$9.85 1
10 213659
PIPE FROM CONTROL STATION O LH FRONT BRAKE PIPE
TO L.H. FRONT BRAKE PIPE / Valid from Ass. Nr. 57488 		$14.16 1
11 177157
PIPE FROM CONTROL STATION TO UNION PIPE
TO UNION PIPE / Valid till Ass. Nr. 57487 		$8.73 1
11 213658
PIPE FROM CONTROL STATION TO UNION PIPE
TO UNION PIPE / Valid from Ass. Nr. 57488 		- 1 Enquire
12 271771
PIPE 		- 2 Enquire
13 213647
PIPE TO L.H. FRONT BRAKE
Valid from Ass. Nr. 57488 		- 1 Enquire
13 173806
FRONT RH BRAKE PIPE
Valid till Ass. Nr. 57487 		$52.75 1
13 213645
PIPE TO R.H. FRONT BRAKE
Valid from Ass. Nr. 57488 		- 1 Enquire
13 173805
FRONT LH BRAKE PIPE
Valid till Ass. Nr. 57487 		$52.75 1
14 185283
REAR MOUNTING 		$202.01 2
14 185283
REAR MOUNTING 		$202.01 -
15 250657
SCREW
IN STOCK 		$7.05 8
16 180361
PIPE TO R.H. REAR HOSE
Valid till Ass. Nr. 57487 		$129.10 1
16 213643
PIPE TO R.H. REAR HOSE
Valid from Ass. Nr. 57488 		- 1 Enquire
17 213644
PIPE TO L.H. REAR HOSE
Valid from Ass. Nr. 57488 		- 1 Enquire
17 180362
PIPE TO L.H. REAR HOSE
Valid till Ass. Nr. 57487 		$30.14 1
18 977803
Brake Pipe 325mm 		$36.52 2
19 147985
NUT
IN STOCK 		$0.14 (72% off) 1
20 12638524
WASHER D8.15-15 X 1.5
IN STOCK 		$0.06 (76% off) 1
21 14040711
NUT
IN STOCK 		$0.35 2
22 127496
WASHER 		$0.06 (80% off) 2
23 12638524
WASHER D8.15-15 X 1.5
IN STOCK 		$0.06 (76% off) 2
24 116374
CLIP
IN STOCK 		$2.18 (37.7% off) 8
25 212645
CLIP 		$3.00 4
26 178938
CABLE MOUNTING 		$30.23 2
27 10977524
SCREW
IN STOCK 		$0.14 2
28 11197774
WASHER
IN STOCK 		$0.06 (80% off) 2
29 177161
UNION PIPE TO RH FRONT BRAKE PIPE
BRAKE PIPE 		$100.70 1
30 185147
ABS/ASR/EBD ELECTRONIC CONTROL STATION
CONTROL STATION 		$1,257.95 1
31 179237
R.H. FRONT SUPPORT
Not as spare part now 		$4.36 1
31 179096
L.H. FRONT SUPPORT
Not as spare part now 		$4.36 1
