Ferrari 360 Modena - BRAKE BOOSTER SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
176100 RUBBER HOSE TO BRAKE BOOSTER $55.59 To Order
177947 RUBBER HOSE TO BRAKE BOOSTER $94.78 To Order
173842 RUBBER PIPE FROM VALVE TO UNDERBODY PIPE $75.82 To Order
Photo Part No Description Price (each) Stock
262111 SCREW CLAMP $1.39 To Order
Photo Part No Description Price (each) Stock
61712500 BRACKET WITH SHEATH $1.52 IN STOCK
Photo Part No Description Price (each) Stock
184979 BRAKE BOOSTER UNDERFLOOR TUBE $265.41 To Order
179322 BRAKE BOOSTER UNDERFLOOR TUBE $75.44 To Order
179322 BRAKE BOOSTER UNDERFLOOR TUBE $75.44 To Order
Photo Part No Description Price (each) Stock
10450190 BRACKET WITH SHEATH $0.49 To Order
Photo Part No Description Price (each) Stock
211984 RUBBER PIPE $31.05 To Order
Photo Part No Description Price (each) Stock
262111 SCREW CLAMP $1.39 To Order
Photo Part No Description Price (each) Stock
194378 PIPE FOR BRAKE BOOSTER FROM MANIFOLDS $78.46 To Order
182776 PIPE FOR BRAKE BOOSTER FROM MANIFOLDS $146.36 To Order
Photo Part No Description Price (each) Stock
10441390 BRACKET WITH SHEATH $0.53 IN STOCK
Photo Part No Description Price (each) Stock
10977524 SCREW $0.14 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
152417 UNION $149.38 To Order
Photo Part No Description Price (each) Stock
10259960 Copper Washer 18 - 24 x 1.5 $0.30 IN STOCK
Photo Part No Description Price (each) Stock
179419 SWINGING UNION $34.69 To Order
Photo Part No Description Price (each) Stock
147978 NONRETURN VALVE $15.96 To Order
Photo Part No Description Price (each) Stock
179394 RUBBER HOSE CURVED $8.57 To Order
Photo Part No Description Price (each) Stock
262111 SCREW CLAMP $1.39 To Order
Photo Part No Description Price (each) Stock
178772 SPACER STUD $9.98 To Order
Photo Part No Description Price (each) Stock
10441390 BRACKET WITH SHEATH $0.53 IN STOCK
61712500 BRACKET WITH SHEATH $1.52 IN STOCK
Photo Part No Description Price (each) Stock
10902224 SCREW M6 X 16 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 IN STOCK
Photo Part No Description Price (each) Stock
10441690 BRACKET WITH SHEATH $1.77 To Order
Photo Part No Description Price (each) Stock
179068 GASKET $0.35 To Order
Photo Part No Description Price (each) Stock
193186 CHECK VALVE $30.32 To Order
Photo Part No Description Price (each) Stock
13432870 COLLAR FOR HOSE UNION $11.57 IN STOCK
Photo Part No Description Price (each) Stock
127213 RUBBER PIPE $16.42 To Order
Photo Part No Description Price (each) Stock
11500224 STUD BOLT $0.35 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
View All

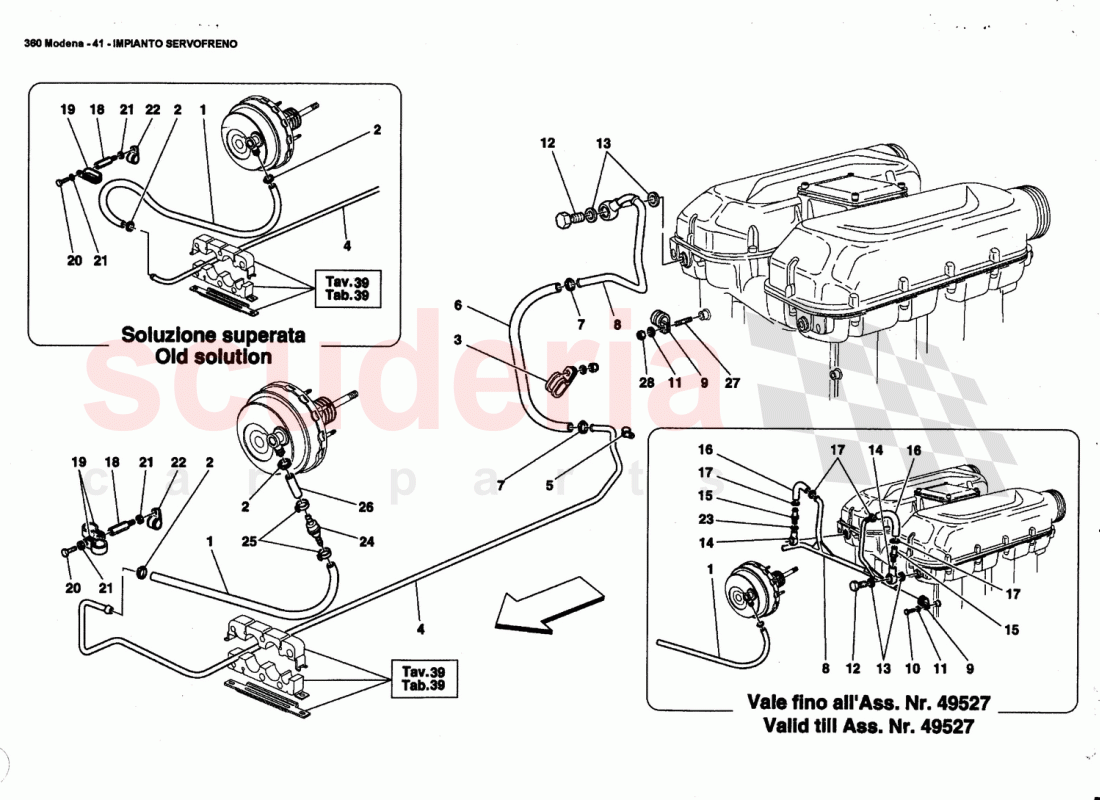

BRAKE BOOSTER SYSTEM of Ferrari Ferrari 360 Modena Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 176100
RUBBER HOSE TO BRAKE BOOSTER
Valid till Ass. Nr. 35770 		$55.59 1
1 177947
RUBBER HOSE TO BRAKE BOOSTER
Valid from Ass. Nr. 35771 till Ass. Nr.49527 		$94.78 1
1 173842
RUBBER PIPE FROM VALVE TO UNDERBODY PIPE
Valid from Ass. Nr. 49528 		$75.82 1
2 262111
SCREW CLAMP 		$1.39 2
3 61712500
BRACKET WITH SHEATH
IN STOCK 		$1.52 2
4 184979
BRAKE BOOSTER UNDERFLOOR TUBE
TUBE / Not for GD 		$265.41 1
4 179322
BRAKE BOOSTER UNDERFLOOR TUBE
UNDERFLOOR TUBE / Valid for GD 		$75.44 1
4 179322
BRAKE BOOSTER UNDERFLOOR TUBE
UNDERFLOOR TUBE / Valid till Ass. Nr. 35770 / Not for GD 		$75.44 1
5 10450190
BRACKET WITH SHEATH 		$0.49 1
6 211984
RUBBER PIPE 		$31.05 1
7 262111
SCREW CLAMP 		$1.39 2
8 194378
PIPE FOR BRAKE BOOSTER FROM MANIFOLDS
FROM MANIFOLDS / Valid from Ass. Nr. 49528 		$78.46 1
8 182776
PIPE FOR BRAKE BOOSTER FROM MANIFOLDS
FROM MANIFOLDS / Replaces 179414 / Valid till Ass. Nr. 49527 		$146.36 1
9 10441390
BRACKET WITH SHEATH
Q.ty 1 from Ass. Nr. 49528
IN STOCK 		$0.53 2
10 10977524
SCREW
Valid till Ass. Nr. 49527
IN STOCK 		$0.14 2
11 11197774
WASHER
Q.ty 1 from Ass. Nr. 49528
IN STOCK 		$0.06 (80% off) 2
12 152417
UNION
Q.ty 1 from Ass. Nr. 49528 		$149.38 2
13 10259960
Copper Washer 18 - 24 x 1.5
Q.ty 2 from Ass. Nr. 49528
IN STOCK 		$0.30 (76% off) 4
14 179419
SWINGING UNION
Valid till Ass. Nr. 49527 		$34.69 (9.9% off) 2
15 147978
NONRETURN VALVE
Valid till Ass. Nr. 49527 		$15.96 (36.2% off) 2
16 179394
RUBBER HOSE CURVED
Valid till Ass. Nr. 49527 		$8.57 2
17 262111
SCREW CLAMP
Valid till Ass. Nr. 49527 		$1.39 4
18 178772
SPACER STUD 		$9.98 1
19 10441390
BRACKET WITH SHEATH
Valid from Ass. Nr. 35771
IN STOCK 		$0.53 2
19 61712500
BRACKET WITH SHEATH
Valid till Ass. Nr. 35770
IN STOCK 		$1.52 1
20 10902224
SCREW M6 X 16
IN STOCK 		$0.06 (86.7% off) 1
21 127494
WASHER
IN STOCK 		$0.08 (88.2% off) 2
22 10441690
BRACKET WITH SHEATH 		$1.77 1
23 179068
GASKET
Valid till Ass. Nr. 49527 		$0.35 2
24 193186
CHECK VALVE
Valid from Ass. Nr. 49528 		$30.32 (25.4% off) 1
25 13432870
COLLAR FOR HOSE UNION
Valid from Ass. Nr. 49528
IN STOCK 		$11.57 2
26 127213
RUBBER PIPE
Valid from Ass. Nr. 49528 		$16.42 1
27 11500224
STUD BOLT
Valid from Ass. Nr. 49528 		$0.35 1
28 14059290
FLANGED NUT M6
Valid from Ass. Nr. 49528
IN STOCK 		$1.31 1
