Ferrari 360 Modena - AIR CONDITIONING SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
178565 CONDENSER $599.39 To Order
Photo Part No Description Price (each) Stock
65066400 TGK VALVE $329.66 To Order
Photo Part No Description Price (each) Stock
65848400 BRACKET FOR VALVE FIXING $8.21 To Order
66150300 VALVE FASTENER BRACKET $22.69 To Order
65882200 BRACKET FOR VALVE FIXING $13.76 To Order
Photo Part No Description Price (each) Stock
897538 SCREW $1.53 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
10519424 WASHER D.6.4 X 11.95 X 1.6 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
60909500 ALLEN HEAD SCREW M6 X 15 $1.96 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
65830900 DELIVERY METAL PIPE $342.33 To Order
Photo Part No Description Price (each) Stock
65830700 HOSE FROM CONDENSER TO FILTER $272.47 To Order
Photo Part No Description Price (each) Stock
65628300 Dehydrating Filter $209.62 To Order
Photo Part No Description Price (each) Stock
66147900 PIPE FROM FILTER TO A.C. SYSTEM $296.84 To Order
66090200 PIPE FROM FILTER TO A.C. SYSTEM $760.76 To Order
65898700 PIPE FROM FILTER TO A.C. SYSTEM $469.26 To Order
Photo Part No Description Price (each) Stock
65628200 AIR CONDITIONING PRESSURE SWITCH $165.07 IN STOCK
Photo Part No Description Price (each) Stock
65830800 INLET METAL PIPE $304.29 To Order
Photo Part No Description Price (each) Stock
65830600 PIPE FROM UNDERFLOOR PIPE TO CONDENSER $317.88 To Order
65744300 PIPE FROM UNDERFLOOR PIPE TO CONDENSER $304.29 To Order
Photo Part No Description Price (each) Stock
65230500 UNDERFLOOR DELIVERY TUBE FROM COMPRESSOR $393.05 To Order
Photo Part No Description Price (each) Stock
65539400 FILTER SUPPORT $6.18 To Order
65880700 FILTER SUPPORT $19.01 To Order
Photo Part No Description Price (each) Stock
65547700 BRACKET $4.05 To Order
65880900 BRACKET $4.71 To Order
Photo Part No Description Price (each) Stock
10902224 SCREW M6 X 16 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
13840511 SCREW $3.38 To Order
68721400 SCREW $0.93 To Order
Photo Part No Description Price (each) Stock
12644424 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
66148000 PIPE FROM A.C. SYSTEM TO COMPRESSOR $560.09 To Order
65921100 PIPE FROM A.C. SYSTEM TO COMPRESSOR $255.41 To Order
Photo Part No Description Price (each) Stock
65744600 PIPE FROM MINIMUM PUMP TO A.C. SYSTEM $46.91 To Order
65460800 PIPE FROM MINIMUM PUMP TO A.C. SYSTEM $176.27 To Order
Photo Part No Description Price (each) Stock
262111 SCREW CLAMP $1.39 To Order
Photo Part No Description Price (each) Stock
65460300 COMPLETE WATER PUMP $418.41 To Order
Photo Part No Description Price (each) Stock
63994900 BRACKET FOR PUMP -Not as spare part- -Replaced by 69966100- $8.26 To Order
Photo Part No Description Price (each) Stock
285553 VIBRATION DAMPER $19.63 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.32 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
65460700 PIPE FROM UNDERBODY PIPE TO MINIMUM PRESSURE PUMP $92.33 To Order
Photo Part No Description Price (each) Stock
262111 SCREW CLAMP $1.39 To Order
Photo Part No Description Price (each) Stock
65231400 WATER PIPE UNDERFLOOR $82.39 To Order
Photo Part No Description Price (each) Stock
65831500 PIPE FROM WATER PUMP TO UNDRFLOOR PIPE $196.78 To Order
Photo Part No Description Price (each) Stock
65231700 PIPE FROM AC HEATER TO TGK VALVE $31.77 To Order
65744700 PIPE FROM A.C. HEATER TO TGK VALVE $55.26 To Order
Photo Part No Description Price (each) Stock
62790300 NUT $0.29 IN STOCK
14078010 NUT $1.27 To Order
Photo Part No Description Price (each) Stock
66309800 O-RING $3.98 IN STOCK
Photo Part No Description Price (each) Stock
66309700 O-RING $10.14 IN STOCK
Photo Part No Description Price (each) Stock
66309600 O-RING $1.77 IN STOCK
Photo Part No Description Price (each) Stock
66309300 O-RING $1.39 IN STOCK
Photo Part No Description Price (each) Stock
66309400 O-RING A/C SYSTEM $15.72 IN STOCK
Photo Part No Description Price (each) Stock
66309500 O-RING AIR CON SYSTEM $15.72 IN STOCK
Photo Part No Description Price (each) Stock
10977524 SCREW $0.14 IN STOCK
Photo Part No Description Price (each) Stock
11188079 WASHER $0.05 To Order
Photo Part No Description Price (each) Stock
65929400 PLATE $2.55 To Order
Photo Part No Description Price (each) Stock
11193274 WASHER $0.03 IN STOCK
15210624 SCREW $2.06 To Order
Photo Part No Description Price (each) Stock
11193274 WASHER $0.03 IN STOCK
View All
AIR CONDITIONING SYSTEM of Ferrari Ferrari 360 Modena Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 178565
CONDENSER 		$599.39 (38.5% off) 1
2 65066400
TGK VALVE 		$329.66 (40.6% off) 1
3 65848400
BRACKET FOR VALVE FIXING
Valid till Ass. Nr. 38032 / Not for GD 		$8.21 1
3 66150300
VALVE FASTENER BRACKET
Valid from Ass. Nr. 38033 / Not for GD 		$22.69 1
3 65882200
BRACKET FOR VALVE FIXING
Valid for GD 		$13.76 1
4 897538
SCREW 		$1.53 3
5 11197774
WASHER
IN STOCK 		$0.06 (80% off) 3
6 10519424
WASHER D.6.4 X 11.95 X 1.6
IN STOCK 		$0.02 (92% off) 3
7 60909500
ALLEN HEAD SCREW M6 X 15
IN STOCK 		$1.96 (34.4% off) 1
8 11197774
WASHER
IN STOCK 		$0.06 (80% off) 1
9 12643724
WASHER
IN STOCK 		$0.06 (88% off) 1
10 65830900
DELIVERY METAL PIPE 		$342.33 (12.6% off) 1
11 65830700
HOSE FROM CONDENSER TO FILTER 		$272.47 (23% off) 1
12 65628300
Dehydrating Filter 		$209.62 1
13 66147900
PIPE FROM FILTER TO A.C. SYSTEM
Valid from Ass. Nr. 38033 / Not for GD 		$296.84 1
13 66090200
PIPE FROM FILTER TO A.C. SYSTEM
Valid for GD 		$760.76 1
13 65898700
PIPE FROM FILTER TO A.C. SYSTEM
Valid till Ass. Nr. 38032 / Not for GD 		$469.26 1
14 65628200
AIR CONDITIONING PRESSURE SWITCH
IN STOCK 		$165.07 (30.2% off) 1
15 65830800
INLET METAL PIPE 		$304.29 (28.1% off) 1
16 65830600
PIPE FROM UNDERFLOOR PIPE TO CONDENSER
TO CONDENSER / Not for GD 		$317.88 (24.2% off) 1
16 65744300
PIPE FROM UNDERFLOOR PIPE TO CONDENSER
TO CONDENSER / Valid for GD 		$304.29 1
17 65230500
UNDERFLOOR DELIVERY TUBE FROM COMPRESSOR
FROM COMPRESSOR 		$393.05 (30.9% off) 1
18 65539400
FILTER SUPPORT
Not for GD 		$6.18 1
18 65880700
FILTER SUPPORT
Valid for GD 		$19.01 1
19 65547700
BRACKET
Not for GD 		$4.05 1
19 65880900
BRACKET
Valid for GD 		$4.71 1
20 10902224
SCREW M6 X 16
IN STOCK 		$0.06 (86.7% off) 2
21 13840511
SCREW
Not as spare part / Replaced by 68721400 		$3.38 1
21 68721400
SCREW 		$0.93 1
22 12644424
WASHER
IN STOCK 		$0.06 (85% off) 2
23 66148000
PIPE FROM A.C. SYSTEM TO COMPRESSOR
TO COMPRESSOR / Valid from Ass. Nr. 38033 GS / Not for GD 		$560.09 1
23 65921100
PIPE FROM A.C. SYSTEM TO COMPRESSOR
TO COMPRESSOR / Valid till Ass. Nr. 38032 GS / Valid for GD 		$255.41 1
24 65744600
PIPE FROM MINIMUM PUMP TO A.C. SYSTEM
TO A.C. SYSTEM / Valid for GD 		$46.91 1
24 65460800
PIPE FROM MINIMUM PUMP TO A.C. SYSTEM
TO A.C. SYSTEM / Not for GD 		$176.27 1
25 262111
SCREW CLAMP 		$1.39 4
26 65460300
COMPLETE WATER PUMP 		$418.41 1
27 63994900
BRACKET FOR PUMP -Not as spare part- -Replaced by 69966100- 		$8.26 1
28 285553
VIBRATION DAMPER
IN STOCK 		$19.63 2
29 14059290
FLANGED NUT M6
IN STOCK 		$1.32 2
30 11197774
WASHER
IN STOCK 		$0.06 (80% off) 2
31 65460700
PIPE FROM UNDERBODY PIPE TO MINIMUM PRESSURE PUMP
TO MINIMUM PUMP 		$92.33 (39.6% off) 1
32 262111
SCREW CLAMP 		$1.39 2
33 65231400
WATER PIPE UNDERFLOOR 		$82.39 1
34 65831500
PIPE FROM WATER PUMP TO UNDRFLOOR PIPE
UNDRFLOOR PIPE 		$196.78 (37.4% off) 1
35 65231700
PIPE FROM AC HEATER TO TGK VALVE
TO TGK VALVE / Not for GD 		$31.77 1
35 65744700
PIPE FROM A.C. HEATER TO TGK VALVE
TO TGK VALVE / Valid for GD 		$55.26 1
36 62790300
NUT
Valid from Ass. Nr. 38033 GS / Not for GD
IN STOCK 		$0.29 (61.3% off) 2
36 14078010
NUT
Valid till Ass. Nr. 38032 GS / Valid for GD 		$1.27 2
37 66309800

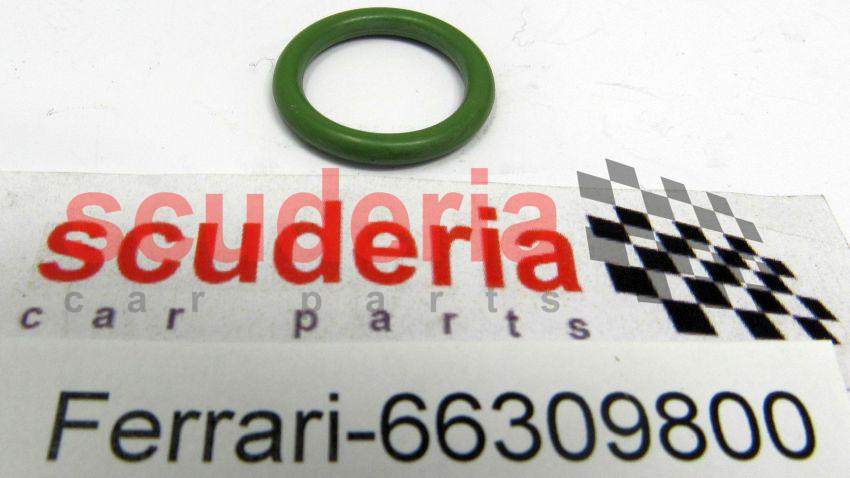

O-RING
IN STOCK 		$3.98 (23.9% off) 1
38 66309700

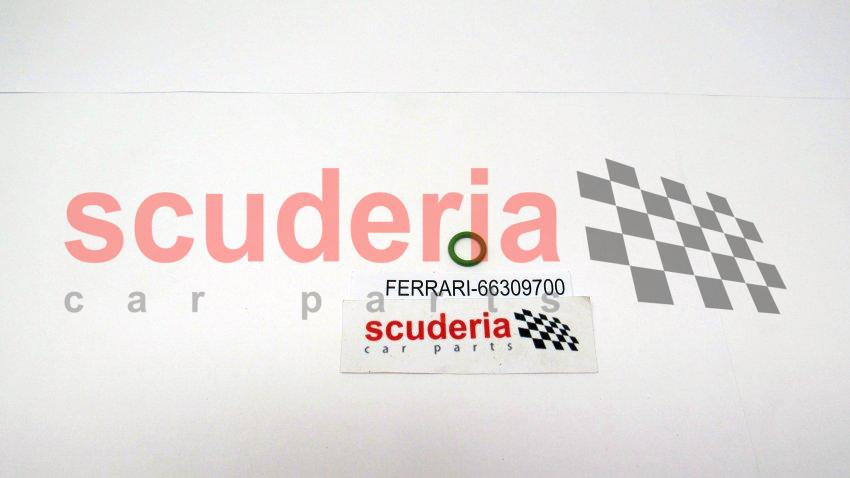

O-RING
IN STOCK 		$10.14 (16.5% off) 2
39 66309600

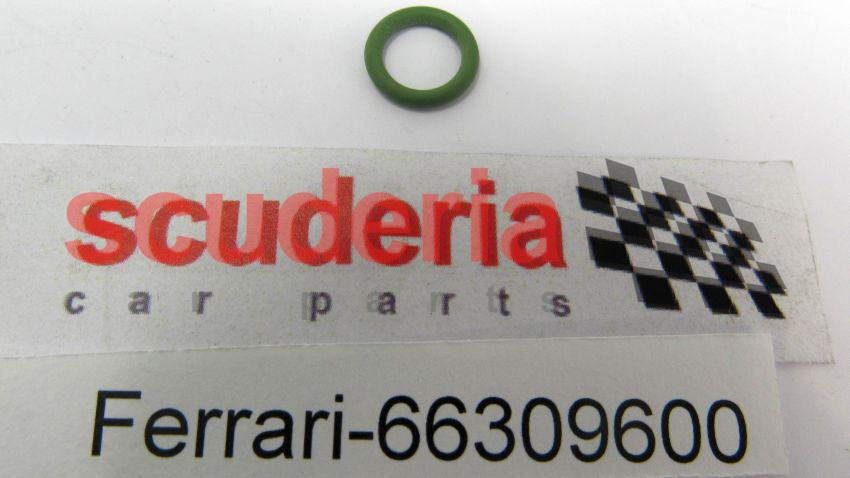

O-RING
IN STOCK 		$1.77 1
40 66309300

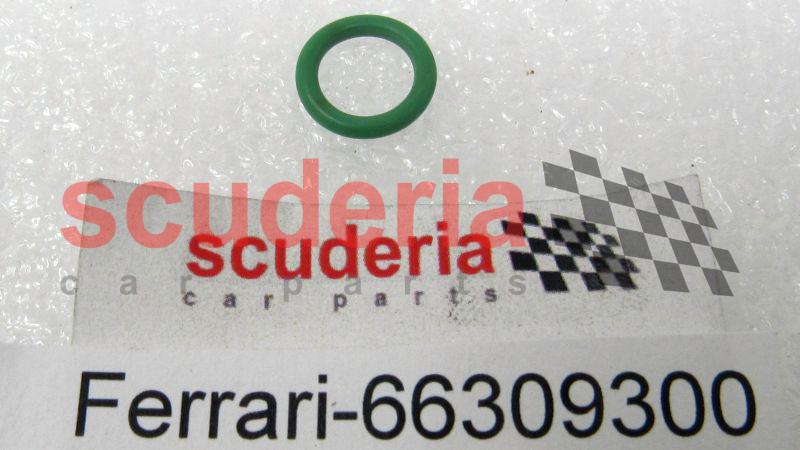

O-RING
IN STOCK 		$1.39 (64.4% off) 2
41 66309400

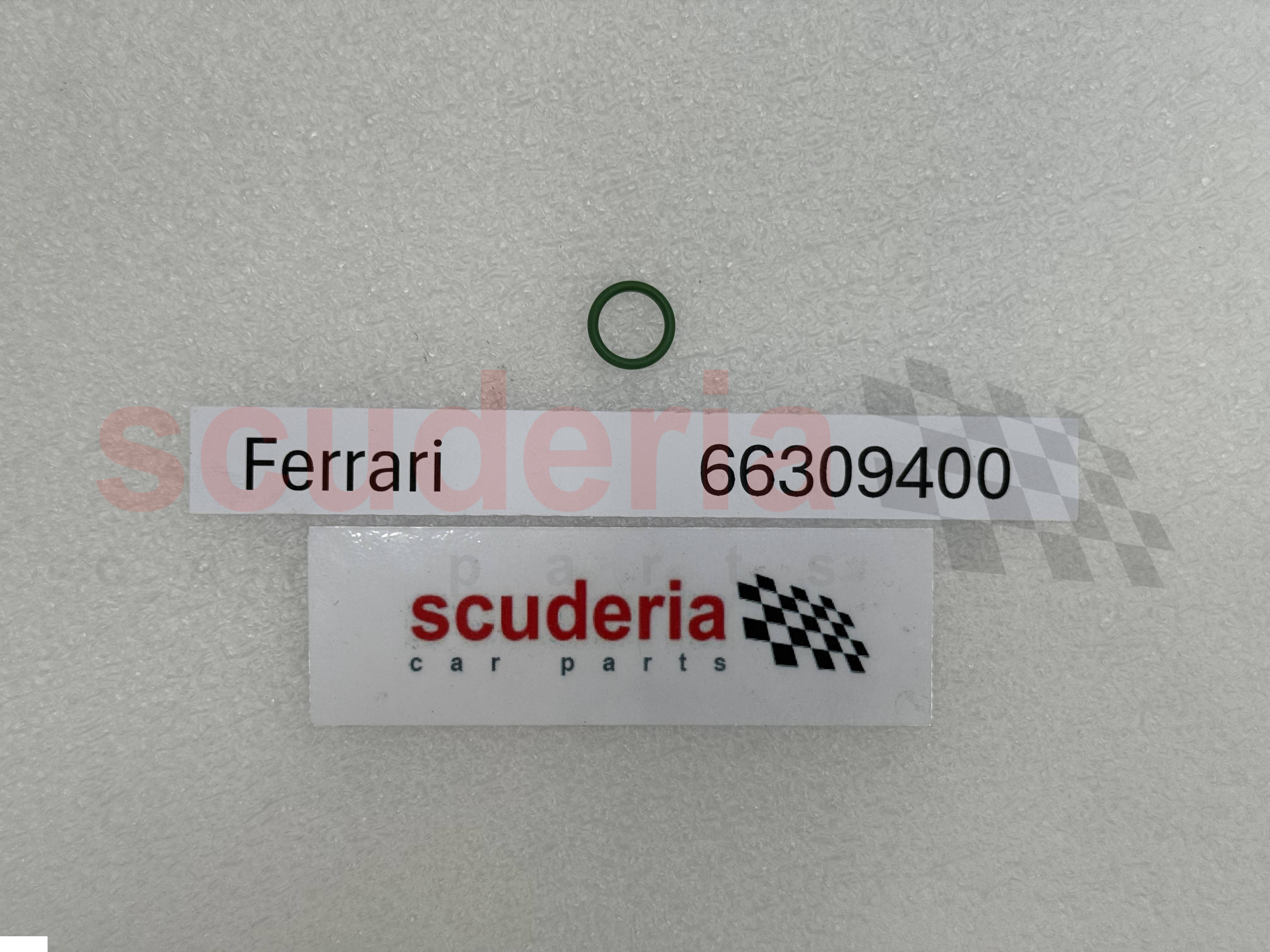

O-RING A/C SYSTEM
IN STOCK 		$15.72 4
42 66309500

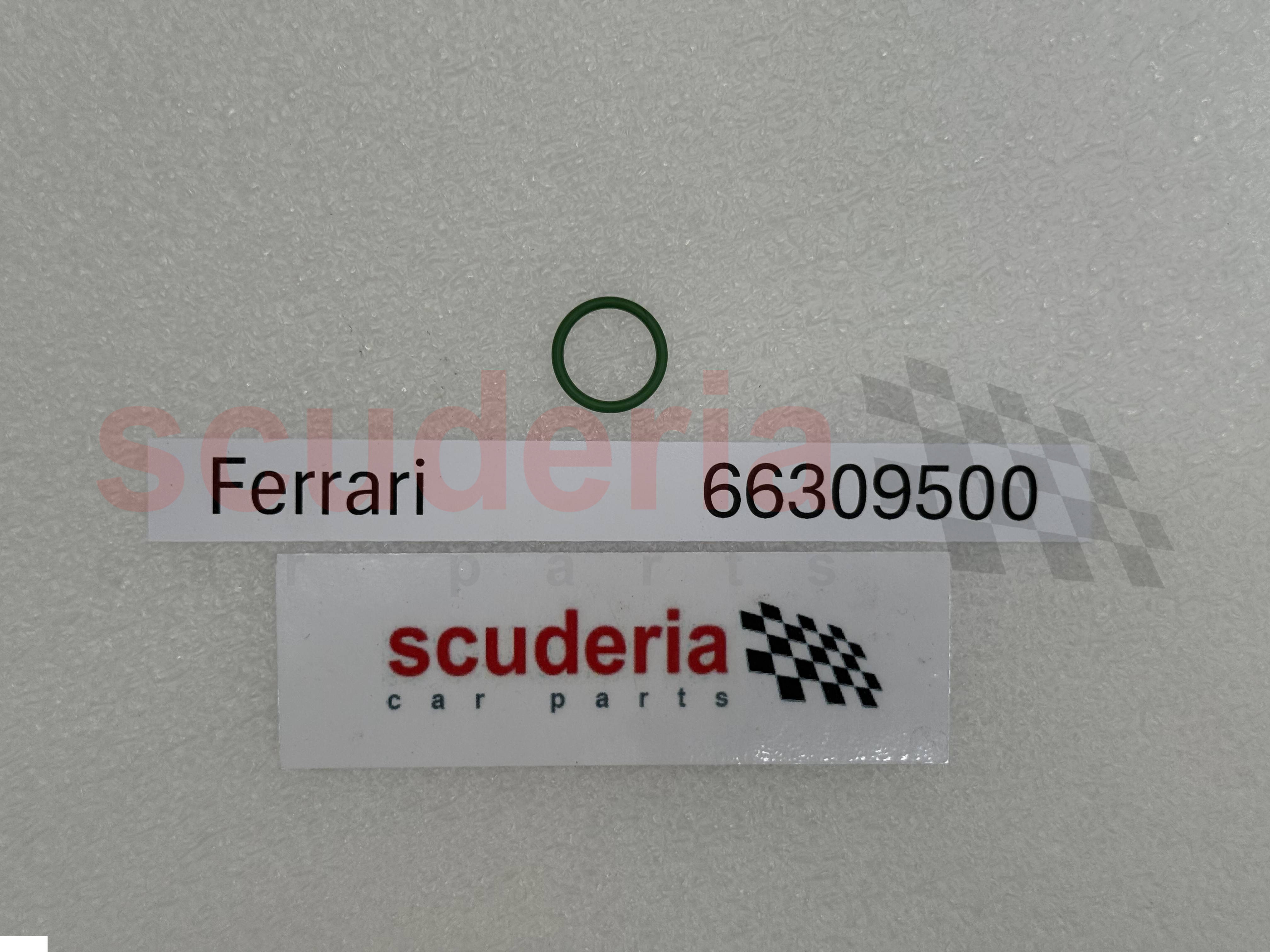

O-RING AIR CON SYSTEM
IN STOCK 		$15.72 1
43 10977524
SCREW
Valid from Ass. Nr. 38033 / Not for GD
IN STOCK 		$0.14 1
44 11188079
WASHER
Valid from Ass. Nr. 38033 / Not for GD 		$0.05 1
45 65929400
PLATE
Valid from Ass. Nr. 38033 / Not for GD 		$2.55 1
46 11193274
WASHER
Valid from Ass. Nr. 38033 GS / Not for GD
IN STOCK 		$0.03 2
46 15210624
SCREW
Valid till Ass. Nr. 38032 GS / Valid for GD 		$2.06 2
47 11193274
WASHER
Valid from Ass. Nr. 38033 GS / Not for GD
IN STOCK 		$0.03 2
