Ferrari 360 Modena - ELECTRICAL SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
200828 FRONT PART CONNECTING CABLES $3,206.00 To Order
178346 FRONT PART CONNECTING CABLES $3,029.23 To Order
183347 FRONT PART CONNECTING CABLES $4,706.97 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
200827 ABS/ASR INSTALLATION CONNECTING CABLES $539.47 To Order
200826 ABS/ASR INSTALLATION CONNECTING CABLES $1,341.71 To Order
Photo Part No Description Price (each) Stock
200838 PEDAL DEVICE CONNECTING CABLES -Not for GD- $61.65 To Order
172887 PEDAL DEVICE CONNECTING CABLES $2,108.92 To Order
Photo Part No Description Price (each) Stock
198553 DASHBOARD CONNECTION CABLES $2,450.34 To Order
186522 DASHBOARD CONNECTION CABLES $8,625.97 To Order
198552 DASHBOARD CONNECTION CABLES $2,399.02 To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
198555 CABLES FOR R.H. REAR TUNNEL CONNECTION $403.13 To Order
198554 CABLES FOR R.H. REAR TUNNEL CONNECTION $5,716.29 To Order
Photo Part No Description Price (each) Stock
200847 CABLES FOR LH REAR TUNNEL CONNECTION $3,551.00 To Order
177914 CABLES FOR LH REAR TUNNEL CONNECTION $5,849.41 To Order
Photo Part No Description Price (each) Stock
200832 CABLES FOR TUNNEL CONNECTION $251.94 To Order
200830 CABLES FOR TUNNEL CONNECTION $115.80 To Order
178835 CABLES FOR TUNNEL CONNECTION Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
198209 DOOR CONNECTOR CABLES $175.51 To Order
178709 DOOR CONNECTION CABLES $4,231.72 To Order
201104 DOOR CONNECTION CABLES $1,134.97 To Order
Photo Part No Description Price (each) Stock
200844 CONNECTION CABLES FOR RH ENGINE COMPARTMENT $768.47 To Order
205659 CONNECTION CABLES FOR RH ENGINE COMPARTMENT $1,668.57 To Order
177912 CONNECTION CABLES FOR RH ENGINE COMPARTMENT $2,937.48 To Order
Photo Part No Description Price (each) Stock
213155 COMPLETE CONNECTION CABLES FOR MOTOR UTILITIES $1,511.27 To Order
Photo Part No Description Price (each) Stock
200843 CONNECTION CABLES FOR LH ENGINE COMPARTMENT $768.47 To Order
200840 CONNECTION CABLES FOR LH ENGINE COMPARTMENT $1,776.32 To Order
Photo Part No Description Price (each) Stock
155073 CABLE FOR ENGINE-FRAME EARTH $12.78 To Order
Photo Part No Description Price (each) Stock
199875 R.H. SIDE ENGINE INJECTION CABLES $887.40 To Order
199873 R.H. SIDE ENGINE INJECTION CABLES $610.97 To Order
Photo Part No Description Price (each) Stock
199876 L.H. SIDE ENGINE INJECTION CABLES $887.40 To Order
199874 L.H. SIDE ENGINE INJECTION CABLES $610.97 To Order
Photo Part No Description Price (each) Stock
200837 REAR LIGHTS CONNECTING CABLES $856.67 To Order
173430 REAR LIGHTS CONNECTING CABLES $2,136.64 To Order
200836 REAR LIGHTS CONNECTING CABLES $1,058.23 To Order
Photo Part No Description Price (each) Stock
241766 STOP-LAMP CONNECTION CABLES $30.22 To Order
Photo Part No Description Price (each) Stock
182985 PLATE LIGHT CABLES $226.75 To Order
164823 CABLES FOR NUMBER PLATE LIGHTS $296.43 IN STOCK
Photo Part No Description Price (each) Stock
207330 COMPLETE CABLES F1 TRANSMISSION CONNECTION $1,126.01 To Order
207330 COMPLETE CABLES F1 TRANSMISSION CONNECTION $1,126.01 To Order
View All

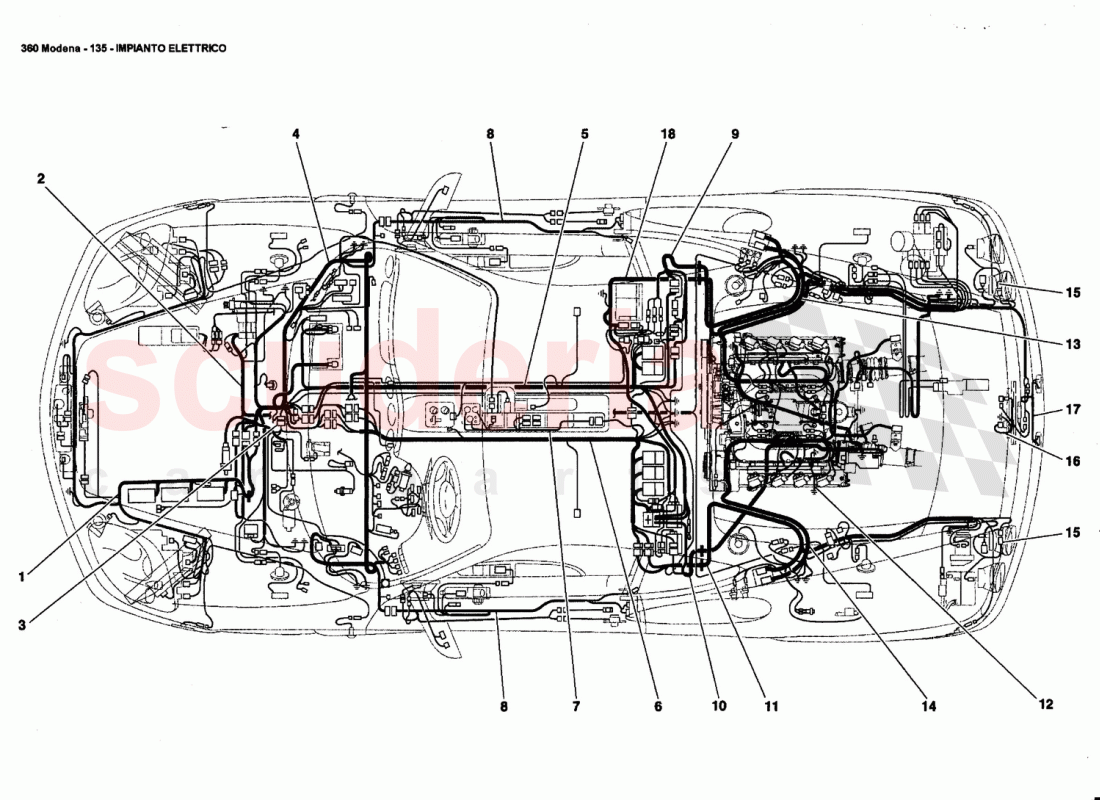

ELECTRICAL SYSTEM of Ferrari Ferrari 360 Modena Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 200828
FRONT PART CONNECTING CABLES
CABLES / Valid from Ass. Nr. 46968 		$3,206.00 1
1 178346
FRONT PART CONNECTING CABLES
CABLES / Valid till Ass. Nr. 37238 		$3,029.23 1
1 183347
FRONT PART CONNECTING CABLES
CABLES / Valid from Ass. Nr. 37239 and / till Ass. Nr. 43231 		$4,706.97 1
1 200828
FRONT PART CONNECTING CABLES
CABLES / Valid from Ass. Nr. 43232 till Ass. Nr. 46967 		$3,206.00 1
2 200827
ABS/ASR INSTALLATION CONNECTING CABLES
CONNECTING CABLES / Not for GD 		$539.47 1
2 200826
ABS/ASR INSTALLATION CONNECTING CABLES
CONNECTING CABLES / Valid for GD 		$1,341.71 1
3 200838
PEDAL DEVICE CONNECTING CABLES -Not for GD-
Valid for USA MY 2000,2001,2002,2003,2004 and CDN / MY 2000,2001,2002,2003,2004- -Not for USA MY 2000, / / Ass. Nr. 38396 not for F1 and from Ass. Nr. 36995 for F1 / 		$61.65 1
3 172887
PEDAL DEVICE CONNECTING CABLES
Not for GD- -Not for USA MY 2000,2001,2002,2003,2004 / and CDN MY 2000,2001,2002,2003,2004 / Valid till Ass. Nr. 38395 not for F1 / Valid till Ass. Nr. 36994 for F1 / 		$2,108.92 1
4 198553
DASHBOARD CONNECTION CABLES
Not for GD 		$2,450.34 1
4 186522
DASHBOARD CONNECTION CABLES
Valid from Ass. Nr. 40325 and / till Ass. Nr. 41709 / Valid for GD 		$8,625.97 1
4 198552
DASHBOARD CONNECTION CABLES
Not for GD 		$2,399.02 1
4 180207
DASHBOARD CONNECTION CABLES
Valid till Ass. Nr. 36945 / Valid for GD 		$2,752.48 1
4 181323
DASHBOARD CONNECTION CABLES
Valid from Ass. Nr. 36946 and / till Ass. Nr. 40324 / Valid for GD 		$7,315.90 1
4 198552
DASHBOARD CONNECTION CABLES
Valid from Ass. Nr. 41814 till Ass. Nr. 46967 / Not for GD / Valid for USA MY 2000,2001,2002,2003,2004 / and CDN MY 2000, 2001,2002,2003,2004 		$2,399.02 1
4 179194
DASHBOARD CONNECTION CABLES
Valid from Ass. Nr. 36995 and / till Ass. Nr. 41813- -Not for GD / Valid for USA MY 2000,2001,2002,2003,2004 / and CDN MY 2000,2001,2002,2003,2004 		$4,250.12 1
4 177911
DASHBOARD CONNECTION CABLES
Valid till Ass. Nr. 34124 / Not for GD / Not for USA MY 2000,2001,2002,2003,2004 / and CDN MY 2000,2001,2002,2003,2004 		$3,737.66 1
4 180206
DASHBOARD CONNECTION CABLES
Valid from Ass. Nr. 34125 and / till Ass. Nr. 36994- -Not for GD / Not for USA MY 2000,2001,2002,2003,2004 / and CDN MY 2000,2001,2002,2003,2004 		$3,417.29 1
5 198555
CABLES FOR R.H. REAR TUNNEL CONNECTION
Valid for USA MY 2000,2001,2002,2003,2004 / and CDN MY 2000,2001,2002,2003,2004 		$403.13 1
5 198554
CABLES FOR R.H. REAR TUNNEL CONNECTION
Not for USA MY 2000,2001,2002,2003,2004 / and CDN MY 2000,2001,2002,2003,2004 		$5,716.29 1
6 200847
CABLES FOR LH REAR TUNNEL CONNECTION
CONNECTION / Valid from Ass. Nr. 41816 		$3,551.00 1
6 177914
CABLES FOR LH REAR TUNNEL CONNECTION
CONNECTION / Valid till Ass. Nr. 41815 		$5,849.41 1
7 200832
CABLES FOR TUNNEL CONNECTION
CONNECTION / Valid from Ass. Nr. 35381 / Valid for AUS 		$251.94 1
7 200830
CABLES FOR TUNNEL CONNECTION
CONNECTION / Valid from Ass. Nr. 35381 / Not for AUS 		$115.80 1
7 178835
CABLES FOR TUNNEL CONNECTION
CONNECTION / Valid till Ass. Nr. 35380 / Valid for AUS 		- 1 Enquire
7 164814
CABLES FOR TUNNEL CONNECTION
CONNECTION / Valid till Ass. Nr. 35380 / Not for AUS 		$111.29 1
8 198209
DOOR CONNECTOR CABLES
Valid from Ass. Nr. 52140 		$175.51 2
8 178709
DOOR CONNECTION CABLES
Valid till Ass. Nr. 35720 		$4,231.72 2
8 201104
DOOR CONNECTION CABLES
Valid from Ass. Nr. 35721 till Ass. Nr.52139 		$1,134.97 2
9 200844
CONNECTION CABLES FOR RH ENGINE COMPARTMENT
R.H. ENGINE COMPARTMENT / Valid for USA MY 2000,2001, 2002,2003,2004 / and CDN MY 2000,2001,2002,2003,2004 		$768.47 1
9 205659
CONNECTION CABLES FOR RH ENGINE COMPARTMENT
R.H. ENGINE COMPARTMENT / Valid for USA, CDN and AUS / Not for USA MY 2000, 2001,2002,2003,2004 / and CDN MY 2000, 2001,2002,2003,2004 / Valid till stock exhaustion 		$1,668.57 1
9 177912
CONNECTION CABLES FOR RH ENGINE COMPARTMENT
R.H. ENGINE COMPARTMENT / Not for USA, CDN and AUS / Valid till stock exhaustion 		$2,937.48 1
10 213155
COMPLETE CONNECTION CABLES FOR MOTOR UTILITIES
CABLES FOR MOTOR UTILITIES 		$1,511.27 (31.1% off) 1
11 200843
CONNECTION CABLES FOR LH ENGINE COMPARTMENT
L.H. ENGINE COMPARTMENT / Valid for USA MY 2000,2001,2002,2003,2004 / and CDN MY 2000,2001,2002,2003,2004 		$768.47 1
11 200840
CONNECTION CABLES FOR LH ENGINE COMPARTMENT
L.H. ENGINE COMPARTMENT / Not for USA MY 2000,2001,2002,2003,2004 / and CDN MY 2000,2001,2002,2003,2004 		$1,776.32 1
12 155073
CABLE FOR ENGINE-FRAME EARTH 		$12.78 (43.1% off) 1
13 199875
R.H. SIDE ENGINE INJECTION CABLES
Valid for USA MY 2000,2001,2002,2003,2004 / and CDN MY 2000, 2001,2002,2003,2004 / Valid till Ass. Nr. 44103 / Valid till stock exhaustion 		$887.40 1
13 199873
R.H. SIDE ENGINE INJECTION CABLES
Not for USA MY 2000,2001,2002,2003,2004 / and CDN MY 2000,2001,2002,2003,2004 / Valid till Ass. Nr. 44103 / Valid till stock exhaustion 		$610.97 1
14 199876
L.H. SIDE ENGINE INJECTION CABLES
Valid for USA MY 2000,2001,2002,2003,2004 / and CDN MY 2000,2001,2002,2003,2004 / Validtill Ass. Nr. 44103 / Valid till stock exhaustion 		$887.40 1
14 199874
L.H. SIDE ENGINE INJECTION CABLES
Not for USA MY 2000,2001,2002,2003,2004 / and CDN MY 2000,2001,2002,2003,2004 / Valid till Ass. Nr. 44103 / Valid till stock exhaustion 		$610.97 1
15 200837
REAR LIGHTS CONNECTING CABLES
CABLES / Valid for USA MY 2000,2001,2002,2003,2004 / and CDN MY 2000,2001,2002,2003,2004 		$856.67 2
15 173430
REAR LIGHTS CONNECTING CABLES
CABLES / Valid for USA and CDN / Not for USA MY 2000,2001,2002,2003,2004 / and CDN MY 2000,2001,2002,2003,2004 		$2,136.64 2
15 200836
REAR LIGHTS CONNECTING CABLES
CABLES / Not for USA and CDN 		$1,058.23 2
16 241766
STOP-LAMP CONNECTION CABLES 		$30.22 (28.7% off) 1
17 182985
PLATE LIGHT CABLES
LIGHTS / Valid from Ass. Nr. 36337 		$226.75 1
17 164823
CABLES FOR NUMBER PLATE LIGHTS
LIGHTS / Valid till Ass. Nr. 36336
IN STOCK 		$296.43 1
18 207330
COMPLETE CABLES F1 TRANSMISSION CONNECTION
TRANSMISSION CONNECTION / Valid for F1 / Valid till stock exhaustion 		$1,126.01 1
18 207330
COMPLETE CABLES F1 TRANSMISSION CONNECTION
TRANSMISSION CONNECTION / Valid for F1 / Included relay 194909 Tab. 138 / Ref. 16 		$1,126.01 1
