Name: Lubrication
Rating: 4.6 (1 reviews)

View All

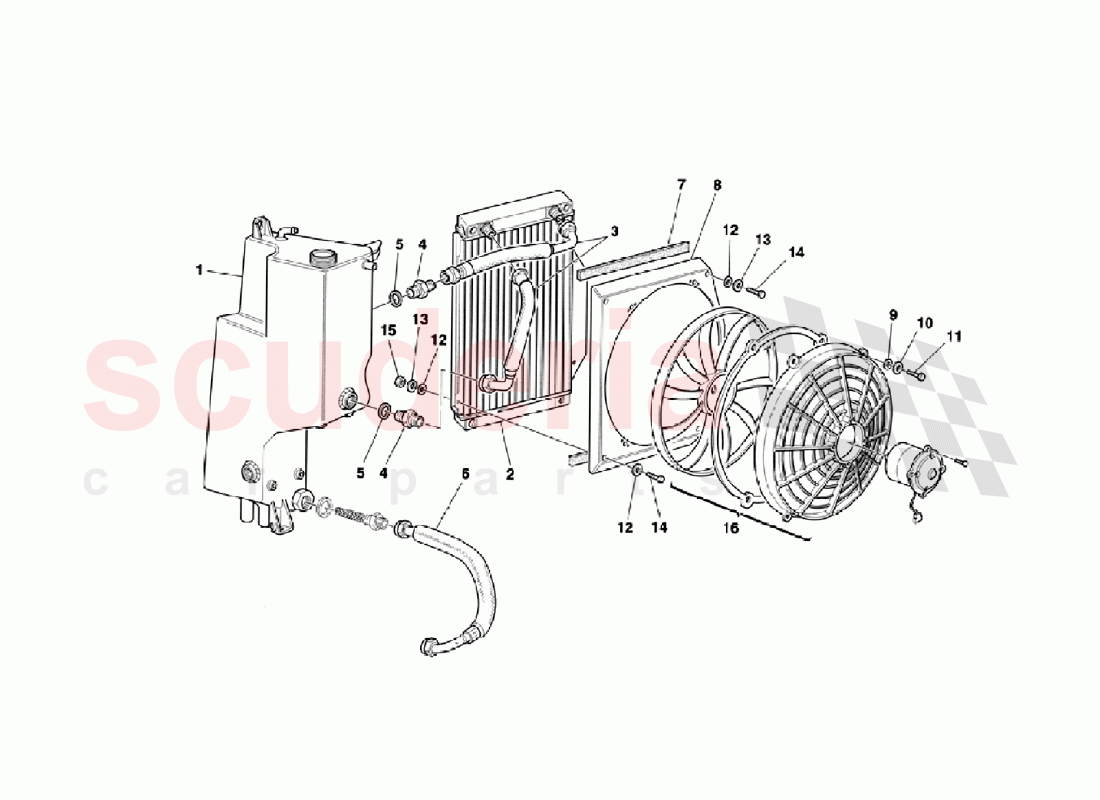

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	166666	Oil tank	$466.85	To Order

Photo	Part No	Description	Price (each)	Stock
	166665	Oil radiator	$1,126.26	To Order

Photo	Part No	Description	Price (each)	Stock
	141820	HOSE FROM RESERVOIR TO RADIATOR	$501.97	To Order

Photo	Part No	Description	Price (each)	Stock
	145085	CONNECTOR	$20.09	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	898271	GASKET	$34.05	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	166000	Pump-tank conn, pipe	$693.00	To Order

Photo	Part No	Description	Price (each)	Stock
	170484	Gasket	$2.35	To Order

Photo	Part No	Description	Price (each)	Stock
	170187	Radiator hood	$711.47	To Order

Photo	Part No	Description	Price (each)	Stock
	12637824	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	127493	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	10977824	SCREW	$1.70	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER D.6.4 X 11.95 X 1.6	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	$0.08	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW M6 X 16	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.32	IN STOCK

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	166666	Oil tank	166666 Oil tank	$466.85	1
2	166665	Oil radiator	166665 Oil radiator	$1,126.26	1
3	141820	HOSE FROM RESERVOIR TO RADIATOR	141820 HOSE FROM RESERVOIR TO RADIATOR	$501.97	2
4	145085	CONNECTOR IN STOCK	145085 CONNECTOR IN STOCK	$20.09	2
5	898271	GASKET IN STOCK	898271 GASKET IN STOCK	$34.05	2
6	166000	Pump-tank conn, pipe	166000 Pump-tank conn, pipe	$693.00	1
7	170484	Gasket	170484 Gasket	$2.35	2
8	170187	Radiator hood	170187 Radiator hood	$711.47	1
9	12637824	WASHER IN STOCK	12637824 WASHER IN STOCK	$0.06 MSRP: ~~0.50~~ (88% off)	4
10	127493	WASHER	127493 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	4
11	10977824	SCREW IN STOCK	10977824 SCREW IN STOCK	$1.70	4
12	10519424	WASHER D.6.4 X 11.95 X 1.6 IN STOCK	10519424 WASHER D.6.4 X 11.95 X 1.6 IN STOCK	$0.02 MSRP: ~~0.25~~ (92% off)	12
13	127494	WASHER IN STOCK	127494 WASHER (minimum order quantity = 20) IN STOCK	$0.08 MSRP: ~~0.68~~ (88.2% off)	8
14	10902224	SCREW M6 X 16 IN STOCK	10902224 SCREW M6 X 16 IN STOCK	$0.06 MSRP: ~~0.45~~ (86.7% off)	8
15	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.32	4

Lubrication

Ferrari 355 Challenge (1996)
