Name: Rear Suspension and Brake Pipes
Rating: 4.4 (1 reviews)

View All

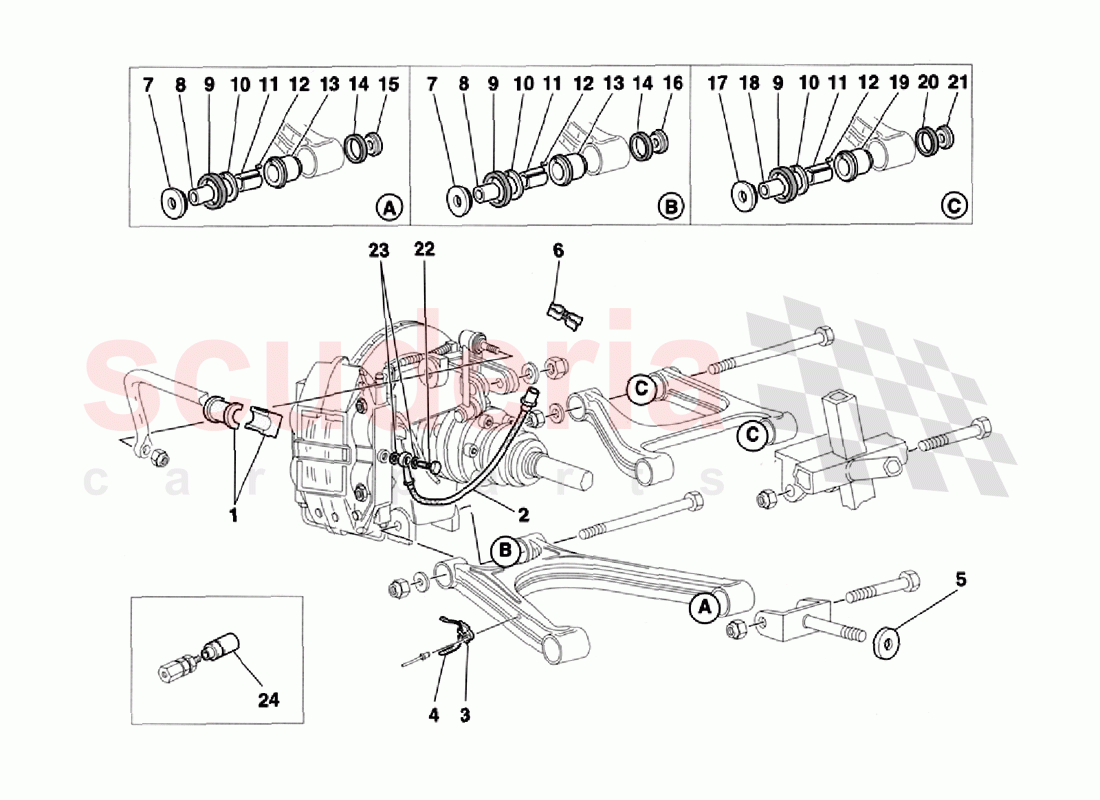

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	164762	Bumper	$210.86	To Order

Photo	Part No	Description	Price (each)	Stock
	163288	Clamp support	$1.34	To Order

Photo	Part No	Description	Price (each)	Stock
	163287	Clamp	$0.70	To Order

Photo	Part No	Description	Price (each)	Stock
	163325	Spacer	$6.92	To Order

Photo	Part No	Description	Price (each)	Stock
	124551	FIXING CLIP	$1.45	To Order

Photo	Part No	Description	Price (each)	Stock
	148651	Thrust washer	$23.48	To Order

Photo	Part No	Description	Price (each)	Stock
	148730	Spacer	$30.11	To Order

Photo	Part No	Description	Price (each)	Stock
	148729	Dust seal	$3.18	To Order

Photo	Part No	Description	Price (each)	Stock
	101009	Thrust washer	$11.59	To Order

Photo	Part No	Description	Price (each)	Stock
	101010	Bush	$4.59	To Order

Photo	Part No	Description	Price (each)	Stock
	100796	Dowel	$3.70	To Order

Photo	Part No	Description	Price (each)	Stock
	148600	Outside bush	$55.72	To Order

Photo	Part No	Description	Price (each)	Stock
	148650	Dust seal	$2.45	To Order

Photo	Part No	Description	Price (each)	Stock
	148678	Thrust washer	$17.88	To Order

Photo	Part No	Description	Price (each)	Stock
	148607	Thrust washer	$16.77	To Order

Photo	Part No	Description	Price (each)	Stock
	149746	Thrust washer	$24.31	To Order

Photo	Part No	Description	Price (each)	Stock
	150379	Spacer	$108.48	To Order

Photo	Part No	Description	Price (each)	Stock
	149563	Outside bush	$82.51	To Order

Photo	Part No	Description	Price (each)	Stock
	148599	Dust seal	$1.22	To Order

Photo	Part No	Description	Price (each)	Stock
	149564	Thrust washer	$17.63	To Order

Photo	Part No	Description	Price (each)	Stock
	169829	Screw	$7.82	To Order

Photo	Part No	Description	Price (each)	Stock
	10260160	Copper Washer D. 10 - 14 x 1	$0.72	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	155808	Braking regulator	$75.60	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	164762	Bumper	164762 Bumper	$210.86	2
2	166015	Brake pipe	166015 Brake pipe	$225.93	2
3	163288	Clamp support	163288 Clamp support	$1.34	2
4	163287	Clamp	163287 Clamp	$0.70	2
5	163325	Spacer	163325 Spacer	$6.92	2
6	124551	FIXING CLIP	124551 FIXING CLIP	$1.45	4
7	148651	Thrust washer	148651 Thrust washer	$23.48	8
8	148730	Spacer	148730 Spacer	$30.11	8
9	148729	Dust seal	148729 Dust seal	$3.18	16
10	101009	Thrust washer	101009 Thrust washer	$11.59 MSRP: ~~17.10~~ (32.2% off)	16
11	101010	Bush	101010 Bush	$4.59 MSRP: ~~24.72~~ (81.4% off)	16
12	100796	Dowel	100796 Dowel	$3.70 MSRP: ~~3.93~~ (5.9% off)	16
13	148600	Outside bush	148600 Outside bush	$55.72	8
14	148650	Dust seal	148650 Dust seal	$2.45	8
15	148678	Thrust washer	148678 Thrust washer	$17.88	4
16	148607	Thrust washer	148607 Thrust washer	$16.77	4
17	149746	Thrust washer	149746 Thrust washer	$24.31	8
18	150379	Spacer	150379 Spacer	$108.48	8
19	149563	Outside bush	149563 Outside bush	$82.51	8
20	148599	Dust seal	148599 Dust seal	$1.22	8
21	149564	Thrust washer	149564 Thrust washer	$17.63	8
22	169829	Screw	169829 Screw	$7.82	2
23	10260160	Copper Washer D. 10 - 14 x 1 IN STOCK	10260160 Copper Washer D. 10 - 14 x 1 IN STOCK	$0.72 MSRP: ~~0.90~~ (20% off)	4
24	155808	Braking regulator	155808 Braking regulator As an alternative for no. 157908	$75.60	1

Rear Suspension And Brake Pipes

Ferrari 355 Challenge (1996)
