Ferrari 355 (5.2 Motronic) - LAY SHAFT GEARS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
70000834 COMPLETE BEVEL GEAR PAIR $4,641.03 To Order
Photo Part No Description Price (each) Stock
70000828 PINION COMPLETE KIT FOR MAIN SHAFT/1st GEAR AND 2nd GEAR $6,232.16 To Order
Photo Part No Description Price (each) Stock
155660 COMPLETE REVERSE GEAR Enquire To Order
Photo Part No Description Price (each) Stock
165529 COMPLETE PINION FOR 2nd GEAR Enquire To Order
Photo Part No Description Price (each) Stock
70000830 PINION COMPLETE KIT FOR 3rd GEAR $2,929.25 To Order
Photo Part No Description Price (each) Stock
70000831 PINION COMPLETE KIT FOR 4th GEAR $2,280.53 To Order
Photo Part No Description Price (each) Stock
70000832 PINION COMPLETE KIT FOR 5th GEAR $2,751.61 To Order
Photo Part No Description Price (each) Stock
70000838 PINION COMPLETE KIT FOR 6th GEAR $2,365.58 To Order
Photo Part No Description Price (each) Stock
14328501 PLUG $0.41 To Order
Photo Part No Description Price (each) Stock
157151 COMPLETE SYNCHRONIZER BODY -Valid till gearbox $425.14 To Order
Photo Part No Description Price (each) Stock
159088 SYNCHRONIZER RINGS SERIES $809.88 To Order
Photo Part No Description Price (each) Stock
156931 SLEEVE FOR SYNCHRONIZER $459.15 To Order
Photo Part No Description Price (each) Stock
159249 RING NUT $13.44 To Order
Photo Part No Description Price (each) Stock
157179 BEARING $263.07 To Order
Photo Part No Description Price (each) Stock
157051 PAD FOR SYNCHRONIZER $11.06 To Order
Photo Part No Description Price (each) Stock
157050 BALL $0.12 To Order
Photo Part No Description Price (each) Stock
157049 SPRING FOR PAD $1.64 To Order
Photo Part No Description Price (each) Stock
104254 ROLLER CAGE $51.46 To Order
Photo Part No Description Price (each) Stock
151573 SPACER $255.08 To Order
Photo Part No Description Price (each) Stock
131334 BEARING $595.53 To Order
Photo Part No Description Price (each) Stock
155694 Front bearing $130.21 IN STOCK
Photo Part No Description Price (each) Stock
153002 RING NUT $210.29 To Order
Photo Part No Description Price (each) Stock
122145 Toothed wheel for pulse $340.11 To Order
Photo Part No Description Price (each) Stock
101611 BALL $0.79 To Order
Photo Part No Description Price (each) Stock
11067276 SEEGER RING $0.20 To Order
Photo Part No Description Price (each) Stock
113087 GASKET $69.39 To Order
Photo Part No Description Price (each) Stock
151574 BUSHING $340.11 To Order
Photo Part No Description Price (each) Stock
157177 BEARING $131.88 To Order
Photo Part No Description Price (each) Stock
163035 SPACER mm. 0,3 $20.39 To Order
Photo Part No Description Price (each) Stock
125701 WASHER mm. 0,3 $3.70 To Order
Photo Part No Description Price (each) Stock
153991 BUSHING $377.94 To Order
Photo Part No Description Price (each) Stock
159193 ROLLER CAGE $11.34 To Order
Photo Part No Description Price (each) Stock
154475 COMPLETE SYNCHRONIZER BODY $256.45 To Order
Photo Part No Description Price (each) Stock
152479 SYNCHRONIZER RING $166.97 To Order
Photo Part No Description Price (each) Stock
152206 SLEEVE FOR SYNCHRONIZER $146.24 To Order
Photo Part No Description Price (each) Stock
156655 LOCK RING $1.34 To Order
Photo Part No Description Price (each) Stock
152195 PAD FOR SYNCHRONIZER $0.75 To Order
Photo Part No Description Price (each) Stock
152197 BALL $3.93 To Order
Photo Part No Description Price (each) Stock
164103 SPRING FOR PAD $3.50 To Order
View All

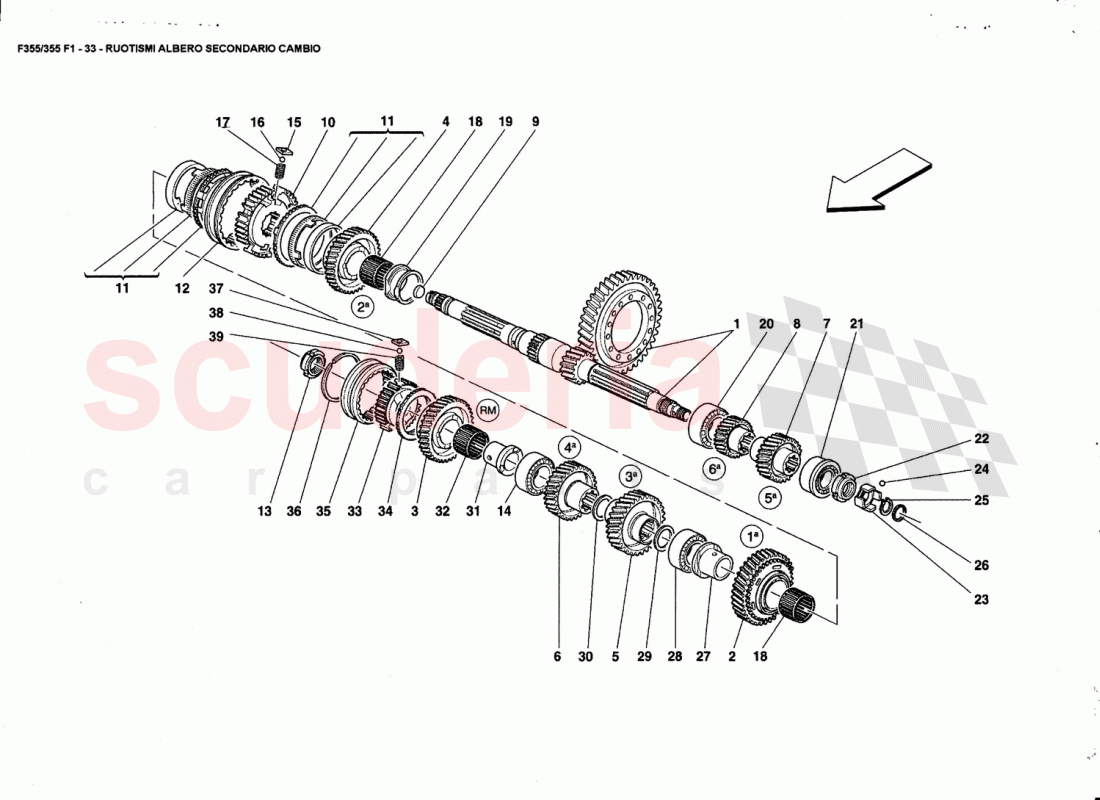

LAY SHAFT GEARS of Ferrari Ferrari 355 (5.2 Motronic) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 70000828
PINION COMPLETE KIT FOR MAIN SHAFT/1st GEAR AND 2nd GEAR 		$6,232.16 1
- 163034
SPACER mm. 0,5 		$9.83 1
- 125767
WASHER mm. 0,5 		$3.70 1
- 165531
SPACER 		$78.21 1
- 161862
COMPLETE SYNCHRONIZER BODY 		$289.09 1
- 70000838
PINION COMPLETE KIT FOR 6th GEAR
6th GEAR 		$2,365.58 1
- 70000872
COMPLETE BEVEL GEAR PAIR 		$4,600.20 1
- 70000846
PINION COMPLETE KIT FOR NEUTRAL/REVERSE
NEUTRAL/REVERSE 		$3,690.06 1
- 70000830
PINION COMPLETE KIT FOR 3rd GEAR
3rd GEAR 		$2,929.25 1
- 70000831
PINION COMPLETE KIT FOR 4th GEAR
4th GEAR 		$2,280.53 1
- 70000832
PINION COMPLETE KIT FOR 5th GEAR
5th GEAR 		$2,751.61 1
- 70000828
PINION COMPLETE KIT FOR MAIN SHAFT/1st GEAR AND 2nd GEAR
SHAFT/1 st GEAR AND 2nd GEAR / Valid till gearbox Nr. 768 / Not for ABS BOSCH and 355 F1 cars 		$6,232.16 1
- 70000873
PINION COMPLETE KIT FOR MAIN SHAFT/1st GEAR AND 2nd GEAR
Valid from gearbox Nr. 769 and from / 1st gearbox for ABS BOSCH and 355 F1 cars / 		$5,095.10 1
1 70000834
COMPLETE BEVEL GEAR PAIR 		$4,641.03 1
2 70000828
PINION COMPLETE KIT FOR MAIN SHAFT/1st GEAR AND 2nd GEAR
Not as spare part / With the pinion complete kit for / main shaft/1 st gear and 2nd gear only 		$6,232.16 1
3 155660
COMPLETE REVERSE GEAR
With the pinion kit for Neutral/Reverse / only 		- 1 Enquire
4 165529
COMPLETE PINION FOR 2nd GEAR 		- 1 Enquire
5 70000830
PINION COMPLETE KIT FOR 3rd GEAR
With the pinion complete kit for 3rd gear only 		$2,929.25 1
6 70000831
PINION COMPLETE KIT FOR 4th GEAR
With the pinion complete kit for 4th gear only 		$2,280.53 1
7 70000832
PINION COMPLETE KIT FOR 5th GEAR
With the pinion complete kit for 5th gear only 		$2,751.61 1
8 70000838
PINION COMPLETE KIT FOR 6th GEAR
With the pinion complete kit for 6th gear only 		$2,365.58 1
9 14328501
PLUG 		$0.41 1
10 157151
COMPLETE SYNCHRONIZER BODY -Valid till gearbox
Nr.768 		$425.14 1
11 159088
SYNCHRONIZER RINGS SERIES 		$809.88 (41.6% off) 2
12 156931
SLEEVE FOR SYNCHRONIZER
SYNCHRONIZER 		$459.15 (44.5% off) 1
13 159249
RING NUT 		$13.44 (93.4% off) 1
14 157179
BEARING 		$263.07 1
15 157051
PAD FOR SYNCHRONIZER 		$11.06 3
16 157050
BALL 		$0.12 3
17 157049
SPRING FOR PAD 		$1.64 3
18 104254
ROLLER CAGE 		$51.46 (9.5% off) 2
19 151573
SPACER 		$255.08 1
20 131334
BEARING 		$595.53 1
21 155694
Front bearing
IN STOCK 		$130.21 1
22 153002
RING NUT 		$210.29 1
23 122145
Toothed wheel for pulse 		$340.11 1
24 101611
BALL 		$0.79 1
25 11067276
SEEGER RING 		$0.20 1
26 113087
GASKET 		$69.39 (41.9% off) 1
27 151574
BUSHING 		$340.11 1
28 157177
BEARING 		$131.88 (11% off) 1
29 163035
SPACER mm. 0,3 		$20.39 1
30 125701
WASHER mm. 0,3
Possible fitting 		$3.70 1
31 153991
BUSHING 		$377.94 1
32 159193
ROLLER CAGE 		$11.34 (41.3% off) 1
33 154475
COMPLETE SYNCHRONIZER BODY 		$256.45 1
34 152479
SYNCHRONIZER RING 		$166.97 (13.6% off) 1
35 152206
SLEEVE FOR SYNCHRONIZER 		$146.24 1
36 156655
LOCK RING 		$1.34 1
37 152195
PAD FOR SYNCHRONIZER 		$0.75 3
38 152197
BALL 		$3.93 3
39 164103
SPRING FOR PAD 		$3.50 3
