Gearbox - Differential Housing Ano Intermediate Casing

Ferrari 355 (5.2 Motronic)

Find Your Part

Ferrari 355 (5.2 Motronic) - GEARBOX - DIFFERENTIAL HOUSING ANO INTERMEDIATE CASING

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
164051 COMPLETE GEARBOX-DIFFERENTIAL CASE $6,451.87 To Order
Photo Part No Description Price (each) Stock
164052 COMPLETE INTERMEDIATE BODY $1,936.35 To Order
Photo Part No Description Price (each) Stock
131749 DOWEL $4.04 To Order
Photo Part No Description Price (each) Stock
131736 O.R. GASKET $4.67 IN STOCK
Photo Part No Description Price (each) Stock
146306 GEARBOX SHAFT GASKET $2.58 IN STOCK
Photo Part No Description Price (each) Stock
16044624 SCREW $0.34 To Order
Photo Part No Description Price (each) Stock
231629 SCREW $0.62 IN STOCK
Photo Part No Description Price (each) Stock
12601374 WASHER $0.02 IN STOCK
Photo Part No Description Price (each) Stock
10902521 SCREW $0.06 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
13547534 STUD $7.34 To Order
Photo Part No Description Price (each) Stock
13543524 STUD BOLT $4.21 To Order
Photo Part No Description Price (each) Stock
133989 NUT $0.42 To Order
Photo Part No Description Price (each) Stock
160430 SPACER $14.73 To Order
Photo Part No Description Price (each) Stock
133988 HEX NUT M10 X 1.25 X 8 $0.20 IN STOCK
Photo Part No Description Price (each) Stock
127497 SPRING WASHER M10 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
126648 WASHER D.10.5-21 X 2 $1.68 IN STOCK
Photo Part No Description Price (each) Stock
10269550 THREADED PLUG $2.75 IN STOCK
Photo Part No Description Price (each) Stock
13526070 Heli-coil securing cover $2.87 To Order
Photo Part No Description Price (each) Stock
149907 BUSHING $30.95 To Order
Photo Part No Description Price (each) Stock
282755 THREADED PLUG $1.90 To Order
Photo Part No Description Price (each) Stock
104280 MAGNETIC THREADED OIL DRAIN PLUG M22 X 1.5 $5.51 IN STOCK
Photo Part No Description Price (each) Stock
144810 GASKET $21.49 IN STOCK
Photo Part No Description Price (each) Stock
223577 THREADED INSERT M22 X 1.5 X 9MM $5.25 IN STOCK
Photo Part No Description Price (each) Stock
13414691 OIL BREATHER $11.17 To Order
Photo Part No Description Price (each) Stock
159386 PLATE $2.14 To Order
Photo Part No Description Price (each) Stock
13415400 OIL SEAL DISC FOR BREATHER $0.59 To Order
Photo Part No Description Price (each) Stock
154683 PLUG AND OIL LEVEL ROD $152.57 To Order
Photo Part No Description Price (each) Stock
144810 GASKET $21.49 IN STOCK
Photo Part No Description Price (each) Stock
141563 THREADED PLUG $1.57 To Order
Photo Part No Description Price (each) Stock
131756 THREADED BUSHING $34.46 To Order
Photo Part No Description Price (each) Stock
14159470 PIN $4.72 To Order
Photo Part No Description Price (each) Stock
131757 BUSHING $13.22 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
14305382 SCREW $1.80 To Order
Photo Part No Description Price (each) Stock
238108 WASHER $0.45 IN STOCK
Photo Part No Description Price (each) Stock
152246 GEARBOX CASE FIXING SUPPORT $580.34 To Order
Photo Part No Description Price (each) Stock

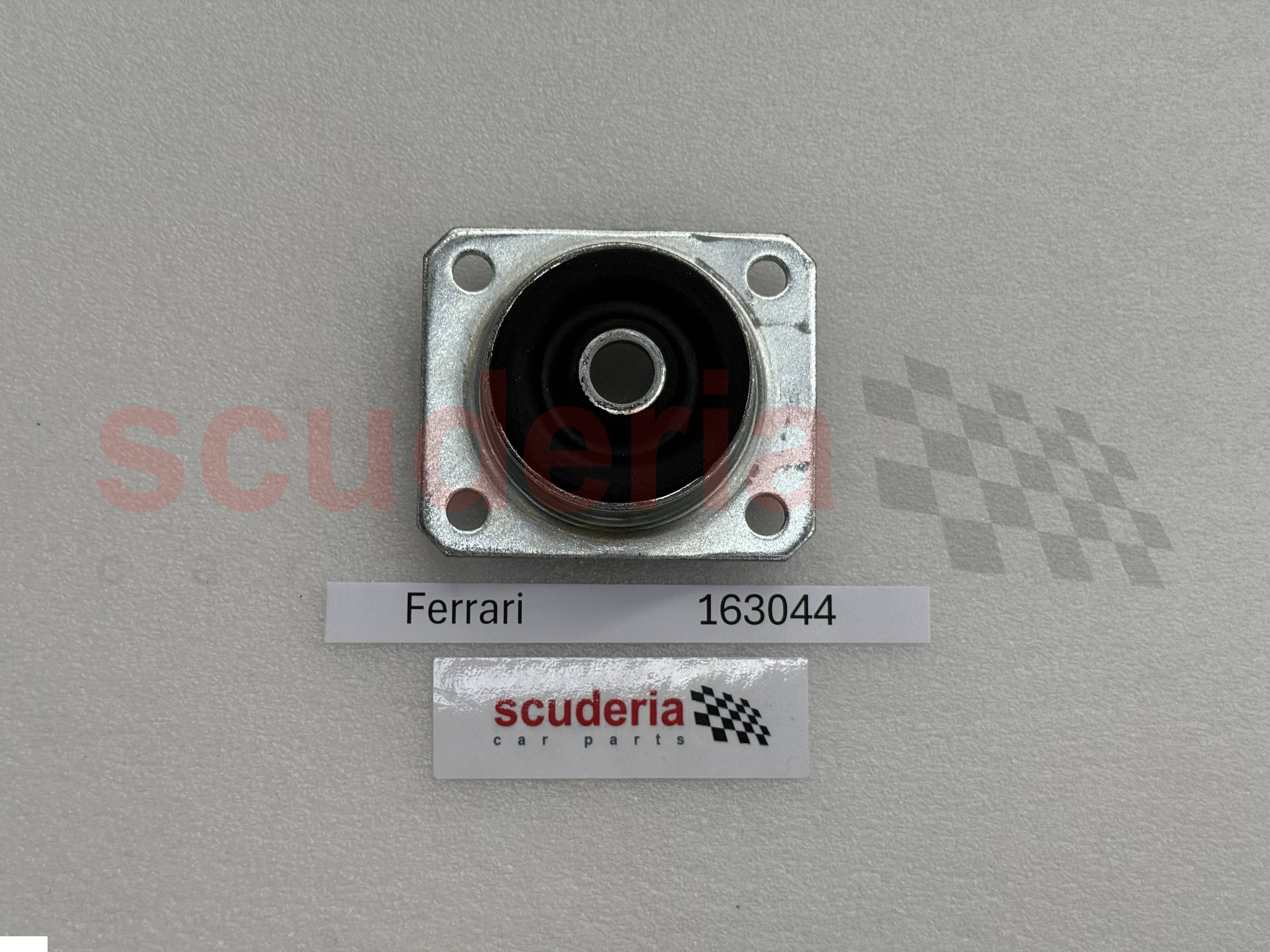

163044 Gearbox Mount $131.33 IN STOCK
Photo Part No Description Price (each) Stock
132268 UPPER SPACER $7.24 To Order
Photo Part No Description Price (each) Stock
163043 LOWER SPACER $20.19 To Order
Photo Part No Description Price (each) Stock
15971821 SCREW $1.06 To Order
Photo Part No Description Price (each) Stock
169112 WASHER $0.14 To Order
Photo Part No Description Price (each) Stock
102742 Nyloc Nut M10 x 1.25 x 10mm $0.43 IN STOCK
Photo Part No Description Price (each) Stock
83220900 Washer $0.26 To Order
Photo Part No Description Price (each) Stock
16043434 HEX HEAD SCREW M8 X 20 $0.23 IN STOCK
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
14496524 WASHER $0.11 IN STOCK
Photo Part No Description Price (each) Stock
133988 HEX NUT M10 X 1.25 X 8 $0.20 IN STOCK
Photo Part No Description Price (each) Stock
10569479 WASHER $0.05 To Order
Photo Part No Description Price (each) Stock
13546224 STUD BOLT $13.75 To Order
Photo Part No Description Price (each) Stock
13546624 STUD $0.88 To Order
Photo Part No Description Price (each) Stock
100041 CENTERING DOWEL $7.39 To Order
Photo Part No Description Price (each) Stock
13544324 STUD $13.75 To Order
Photo Part No Description Price (each) Stock
13544124 STUD $0.43 IN STOCK
Photo Part No Description Price (each) Stock
131049 BEARING -As an alternative- $45.36 To Order
Photo Part No Description Price (each) Stock
131958 SEAL RING $0.25 To Order
Photo Part No Description Price (each) Stock
131050 Beaing - As an Alternitive $40.68 To Order
Photo Part No Description Price (each) Stock
103096 SEAL RING $2.01 To Order
Photo Part No Description Price (each) Stock
163699 OIL EXHAUST EXTENSION $46.53 To Order
Photo Part No Description Price (each) Stock
162890 EXTENSION FOR OIL EXHAUST EXTENSION $9.13 To Order
Photo Part No Description Price (each) Stock
13415400 OIL SEAL DISC FOR BREATHER $0.59 To Order
Photo Part No Description Price (each) Stock
147572 BELLOW $127.61 To Order
Photo Part No Description Price (each) Stock
10815787 CLAMP $0.14 IN STOCK
View All

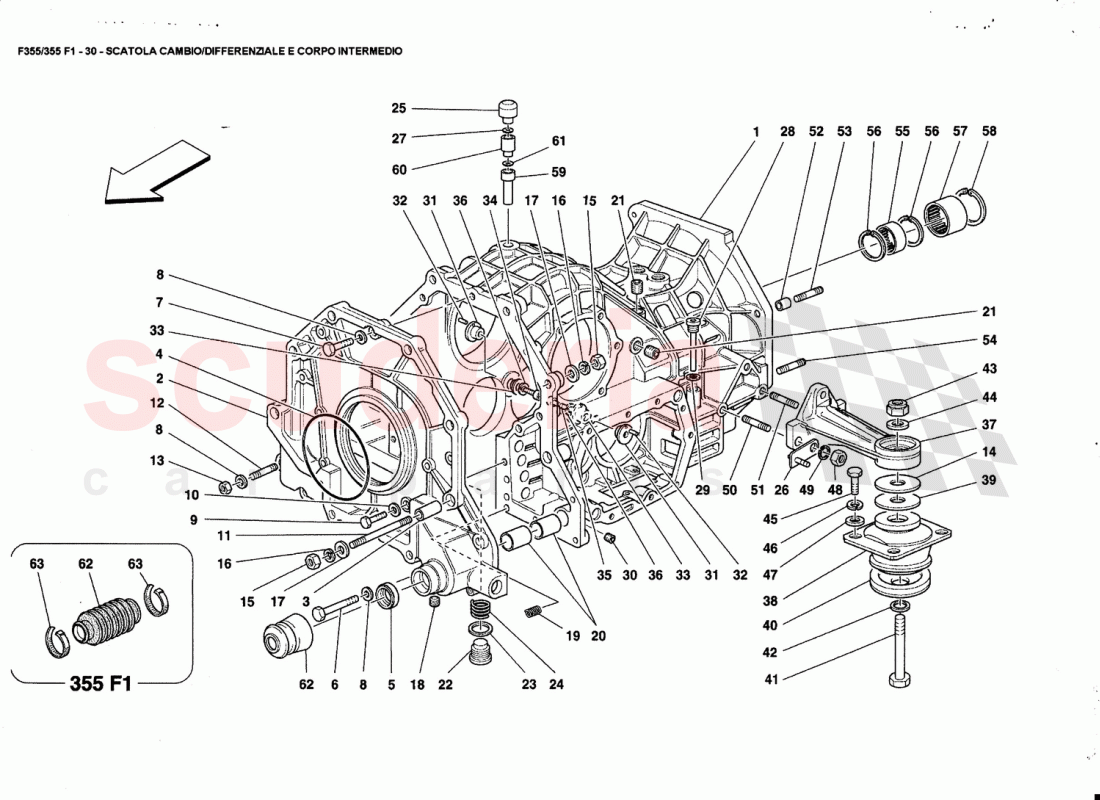

GEARBOX - DIFFERENTIAL HOUSING ANO INTERMEDIATE CASING of Ferrari Ferrari 355 (5.2 Motronic) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 164051
COMPLETE GEARBOX-DIFFERENTIAL CASE 		$6,451.87 1
- 131050
Beaing - As an Alternitive 		$40.68 (32.5% off) 1
- 131049
BEARING -As an alternative-
As an alternative 		$45.36 1
- 164051
COMPLETE GEARBOX-DIFFERENTIAL CASE
CASE 		$6,451.87 1
1 164051
COMPLETE GEARBOX-DIFFERENTIAL CASE
Not as spare part / With the complete gearbox / differential case / COMPLETE INTERMEDIATE BODY 		$6,451.87 1
2 164052
COMPLETE INTERMEDIATE BODY
With the complete intermediate 		$1,936.35 1
3 131749
DOWEL 		$4.04 (21.1% off) 2
4 131736
O.R. GASKET
IN STOCK 		$4.67 (15.1% off) 1
5 146306
GEARBOX SHAFT GASKET
IN STOCK 		$2.58 (47.3% off) 1
6 16044624
SCREW 		$0.34 1
7 231629
SCREW
IN STOCK 		$0.62 (34.7% off) 11
8 12601374
WASHER
IN STOCK 		$0.02 (92% off) 13
9 10902521
SCREW 		$0.06 1
10 11197774
WASHER
IN STOCK 		$0.06 (80% off) 1
11 13547534
STUD 		$7.34 2
12 13543524
STUD BOLT 		$4.21 (3.2% off) 1
13 133989
NUT 		$0.42 (58% off) 17
14 160430
SPACER 		$14.73 2
15 133988
HEX NUT M10 X 1.25 X 8
IN STOCK 		$0.20 (42.9% off) 6
16 127497
SPRING WASHER M10
IN STOCK 		$0.06 (92% off) 6
17 126648
WASHER D.10.5-21 X 2
IN STOCK 		$1.68 (4% off) 6
18 10269550
THREADED PLUG
IN STOCK 		$2.75 1
19 13526070
Heli-coil securing cover 		$2.87 2
20 149907
BUSHING 		$30.95 2
21 282755
THREADED PLUG 		$1.90 3
22 104280
MAGNETIC THREADED OIL DRAIN PLUG M22 X 1.5
IN STOCK 		$5.51 (20.1% off) 1
23 144810
GASKET
IN STOCK 		$21.49 (20.1% off) 1
24 223577
THREADED INSERT M22 X 1.5 X 9MM
IN STOCK 		$5.25 1
25 13414691
OIL BREATHER 		$11.17 1
26 159386
PLATE 		$2.14 1
27 13415400
OIL SEAL DISC FOR BREATHER
VENT 		$0.59 1
28 154683
PLUG AND OIL LEVEL ROD 		$152.57 1
29 144810
GASKET
IN STOCK 		$21.49 (20.1% off) 1
30 141563
THREADED PLUG 		$1.57 1
31 131756
THREADED BUSHING 		$34.46 2
32 14159470
PIN 		$4.72 (14.2% off) 2
33 131757
BUSHING 		$13.22 2
34 231619
SCREW
IN STOCK 		$0.29 1
35 14305382
SCREW 		$1.80 1
36 238108
WASHER
IN STOCK 		$0.45 (30.8% off) 2
37 152246
GEARBOX CASE FIXING SUPPORT
SUPPORT 		$580.34 2
38 163044
Gearbox Mount
IN STOCK 		$131.33 (24.5% off) 2
39 132268
UPPER SPACER 		$7.24 2
40 163043
LOWER SPACER 		$20.19 2
41 15971821
SCREW 		$1.06 2
42 169112
WASHER 		$0.14 2
43 102742
Nyloc Nut M10 x 1.25 x 10mm
IN STOCK 		$0.43 (86.8% off) 2
44 83220900
Washer 		$0.26 2
45 16043434
HEX HEAD SCREW M8 X 20
IN STOCK 		$0.23 (54% off) 8
46 127496
WASHER 		$0.06 (80% off) 8
47 14496524
WASHER
IN STOCK 		$0.11 (92.7% off) 8
48 133988
HEX NUT M10 X 1.25 X 8
IN STOCK 		$0.20 (42.9% off) 6
49 10569479
WASHER 		$0.05 6
50 13546224
STUD BOLT 		$13.75 5
51 13546624
STUD 		$0.88 1
52 100041
CENTERING DOWEL 		$7.39 2
53 13544324
STUD 		$13.75 2
54 13544124
STUD
IN STOCK 		$0.43 6
55 131049
BEARING -As an alternative- 		$45.36 1
56 131958
SEAL RING 		$0.25 (75% off) 2
57 131050
Beaing - As an Alternitive 		$40.68 (32.5% off) 1
58 103096
SEAL RING 		$2.01 (38.2% off) 1
59 163699
OIL EXHAUST EXTENSION 		$46.53 1
60 162890
EXTENSION FOR OIL EXHAUST EXTENSION
EXTENSION 		$9.13 1
61 13415400
OIL SEAL DISC FOR BREATHER 		$0.59 1
62 147572
BELLOW
RUBBER BOOT / Not for 355 F1 cars / GEARBOX CONTROL ROD / Valid for 355 F1 cars 		$127.61 (29.4% off) 1
63 10815787
CLAMP
IN STOCK 		$0.14 2
