Fuel Filler Seat

Ferrari 296 GTB Europe

Find Your Part

Ferrari 296 GTB Europe - FUEL FILLER SEAT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
985743913 COMPL. FUEL FILLER FLAP $252.95 To Order
Photo Part No Description Price (each) Stock
985743973 COMPL. CHARGING SOCKET COVER $252.95 To Order
Photo Part No Description Price (each) Stock
749482 COMPL. FUEL FILLER FLAP HINGE $153.30 To Order
921685 COMPL. FUEL FILLER FLAP HINGE $215.01 To Order
Photo Part No Description Price (each) Stock
62769800 WASHER D.5-14 X 2.5 $0.21 IN STOCK
Photo Part No Description Price (each) Stock
294780 SCREW $0.43 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
833814 RUBBER PAD $1.89 To Order
Photo Part No Description Price (each) Stock
82249400 STRIKER $7.57 To Order
Photo Part No Description Price (each) Stock
84046900 SHIM PLATE $8.72 To Order
Photo Part No Description Price (each) Stock
921324 CHARGE SOCKET CAP ORIENTATION BRACKET $22.74 To Order
921324 CHARGE SOCKET CAP ORIENTATION BRACKET $22.74 To Order
Photo Part No Description Price (each) Stock
769131 COMPL. FUEL FILLER FLAP ACTUATOR $81.73 To Order
Photo Part No Description Price (each) Stock
769713 RH EMERGENCY RELEASE CABLE GUIDE TUBE $121.40 To Order
Photo Part No Description Price (each) Stock
769709 LH EMERGENCY RELEASE CABLE GUIDE TUBE $121.40 To Order
Photo Part No Description Price (each) Stock
748925 RUBBER CABLE GROMMET $2.39 To Order
Photo Part No Description Price (each) Stock
11566224 SCREW $0.34 IN STOCK
16281827 SCREW $0.21 To Order
Photo Part No Description Price (each) Stock
743978 COMPL. RIGID FUEL DRAIN PIPE $303.54 To Order
Photo Part No Description Price (each) Stock
13000390 Screw Collar $0.69 IN STOCK
Photo Part No Description Price (each) Stock
11625824 SCREW $0.34 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
14059290 FLANGED NUT M6 $1.31 IN STOCK
View All

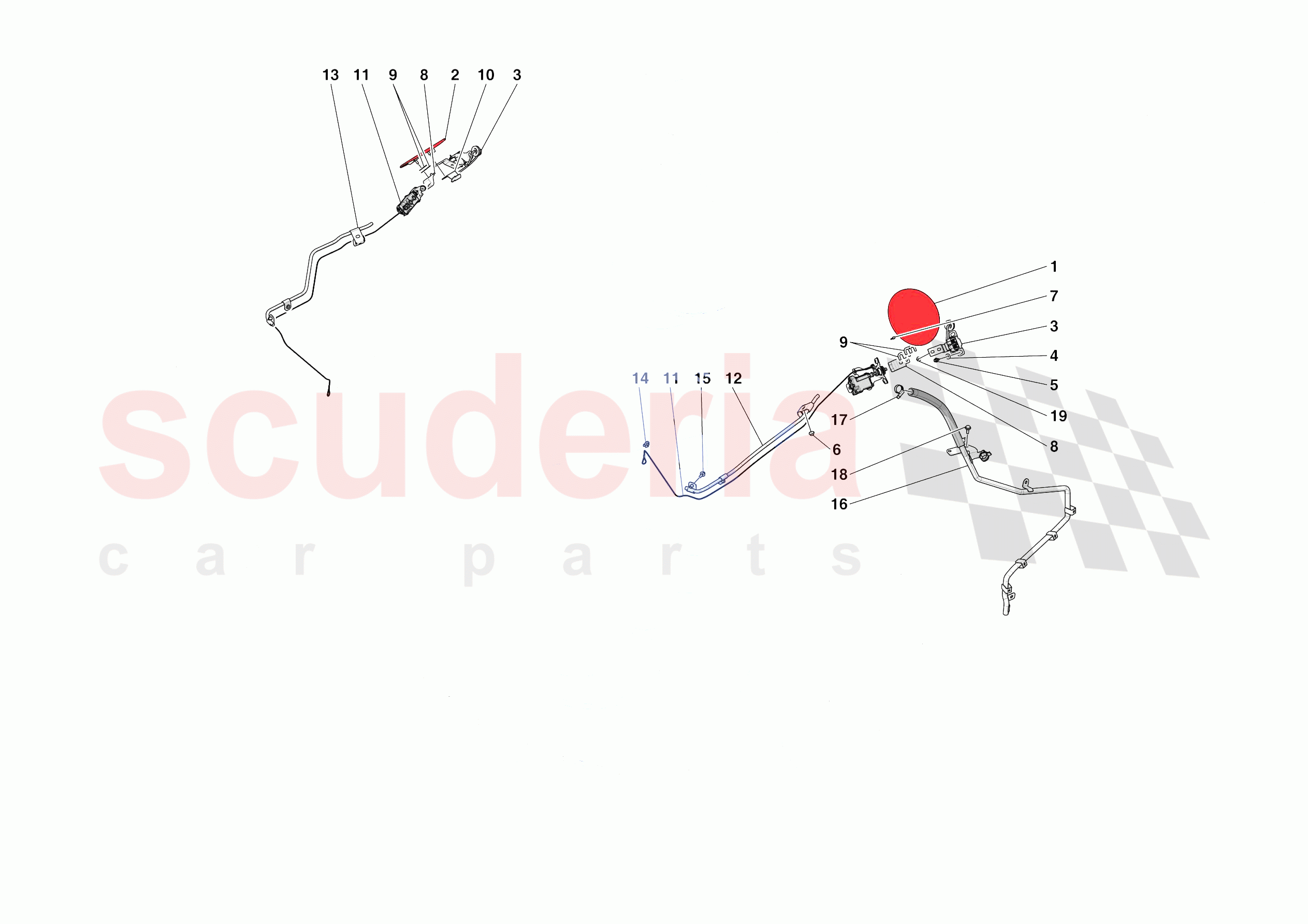

FUEL FILLER SEAT of Ferrari Ferrari 296 GTB Europe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 985743913
COMPL. FUEL FILLER FLAP 		$252.95 1
2 985743973
COMPL. CHARGING SOCKET COVER 		$252.95 1
3 749482
COMPL. FUEL FILLER FLAP HINGE
No longer supplied - Replaced by 921685 		$153.30 2
3 921685
COMPL. FUEL FILLER FLAP HINGE 		$215.01 2
4 62769800
WASHER D.5-14 X 2.5
IN STOCK 		$0.21 (30% off) 8
5 294780
SCREW
M5 X 14 		$0.43 8
6 14059290
FLANGED NUT M6
IN STOCK 		$1.31 2
7 833814
RUBBER PAD 		$1.89 4
8 82249400
STRIKER 		$7.57 2
9 84046900
SHIM PLATE 		$8.72 4
10 921324
CHARGE SOCKET CAP ORIENTATION BRACKET 		$22.74 1
10 921324
CHARGE SOCKET CAP ORIENTATION BRACKET 		$22.74 1
11 769131
COMPL. FUEL FILLER FLAP ACTUATOR 		$81.73 2
12 769713
RH EMERGENCY RELEASE CABLE GUIDE TUBE 		$121.40 1
13 769709
LH EMERGENCY RELEASE CABLE GUIDE TUBE 		$121.40 1
14 748925
RUBBER CABLE GROMMET 		$2.39 2
15 11566224
SCREW
M5 X 16
IN STOCK 		$0.34 4
15 16281827
SCREW
M5 X 14 		$0.21 4
16 743978
COMPL. RIGID FUEL DRAIN PIPE 		$303.54 1
17 13000390
Screw Collar
IN STOCK 		$0.69 (65.5% off) 1
18 11625824
SCREW
M6 X 18
IN STOCK 		$0.34 (66% off) 4
19 14059290
FLANGED NUT M6
IN STOCK 		$1.31 6
19 14059290
FLANGED NUT M6
IN STOCK 		$1.31 6
