Ferrari 296 GTB Europe - REAR ACTIVE AERO

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
830464 COMPL. VARIABLE GEOMETRY WING $7,157.90 To Order
749675 COMPL. VARIABLE GEOMETRY WING $6,816.80 To Order
784346 COMPL. VARIABLE GEOMETRY WING $1,958.76 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
793804 RH WING KINEMATICS $2,008.91 To Order
Photo Part No Description Price (each) Stock
793805 LH WING KINEMATICS $2,008.91 To Order
Photo Part No Description Price (each) Stock
788731 VARIABLE GEOMETRY WING BRACKET $35.10 To Order
Photo Part No Description Price (each) Stock
788746 VARIABLE GEOMETRY WING MOUNTING BRACKET $35.10 To Order
942479 VARIABLE GEOMETRY WING MOUNTING BRACKET $35.10 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.30 IN STOCK
14059290 FLANGED NUT M6 $1.30 IN STOCK
Photo Part No Description Price (each) Stock
954427 VARIABLE GEOMETRY WING HEAT SHIELD $70.22 To Order
Photo Part No Description Price (each) Stock
12640604 WASHER $0.12 IN STOCK
Photo Part No Description Price (each) Stock
11612826 SCREW $2.92 To Order
Photo Part No Description Price (each) Stock
335169 LINEAR ELECTRIC ACTUATOR $591.88 To Order
Photo Part No Description Price (each) Stock
897538 SCREW $1.51 To Order
Photo Part No Description Price (each) Stock
772365 VARIABLE GEOM. WING ACTUATOR PIVOT PIN $18.80 To Order
Photo Part No Description Price (each) Stock
11065474 CIRCLIP $0.12 IN STOCK
Photo Part No Description Price (each) Stock
789739 ENDSTOP BUSH $12.16 To Order
Photo Part No Description Price (each) Stock
291283 CLIP $0.50 IN STOCK
Photo Part No Description Price (each) Stock
303385 CLIP $0.26 IN STOCK
Photo Part No Description Price (each) Stock
857463 SCREW $0.21 To Order
Photo Part No Description Price (each) Stock
772193 MOBILE WING ACTUATOR BRACKET $89.01 To Order
Photo Part No Description Price (each) Stock
814978 CLIP BEARING $24.06 To Order
View All

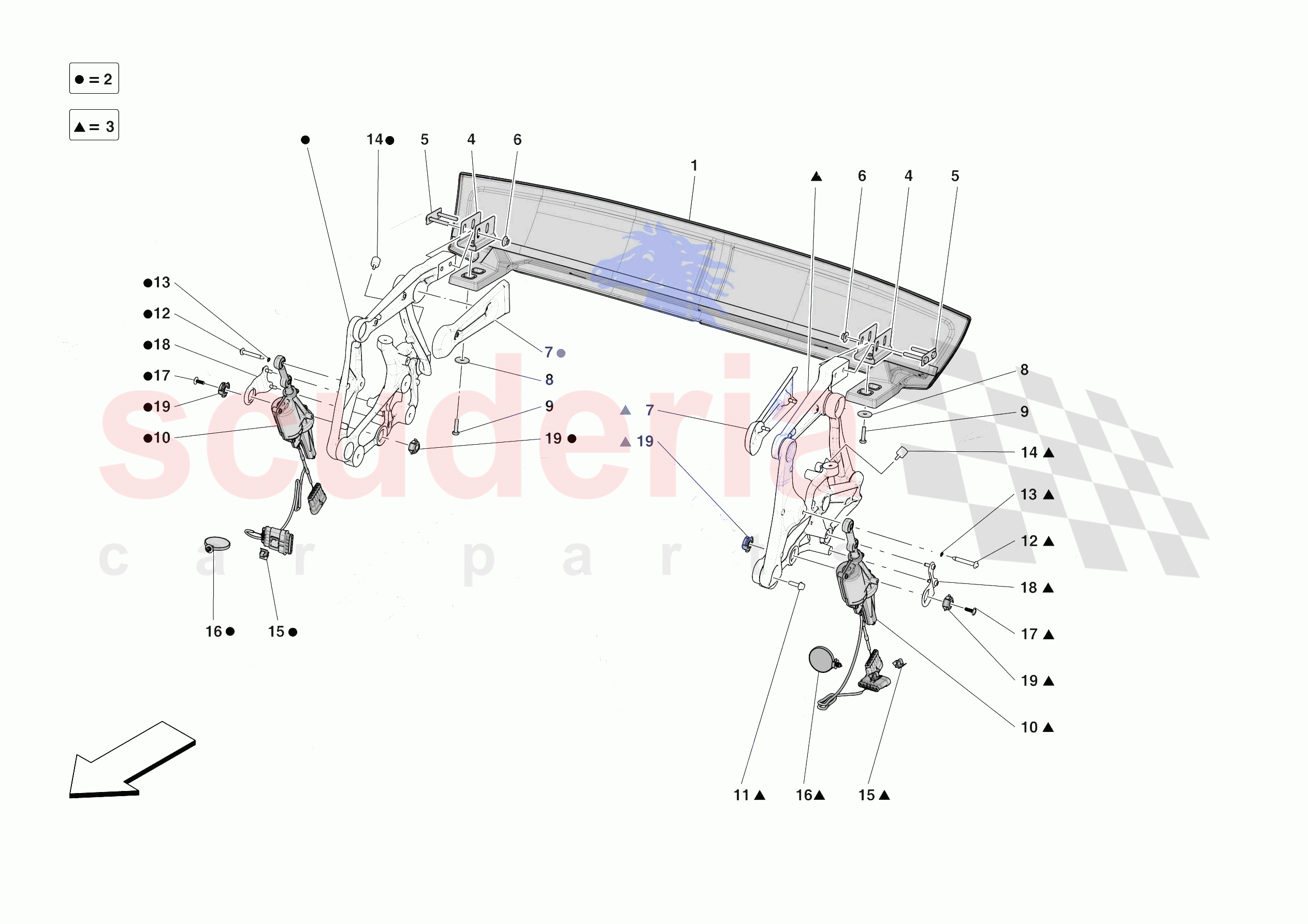

REAR ACTIVE AERO of Ferrari Ferrari 296 GTB Europe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 830464
COMPL. VARIABLE GEOMETRY WING
Gloss black - Not for Assetto Fiorano FIO2 		$7,157.90 1
1 749675
COMPL. VARIABLE GEOMETRY WING
Applicable for Assetto Fiorano FIO2 - Gloss finish carbon version 		$6,816.80 1
1 784346
COMPL. VARIABLE GEOMETRY WING
Applicable for Assetto Fiorano FIO2 - Matte finish carbon version 		$1,958.76 1
1 70007699
COMPL. VARIABLE GEOMETRY WING
Version in coloured naked weave carbon - CECM - CECM for carbon colour selection - Applicable for Assetto Fiorano FIO2 - For better colour match, also order adjacent off-catalogue components; Off-catalogue version 		- 1 Enquire
2 793804
RH WING KINEMATICS 		$2,008.91 1
3 793805
LH WING KINEMATICS 		$2,008.91 1
4 788731
VARIABLE GEOMETRY WING BRACKET 		$35.10 2
5 788746
VARIABLE GEOMETRY WING MOUNTING BRACKET
Applies until depletion 		$35.10 2
5 942479
VARIABLE GEOMETRY WING MOUNTING BRACKET
Applicable after depletion of 788746 		$35.10 2
6 14059290
FLANGED NUT M6
IN STOCK 		$1.30 4
6 14059290
FLANGED NUT M6
IN STOCK 		$1.30 4
7 954427
VARIABLE GEOMETRY WING HEAT SHIELD 		$70.22 2
8 12640604
WASHER
IN STOCK 		$0.12 4
9 11612826
SCREW
M6 X 25 		$2.92 4
10 335169
LINEAR ELECTRIC ACTUATOR 		$591.88 2
11 897538
SCREW
M6 X 20 		$1.51 6
12 772365
VARIABLE GEOM. WING ACTUATOR PIVOT PIN 		$18.80 2
13 11065474
CIRCLIP
No longer supplied
IN STOCK 		$0.12 (87.4% off) 2
14 789739
ENDSTOP BUSH 		$12.16 2
15 291283
CLIP
IN STOCK 		$0.50 2
16 303385
CLIP
170 mm
IN STOCK 		$0.26 2
17 857463
SCREW
5 X 14 		$0.21 4
18 772193
MOBILE WING ACTUATOR BRACKET 		$89.01 2
19 814978
CLIP BEARING 		$24.06 4
