Forced Induction System Turbochargers And Mounts

Ferrari 296 GTB Europe

Find Your Part

Ferrari 296 GTB Europe - FORCED INDUCTION SYSTEM TURBOCHARGERS AND MOUNTS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
916465 RH TURBOCHARGER Enquire To Order
849086 RH TURBOCHARGER $6,081.36 To Order
916466 LH TURBOCHARGER Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
275465 GASKET $61.41 ARRIVING SOON
Photo Part No Description Price (each) Stock
342239 SPEED SENSOR $244.35 To Order
Photo Part No Description Price (each) Stock
14304124 SCREW $0.14 To Order
Photo Part No Description Price (each) Stock
811083 MECHANICAL PIN $1.17 To Order
Photo Part No Description Price (each) Stock
959447 RING SEAL $116.35 To Order
Photo Part No Description Price (each) Stock
959011 TURBO-MANIFOLD FASTENER V-CLAMP $164.42 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
784755 RH INNER MANIFOLD SHIELD ASSEMBLY $430.03 To Order
994348 RH INNER MANIFOLD SHIELD ASSEMBLY $417.38 To Order
784756 LH INNER MANIFOLD SHIELD ASSEMBLY $430.03 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
939647 RH EXHAUST MANIFOLD $6,001.67 To Order
939648 LH EXHAUST MANIFOLD $5,911.87 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
953586 EXHAUST MANIFOLD GASKET $58.16 To Order
Photo Part No Description Price (each) Stock
210971 EXHAUST NUT FLANGED COPPER $1.72 IN STOCK
Photo Part No Description Price (each) Stock
747393 RH OUTER MANIFOLD SHIELD $366.79 To Order
994345 RH OUTER MANIFOLD SHIELD $341.50 To Order
747394 LH OUTER MANIFOLD SHIELD $366.79 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
797723 SCREW $0.38 To Order
Photo Part No Description Price (each) Stock
799328 CENTRE HEAT SHIELD $240.30 To Order
Photo Part No Description Price (each) Stock
812556 FRONT MOUNT OF CENTRE HEAT SHIELD $36.67 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
784371 REAR MOUNT OF CENTRE HEAT SHIELD $59.43 To Order
Photo Part No Description Price (each) Stock
250318 SNAP CLIP $0.21 IN STOCK
Photo Part No Description Price (each) Stock
837574 STUD BOLT $12.00 To Order
Photo Part No Description Price (each) Stock
902850 HEAT SHIELD ABOVE TURBOCHARGERS $2,505.65 To Order
Photo Part No Description Price (each) Stock
797724 SCREW $0.43 To Order
Photo Part No Description Price (each) Stock
900142 MANIFOLD GUARD SUPPORT BRACKET $110.02 To Order
Photo Part No Description Price (each) Stock
797725 SCREW $0.81 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
910614 RH UPPER FASTENER BRACKET $25.28 To Order
910619 LH UPPER FASTENER BRACKET $25.28 To Order
Photo Part No Description Price (each) Stock
11566224 SCREW $0.34 IN STOCK
View All

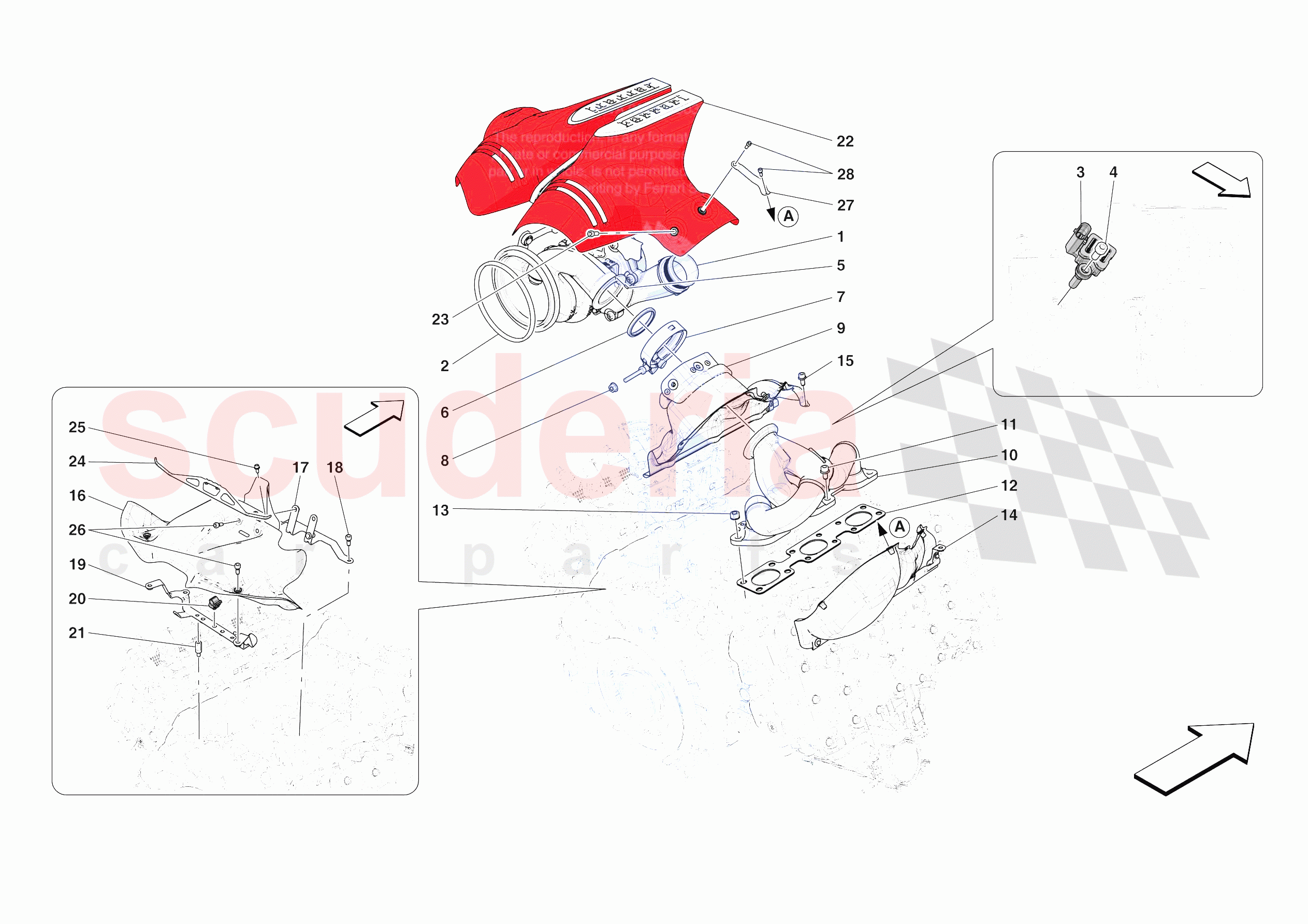

FORCED INDUCTION SYSTEM TURBOCHARGERS AND MOUNTS of Ferrari Ferrari 296 GTB Europe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 916465
RH TURBOCHARGER
No longer supplied - Replaced by 849086 		- 1 Enquire
1 849086
RH TURBOCHARGER 		$6,081.36 1
1 916466
LH TURBOCHARGER
No longer supplied - Replaced by 849087 		- 1 Enquire
1 849087
LH TURBOCHARGER 		$6,081.36 1
2 275465
GASKET
Also included in engine gasket set
ARRIVING SOON 		$61.41 (42.5% off) 2
3 342239
SPEED SENSOR 		$244.35 2
4 14304124
SCREW
M5 X 12 		$0.14 (81.3% off) 2
5 811083
MECHANICAL PIN 		$1.17 2
6 959447
RING SEAL
Also included in engine gasket set 		$116.35 2
7 959011
TURBO-MANIFOLD FASTENER V-CLAMP 		$164.42 2
8 14059290
FLANGED NUT M6
M6
IN STOCK 		$1.31 2
9 784755
RH INNER MANIFOLD SHIELD ASSEMBLY
Applies until depletion 		$430.03 1
9 994348
RH INNER MANIFOLD SHIELD ASSEMBLY
Applicable after depletion of 784755 		$417.38 1
9 784756
LH INNER MANIFOLD SHIELD ASSEMBLY
Applies until depletion 		$430.03 1
9 994349
LH INNER MANIFOLD SHIELD ASSEMBLY
Applicable after depletion of 784756 		$417.38 1
10 939647
RH EXHAUST MANIFOLD 		$6,001.67 1
10 939648
LH EXHAUST MANIFOLD 		$5,911.87 1
11 248334
SCREW
M6 X 16
IN STOCK 		$0.58 4
12 953586
EXHAUST MANIFOLD GASKET
Also included in engine gasket set 		$58.16 2
13 210971
EXHAUST NUT FLANGED COPPER
IN STOCK 		$1.72 (31.2% off) 12
14 747393
RH OUTER MANIFOLD SHIELD
Applies until depletion 		$366.79 1
14 994345
RH OUTER MANIFOLD SHIELD
Applicable after depletion of 747393 		$341.50 1
14 747394
LH OUTER MANIFOLD SHIELD
Applies until depletion 		$366.79 1
14 994346
LH OUTER MANIFOLD SHIELD
Applicable after depletion of 747394 		$341.50 1
15 797723
SCREW
M5 X 12 		$0.38 2
16 799328
CENTRE HEAT SHIELD 		$240.30 1
17 812556
FRONT MOUNT OF CENTRE HEAT SHIELD 		$36.67 1
18 248334
SCREW
M6 X 14
IN STOCK 		$0.58 9
19 784371
REAR MOUNT OF CENTRE HEAT SHIELD 		$59.43 1
20 250318
SNAP CLIP
IN STOCK 		$0.21 1
21 837574
STUD BOLT 		$12.00 2
22 902850
HEAT SHIELD ABOVE TURBOCHARGERS 		$2,505.65 1
23 797724
SCREW
M5 X 14 		$0.43 4
24 900142
MANIFOLD GUARD SUPPORT BRACKET 		$110.02 1
25 797725
SCREW 		$0.81 6
26 248334
SCREW
M6 X 16
IN STOCK 		$0.58 4
27 910614
RH UPPER FASTENER BRACKET 		$25.28 1
27 910619
LH UPPER FASTENER BRACKET 		$25.28 1
28 11566224
SCREW
M5 X 16
IN STOCK 		$0.34 4
